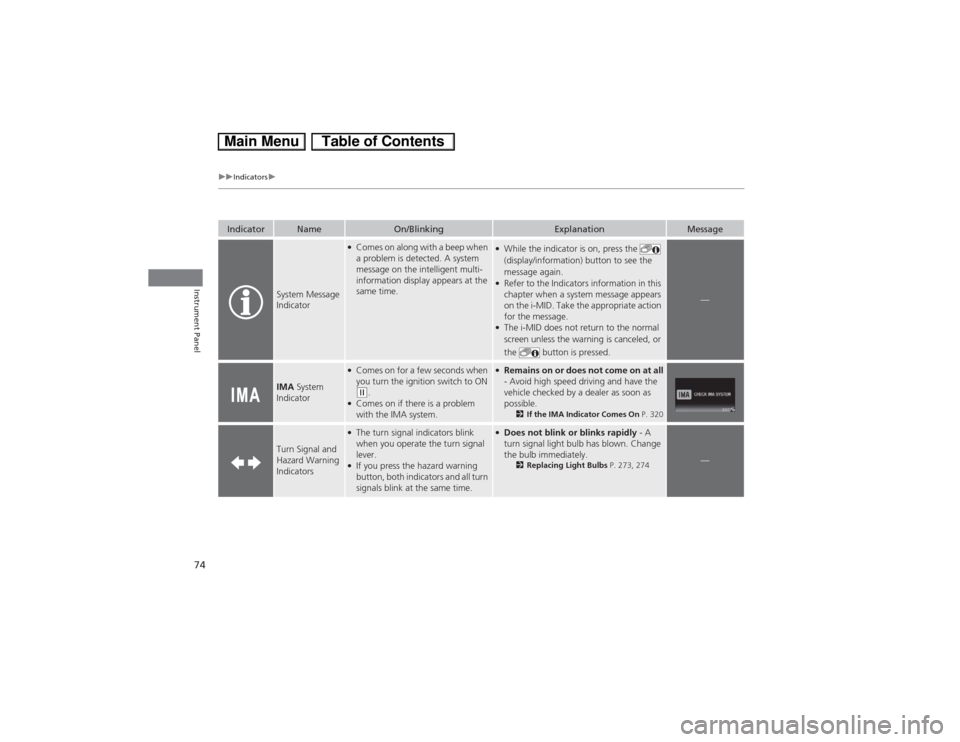

74
uuIndicatorsu
Instrument Panel
Indicator
Name
On/Blinking
Explanation
Message
System Message
Indicator
●Comes on along with a beep when
a problem is detected. A system
message on the intelligent multi-
information display appears at the
same time.
●While the indicator is on, press the
(display/information) button to see the
message again.●Refer to the Indicators information in this
chapter when a system message appears
on the i-MID. Take the appropriate action
for the message.●The i-MID does not return to the normal
screen unless the warning is canceled, or
the button is pressed.
—
IMA System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON (w.
●Comes on if there is a problem
with the IMA system.
●Remains on or does not come on at all
- Avoid high speed driving and have the
vehicle checked by a dealer as soon as
possible.
2If the IMA Indicator Comes On P. 320
Turn Signal and
Hazard Warning
Indicators
●The turn signal indicators blink
when you operate the turn signal
lever.●If you press the hazard warning
button, both indicators and all turn
signals blink at the same time.
●Does not blink or blinks rapidly - A
turn signal light bulb has blown. Change
the bulb immediately.
2Replacing Light Bulbs P. 273, 274
—

273
uuReplacing Light BulbsuFront Turn Signal/Parking/Side Marker Light Bulbs
Maintenance
Front Turn Signal/Parking/Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger side: Turn the steering wheel
to the left.
Driver side: Turn the steering wheel to the
right.
2.Remove the holding clips, and pull the inner
fender back.
3.Turn the socket to the left and remove it,
then remove the old bulb.
4.Insert a new bulb.Side Turn Signal/Emergency Indicator Light BulbsDoor mirrors have the side turn lights. Have an authorized Honda dealer inspect and
replace the light assembly.Front Turn Signal/Parking/Side Marker Light: 28/8 W
1Front Turn Signal/Parking/Side Marker Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat
ClipInner
FenderBulbSocket

274
uuReplacing Light BulbsuRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light BulbsWhen replacing, use the following bulbs.
1.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2.Turn the socket to the left and remove it.
Remove the old bulb.
3.Insert a new bulb.Brake/Taillight and Rear Side Maker BulbsBrake/rear taillight and rear side marker bulbs are LED type. Have an authorized
Honda dealer inspect and replace the light assembly.Rear Turn Signal Light: 21 W (Amber)
1Rear Turn Signal Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Clip
Push until the
pin is flat
Lining
ClipBulb Socket

275
uuReplacing Light BulbsuBack-Up Light Bulbs
Maintenance
Back-Up Light BulbsWhen replacing, use the following bulbs.
1.Remove the screw from the center of the
fastener using a Phillips-head screwdriver.
2.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2Rear Turn Signal Light Bulbs P. 274
3.Turn the socket to the left and remove it.
4.Remove the old bulb and insert a new bulb.
Taillight BulbsTaillight bulbs in the trunk lid are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.Back-Up Light: 16 WLining
Fastener
ClipBulb
Socket

276
uuReplacing Light BulbsuRear License Plate Light Bulbs
Maintenance
Rear License Plate Light BulbsWhen replacing, use the following bulbs.
1.Remove the screw from the center of the
fastener using a Phillips-head screwdriver.
2.Remove the holding clips using a flat-tip
screwdriver, then pull the lining back.
2Rear Turn Signal Light Bulbs P. 274
3.Remove the license plate light assembly by
squeezing the tabs on both sides of the
socket.
4.Remove the old bulb and insert a new bulb.
High-Mount Brake Light BulbsHigh-mount brake light bulbs are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.Rear License Plate Light: 5 W Lining
Fastener
Clip
Bulb
Socket

326Information
Specifications■Vehicle SpecificationsModel
Honda Civic Hybrid
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 3,837 lbs (1,740 kg)
Canada: 1,740 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,007 lbs (910 kg)
Canada: 910 kg
Gross Axle Weight
Rating (Rear)
U.S.: 1,852 lbs (840 kg)
Canada: 840 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant Type SE-10Y
■Engine Specifications
■Fuel
■12 Volt Battery
■Washer FluidDisplacement
91 cu-in (1,497 cm
3)
Spark Plugs NGK DILFR6J11
Fuel:
Type
Unleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 13.2 US gal (50 ℓ)
Capacity/Type
32AH(5)/40AH(20)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
■Light BulbsHeadlights (Low Beam)
51W (HB4)
Headlights (High Beam) 60W (HB3)
Front Turn Signal/Parking/Side
Marker Lights
28/8W
Daytime Running Lights LED
Rear Side Marker Lights
LED
Brake/Taillights LED
Side Turn Signal Lights (on Door
Mirrors)
LED
Back-Up Lights 16W
Taillights
LED
Rear Turn Signal Lights 21W (Amber)
High-Mount Brake Light
LED
License Plate Light 5W
Trunk Light
5W
Interior Lights
Spotlight 8W
Ceiling Light 8W

338Index
Brake System............................................. 240
Anti-lock Brake System (ABS) ................... 242
Brake Assist System ................................. 243
Brake System Indicator....................... 68, 319
Fluid ........................................................ 269
Foot Brake ............................................... 241
Indicator ............................................ 68, 319
Parking Brake .......................................... 240
Brightness Control (Instrument Panel).... 125
Bulb Replacement..................................... 271
Bulb Specifications ................................... 326
Front Turn Signal/Parking/Side Marker
Light ...................................................... 273
Headlights ............................................... 271
High-Mount Brake Light .......................... 276
Rear License Plate Light............................ 276
Side Turn Signal/Emergency Indicator....... 273CCarbon Monoxide Gas................................ 64
Carrying Cargo.................................. 209, 211
CD Player................................................... 155
Certification Label.................................... 328
Changing Bulbs......................................... 271
Charging System Indicator................. 69, 317
Child Safety................................................. 52
Childproof Door Locks ............................. 110
Emergency Trunk Opener ........................ 114
Child Seat.................................................... 52
Booster Seats ............................................. 63Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 59
Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks............................. 110
Cleaning the Exterior............................... 293
Cleaning the Interior................................ 291
Climate Control System............................ 140
Changing the Mode ................................ 140
Defrosting the Windshield and
Windows ............................................... 141
Dust and Pollen Filter............................... 290
Recirculation and Fresh Air Mode ............ 140
Sensors ................................................... 142
Using Automatic Climate Control ............ 140
Clock.......................................................... 104
Coat Hook................................................. 138
Compact Spare Tire.......................... 305, 327
Console Compartment............................. 135
Controls..................................................... 103
Coolant (Engine)...................................... 266
Adding to the Radiator ............................ 267
Adding to the Reserve Tank..................... 266
High Temperature Indicator ....................... 76
Low Temperature Indicator........................ 76
Overheating ............................................ 315
Creep Aid System..................................... 216Creeping................................................... 218
Cruise Control.......................................... 225
Indicator ................................................... 75
Cup Holders.............................................. 136
Customer Service Information................ 336
Customized Features................................. 91
DDaytime Running Lights.......................... 123
Dead Battery............................................ 312
Defrosting the Windshield and
Windows................................................. 141
Devices that Emit Radio Waves............... 329
Dimming
Headlights .............................................. 120
Rearview Mirror ...................................... 128
Dipstick (Engine Oil)................................ 262
Directional Signals (Turn Signal)............. 120
Display/Information Button...................... 83
Door Mirrors............................................. 128
Doors........................................................ 105
Auto Door Locking.................................. 111
Auto Door Unlocking .............................. 111
Door Open Indicator ........................... 31, 72
Keys........................................................ 105
Locking/Unlocking the Doors from the
Inside .................................................... 109
Locking/Unlocking the Doors from the
Outside ................................................. 107
Lockout prevention system ...................... 108

340Index
GGasoline (Fuel)
Economy ................................................. 249
Gauge ....................................................... 82
Information ............................................. 246
Instant Fuel Economy ........................... 82, 87
Low Fuel Indicator ..................................... 70
Refueling ................................................. 246
Gauges......................................................... 82
Gear Shift Lever Positions
Automatic Transmission (CVT) ................. 219
Glass (care)................................................ 293
Glove Box.................................................. 135HHalogen Bulbs........................................... 271
Handling the Unexpected........................ 295
HandsFreeLink® (HFL)............................... 175
Automatic Import of Cellular Phonebook
and Call History ..................................... 191
Automatic Transferring ............................ 189
Caller’s ID Information ............................. 189
HFL Buttons ............................................. 175
HFL Menus .............................................. 177
HFL Status Display.................................... 176
Making a Call .......................................... 195
Options During a Call .............................. 200
Phone Setup ............................................ 182
Receiving a Call ....................................... 199
Speed Dial ............................................... 192Text Message .................................. 187, 201
To Clear the System ................................ 190
To Create a Security PIN .......................... 188
Hazard Warning Button.............................. 2
Head Restraints........................................ 131
Headlights................................................. 121
Aiming .................................................... 271
Automatic Operation............................... 121
Dimming ......................................... 120, 123
Operating........................................ 120, 123
Heaters (Seat)........................................... 139
HFL (HandsFreeLink®)............................... 175
High Temperature Indicator...................... 76
High-Beam Indicator.................................. 75
Hill Start Assist System............................. 216
Honda IMA System..................................... 10
IIdentification Numbers............................ 328
Engine and Transmission ......................... 328
Vehicle Identification ............................... 328
Ignition Switch......................................... 119
Illumination Control................................. 125
Knob ....................................................... 125
IMA System Indicator................................. 74
Immobilizer System.................................. 115
Indicator.................................................... 75
Indicators.................................................... 68
Anti-lock Brake System (ABS)..................... 71
Auto Idle Stop ........................................... 73Brake System ............................................ 68
Charging System............................... 69, 317
CRUISE CONTROL ............................. 75, 226
CRUISE MAIN.................................... 75, 225
Door Open................................................ 31
ECON Mode ..................................... 76, 221
Electric Power Steering (EPS)
System ............................................ 73, 319
Forward Collision Warning (FCW) ............. 77
High Temperature ..................................... 76
High-Beam................................................ 75
IMA System .............................................. 74
Immobilizer System ................................... 75
Lane Departure Warning (LDW) ................ 78
Lights On .................................................. 75
Low Fuel ................................................... 70
Low Oil Pressure ............................... 72, 317
Low Temperature...................................... 76
Low Tire Pressure/TPMS .................... 73, 237
Malfunction Indicator Lamp .............. 69, 318
Parking Brake and Brake System ....... 68, 319
Seat Belt Reminder.............................. 33, 70
Security System Alarm............................... 76
Shift Lever Position.................................... 69
Supplemental Restraint System ........... 49, 71
System Message ....................................... 74
Transmission ............................................. 70
Trunk Open .............................................. 72
Turn Signal ............................................... 74
Vehicle Stability Assist (VSA®)
System ............................................ 71, 235
