Normal Scheduled Maintenance - At every oil change interval as
indicated by the message center
Change engine oil and filter
Rotate tires, inspect tire wear and measure tread depth
Perform multi-point inspection (recommended)
Inspect automatic transmission fluid level (if equipped with dipstick);
consult dealer for requirements
Inspect brake pads, shoes, rotors, drums, brake linings, hoses and
parking brake
Inspect cabin air filter (if equipped)
Inspect engine cooling system strength and hoses
Inspect exhaust system and heat shields
Inspect rear axle and U-joints; lubricate if equipped with grease fittings
(AWD vehicles)
Inspect half-shaft boots (if equipped)
Inspect steering linkage, ball joints, suspension, tie-rod ends, driveshaft
and U-joints; lubricate if equipped with grease fittings
Inspect wheels and related components for abnormal noise, wear,
looseness or drag
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter
Do not exceed one year or 10,000 miles (16,000 km) between
service intervals
376Scheduled Maintenance
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

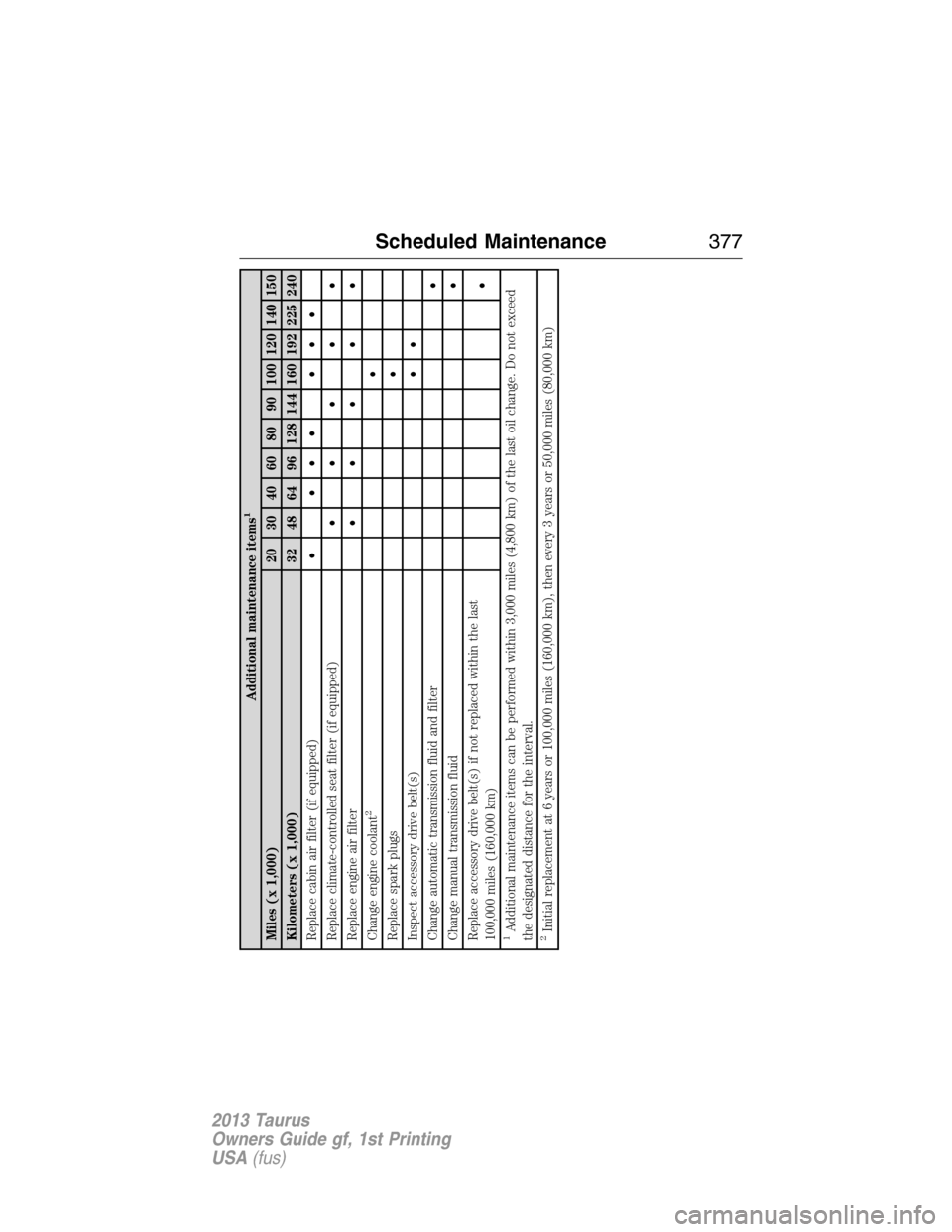

Additional maintenance items
1
Miles (x 1,000) 20 30 40 60 80 90 100 120 140 150
Kilometers (x 1,000) 32 48 64 96 128 144 160 192 225 240
Replace cabin air filter (if equipped)• ••• •••
Replace climate-controlled seat filter (if equipped)•••••
Replace engine air filter•••••
Change engine coolant
2
•
Replace spark plugs•
Inspect accessory drive belt(s)••
Change automatic transmission fluid and filter•
Change manual transmission fluid•
Replace accessory drive belt(s) if not replaced within the last
100,000 miles (160,000 km)•
1Additional maintenance items can be performed within 3,000 miles (4,800 km) of the last oil change. Do not exceed
the designated distance for the interval.2Initial replacement at 6 years or 100,000 miles (160,000 km), then every 3 years or 50,000 miles (80,000 km)
Scheduled Maintenance377
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Perform the services shown in the following tables when specified or
within 3,000 miles (4,800 km) of the OIL CHANGE REQUIRED message
appearing in the message center.
Example #1:The OIL CHANGE REQUIRED message comes on at
28,751 miles (46,270 km); perform the 30,000 mile (48,000 km)
automatic transmission fluid replacement.
Example #2:The OIL CHANGE REQUIRED message hasnotcome on
but the odometer reads 30,000 miles (48,000 km); perform the engine air
filter replacement. (i.e., Intelligent Oil Life Monitor™ was reset at
25,000 miles [40,000 km].)
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
message center and perform services listed in the
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Focus)
Every 60,000 miles
(96,000 km)Change manual transmission fluid
Scheduled Maintenance381
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

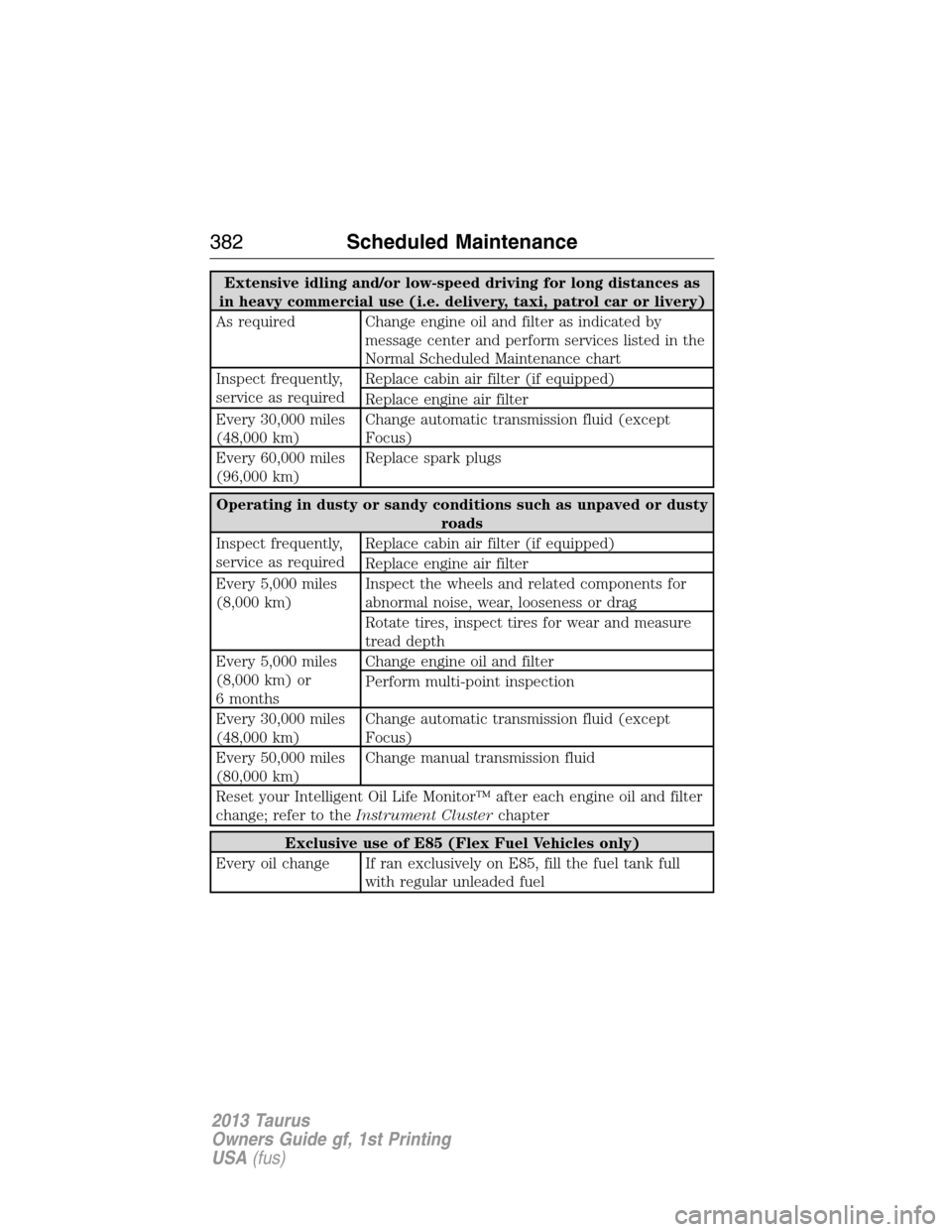

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
As required Change engine oil and filter as indicated by
message center and perform services listed in the
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Focus)
Every 60,000 miles
(96,000 km)Replace spark plugs
Operating in dusty or sandy conditions such as unpaved or dusty
roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Perform multi-point inspection
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
Focus)
Every 50,000 miles
(80,000 km)Change manual transmission fluid
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change If ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
382Scheduled Maintenance
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

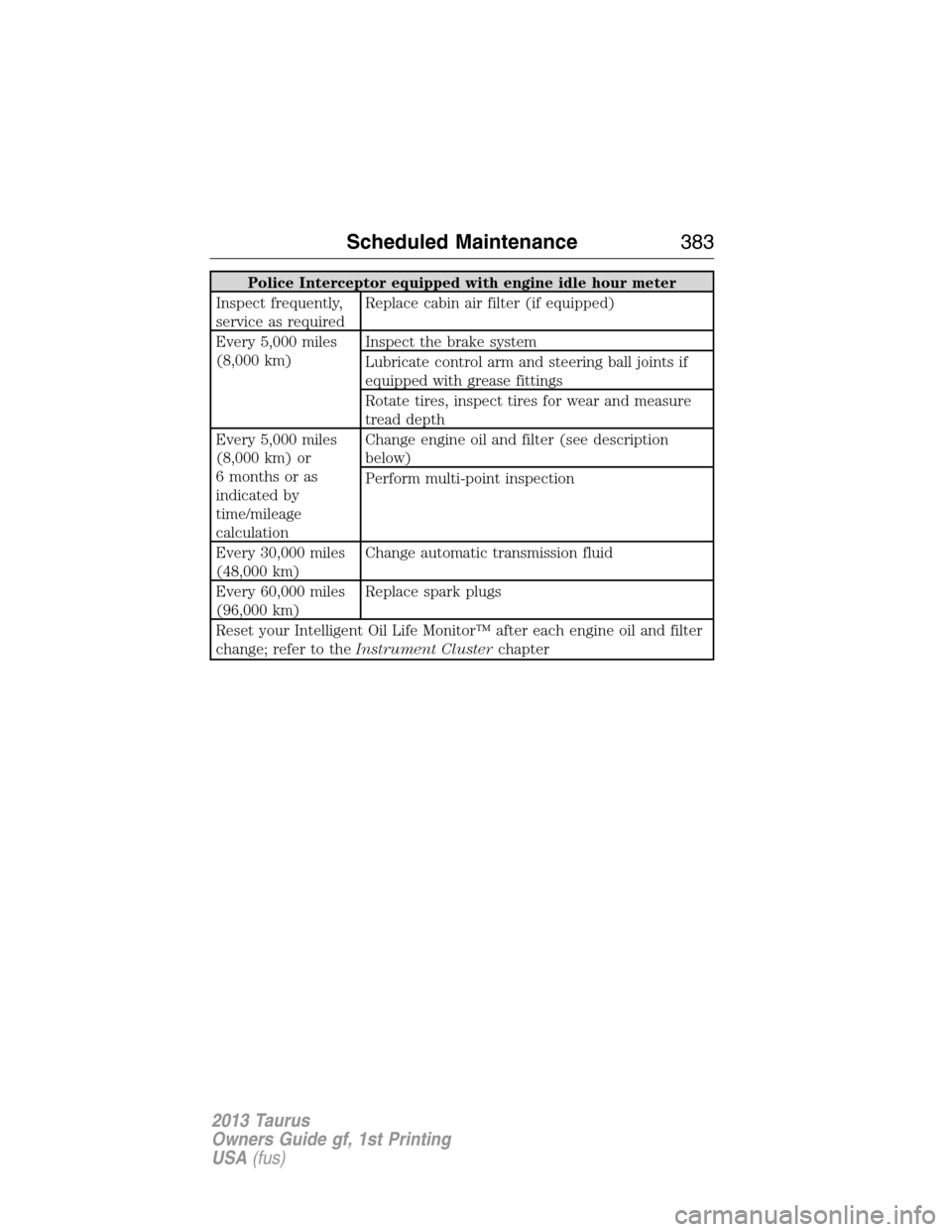

Police Interceptor equipped with engine idle hour meter
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Every 5,000 miles
(8,000 km)Inspect the brake system
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 months or as
indicated by
time/mileage
calculationChange engine oil and filter (see description
below)
Perform multi-point inspection
Every 30,000 miles
(48,000 km)Change automatic transmission fluid
Every 60,000 miles
(96,000 km)Replace spark plugs
Reset your Intelligent Oil Life Monitor™ after each engine oil and filter
change; refer to theInstrument Clusterchapter
Scheduled Maintenance383
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ...................... 408, 488
A
ABS (see Brakes) ..................... 205
Accessing and using your
USB port .................................... 467
Accessing call history/phone
book during active call ............. 398
Accessing your calendar .......... 488
Accessing your media menu
features ...................................... 420
Accessing your phone menu
features ...................................... 399
Accessory delay .......................... 96
Active call menu options ......... 398
Active Park Assist ..................... 212
Adaptive Cruise Control ........... 221
Adding (pairing) a phone ........ 475
Advanced menu options ... 407, 427
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) .............................. 407
Airbag supplemental restraint
system .......................................... 45
and child safety seats .............. 46
description ................................ 45
disposal ...................................... 54
driver airbag .............................. 45
passenger airbag ....................... 45
side airbag ........................... 45, 50
Air cleaner filter ....... 300–301, 360
Air conditioning ........................ 142
manual heating and air
conditioning system ............... 142All Wheel Drive (AWD),
driving off road ......................... 197
Ambient mood/lighting ............. 493
AM/FM ....................................... 450
Anti-lock brake system
(see Brakes) .............................. 205
Anti-theft system .................. 77, 80
arming the system .............. 77, 80
disarming a triggered system .. 80
Audio system
Single CD ................ 130, 134, 136
Audio system
(see Radio) ................ 130, 134, 136
Automatic transmission
driving an automatic
overdrive ................................. 192
fluid, adding ............................ 292
fluid, checking ........................ 292
fluid, refill capacities .............. 356
fluid, specification .................. 356
Selectshift (SST) .................... 193
Auxiliary Input Jack ................. 461
Auxiliary input jack (Line in) .. 137
Auxiliary powerpoint ................ 173
A/V inputs .......................... 139, 472
B
Battery ....................................... 298
acid, treating emergencies ..... 298
jumping a disabled battery .... 259
maintenance-free .................... 298
replacement, specifications ... 360
servicing .................................. 298
Blind Spot Information
System ....................................... 229
Booster seats ............................... 23
534Index
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

Dipstick
automatic transmission
fluid .......................................... 292
engine oil ................................. 286
Display settings ......................... 492
Driving under special
conditions .................. 196, 199, 201
sand ......................................... 200
snow and ice ........................... 202
through water ................. 200, 254
Dual automatic temperature
control (DATC) ......... 144, 146, 148
E
Electronic message center ....... 109
Electronic stability control ...... 209
Emergencies, roadside
jump-starting .......................... 259
running out of fuel ................. 184
Emergency brake
(see Parking brake) .................. 205
Emission control system .......... 188
End user license agreement .... 516
Engine ................................ 354–355
cleaning ................................... 311
fail-safe cooling ....................... 290
idle speed control ................... 298
lubrication specifications ....... 356
refill capacities ........................ 356
service points .................. 283, 285
Engine block heater ................. 180
Engine oil
checking and adding .............. 286
dipstick .................................... 286
filter, specifications ................ 360refill capacities ........................ 356
specifications .......................... 356
Event data recording .................. 13
Exhaust fumes .......................... 180
F
Fail safe cooling ........................ 290
Fleet MyKey programming ........ 63
Flexible Fuel Vehicle (FFV) .... 182
Floor mats ................................. 255
Fluid capacities ......................... 356
Four-Wheel Drive vehicles
driving off road ....................... 198
Fuel
cap ........................................... 186
capacity ................................... 356
choosing the right fuel ........... 183
filler funnel ............................. 184
filling your vehicle
with fuel .................................. 186
filter, specifications ........ 297, 360
fuel pump shut-off .................. 259
octane rating ................... 184, 354
running out of fuel ................. 184
safety information relating to
automotive fuels ..................... 182
Fuel and distance computer .... 112
outside temperature
indicator .................................. 112
to empty indicator .................. 112
trip distance ............................ 112
trip/reset button ..................... 112
Fuel - flex fuel vehicle
(FFV) ................................. 182–183
Fuses .................................. 271–272
536Index
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

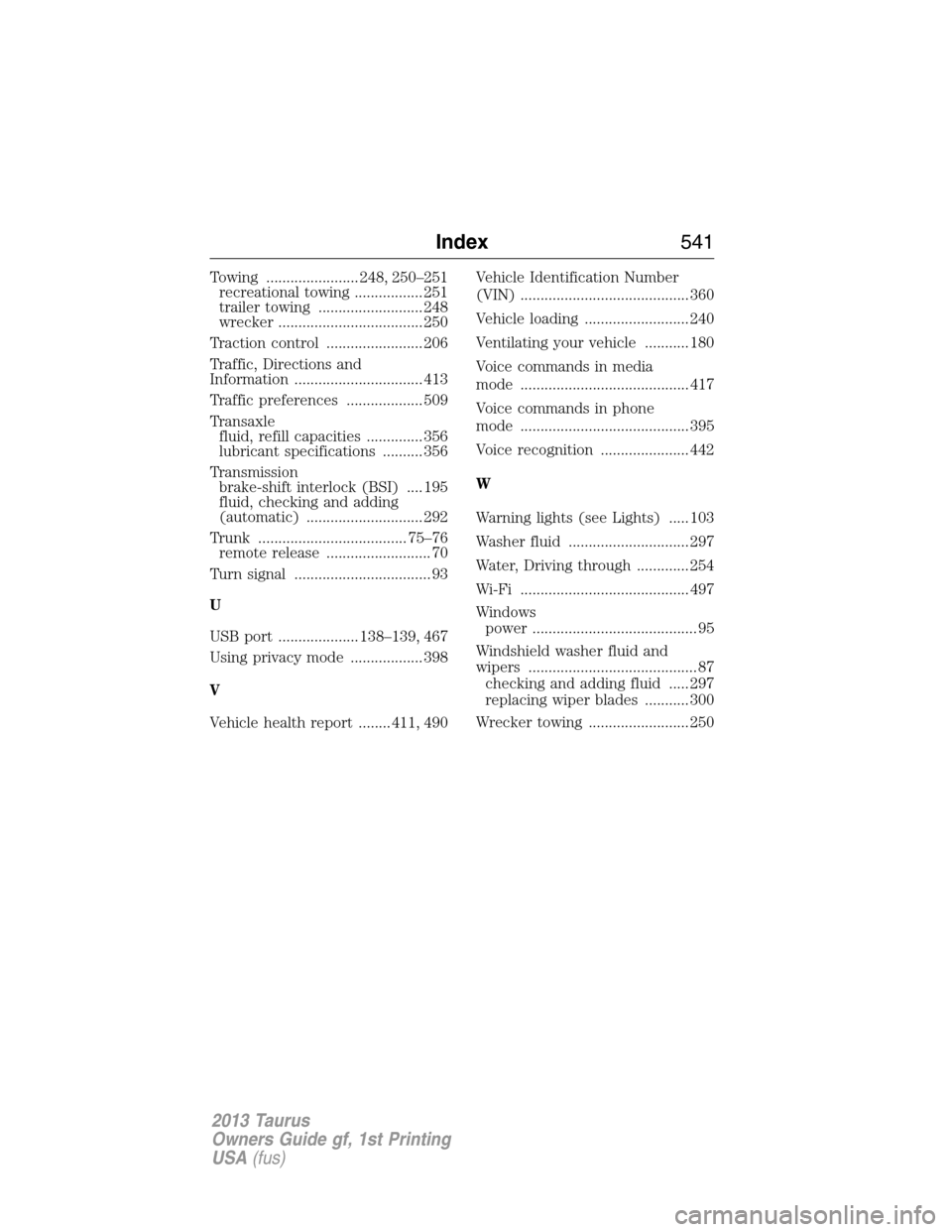

Towing ....................... 248, 250–251
recreational towing ................. 251
trailer towing .......................... 248
wrecker .................................... 250
Traction control ........................ 206
Traffic, Directions and
Information ................................ 413
Traffic preferences ................... 509
Transaxle
fluid, refill capacities .............. 356
lubricant specifications .......... 356
Transmission
brake-shift interlock (BSI) .... 195
fluid, checking and adding
(automatic) ............................. 292
Trunk ..................................... 75–76
remote release .......................... 70
Turn signal .................................. 93
U
USB port .................... 138–139, 467
Using privacy mode .................. 398
V
Vehicle health report ........ 411, 490Vehicle Identification Number
(VIN) .......................................... 360
Vehicle loading .......................... 240
Ventilating your vehicle ........... 180
Voice commands in media
mode .......................................... 417
Voice commands in phone
mode .......................................... 395
Voice recognition ...................... 442
W
Warning lights (see Lights) ..... 103
Washer fluid .............................. 297
Water, Driving through ............. 254
Wi-Fi .......................................... 497
Windows
power ......................................... 95
Windshield washer fluid and
wipers .......................................... 87
checking and adding fluid ..... 297
replacing wiper blades ........... 300
Wrecker towing ......................... 250
Index541
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)
