2013 FORD TAURUS display

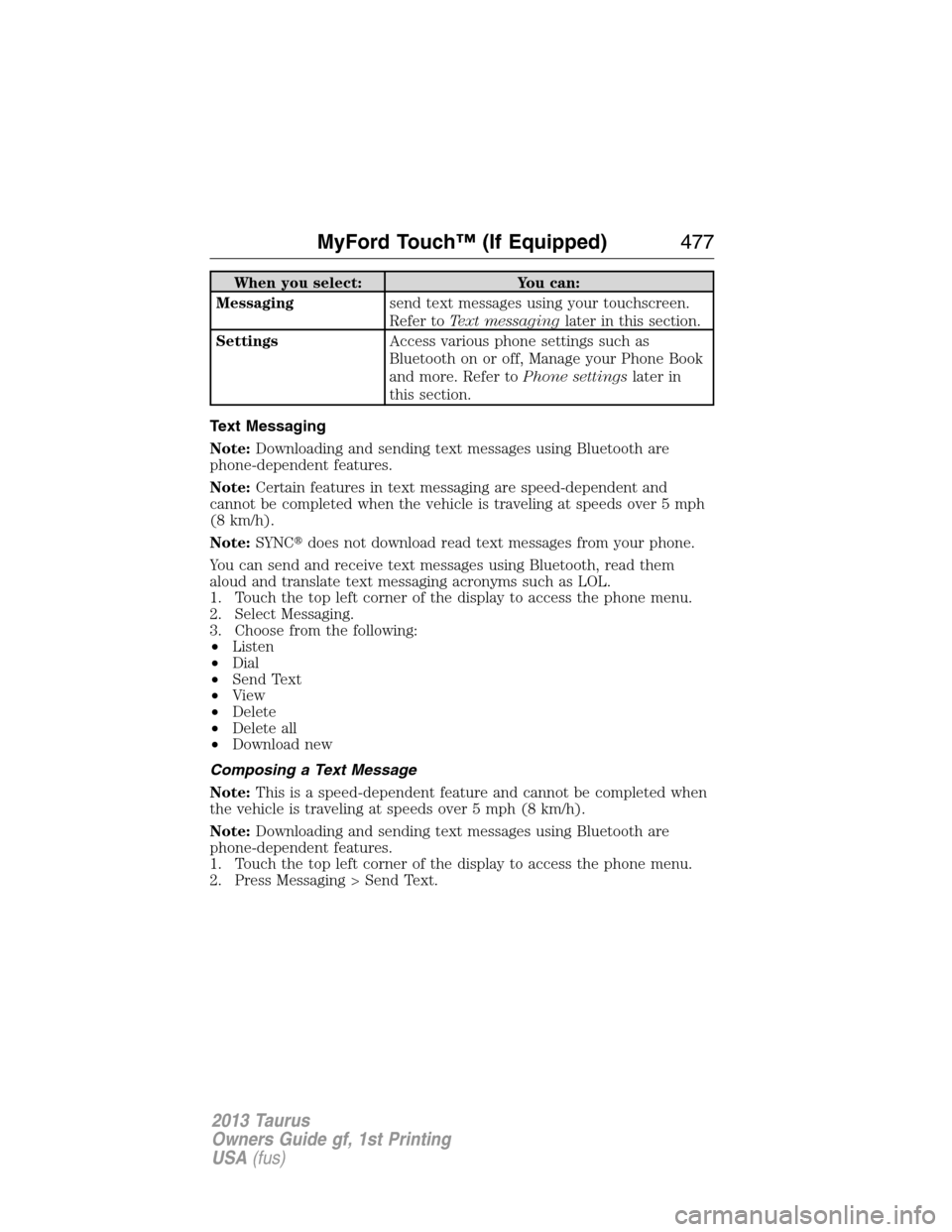

When you select: You can:
Messagingsend text messages using your touchscreen.
Refer toText messaginglater in this section.
SettingsAccess various phone settings such as
Bluetooth on or off, Manage your Phone Book
and more. Refer toPhone settingslater in
this section.
Text Messaging
Note:Downloading and sending text messages using Bluetooth are
phone-dependent features.
Note:Certain features in text messaging are speed-dependent and
cannot be completed when the vehicle is traveling at speeds over 5 mph
(8 km/h).
Note:SYNCdoes not download read text messages from your phone.
You can send and receive text messages using Bluetooth, read them
aloud and translate text messaging acronyms such as LOL.
1. Touch the top left corner of the display to access the phone menu.
2. Select Messaging.
3. Choose from the following:
•Listen
•Dial
•Send Text
•View
•Delete
•Delete all
•Download new
Composing a Text Message
Note:This is a speed-dependent feature and cannot be completed when
the vehicle is traveling at speeds over 5 mph (8 km/h).
Note:Downloading and sending text messages using Bluetooth are
phone-dependent features.
1. Touch the top left corner of the display to access the phone menu.
2. Press Messaging > Send Text.
MyFord Touch™ (If Equipped)477
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

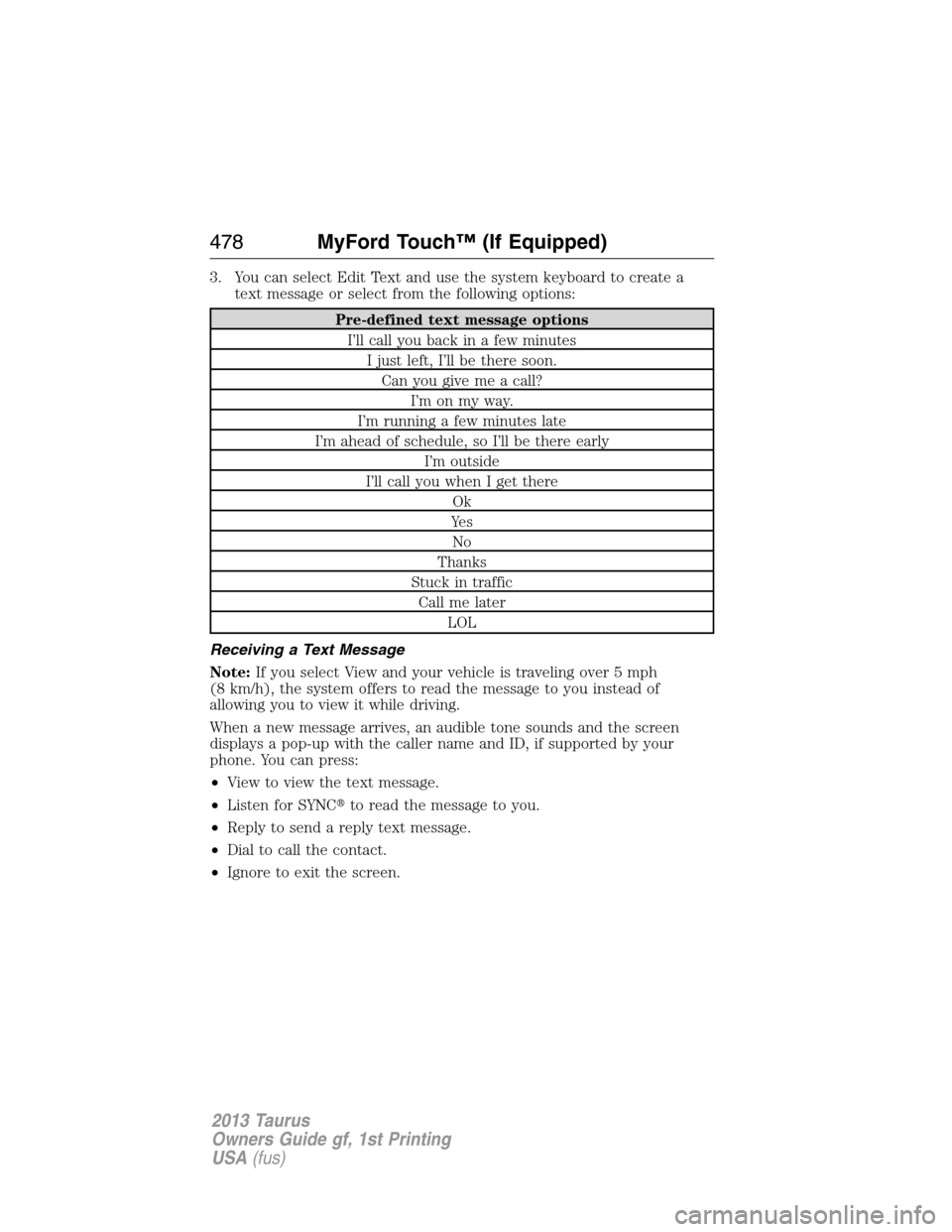

3. You can select Edit Text and use the system keyboard to create a
text message or select from the following options:
Pre-defined text message options
I’ll call you back in a few minutes
I just left, I’ll be there soon.
Can you give me a call?
I’m on my way.
I’m running a few minutes late
I’m ahead of schedule, so I’ll be there early
I’m outside
I’ll call you when I get there
Ok
Ye s
No
Thanks
Stuck in traffic
Call me later
LOL
Receiving a Text Message
Note:If you select View and your vehicle is traveling over 5 mph
(8 km/h), the system offers to read the message to you instead of
allowing you to view it while driving.
When a new message arrives, an audible tone sounds and the screen
displays a pop-up with the caller name and ID, if supported by your
phone. You can press:
•View to view the text message.
•Listen for SYNCto read the message to you.
•Reply to send a reply text message.
•Dial to call the contact.
•Ignore to exit the screen.
478MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

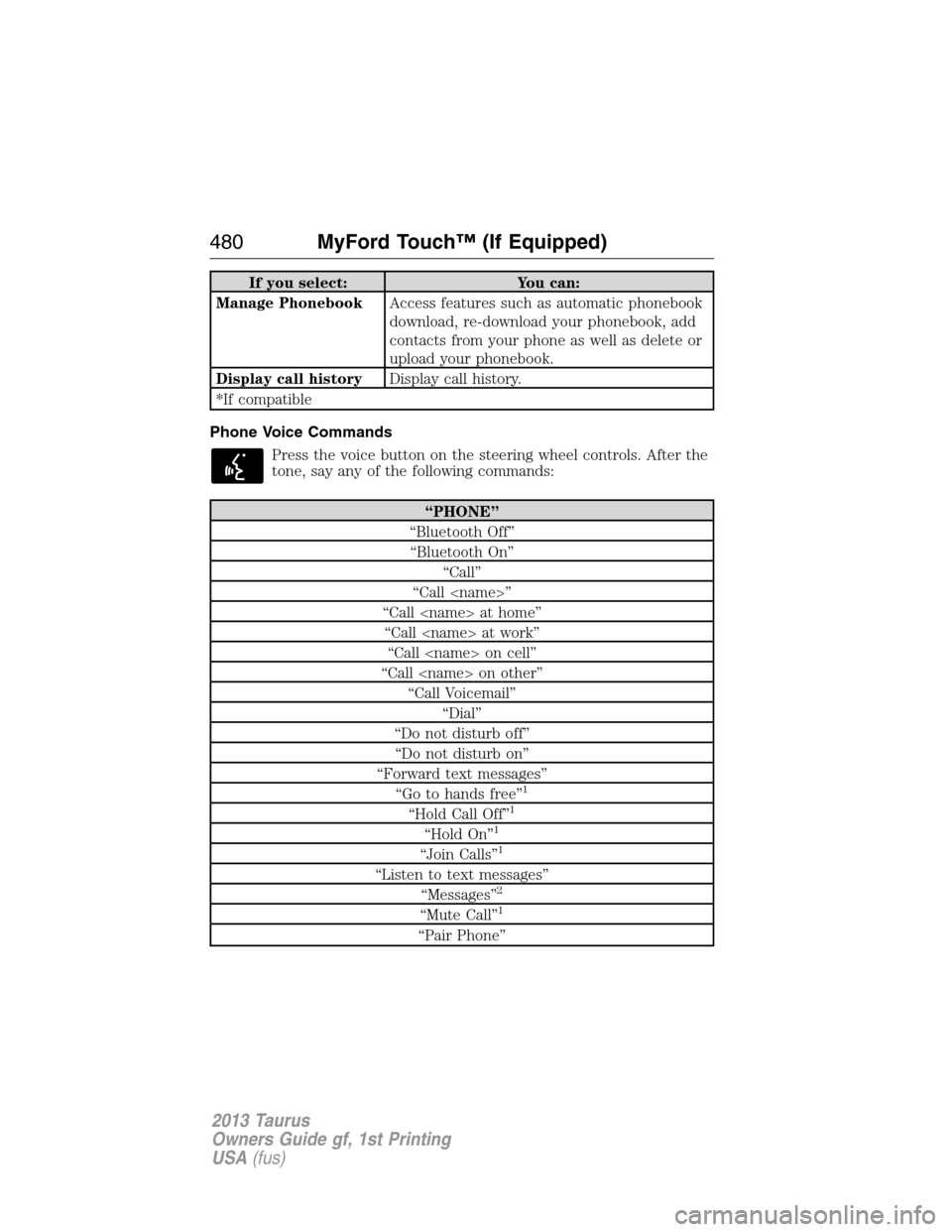

If you select: You can:
Manage PhonebookAccess features such as automatic phonebook
download, re-download your phonebook, add
contacts from your phone as well as delete or
upload your phonebook.
Display call historyDisplay call history.
*If compatible
Phone Voice Commands
Press the voice button on the steering wheel controls. After the
tone, say any of the following commands:
“PHONE”
“Bluetooth Off”
“Bluetooth On”
“Call”
“Call ”
“Call at home”
“Call at work”
“Call on cell”
“Call on other”
“Call Voicemail”
“Dial”
“Do not disturb off”
“Do not disturb on”
“Forward text messages”
“Go to hands free”
1
“Hold Call Off”1
“Hold On”1
“Join Calls”1
“Listen to text messages”
“Messages”2
“Mute Call”1
“Pair Phone”
480MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

1. Select Connect to Services to initiate an outgoing call to SYNC
Services using your phone.
2. Once connected, follow the voice prompts to request your desired
Service such as Traffic or Directions. You can also say “What are my
choices?” to receive a complete list of available services from which
to choose.
3. To return to the services menu, say “Services” or for help, say “Help”.
Receiving Turn-by-Turn Directions
1. When connected to SYNC Services, say “Directions” or “Business
Search”. To find the closest business or type of business to your
current location just say “Business Search” and then “Search Near
Me”. If you need further assistance in finding a location you can say
“Operator” at any time within a Directions or Business search to
speak with a live operator. You may also be prompted to speak with
an operator. The live operator can assist you by searching for
businesses by name or by category, residential addresses by street
address or by name or specific street intersections. Operator Assist is
a feature of your SYNC Services subscription. For more information
on Operator Assist visit www.SYNCMyRide.com/support.
2. Follow the voice prompts to select your Destination. After the route
download is complete, the phone call is automatically ended.
If your vehicle is not equipped with the navigation feature:
•Turn-by-turn directions appear in the infotainment display, in the
status bar of your touchscreen system and also on the SYNC Services
screen. You also receive driving instructions from audible prompts.
•When on an active route, you can select Route Summary or Route
Status using the touchscreen controls or voice commands to view the
Route summary turn list or the Route Status ETA. You can also turn
voice guidance on or off, cancel the route or update the route.
If you miss a turn, SYNC automatically asks if you want the route
updated. Just say, “Yes” when prompted and a new route will be
delivered to your vehicle.
If your vehicle is equipped with the navigation feature, SYNC Services
downloads your requested destination to the navigation system. The
navigation system then calculates the route and provides driving
instructions. Refer to theNavigation Featuressection for more
information.
MyFord Touch™ (If Equipped)483
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

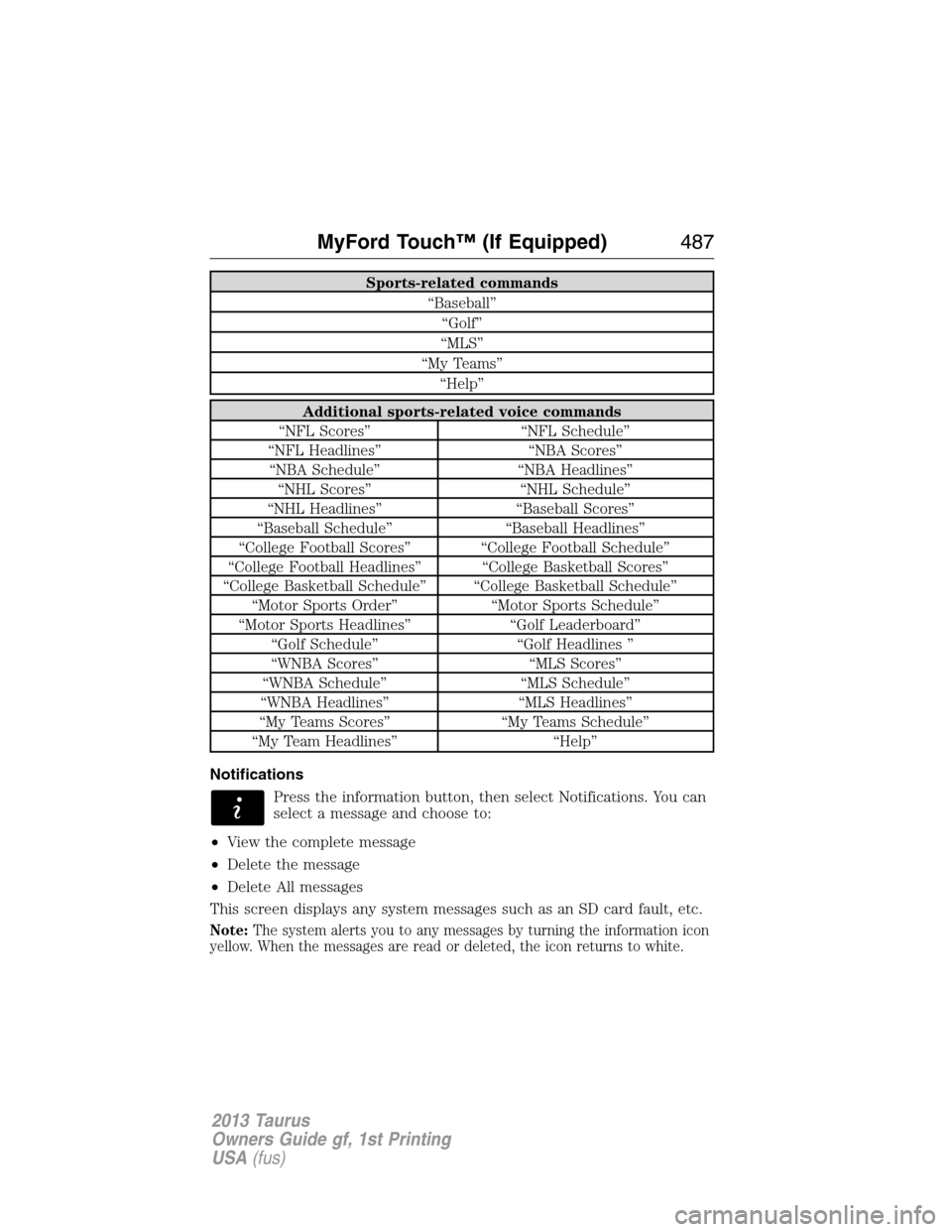

Sports-related commands
“Baseball”
“Golf”
“MLS”
“My Teams”
“Help”
Additional sports-related voice commands
“NFL Scores” “NFL Schedule”
“NFL Headlines” “NBA Scores”
“NBA Schedule” “NBA Headlines”
“NHL Scores” “NHL Schedule”
“NHL Headlines” “Baseball Scores”
“Baseball Schedule” “Baseball Headlines”
“College Football Scores” “College Football Schedule”
“College Football Headlines” “College Basketball Scores”
“College Basketball Schedule” “College Basketball Schedule”
“Motor Sports Order” “Motor Sports Schedule”
“Motor Sports Headlines” “Golf Leaderboard”
“Golf Schedule” “Golf Headlines ”
“WNBA Scores” “MLS Scores”
“WNBA Schedule” “MLS Schedule”
“WNBA Headlines” “MLS Headlines”
“My Teams Scores” “My Teams Schedule”
“My Team Headlines” “Help”
Notifications
Press the information button, then select Notifications. You can
select a message and choose to:
•View the complete message
•Delete the message
•Delete All messages
This screen displays any system messages such as an SD card fault, etc.
Note:The system alerts you to any messages by turning the information icon
yellow. When the messages are read or deleted, the icon returns to white.
MyFord Touch™ (If Equipped)487
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

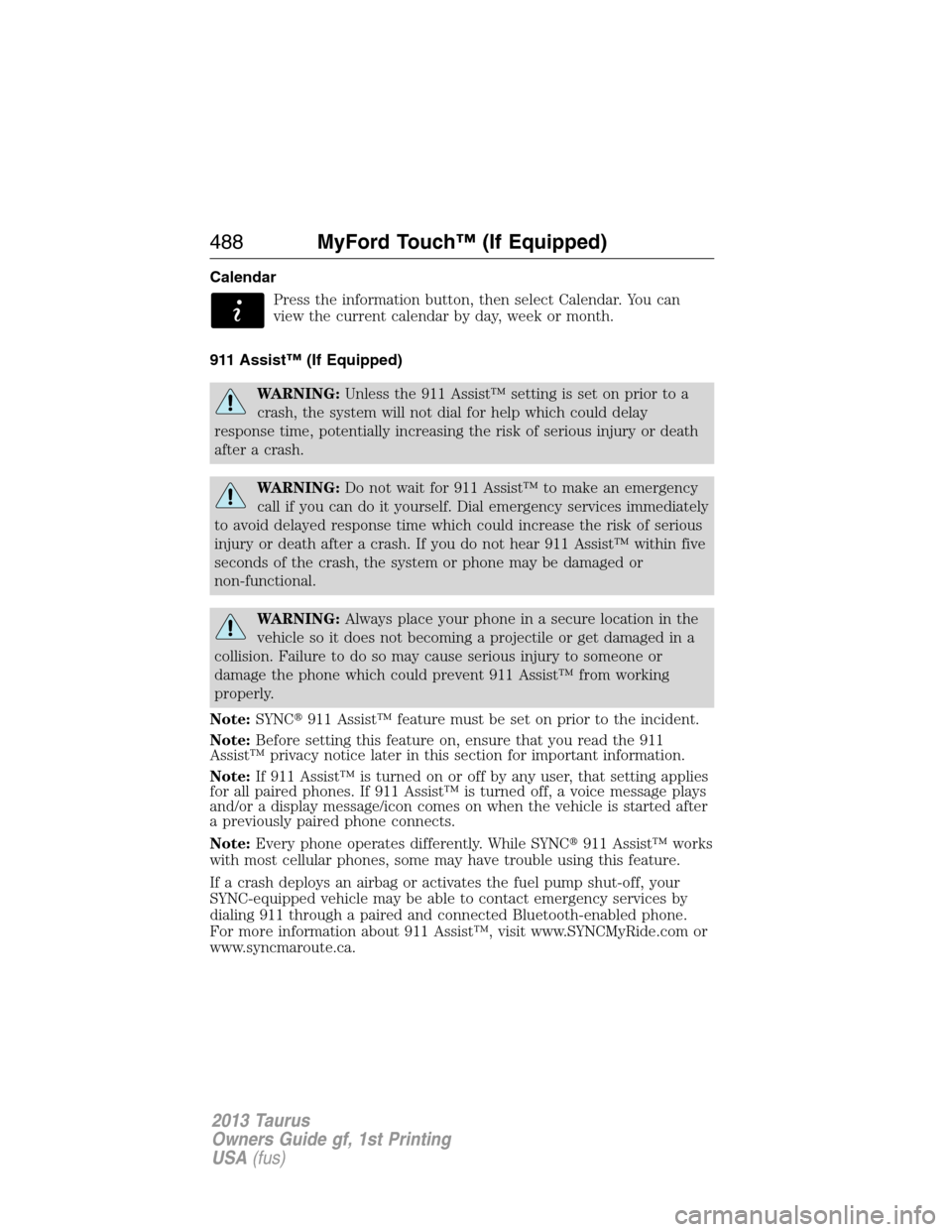

Calendar
Press the information button, then select Calendar. You can
view the current calendar by day, week or month.
911 Assist™ (If Equipped)
WARNING:Unless the 911 Assist™ setting is set on prior to a
crash, the system will not dial for help which could delay
response time, potentially increasing the risk of serious injury or death
after a crash.
WARNING:Do not wait for 911 Assist™ to make an emergency
call if you can do it yourself. Dial emergency services immediately
to avoid delayed response time which could increase the risk of serious
injury or death after a crash. If you do not hear 911 Assist™ within five
seconds of the crash, the system or phone may be damaged or
non-functional.
WARNING:Always place your phone in a secure location in the
vehicle so it does not becoming a projectile or get damaged in a
collision. Failure to do so may cause serious injury to someone or
damage the phone which could prevent 911 Assist™ from working
properly.
Note:SYNC911 Assist™ feature must be set on prior to the incident.
Note:Before setting this feature on, ensure that you read the 911
Assist™ privacy notice later in this section for important information.
Note:If 911 Assist™ is turned on or off by any user, that setting applies
for all paired phones. If 911 Assist™ is turned off, a voice message plays
and/or a display message/icon comes on when the vehicle is started after
a previously paired phone connects.
Note:Every phone operates differently. While SYNC911 Assist™ works
with most cellular phones, some may have trouble using this feature.
If a crash deploys an airbag or activates the fuel pump shut-off, your
SYNC-equipped vehicle may be able to contact emergency services by
dialing 911 through a paired and connected Bluetooth-enabled phone.
For more information about 911 Assist™, visit www.SYNCMyRide.com or
www.syncmaroute.ca.
488MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

MENU FEATURES
Under the menu setting, you can set your clock, access and make
adjustments to the display, sound and vehicle settings as well as access
settings for specific modes or the help feature.
Setting the Clock
Note:The date is set by your vehicle’s GPS; you cannot manually set the
date.
Note:If the battery has been disconnected, the vehicle needs to acquire
a GPS signal to update the clock. Once your vehicle acquires the signal,
it may take a few minutes for the update to display the correct time.
1. Press MENU > Clock.
2. Press + and to adjust the time.
From this screen, you can also make other adjustments such as 12– or
24–hour mode, activate GPS time synchronization and have the system
automatically update new time zones.
Once you update any settings they will be automatically saved.
Display Settings
To access and make adjustments to the touchscreen display, using the
touchscreen:
Press Menu > Display, then choose any of the following:
•Brightness
•Auto Dim On/Off
•Mode: Auto, Day or Night
•Edit Wallpaper
To access and make adjustments to the touchscreen display
using voice commands, press the voice button on your steering
wheel controls and when prompted, say “Display Settings”.
Uploading Photos for Your Home Screen Wallpaper
Your system allows you to upload and view up to 32 photos.
To access:
Note:You cannot load photos directly from your camera. You must
access the photos from either your USB mass storage device or from an
SD card.
To upload photos, press Menu > Display > Edit Wallpaper, then follow
the system prompts to upload your photographs.
492MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

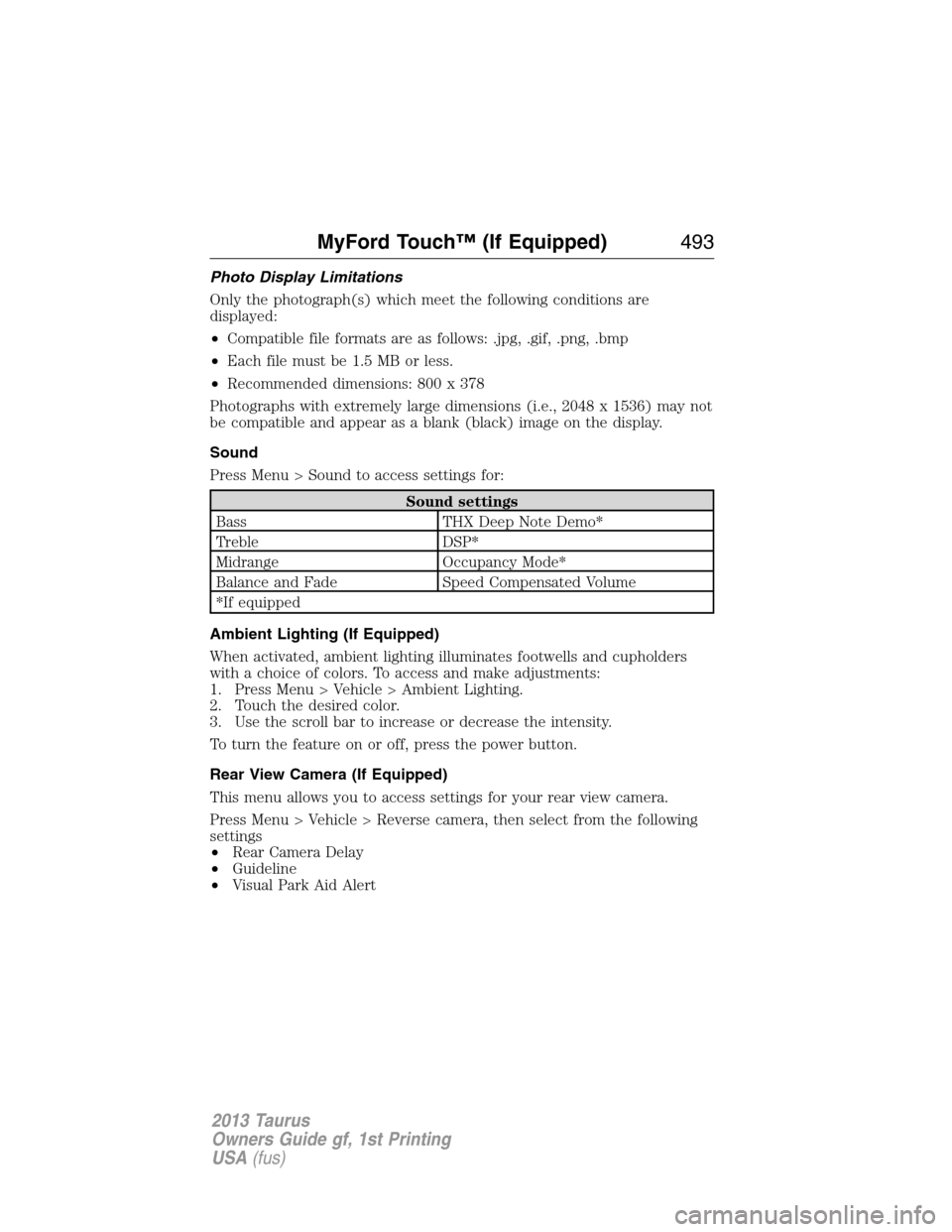

Photo Display Limitations
Only the photograph(s) which meet the following conditions are
displayed:
•Compatible file formats are as follows: .jpg, .gif, .png, .bmp
•Each file must be 1.5 MB or less.
•Recommended dimensions: 800 x 378
Photographs with extremely large dimensions (i.e., 2048 x 1536) may not
be compatible and appear as a blank (black) image on the display.
Sound
Press Menu > Sound to access settings for:
Sound settings
Bass THX Deep Note Demo*
Treble DSP*
Midrange Occupancy Mode*
Balance and Fade Speed Compensated Volume
*If equipped
Ambient Lighting (If Equipped)
When activated, ambient lighting illuminates footwells and cupholders
with a choice of colors. To access and make adjustments:
1. Press Menu > Vehicle > Ambient Lighting.
2. Touch the desired color.
3. Use the scroll bar to increase or decrease the intensity.
To turn the feature on or off, press the power button.
Rear View Camera (If Equipped)
This menu allows you to access settings for your rear view camera.
Press Menu > Vehicle > Reverse camera, then select from the following
settings
•Rear Camera Delay
•Guideline
•Visual Park Aid Alert
MyFord Touch™ (If Equipped)493
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)
