2013 FORD MUSTANG steering wheel

MyKey 57
Settings, MyKey.......................................57
Creating.............................................58
Clearing.............................................58
System status.........................................59
Remote start, MyKey...................................59
Troubleshooting, MyKey.................................61
Locks 63
Locking and unlocking..................................63
Interior luggage compartment release.......................67
Security 68
SecuriLockpassive anti-theft system.......................68
Anti-theft system......................................70
Steering Wheel 73
Adjusting the steering wheel..............................73
Steering wheel controls..................................74
Wipers and Washers 76
Windshield wipers......................................76
Windshield washers.....................................76
Lighting 77
Lighting control.......................................77
Autolamps...........................................78
Instrument lighting dimmer...............................78
Headlamp exit delay....................................79
Daytime running lamps..................................80
Front fog lamps.......................................80
Directionindicators ....................................81
Interior lamps.........................................81
2Table of Contents
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

Maintenance 227
General information...................................227
Opening and closing the hood............................228
Under hood overview..................................229
Engine compartment...................................229
Engine oil dipstick....................................231
Engine oil check......................................231
Engine coolant check..................................232
Automatic transmission fluid check........................236
Brake fluid check.....................................237
Power steering fluid check..............................237
Washer fluid check....................................238
Battery.............................................238
Checking the wiper blades...............................240
Air filter(s)..........................................241
Adjusting the headlamps................................242
Changing a bulb......................................243
Vehicle Care 248
Cleaning products.....................................248
Cleaning the exterior...................................248
Waxing.............................................250
Repairing minor paint damage............................250
Cleaning the engine...................................250
Cleaning the windows and wiper blades.....................251
Cleaning the interior...................................252
Cleaning the instrument panel and instrument cluster lens.......252
Cleaning leather seats..................................253
Cleaning the alloy wheels...............................254
Vehicle storage.......................................254
6Table of Contents
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

Event Data Recording
This vehicle is equipped with an event data recorder (EDR). The
main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger safety belts were
buckled/fastened;
•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
•How fast the vehicle was travelling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have such special equipment, can read the information if they
have access to the vehicle or the EDR. Ford Motor Company and
Ford of Canada do not access event data recorder information
without obtaining consent, unless pursuant to court order or
where required by law enforcement, other government authorities
or other third parties acting with lawful authority. Other parties
may seek to access the information independently of Ford Motor
Company and Ford of Canada.
12Introduction
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

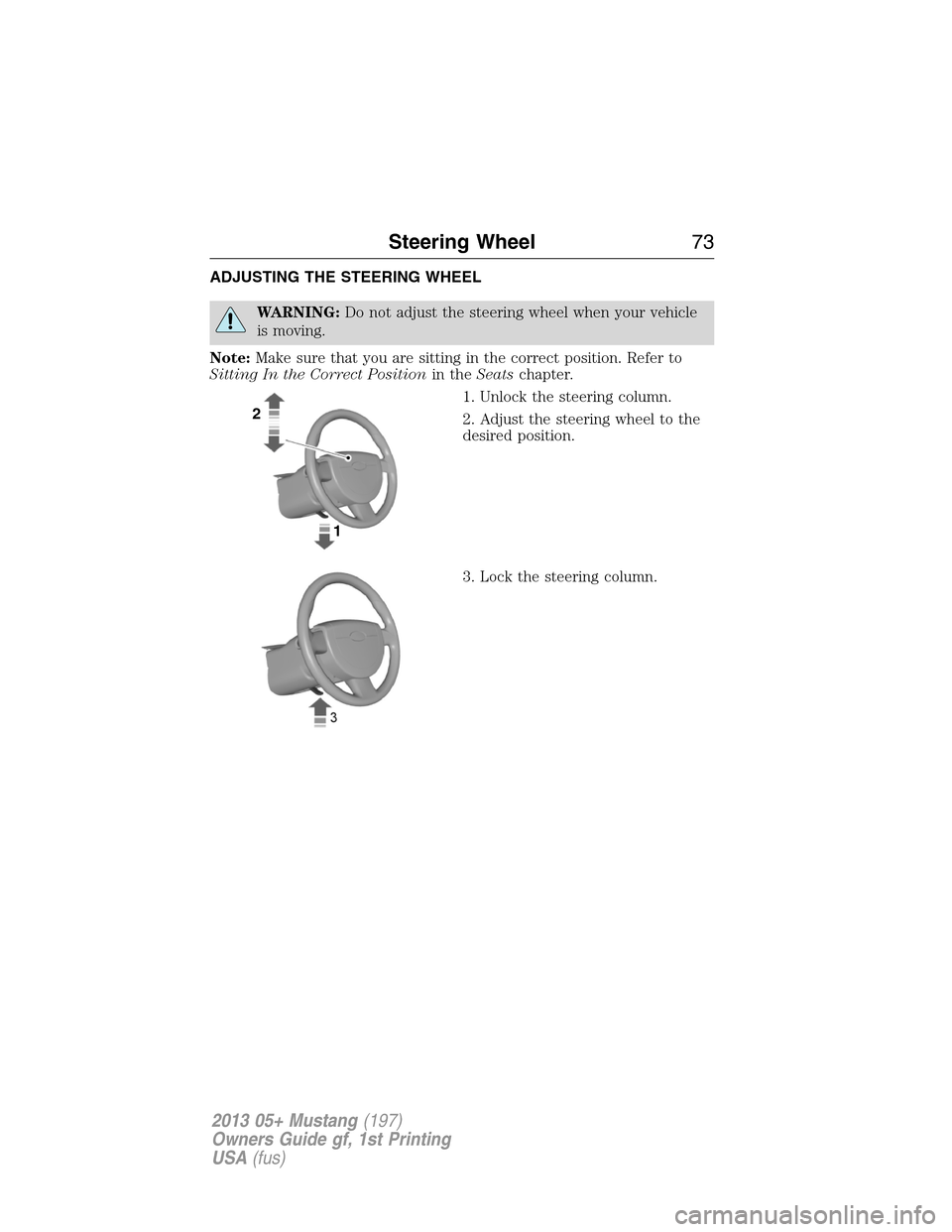

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting In the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
2
1
Steering Wheel73
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

AUDIO CONTROL (IF EQUIPPED)
A. Media
B. Volume down
C. Volume up
D. Seek up or next
E. Seek down or previous
Press the media button repeatedly to scroll through available audio
modes.
Press the seek buttons to select the next or previous stored preset or
track. Press and hold to select the next or previous frequency or seek
through a track.
VOICE CONTROL (IF EQUIPPED)
A. Voice recognition
B. Phone mode
Refer to theSYNCorNavigation Systemchapter.
CRUISE CONTROL
Refer to theCruise Control
chapter.
-+
ABC
ED
-+
OK
A
B
-+SET CNCL
RSMON
OFF
74Steering Wheel
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

INFORMATION DISPLAY CONTROL
Type 1
Type 2
Refer to theInformation Displayschapter.
OK
Steering Wheel75
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

GENERAL INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Various systems on your vehicle can be controlled using the information
display controls located on the on the steering wheel . Corresponding
information is displayed in the information display.
Information Display Controls (Type 1)
•Press the info button to scroll
through trip, fuel usage and
MyKeyinformation.
•Press the setup button to scroll
through various vehicle feature
settings.
•Press the reset button to choose
settings, reset information and
confirm messages.
Info
Press INFO repeatedly to cycle
through the following features:
TRIP A/B
Registers the distance of individual journeys. Press and release INFO
until the A or B trip appears in the display (this represents the trip
mode). Press and hold RESET for two seconds to reset.
96Information Displays
2013 05+ Mustang(197)
Owners Guide gf, 1st Printing
USA(fus)

RESET FOR SYSTEM CHECK
When this message appears, press
the RESET button and the
information display will begin to
cycle through the following systems
and provide a status of the item if
needed.
1. XXX% OIL LIFE
2. CHARGING SYSTEM
3. DOORS STATUS
4. TRUNK STATUS
5. BRAKE SYSTEM
6. FUEL LEVEL
7. MYKEY DISTANCE (if MyKeyis programmed)
8. MYKEY(S) PROGRAMMED
9. ADMIN KEYS PROGRAMMED
Note:Some systems show a message only if a condition is present.
OIL LIFE
This displays the remaining oil life.
An oil change is required whenever indicated by the information center
and according to the recommended maintenance schedule. USE ONLY
RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change perform
the following:
1. Press and release SETUP to display “OIL LIFE XXX% HOLD RESET =
NEW”.
2. Press and hold RESET for two seconds and release to reset the oil life
to 100%.
STEERING FEEL
This feature allows three modes of steering feel.
Press RESET to cycle through the settings of:
•STANDARD–Provides a balance between a comfort and sport feel.
•SPORT–Slightly higher effort required for steering with more road
force felt through the steering wheel. See note below.
98Information Displays
