2013 FORD MUSTANG Boss 302 Supplement Manual

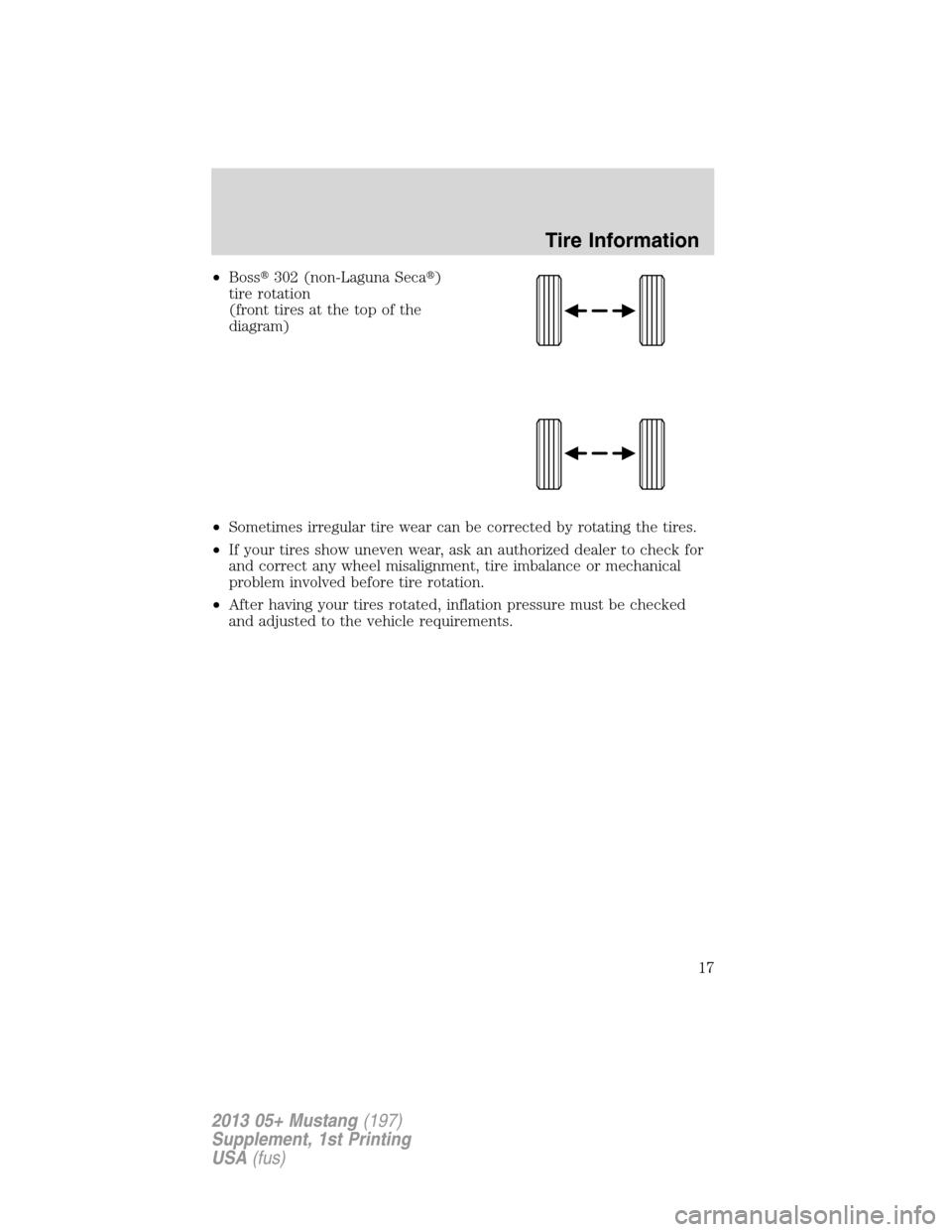

•Boss302 (non-Laguna Seca)
tire rotation
(front tires at the top of the
diagram)
•Sometimes irregular tire wear can be corrected by rotating the tires.
•If your tires show uneven wear, ask an authorized dealer to check for
and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
•After having your tires rotated, inflation pressure must be checked
and adjusted to the vehicle requirements.
Tire Information
17
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

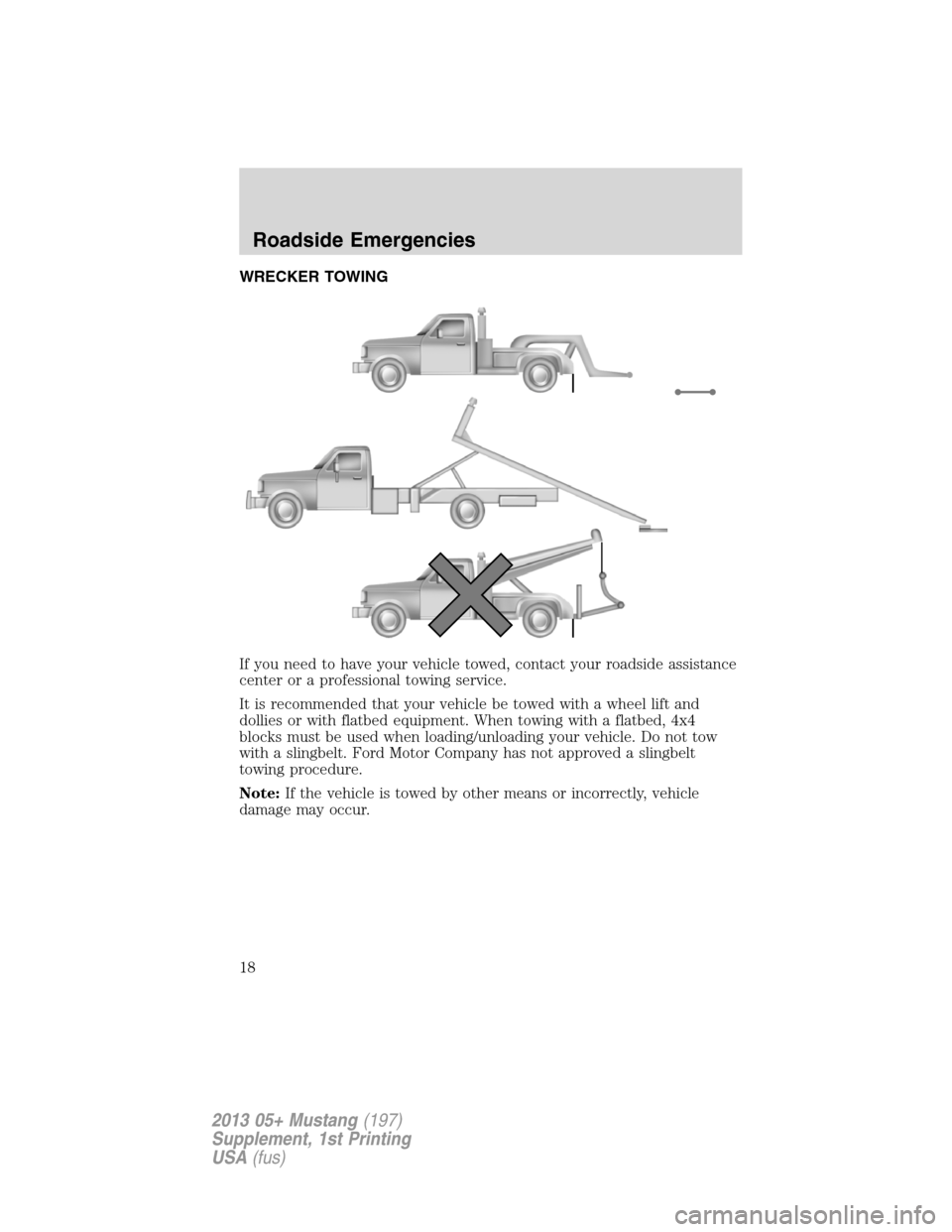

WRECKER TOWING
If you need to have your vehicle towed, contact your roadside assistance
center or a professional towing service.
It is recommended that your vehicle be towed with a wheel lift and
dollies or with flatbed equipment. When towing with a flatbed, 4x4
blocks must be used when loading/unloading your vehicle. Do not tow
with a slingbelt. Ford Motor Company has not approved a slingbelt
towing procedure.
Note:If the vehicle is towed by other means or incorrectly, vehicle
damage may occur.
Roadside Emergencies
18
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Wheel Lift
When towing the vehicle for front loading, the front tires must be 16 in.
(41 cm) higher than the rear.
When towing the vehicle for rear loading, the rear tires must be 14 in.
(35 cm) higher than the front.
Roadside Emergencies
19
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

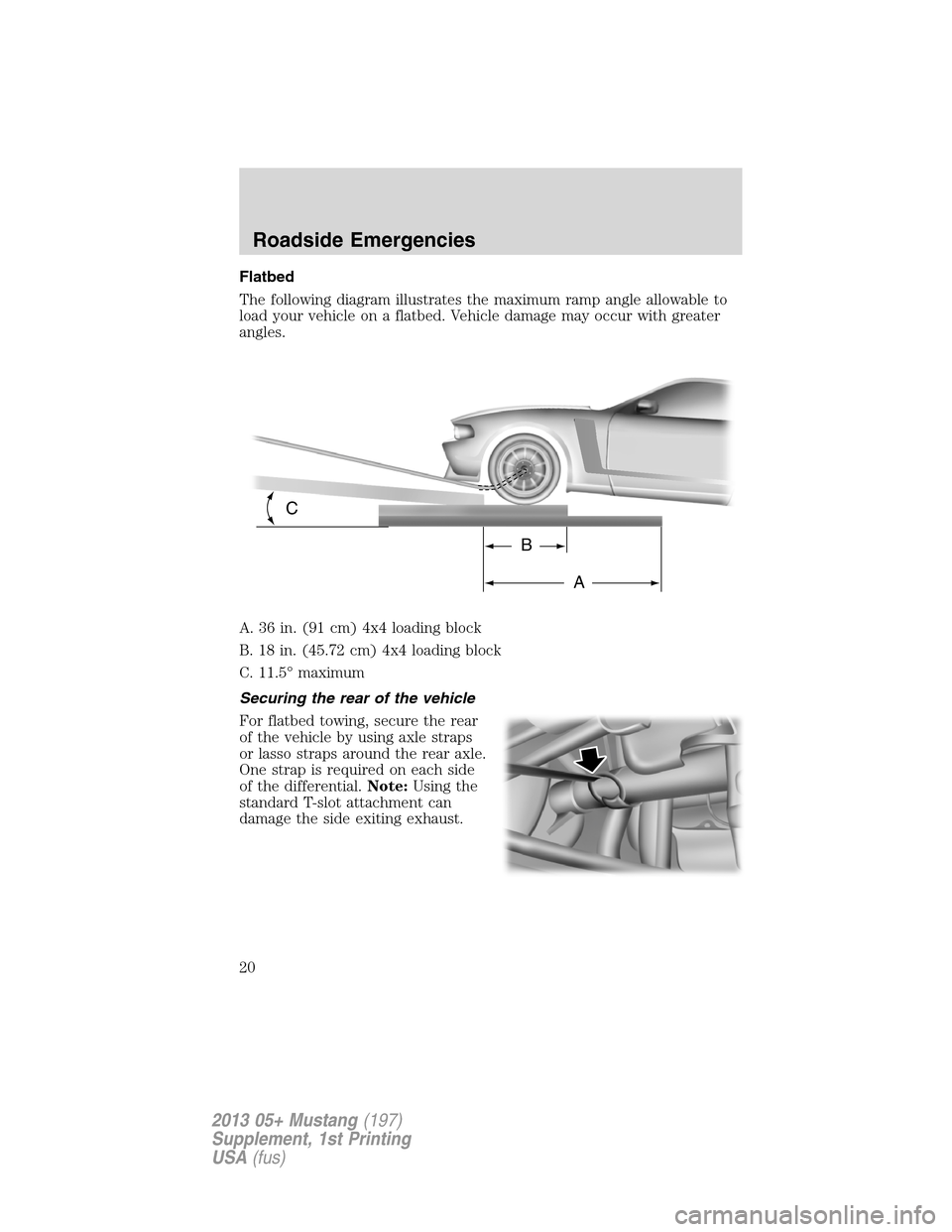

Flatbed
The following diagram illustrates the maximum ramp angle allowable to
load your vehicle on a flatbed. Vehicle damage may occur with greater
angles.
A. 36 in. (91 cm) 4x4 loading block
B. 18 in. (45.72 cm) 4x4 loading block
C. 11.5° maximum
Securing the rear of the vehicle
For flatbed towing, secure the rear
of the vehicle by using axle straps
or lasso straps around the rear axle.
One strap is required on each side
of the differential.Note:Using the
standard T-slot attachment can
damage the side exiting exhaust.
C
B
A
Roadside Emergencies
20
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

BOSS302 V8 ENGINE
A. Battery
B. Engine oil dipstick
C. Brake fluid reservoir
D. Air filter assembly
E. Engine coolant reservoir
F. Engine oil filler cap
G. Windshield washer reservoir filler cap
H. Power distribution box
A
HGFED
BC
Maintenance
21
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

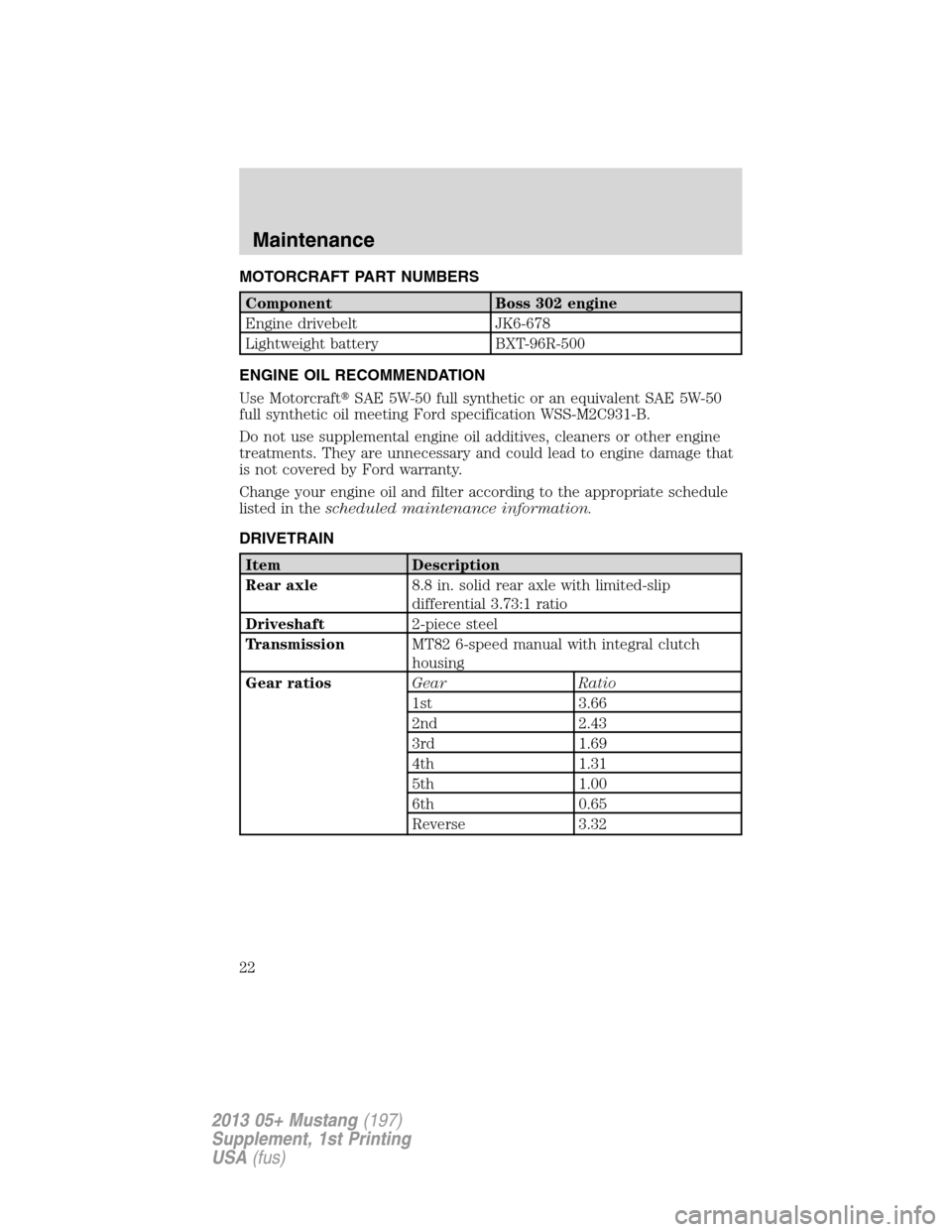

MOTORCRAFT PART NUMBERS
Component Boss 302 engine
Engine drivebelt JK6-678
Lightweight battery BXT-96R-500
ENGINE OIL RECOMMENDATION
Use MotorcraftSAE 5W-50 full synthetic or an equivalent SAE 5W-50
full synthetic oil meeting Ford specification WSS-M2C931-B.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
DRIVETRAIN
Item Description
Rear axle8.8 in. solid rear axle with limited-slip
differential 3.73:1 ratio
Driveshaft2-piece steel
TransmissionMT82 6-speed manual with integral clutch
housing
Gear ratiosGear Ratio
1st 3.66
2nd 2.43
3rd 1.69
4th 1.31
5th 1.00
6th 0.65
Reverse 3.32
Maintenance
22
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

REAR SEAT DELETE PANELS (IF EQUIPPED)
In the event of battery failure, you can access the trunk area by doing
the following:
1. Remove the two top fasteners by
turning them counterclockwise.
2. Remove the trunk access panel
(located behind the cross brace) by
pulling it slightly down while
pushing it rearward (toward the
trunk).
To remove the rear floor panel, do the following:
1. Remove the two top fasteners by
turning them counterclockwise.
2. Lift the top of the two bottom
fasteners with a flat-end
screwdriver, then remove them.
3. Remove the rear floor panel.
4. Remove the trunk access panel
(located behind the cross brace) by
pulling it slightly down while
pushing it rearward (toward the
trunk).
Maintenance
23
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

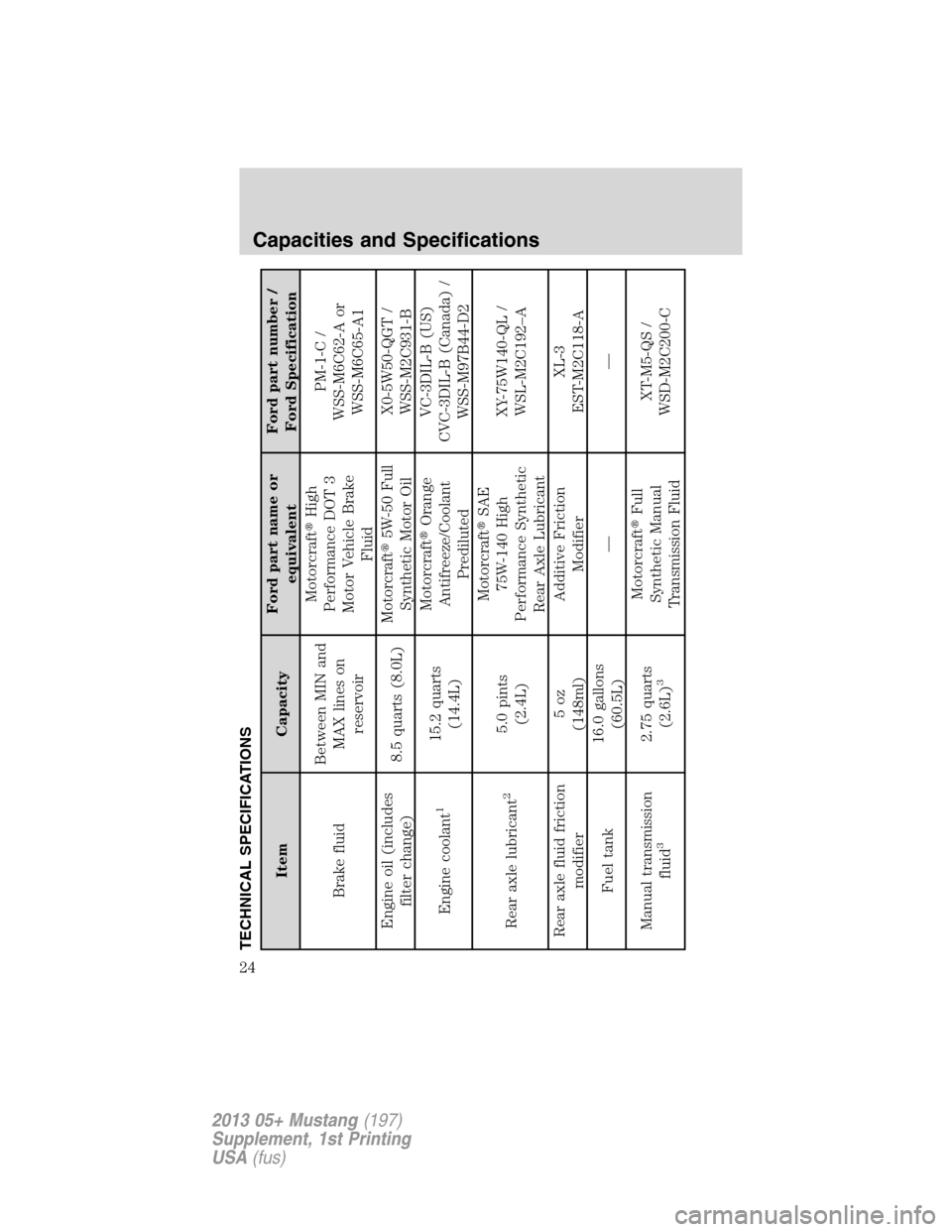

TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Brake fluidBetween MIN and
MAX lines on
reservoirMotorcraftHigh
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Engine oil (includes
filter change)8.5 quarts (8.0L)Motorcraft5W-50 Full
Synthetic Motor OilX0-5W50-QGT /
WSS-M2C931-B
Engine coolant
1
15.2 quarts
(14.4L)MotorcraftOrange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Rear axle lubricant
2
5.0 pints
(2.4L)MotorcraftSAE
75W-140 High
Performance Synthetic
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192–A
Rear axle fluid friction
modifier5oz
(148ml)Additive Friction
ModifierXL-3
EST-M2C118-A
Fuel tank16.0 gallons
(60.5L)——
Manual transmission
fluid
3
2.75 quarts
(2.6L)
3
MotorcraftFull
Synthetic Manual
Transmission FluidXT-M5-QS /
WSD-M2C200-C
Capacities and Specifications
24
2013 05+ Mustang(197)
Supplement, 1st Printing
