TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or the
GAWR specified on the certification
label.
Towing trailers beyond the maximum
recommended gross trailer weight
exceeds the limit of your vehicle and
could result in engine damage,
transmission damage, structural damage,
loss of vehicle control, vehicle rollover and
personal injury. Note:
Your vehicle may have electrical
items, such as fuses or relays, related to
towing. See Fuses (page 231).
Your vehicle may have electrical items,
such as fuses or relays, related to towing.
See the Fuses chapter.
Your vehicle's load capacity designation
is by weight, not by volume, so you cannot
necessarily use all available space when
loading a vehicle.
Towing a trailer places an extra load on
your vehicle's engine, transmission, axle,
brakes, tires and suspension. Inspect these
components periodically during, and after,
any towing operation.
Load Placement
To help minimize how trailer movement
affects your vehicle when driving:
• Load the heaviest items closest to the
trailer floor.
• Load the heaviest items centered
between the left and right side trailer
tires. •
Load the heaviest items above the
trailer axles or just slightly forward
toward the trailer tongue. Do not allow
the final trailer tongue weight to go
above or below 10-15% of the loaded
trailer weight.
• Select a tow bar with the correct rise
or drop. When both the loaded vehicle
and trailer are connected, the trailer
frame should be level, or slightly angled
down toward your vehicle, when
viewed from the side.
When driving with a trailer or payload, a
slight takeoff vibration or shudder may be
present due to the increased payload
weight. Additional information regarding
proper trailer loading and setting your
vehicle up for towing is located in the Load
Carrying chapter. See
Load Limit (page
205). You can also find the information in
the RV & Trailer Towing Guide, available
at an authorized dealer.
RECOMMENDED TOWING
WEIGHTS
Note: Do not exceed the trailer weight for
your vehicle configuration listed in the chart
below.
Note: Make sure to take into consideration
trailer frontal area. Do not exceed 20 feet 2
(1.86 meters 2
).
Note: For high altitude operation, reduce
the gross combined weight by 2% per 1000
feet (300 meters) starting at the 1000 foot
(300 meter) elevation point.
Note: Certain states require electric trailer
brakes for trailers over a specified weight.
Be sure to check state regulations for this
specified weight. The maximum trailer
weights listed may be limited to this
specified weight, as the vehicle ’s electrical
system may not include the wiring
connector needed to activate electric trailer
brakes.
212
Fusion/Mondeo (CC7) Towing

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page 251).The high-current fuses are coded as
follows:
Protected components
Fuse amp rating
Fuse or relay number
Wiper motor #2
25A 3
1
Starter relay
—
2
Autowipers
15A 1
3
Blower motor relay
—
4
Power point 3 - Back of console
20A 3
5
Not used
—
6
232
Fusion/Mondeo (CC7) FusesE144783

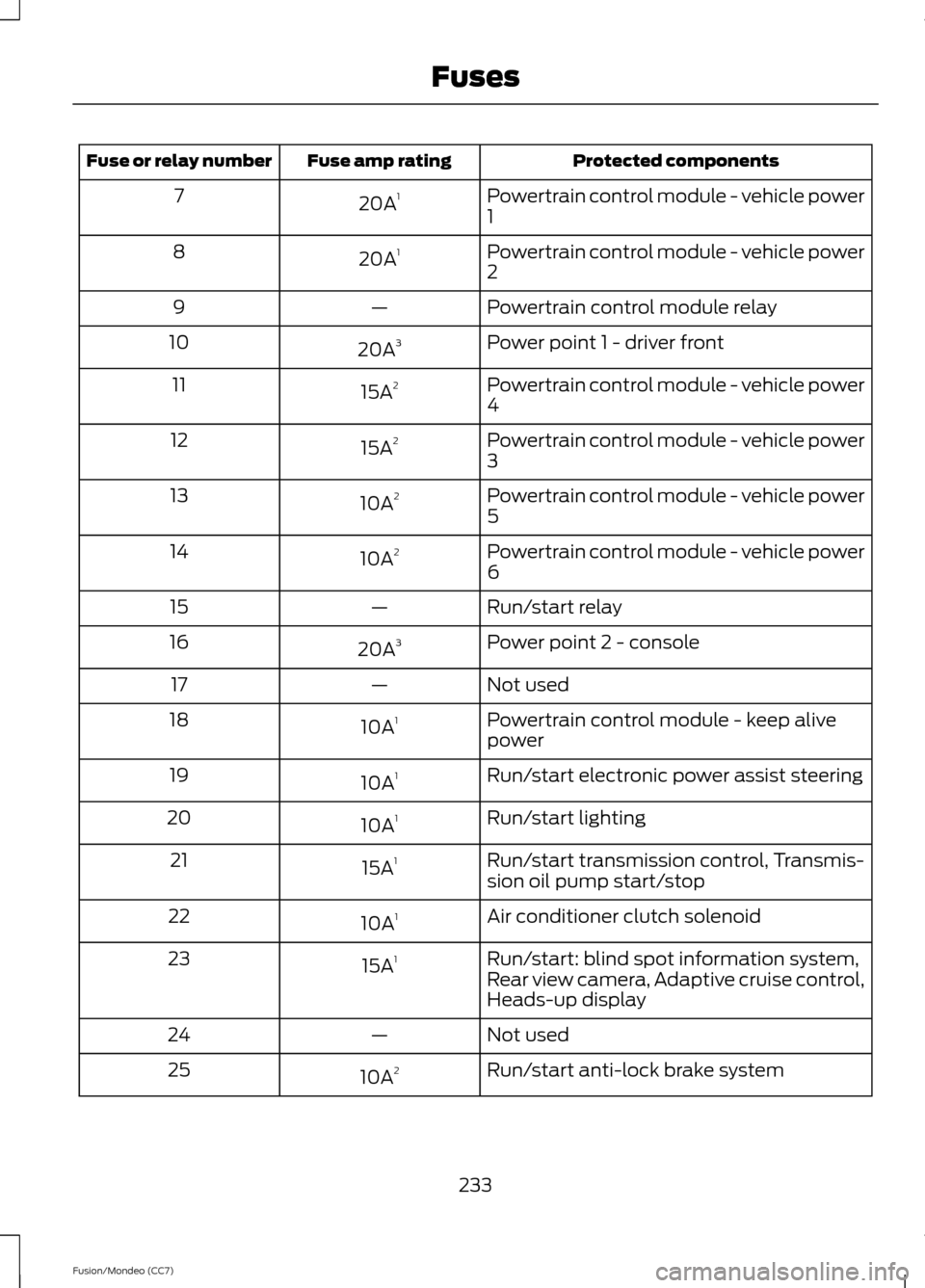

Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module - vehicle power
1
20A
1
7
Powertrain control module - vehicle power
2
20A
1
8
Powertrain control module relay
—
9
Power point 1 - driver front
20A 3
10
Powertrain control module - vehicle power
4
15A
2
11
Powertrain control module - vehicle power
3
15A
2
12
Powertrain control module - vehicle power
5
10A
2
13
Powertrain control module - vehicle power
6
10A
2
14
Run/start relay
—
15
Power point 2 - console
20A 3
16
Not used
—
17
Powertrain control module - keep alive
power
10A
1
18
Run/start electronic power assist steering
10A 1
19
Run/start lighting
10A 1
20
Run/start transmission control, Transmis-
sion oil pump start/stop
15A
1
21
Air conditioner clutch solenoid
10A 1
22
Run/start: blind spot information system,
Rear view camera, Adaptive cruise control,
Heads-up display
15A
1
23
Not used
—
24
Run/start anti-lock brake system
10A 2
25
233
Fusion/Mondeo (CC7) Fuses

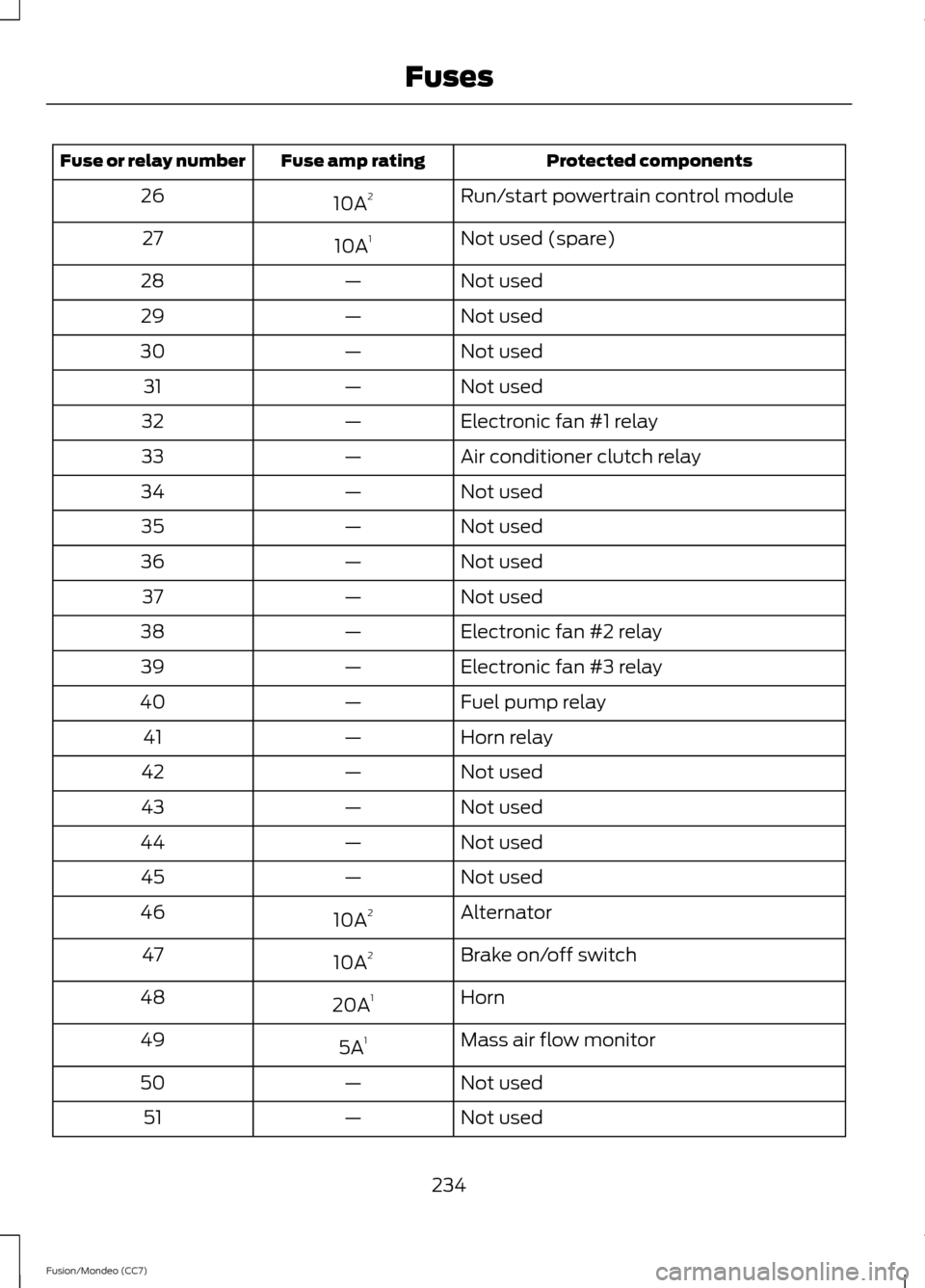

Protected components
Fuse amp rating
Fuse or relay number
Run/start powertrain control module
10A 2
26
Not used (spare)
10A 1
27
Not used
—
28
Not used
—
29
Not used
—
30
Not used
—
31
Electronic fan #1 relay
—
32
Air conditioner clutch relay
—
33
Not used
—
34
Not used
—
35
Not used
—
36
Not used
—
37
Electronic fan #2 relay
—
38
Electronic fan #3 relay
—
39
Fuel pump relay
—
40
Horn relay
—
41
Not used
—
42
Not used
—
43
Not used
—
44
Not used
—
45
Alternator
10A 2
46
Brake on/off switch
10A 2
47
Horn
20A 1
48
Mass air flow monitor
5A 1
49
Not used
—
50
Not used
—
51
234
Fusion/Mondeo (CC7) Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used
—
52
Power seats
10A 1
53
Not used
—
54
Not used
—
55
1 Micro fuse
2 Dual micro fuse
3 M-type fuse
Power Distribution Box - Bottom
There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following: 1. Release the two latches, located on
both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.
235
Fusion/Mondeo (CC7) FusesE145983

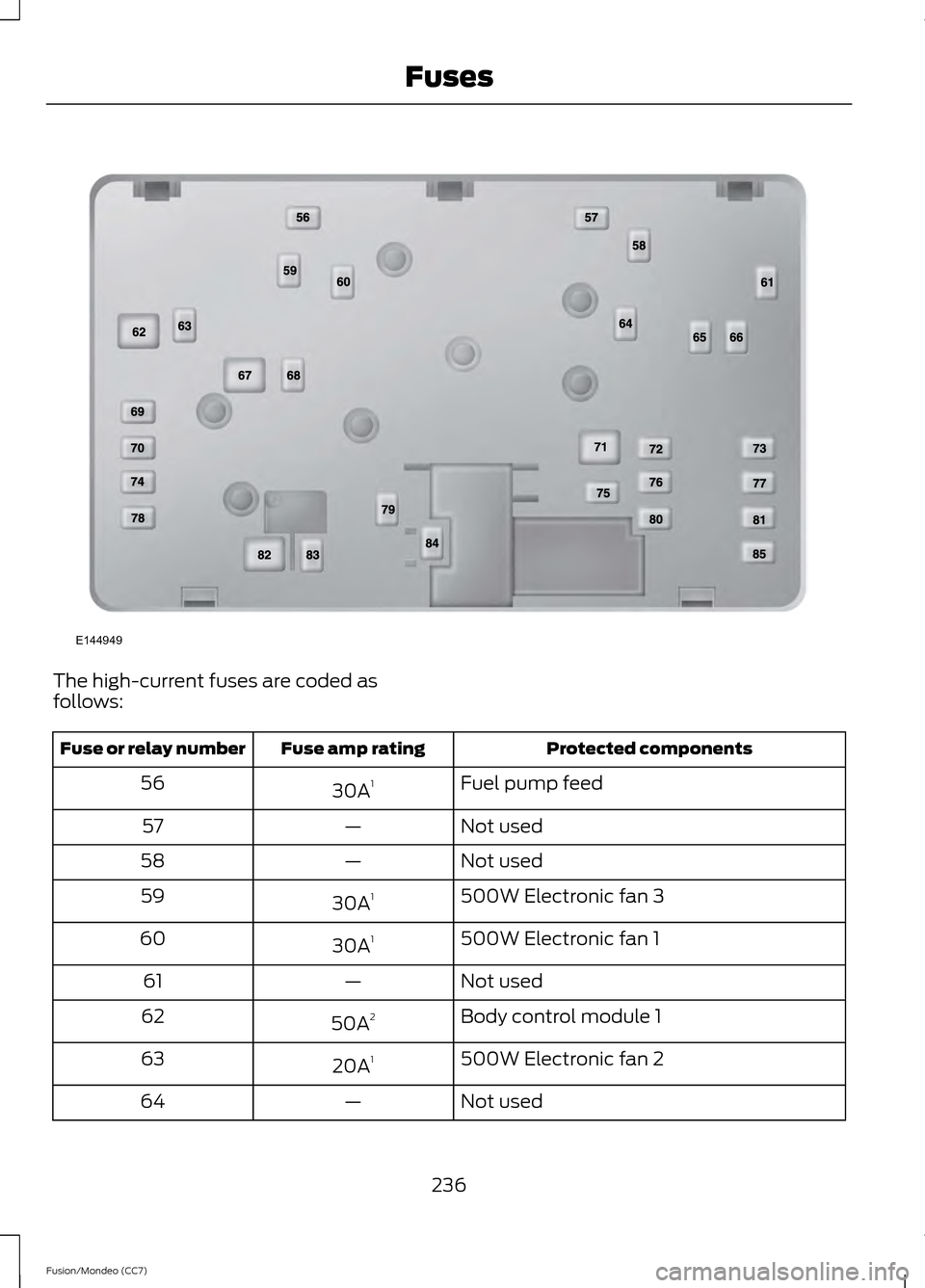

The high-current fuses are coded as
follows:
Protected components
Fuse amp rating
Fuse or relay number
Fuel pump feed
30A 1
56
Not used
—
57
Not used
—
58
500W Electronic fan 3
30A 1
59
500W Electronic fan 1
30A 1
60
Not used
—
61
Body control module 1
50A 2
62
500W Electronic fan 2
20A 1
63
Not used
—
64
236
Fusion/Mondeo (CC7) FusesE144949

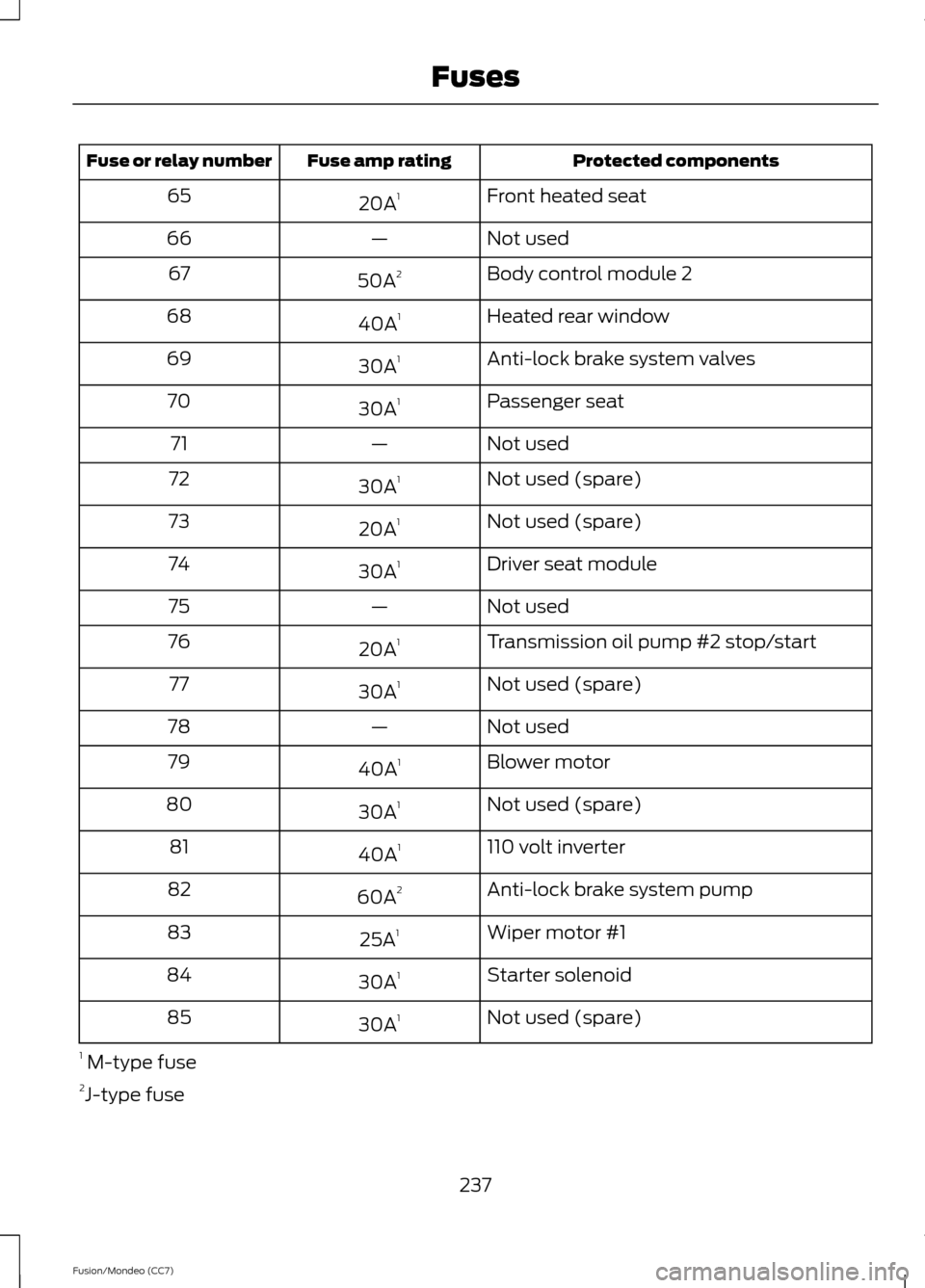

Protected components
Fuse amp rating
Fuse or relay number
Front heated seat
20A 1
65
Not used
—
66
Body control module 2
50A 2
67
Heated rear window
40A 1
68
Anti-lock brake system valves
30A 1
69
Passenger seat
30A 1
70
Not used
—
71
Not used (spare)
30A 1
72
Not used (spare)
20A 1
73
Driver seat module
30A 1
74
Not used
—
75
Transmission oil pump #2 stop/start
20A 1
76
Not used (spare)
30A 1
77
Not used
—
78
Blower motor
40A 1
79
Not used (spare)
30A 1
80
110 volt inverter
40A 1
81
Anti-lock brake system pump
60A 2
82
Wiper motor #1
25A 1
83
Starter solenoid
30A 1
84
Not used (spare)
30A 1
85
1 M-type fuse
2 J-type fuse
237
Fusion/Mondeo (CC7) Fuses

Passenger Compartment Fuse
Panel
The fuse panel is located under the
instrument panel to the left of the steering
column.
Note:
It may be easier to access the fuse
panel if you remove the finish trim piece. The fuses are coded as follows:
Protected components
Fuse amp rating
Fuse or relay number
Lighting (ambient, glovebox, vanity, dome,
trunk)
10A
1
1
Memory seats, Lumbar, Power mirror
7.5A 1
2
Driver door unlock
20A 1
3
Not used (spare)
5A 1
4
Subwoofer amplifier
20A 1
5
Not used (spare)
10A 2
6
238
Fusion/Mondeo (CC7) FusesE145984
