2013 FORD FOCUS headlamp

Headlamp assembly:
A. High beam headlamp bulb
B. Side marker bulb
C. Low beam headlamp bulb
D. Front parking lamp and turn
signal bulb
High beam headlamp bulb:
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Disconnect the electrical
connector.
4. Remove the bulb from the
headlamp assembly by turning it
counterclockwise, then pull it
straight out.
Install the new bulb in reverse order.
Low beam headlamp bulb:
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Disconnect the electrical connector.
4. Remove the bulb from the
headlamp assembly by turning it
counterclockwise, then pull it
straight out.
Install the new bulb in reverse order.
Note:Be sure that the spring clip is not damaged or detached from the
headlamp assembly during the replacement procedure.
Replacing HID Headlamp Bulbs (If Equipped)
The low beam headlamps on your vehicle use a “high intensity discharge”
source. These lamps operate at a high voltage. When the bulb is burned
out, the bulb and starter capsule assembly must be replaced by your
authorized dealer.
BA
CD
Maintenance263
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Replacing Front Parking Lamp and Turn Signal Bulbs
1. Remove the service cap by
turning it counterclockwise.
2. Remove the bulb socket from the
headlamp assembly by turning it
counterclockwise.
3. Remove the bulb by gently
pulling the bulb straight out of the
socket
Install the new bulb in reverse
order.
Replacing Side Marker Bulbs
1. Remove the service cap.
2. Remove the bulb socket from the
headlamp assembly by turning it
counterclockwise.
3. Remove the bulb by gently
pulling the bulb straight out of the
socket
Install the new bulb in reverse
order.
Replacing Fog Lamp Bulbs (If Equipped)
1. Make sure the lighting control
switch is in the off position.
2. Reach under the front fender and
remove the aero shield.
3. Remove the harness/bulb
assembly from the fog lamp by
turning it counterclockwise.
4. Disconnect the harness from the
bulb by pulling it straight out.
Install the new bulb in reverse order.
264Maintenance
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Replacing Rear Lamps - 4 Door
1. Make sure the headlamp control
is in the off position and open the
trunk.
2. Remove the trim panel from
inside the luggage compartment.
3. Remove the two nuts from the
lamp assembly
4. Gently pull the lamp assembly away from the vehicle
5. Remove the bulb by turning the bulb socket counterclockwise. Gently
pull the bulb straight out of the socket.
•Turn signal bulb (1)
•Stop and tail lamp bulb (2)
Install the new bulb in reverse order.
Note:The reverse lamp bulb is located in the luggage compartment lid.
If replacement is required, it is recommended that you see your
authorized dealer.
1
2
Maintenance265
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Replacing Rear Lamps - 5 Door
1. Make sure the headlamp control
is in the off position and open the
trunk.
2. Remove the trim panel from
inside the luggage compartment.
3. Remove the two nuts from the
lamp assembly
4. Gently pull the lamp assembly away from the vehicle
5. Remove the bulb by turning the bulb socket counterclockwise. Gently
pull the bulb straight out of the socket.
A. Brake lamp bulb
B. Reverse lamp bulb
C. Tail lamp and side marker lamp
bulb
D. Turn signal bulb
Install the new bulb in reverse order.
Replacing License Plate Lamp Assembly
Your vehicle is equipped with an LED license plate lamp assembly. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
Replacing High-Mount Brake Lamp Assembly
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
A
C
D
B
266Maintenance
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamp high beam H1LL
Headlamp low beam (halogen) H11LL
Headlamp low beam (HID) D8S
Turn lamp (front) W21W
Park/Side marker lamp (front) 168NA
Fog lamps (if equipped) H11LL
Stop/tail lamp 3157K
Turn lamp 3757AK
Backup lamp 921
Dome lamp H5W
* License plate lamp LED
* High-mount brake lamp LED
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
Maintenance267
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

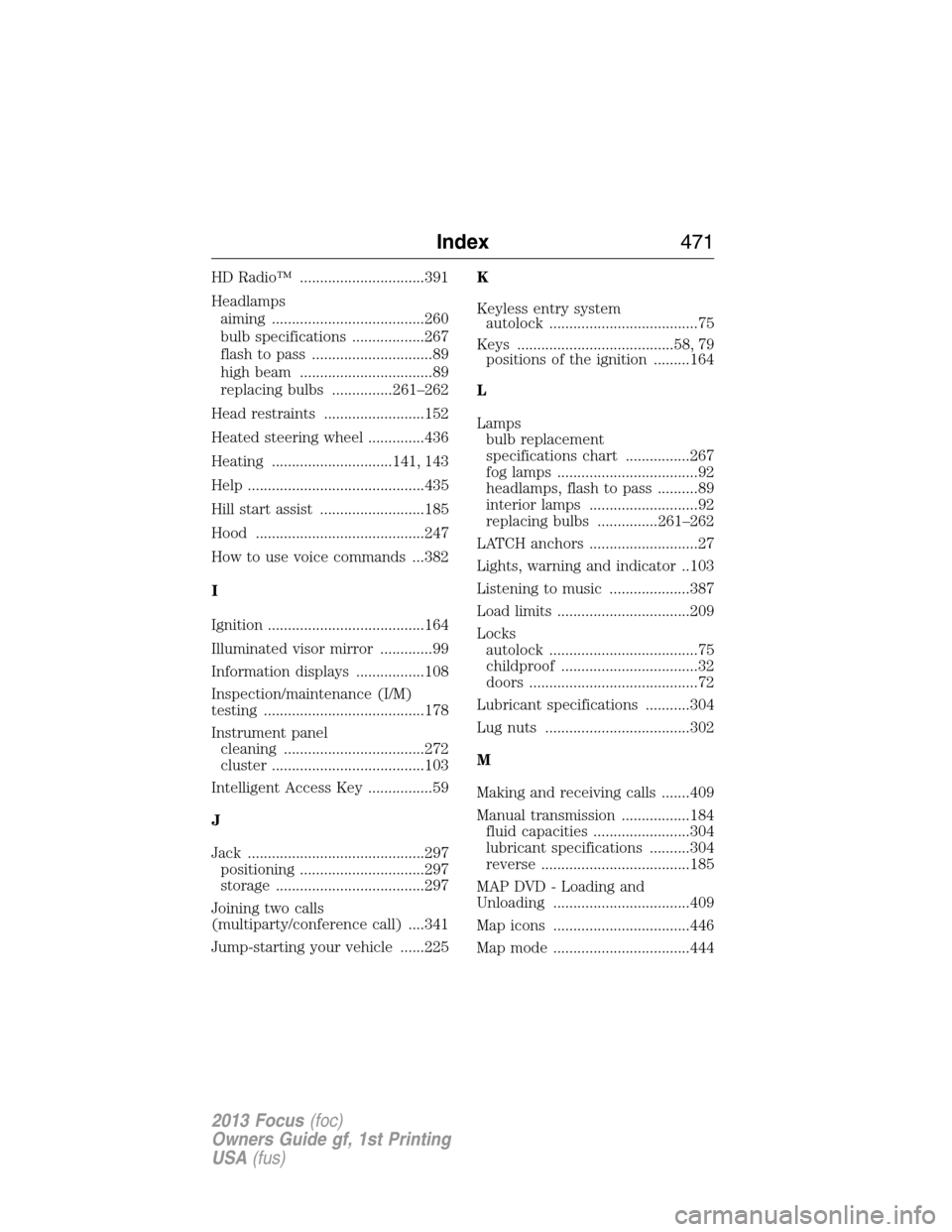

HD Radio™ ...............................391
