SYMBOL GLOSSARY
WARNING:You risk death or serious injury to yourself and
others if you do not follow the instruction highlighted by the
warning symbol.
These are some of the symbols you may see on your vehicle.
Symbol Description Symbol Description Symbol Description
Safety alertSee Owner’s
ManualAnti-lock
braking
system
Avoid
smoking,
flames, or
sparksBatteryBattery acid
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
Child seat
tether
anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine oilExplosive gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
10Introduction
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Brake System
It will illuminate when the parking brake is engaged and the
ignition is on.
If it illuminates when you are driving, check that the parking
brake is not engaged. If the parking brake is not engaged, this indicates
low brake fluid level or a brake system malfunction. Have the system
checked immediately by your authorized dealer.
WARNING:Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the vehicle.
Have the vehicle checked by your authorized dealer as soon as possible.
Driving extended distances with the parking brake engaged can cause
brake failure and the risk of personal injury.
Cruise Control (if equipped)
It will illuminate when you switch this feature on.
Direction Indicator
Illuminates when the left or right turn signal or the hazard
warning flasher is turned on. If the indicators flash faster, check
for a burned out bulb.
Engine Oil
If it illuminates with the engine running or when you are
driving, this indicates a malfunction. Stop your vehicle as soon
as it is safe to do so and switch the engine off. Check the
engine oil level.
Note:Do not resume your journey if it illuminates despite the level
being correct. Have the system checked by your authorized dealer.
Fasten Safety Belt
It will illuminate and a chime will sound to remind you to fasten
your safety belt.
104Instrument Cluster
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

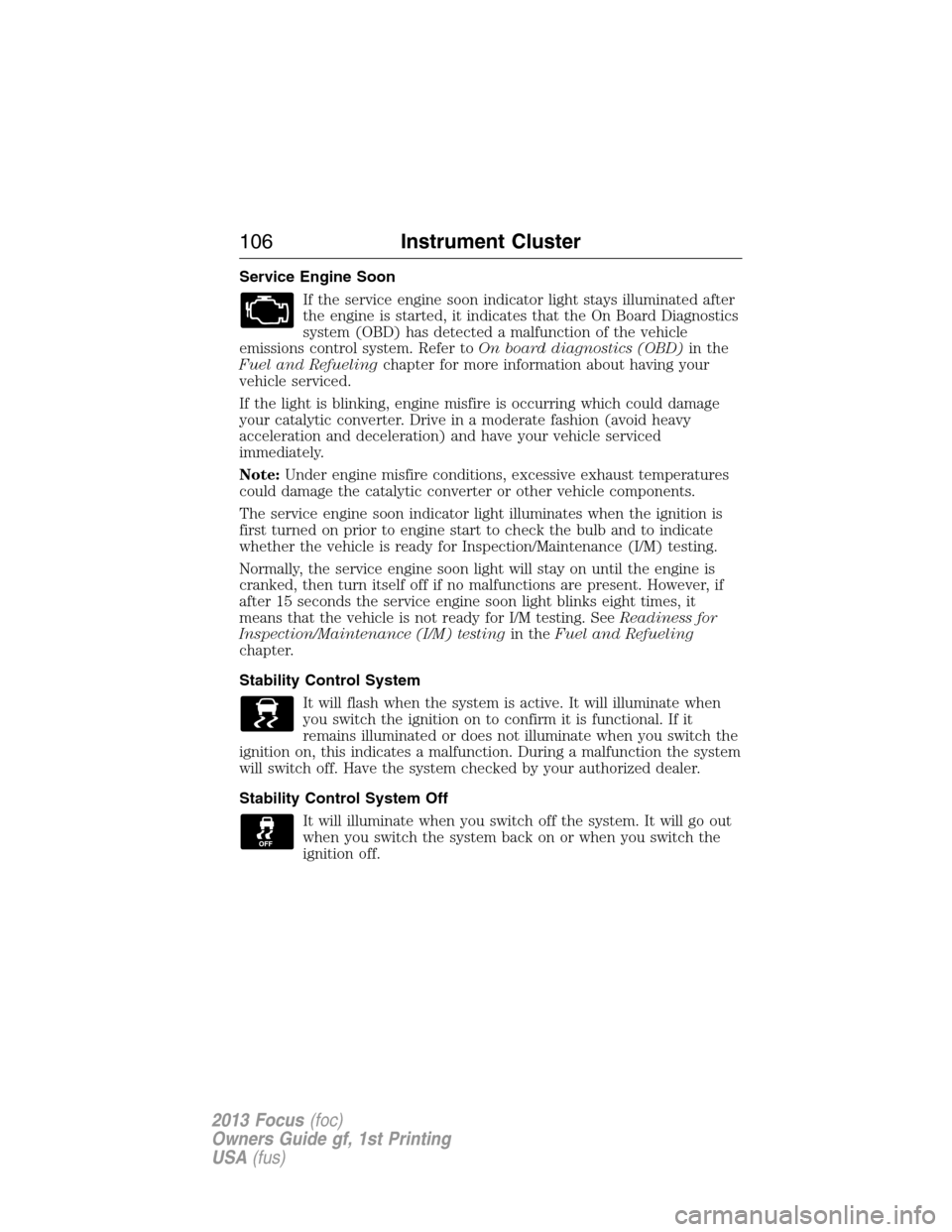

Service Engine Soon
If the service engine soon indicator light stays illuminated after
the engine is started, it indicates that the On Board Diagnostics
system (OBD) has detected a malfunction of the vehicle
emissions control system. Refer toOn board diagnostics (OBD)in the
Fuel and Refuelingchapter for more information about having your
vehicle serviced.
If the light is blinking, engine misfire is occurring which could damage
your catalytic converter. Drive in a moderate fashion (avoid heavy
acceleration and deceleration) and have your vehicle serviced
immediately.
Note:Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter or other vehicle components.
The service engine soon indicator light illuminates when the ignition is
first turned on prior to engine start to check the bulb and to indicate
whether the vehicle is ready for Inspection/Maintenance (I/M) testing.
Normally, the service engine soon light will stay on until the engine is
cranked, then turn itself off if no malfunctions are present. However, if
after 15 seconds the service engine soon light blinks eight times, it
means that the vehicle is not ready for I/M testing. SeeReadiness for
Inspection/Maintenance (I/M) testingin theFuel and Refueling
chapter.
Stability Control System
It will flash when the system is active. It will illuminate when
you switch the ignition on to confirm it is functional. If it
remains illuminated or does not illuminate when you switch the
ignition on, this indicates a malfunction. During a malfunction the system
will switch off. Have the system checked by your authorized dealer.
Stability Control System Off
It will illuminate when you switch off the system. It will go out
when you switch the system back on or when you switch the
ignition off.
106Instrument Cluster
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

3. Start the engine. The engine may continue cranking for up to
15 seconds or until it starts.
Note:If you cannot start your engine on the first try, wait for a short
period of time and try again.
If you have difficulty starting the engine when the temperature is below
-13°F (-25°C), press the accelerator pedal slightly and try again.
If you cannot start your engine after three attempts, wait 10 seconds,
then follow this procedure:
1. Fully press the brake pedal.
2. Fully press the accelerator pedal and hold it there.
3. Move the transmission selector lever to positionPorN.
4. Start the engine.
Guarding Against Exhaust Fumes
WARNING:If you smell exhaust fumes inside your vehicle, have
this checked immediately. Do not drive your vehicle if you smell
exhaust fumes. Carbon monoxide is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
Important Ventilating Information
If you stop your vehicle and leave the engine idling for long periods of
time, we recommend that you do one of the following:
•Open the windows at least 1 inch (2.5 centimeters).
•Set your climate control to outside air.
ENGINE BLOCK HEATER (IF EQUIPPED)
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:Do not use your heater with ungrounded electrical
systems or two-pronged (cheater) adapters. There is a risk of
electrical shock.
Note:The heater is most effective when outdoor temperatures are below
0°F (-18°C).
Starting and Stopping the Engine167
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Re-wax as necessary when the vehicle is
washed.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Vehicle Care275
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and/or foreign material contamination should be inspected
immediately by a qualified expert such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance317
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ......................351, 422
A
ABS (see Brakes) .....................187
Accessing and using your USB
port ............................................401
Accessing call history/phone
book during active call .............341
Accessing your calendar ..........421
Accessing your media menu
features ......................................364
Accessing your phone menu
features ......................................342
Accessory delay ..........................97
Active call menu options .........341
Active Park Assist .....................195
Adding (pairing) a phone ........409
Advanced menu options ...349, 370
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) ..............................349
Airbag supplemental restraint
system ..........................................46
and child safety seats ..............47
description ................................46
disposal ......................................56
driver airbag ..............................46
passenger airbag .......................46
side airbag ...........................46, 52
Air cleaner filter .......258–259, 307
Air conditioning ........................141
manual heating and air
conditioning system ...............141
Air filter .....................................259
Air filter, cabin ..........................149Ambient mood/lighting .......94, 427
Ambulance packages ..................15
AM/FM .......................................388
Antifreeze
(see Engine coolant) ................250
Anti-lock brake system
(see Brakes) ..............................187
Anti-theft system ........................79
arming the system ..............79, 81
disarming a triggered system ..81
AppLink™ .................................358
Audio system
Single CD ........125, 127, 130, 132
Audio system
(see Radio) ........125, 127, 130, 132
Automatic transmission
fluid, adding ............................254
fluid, checking ........................254
fluid, refill capacities ..............304
fluid, specification ..................304
Selectshift (SST) ....................181
Auxiliary Input Jack .................398
Auxiliary input jack (Line in) ..136
Auxiliary powerpoint ................161
A/V inputs ..........................138, 406
Axle
refill capacities ........................304
B
Battery .......................................255
acid, treating emergencies .....255
jumping a disabled battery ....225
maintenance-free ....................255
replacement, specifications ...307
servicing ..................................255
Booster seats ...............................22
468Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Brakes ........................................187
anti-lock ...................................187
anti-lock brake system (ABS)
warning light ...........................187
brake warning light ................187
fluid, checking and adding ....254
fluid, refill capacities ..............304
fluid, specifications .................304
lubricant specifications ..........304
parking ....................................188
shift interlock ..........................182
C
Capacities for refilling fluids ....304
CD ......................125, 127, 130, 132
CD player ..........................123, 400
CD voice commands .................401
Cell phone use ............................16
Changing a tire .........................297
Changing the air filter ..............259
Child safety restraints ................27
Child safety seats
attaching with tether straps ....29
automatic locking mode
(retractor) .................................36
LATCH .......................................27
Child safety seats -
booster seats ...............................22
Cleaning the touchscreen ........379
Cleaning your vehicle ...............268
engine compartment ..............270
instrument panel ....................272
interior .....................................272
plastic parts ............................269
washing ....................................268
waxing .....................................270
wheels ......................................274wiper blades ............................271
Climate control (see Air
conditioning or Heating) ..........141
Climate voice commands .........437
Clock ..................125, 127, 130, 426
Clutch
operation while driving ..........184
recommended shift speeds ....184
Console ......................................162
overhead ..................................162
Coolant ......................................250
checking and adding ..............250
refill capacities ........................304
specifications ..........................304
Customer Assistance ................223
Ford Extended Service
Plan ..................................312, 314
Getting assistance outside
the U.S. and Canada ..............232
Getting roadside assistance ...223
Getting the service you
need .........................................228
Ordering additional owner’s
literature .................................234
Utilizing the
Mediation/Arbitration
Program ...................................232
D
Defrost ...............................141, 143
rear window ............................148
Dipstick
automatic transmission
fluid ..........................................254
engine oil .................................249
Display settings .........................426
Doors
central unlocking ......................72
Index469
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
