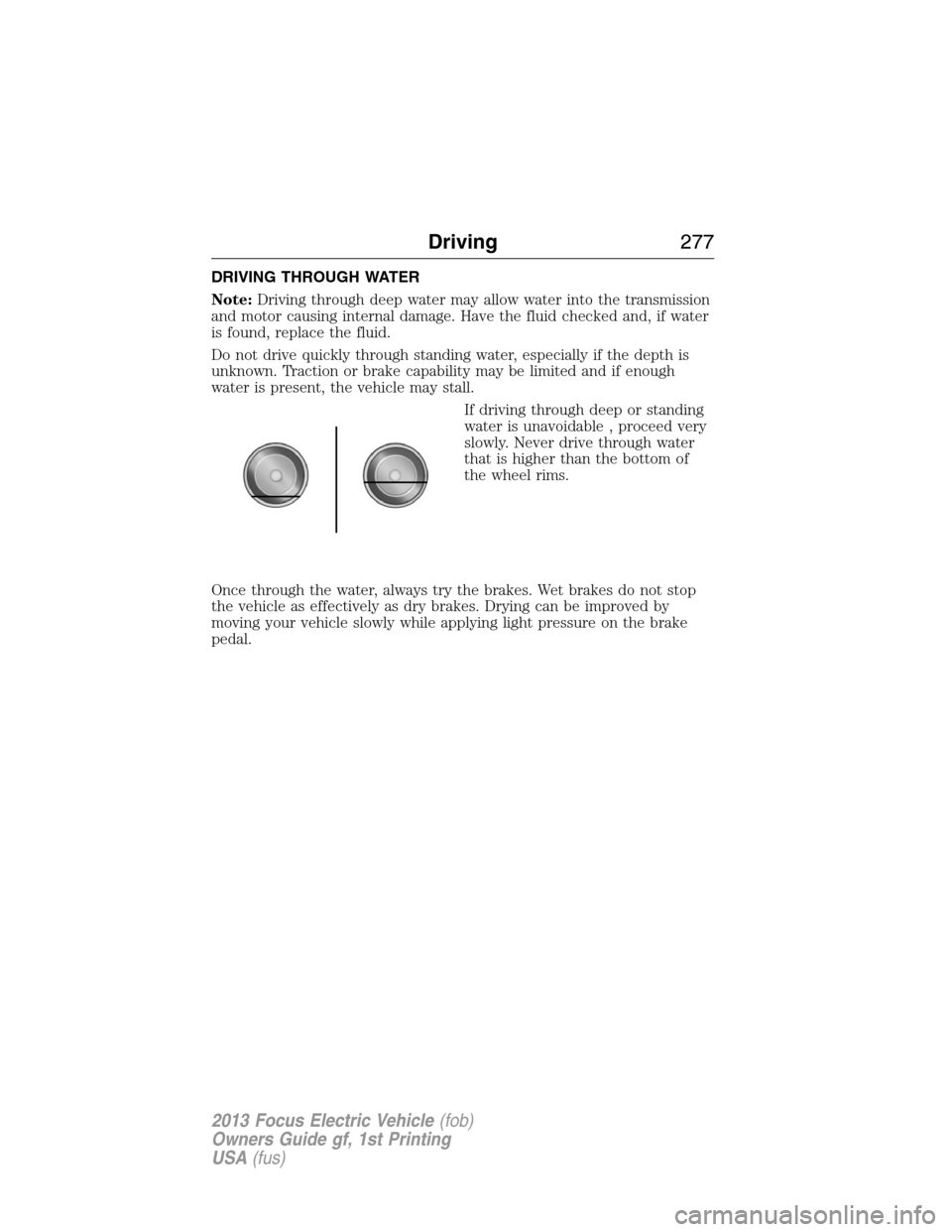

DRIVING THROUGH WATER
Note:Driving through deep water may allow water into the transmission
and motor causing internal damage. Have the fluid checked and, if water
is found, replace the fluid.
Do not drive quickly through standing water, especially if the depth is
unknown. Traction or brake capability may be limited and if enough
water is present, the vehicle may stall.
If driving through deep or standing
water is unavoidable , proceed very
slowly. Never drive through water
that is higher than the bottom of
the wheel rims.
Once through the water, always try the brakes. Wet brakes do not stop
the vehicle as effectively as dry brakes. Drying can be improved by
moving your vehicle slowly while applying light pressure on the brake
pedal.
Driving277
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

BRAKE FLUID CHECK
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the MIN and
MAX lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
Note:Keep brake fluid clean. Contamination with dirt, water, petroleum
products or other materials may result in brake system damage and
possible failure.
Checking single-speed transmission
The transmission does not have an underhood transmission fluid
dipstick.
Your transmission does not consume fluid. It is designed to be filled for
life. However, the fluid level should be checked if the transmission is not
working properly, or if you notice some sign of fluid leakage.
Note:Transmission fluid should be checked and, if required, fluid should
be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
VEHICLE STORAGE
If you plan on storing your vehicle for an extended period of time
(30 days or more), refer to the following maintenance recommendations
to ensure your vehicle stays in good operating condition.
All motor vehicles and their components were engineered and tested for
reliable, regular driving. Long term storage under various conditions may
lead to component degradation or failure unless specific precautions are
taken to preserve the components.
340Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number /
Ford Specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftHigh Performance
DOT 4 LV Motor Vehicle
Brake FluidWSS-M6C65-A2 /
ISO 4925 Class 6
Door latch, hood
latch, auxiliary hood
latch, trunk latch,
seat tracks.—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating and
Lock LubricantXL-1 /
None
Electric Powertrain
Assembly coolant
1
15.8 quarts
(15.0L)MotorcraftOrange
Antifreeze/Coolant PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Transmission fluid
2
1.32 quarts
(1.25L)Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
1Add the coolant type originally equipped in your vehicle.2Using any transmission fluid other than those that meet the recommended specification may
cause internal transmission damage. Do not use MotorcraftContinuously Variable Chain Type
Transmission Fluid (blue). This vehicle uses MotorcraftMERCONLV approved ATF.
Maintenance and Specifications343
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ................................94
A
Accessing and using your USB
port ..............................................74
Accessing your calendar ............94
Accessory delay ........................144
Adding (pairing) a phone ..........81
AdvanceTrac ..............................261
Airbag supplemental restraint
system ................194–195, 203, 205
and child safety seats ............196
description ..............195, 203, 205
disposal ....................................209
driver airbag ............197, 204, 207
indicator light .................202, 209
operation .................197, 204, 207
passenger airbag .....197, 204, 207
side airbag ...............................203
Air filter, cabin ..........................342
Ambient mood/lighting .............134
AM/FM .........................................60
Anti-lock brake system
(see Brakes) ..............................259
Anti-theft system ..............168–169
arming the system ..........169–170
disarming a triggered
system .....................................170
triggering .................................170
Audio system
Single CD ..................................39
Audio system (see Radio) .........39
Automatic transaxle
fluid, adding ............................340
fluid, checking ........................340
Automatic transmission ............267fluid, refill capacities ..............343
fluid, specification ..................343
Auxiliary Input Jack ...................70
Auxiliary powerpoint ................142
A/V inputs ..............................40, 78
B
Battery .......................................328
acid, treating emergencies .....328
jumping a disabled battery ....303
maintenance-free ....................328
replacement, specifications ...342
servicing ..................................328
traction battery pack
assembly ..................................330
Belt-Minder.............................190
Blind spot mirror ......................276
Booster seats .............................223
Brakes ................................258–259
anti-lock ...................................259
anti-lock brake system (ABS)
warning light ...........................259
fluid, checking and adding ....340
fluid, refill capacities ..............343
fluid, specifications .................343
lubricant specifications ..........343
parking ....................................261
shift interlock ..........................265
Break-in period .............................6
Bulbs ..........................................134
C
Capacities for refilling fluids ....343
Cargo management system ......152
CD ................................................39
CD player ....................................72
380Index
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

CD voice commands ...................73
Cell phone use ............................13
Changing a tire .........................291
Child safety seats ......................214
attaching with tether straps ..221
in front seat ............................215
in rear seat ..............................215
LATCH .....................................218
recommendations ...................212
Child safety seats -
booster seats .............................223
Cleaning the touchscreen ..........49
Cleaning your vehicle
engine compartment ..............319
instrument panel ....................321
interior .....................................322
plastic parts ............................320
washing ....................................318
waxing .....................................319
wheels ......................................319
wiper blades ............................320
Climate voice commands .........111
Clock ............................................98
Console ......................................141
Controls
steering column ......................149
Coolant ......................................337
checking and adding ..............337
refill capacities ........................343
specifications ..........................343
Cruise control
(see Speed control) ..................146
Customer Assistance ................278
Ford Extended Service
Plan ..................................348, 350
Getting assistance outside
the U.S. and Canada ..............315
Getting roadside assistance ...278Getting the service you
need .........................................310
Ordering additional owner’s
literature .................................316
Utilizing the
Mediation/Arbitration
Program ...................................314
D
Daytime running lamps
(see Lamps) ..............................130
Defrost .......................................123
Dipstick
automatic transmission
fluid ..........................................340
Display settings ...........................98
Doors
central unlocking ....................159
Driving under special
conditions ..................................269
through water .........................277
Dual automatic temperature
control (DATC) .........................123
E
Emergencies, roadside
jump-starting ..........................303
End user license agreement ....361
Engine
cleaning ...................................319
service points ..........................325
Engine fan .................................325
Event data recording ..................11
F
Fan, Engine Cooling .........324–325
Index381
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

push button start system .......256
Steering wheel
controls ....................................149
tilting .......................................141
Supported media file types ........77
Supported player, media
formats and metadata
information ..................................77
SYNCServices ...........................87
System settings .........................100
T
Temperature control
(see Climate control) .......109, 123
Temporary mobility kit .............293
Text messaging ...........................83
Tilt steering wheel ....................141
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....244
Tires ...........................228–229, 291
alignment ................................237
care ..........................................233
changing ..................................291
checking the pressure ............233
inflating ...................................230
label .........................................243
replacing ..................................235
rotating ....................................238
safety practices .......................237
sidewall information ...............238
snow tires and chains ............248
spare tire .................................291
Temporary mobility kit ..........293
terminology .............................229
tire grades ...............................229
treadwear ........................228, 233Touchscreen features
(climate) ....................................109
Towing .......................................254
recreational towing .................254
trailer towing ..........................254
wrecker ....................................306
Traffic preferences ...................116
Transmission
brake-shift interlock (BSI) ....265
fluid, checking and adding
(automatic) .............................340
fluid, refill capacities ..............343
lubricant specifications ..........343
Trunk .........................................151
remote release ........................164
Turn signal ................................133
U
USB port ................................40, 74
V
Vehicle health report ..................96
Vehicle Identification Number
(VIN) ..........................................344
Vehicle loading ..........................248
Voice recognition ........................54
W
Warning lights (see Lights) .......16
Washer fluid ..............................327
Water, Driving through .............277
Wi-Fi ..........................................106
Windows
power .......................................142
rear wiper/washer ...................140
Index385
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
