2013 FORD FOCUS ELECTRIC fuses

Passenger Compartment Fuse Panel
The fuse panel is located on the right side below the glove box.
The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Components
56 20A Not used (spare)
57 — Not used
58 — Not used
59 5A Passive anti-theft transceiver
60 10A Interior light, Driver door switch
pack, Glove box illumination,
Overhead console switch bank
61 20A Cigar lighter, Power point
62 5A Rain sensor module
63 — Not used
56
57
58
59
60
61
62
63
6465
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
88
89
82
83
84
85
86
87
Roadside Emergencies285
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

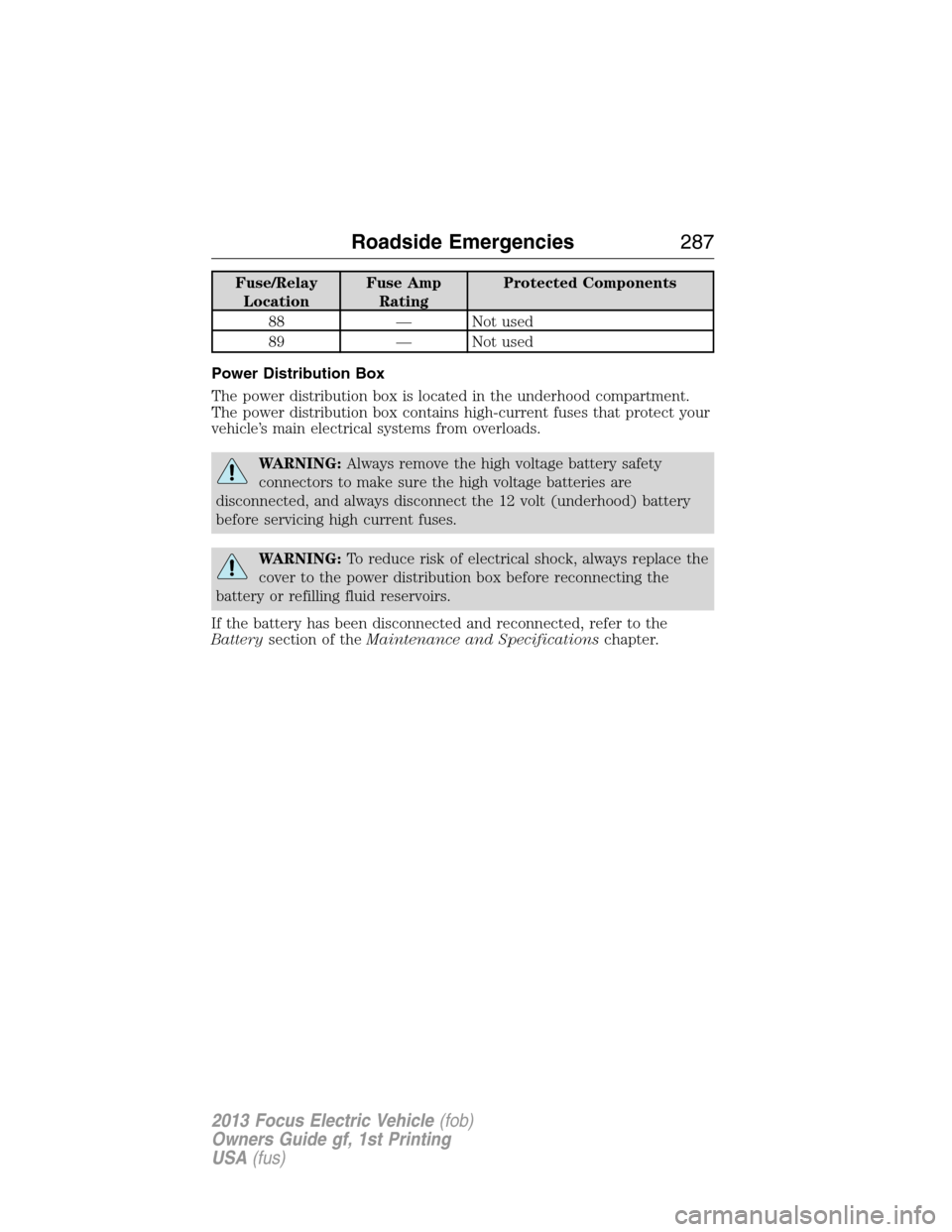

Fuse/Relay
LocationFuse Amp
RatingProtected Components
88 — Not used
89 — Not used
Power Distribution Box
The power distribution box is located in the underhood compartment.
The power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always remove the high voltage battery safety
connectors to make sure the high voltage batteries are
disconnected, and always disconnect the 12 volt (underhood) battery
before servicing high current fuses.
WARNING:To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies287
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

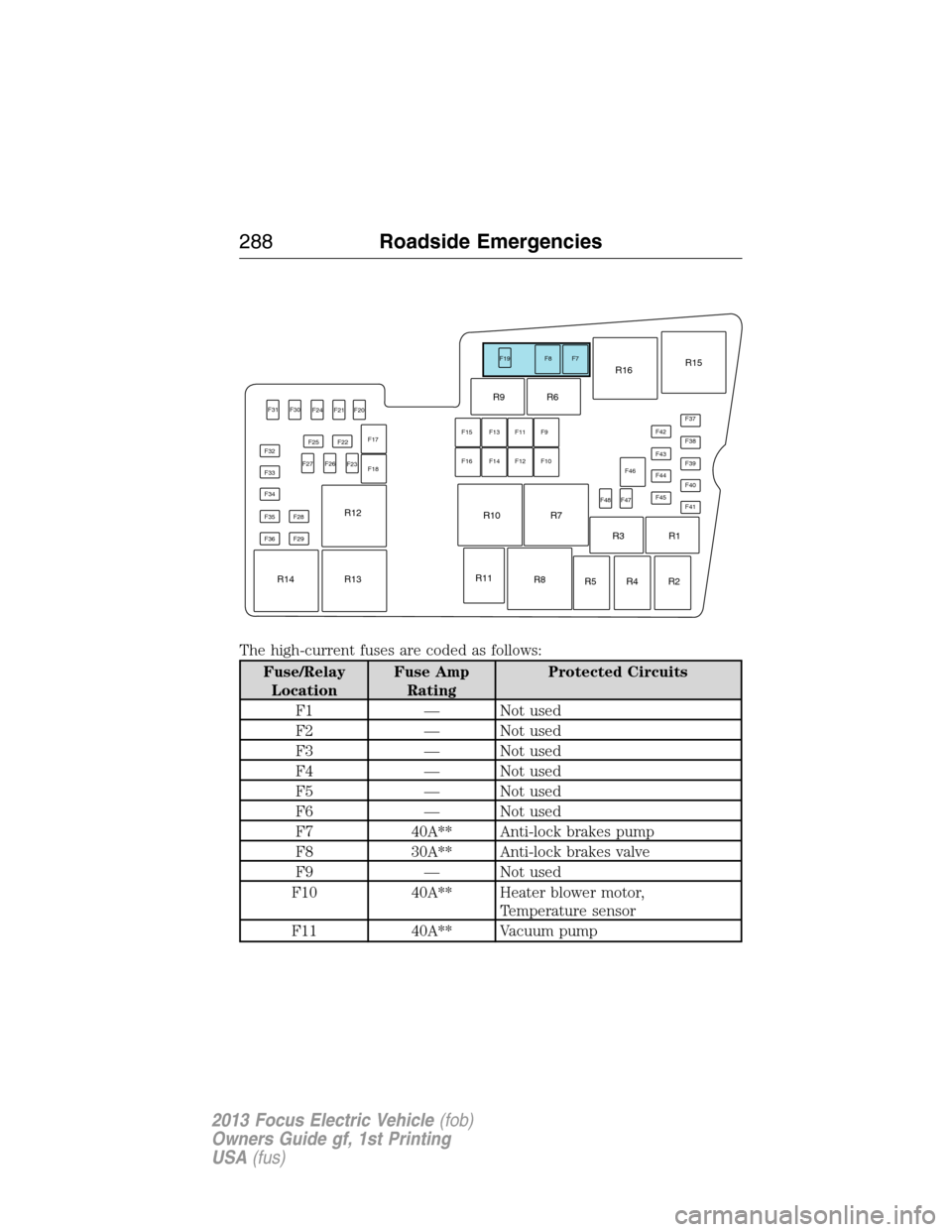

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
F1 — Not used
F2 — Not used
F3 — Not used
F4 — Not used
F5 — Not used
F6 — Not used
F7 40A** Anti-lock brakes pump
F8 30A** Anti-lock brakes valve
F9 — Not used
F10 40A** Heater blower motor,
Temperature sensor
F11 40A** Vacuum pump
F30 F31
F24 F21 F20
F25 F22
F23F17
R10R9 R6
F15F19 F8 F7
F37
F38
F39
F40
F41 F43
F42
F44
F45 F46
F48
F47 F13 F11 F9
F16 F14 F12 F10
R11
R8R7R16R15
R3
R5 R4 R2R1
F18 F26 F27 F32
F33
F34
F35 F28
F29
R12
R13 R14
F36
288Roadside Emergencies
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

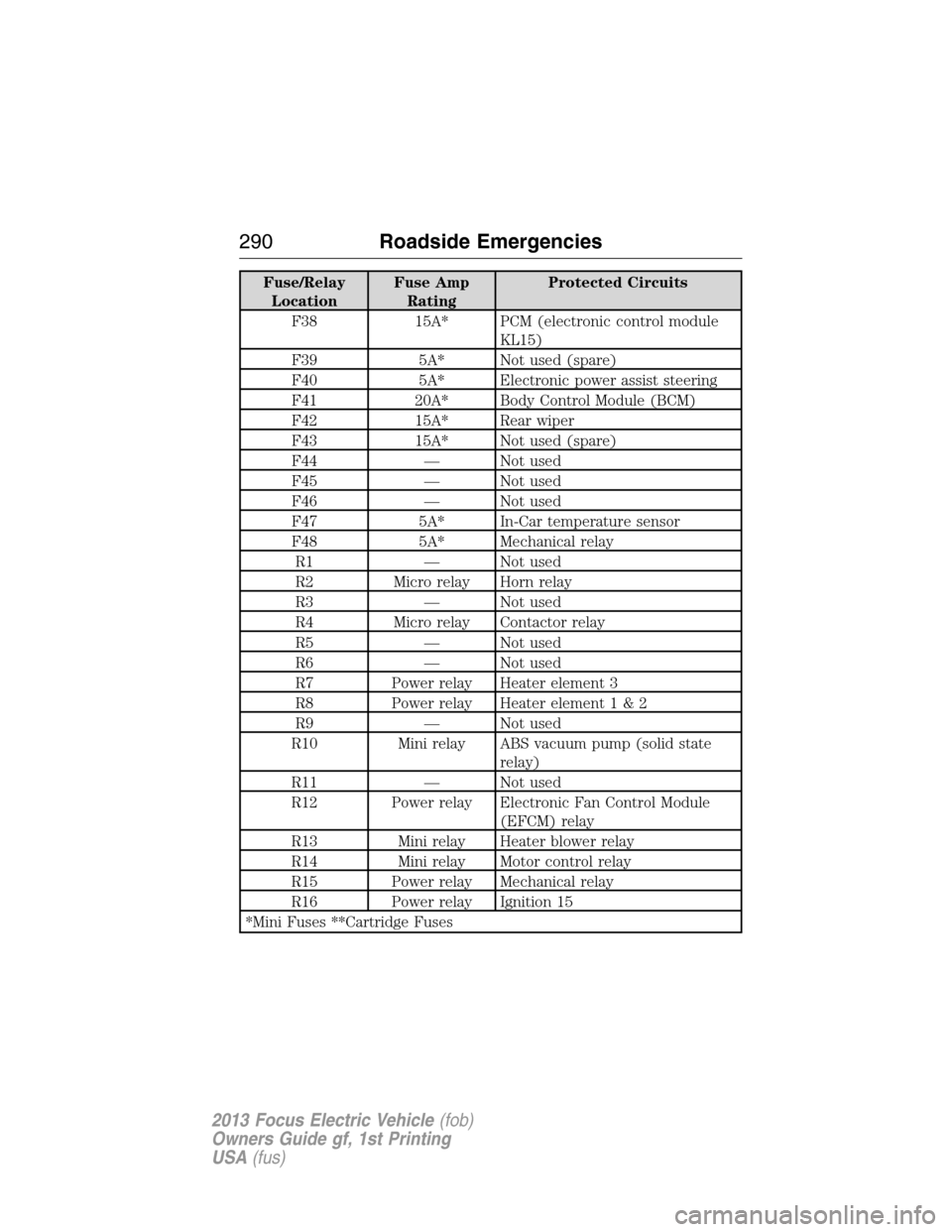

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
F38 15A* PCM (electronic control module
KL15)
F39 5A* Not used (spare)
F40 5A* Electronic power assist steering
F41 20A* Body Control Module (BCM)
F42 15A* Rear wiper
F43 15A* Not used (spare)
F44 — Not used
F45 — Not used
F46 — Not used
F47 5A* In-Car temperature sensor
F48 5A* Mechanical relay
R1 — Not used
R2 Micro relay Horn relay
R3 — Not used
R4 Micro relay Contactor relay
R5 — Not used
R6 — Not used
R7 Power relay Heater element 3
R8 Power relay Heater element1&2
R9 — Not used
R10 Mini relay ABS vacuum pump (solid state
relay)
R11 — Not used
R12 Power relay Electronic Fan Control Module
(EFCM) relay
R13 Mini relay Heater blower relay
R14 Mini relay Motor control relay
R15 Power relay Mechanical relay
R16 Power relay Ignition 15
*Mini Fuses **Cartridge Fuses
290Roadside Emergencies
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

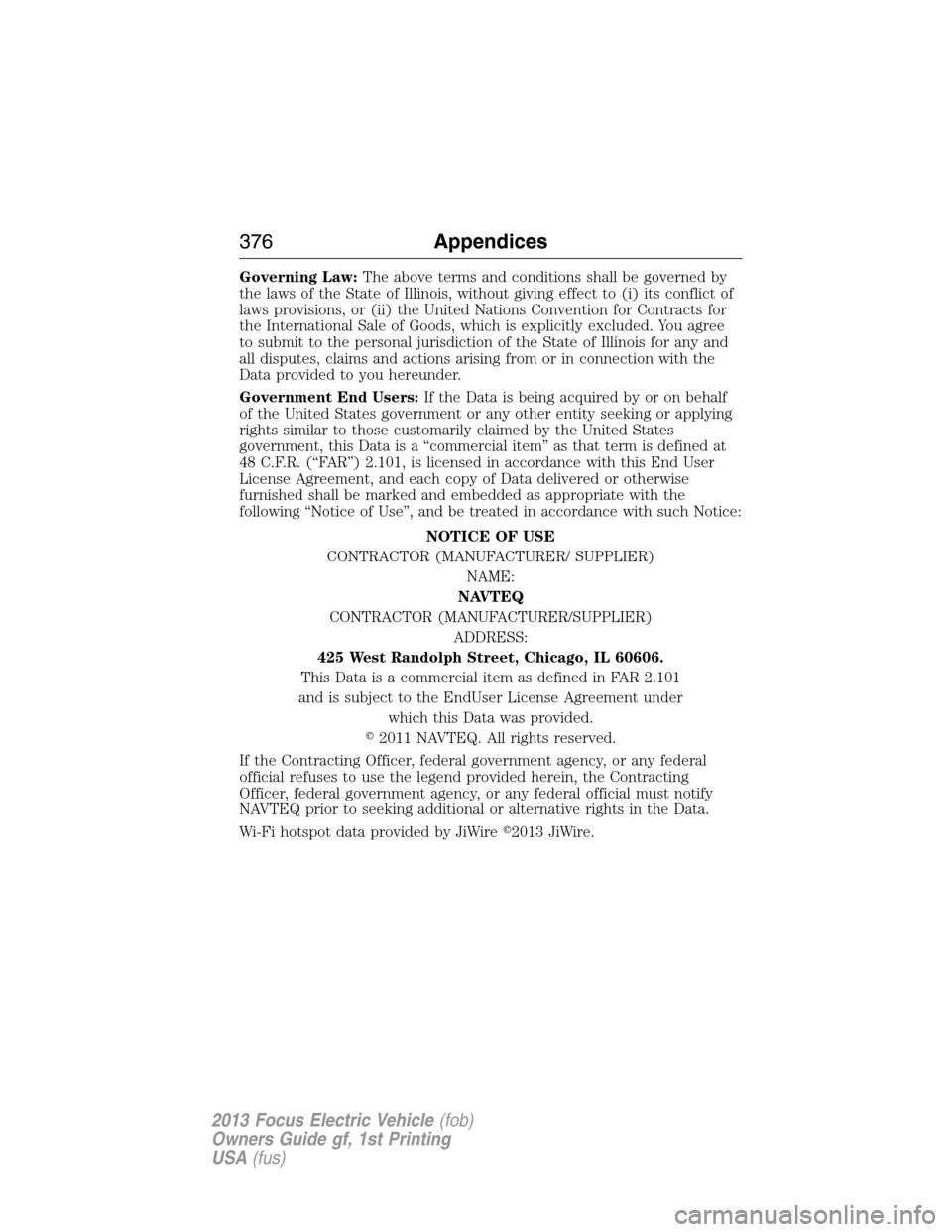

Governing Law:The above terms and conditions shall be governed by
