4. Attach the new blade to the arm and snap it into place. Lower the
wiper arm and blade back to the windshield. The wiper arms will
automatically return to their normal position when the ignition is turned
on.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer to theVehicle Carechapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
Changing the Rear Window Wiper Blade (If Equipped)
To replace the rear wiper blade:
1. Press the wiper blade against the
glass with one hand and hold it.
2. Pull the wiper arm away from the
wiper blade to separate.
3. To attach the new wiper to the
wiper arm, align the slot (1) and
cross pin (2) and firmly press the
wiper arm into the wiper blade until
a click is heard.
If you find this procedure too difficult, please see your dealer.
LOW-VOLTAGE BATTERY
WARNING:Batteries normally produce explosive gases which
can cause personal injury. Therefore, do not allow flames, sparks
or lighted substances to come near the battery. When working near the
battery, always shield your face and protect your eyes. Always provide
proper ventilation.
2
1
328Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

To ensure proper operation of the battery management system (BMS),
any electrical devices that are added to the vehicle should not have their
ground connection made directly at the negative battery post. A
connection at the negative battery post can cause inaccurate
measurements of the battery condition and potential incorrect system
operation.
Note:Electrical or electronic accessories or components added to the
vehicle by the dealer or the owner may adversely affect battery
performance and durability and may also affect the performance of other
electrical systems in the vehicle.
When a battery replacement is required, the battery should only be
replaced with a Ford recommended replacement battery that matches
the electrical requirements of the vehicle.
Note:The clock and the preset radio stations must be reset once the
battery is reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
HIGH-VOLTAGE BATTERY
WARNING:This battery pack should only be serviced by an
authorized electric vehicle technician. Improper handling can
result in personal injury or death.
Your vehicle consists of various high-voltage components and wiring. All
of the high-voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange striped tape. Do not come in contact with these components.
No regular maintenance, other than regular charging is required.
The high-voltage battery system is a high-voltage, lightweight lithium-ion
battery system comprised of two individual packs. One pack is located in
the rear cargo area behind the second row seats, and the other is located
L
E
A
D
RETURN
RECYCLE
330Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

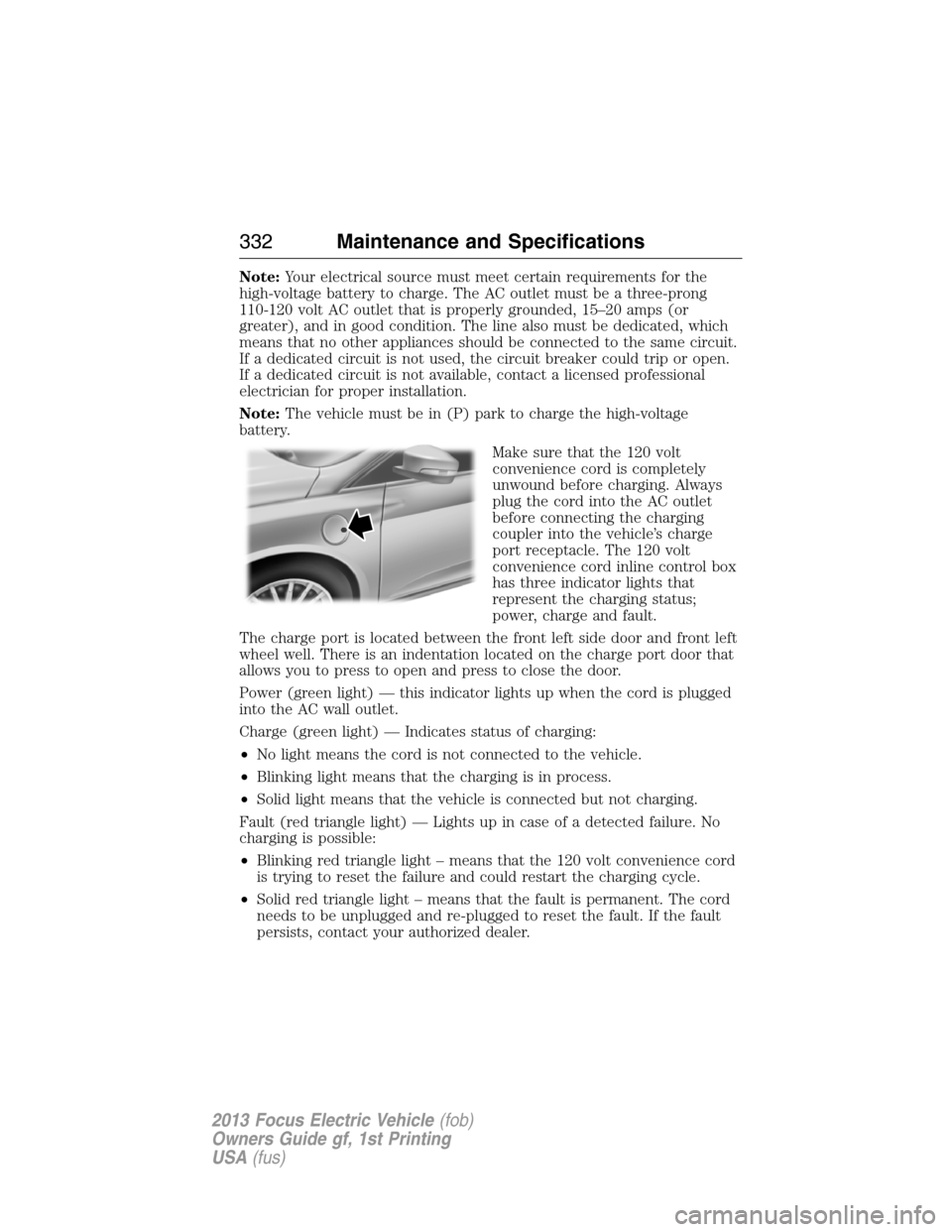

Note:Your electrical source must meet certain requirements for the
high-voltage battery to charge. The AC outlet must be a three-prong
110-120 volt AC outlet that is properly grounded, 15–20 amps (or
greater), and in good condition. The line also must be dedicated, which
means that no other appliances should be connected to the same circuit.
If a dedicated circuit is not used, the circuit breaker could trip or open.
If a dedicated circuit is not available, contact a licensed professional
electrician for proper installation.
Note:The vehicle must be in (P) park to charge the high-voltage
battery.
Make sure that the 120 volt
convenience cord is completely
unwound before charging. Always
plug the cord into the AC outlet
before connecting the charging
coupler into the vehicle’s charge
port receptacle. The 120 volt
convenience cord inline control box
has three indicator lights that
represent the charging status;
power, charge and fault.
The charge port is located between the front left side door and front left
wheel well. There is an indentation located on the charge port door that
allows you to press to open and press to close the door.
Power (green light) — this indicator lights up when the cord is plugged
into the AC wall outlet.
Charge (green light) — Indicates status of charging:
•No light means the cord is not connected to the vehicle.
•Blinking light means that the charging is in process.
•Solid light means that the vehicle is connected but not charging.
Fault (red triangle light) — Lights up in case of a detected failure. No
charging is possible:
•Blinking red triangle light – means that the 120 volt convenience cord
is trying to reset the failure and could restart the charging cycle.
•Solid red triangle light – means that the fault is permanent. The cord
needs to be unplugged and re-plugged to reset the fault. If the fault
persists, contact your authorized dealer.
332Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Charge Port and Light Ring
Note:Do not force the charge port door open or closed. Forcing the
door open or closed will damage the charge port.
The light ring located around the charge port indicates the charge status
of your battery while connected to a charge station or convenience cord.
The charge port light ring is divided into four quadrants that inform you
of the charge status.
There is a cord acknowledgement feature that will be activated when a
charge cycle is initiated. The four light quadrants will each individually
flash clockwise starting with the top right light and ending with the top
left, two full times confirming a charging coupler has been detected.
You can use your keyfob to view the vehicles charge status at any time
by pressing the unlock button. The light ring will light up the
corresponding quadrant(s) so that the current state of the vehicles
charge can be determined. If the charge is below 25 percent the light
ring will not illuminate. Don’t forget to press the lock button on your
keyfob to re-lock the vehicle.
Different sequences of the light ring will represent the status of the
charge.
Maintenance and Specifications333
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

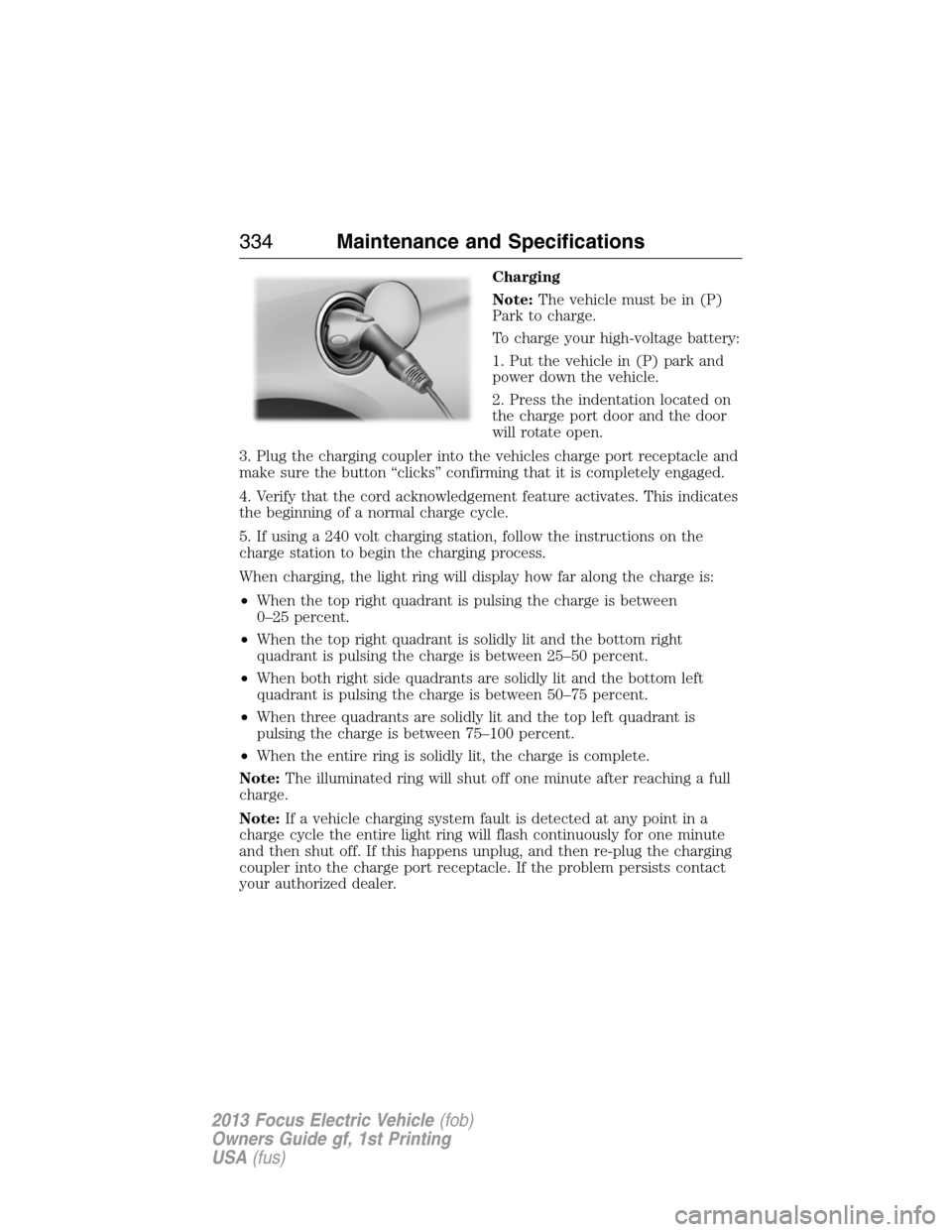

Charging
Note:The vehicle must be in (P)
Park to charge.
To charge your high-voltage battery:
1. Put the vehicle in (P) park and
power down the vehicle.
2. Press the indentation located on
the charge port door and the door
will rotate open.
3. Plug the charging coupler into the vehicles charge port receptacle and
make sure the button “clicks” confirming that it is completely engaged.
4. Verify that the cord acknowledgement feature activates. This indicates
the beginning of a normal charge cycle.
5. If using a 240 volt charging station, follow the instructions on the
charge station to begin the charging process.
When charging, the light ring will display how far along the charge is:
•When the top right quadrant is pulsing the charge is between
0–25 percent.
•When the top right quadrant is solidly lit and the bottom right
quadrant is pulsing the charge is between 25–50 percent.
•When both right side quadrants are solidly lit and the bottom left
quadrant is pulsing the charge is between 50–75 percent.
•When three quadrants are solidly lit and the top left quadrant is
pulsing the charge is between 75–100 percent.
•When the entire ring is solidly lit, the charge is complete.
Note:The illuminated ring will shut off one minute after reaching a full
charge.
Note:If a vehicle charging system fault is detected at any point in a
charge cycle the entire light ring will flash continuously for one minute
and then shut off. If this happens unplug, and then re-plug the charging
coupler into the charge port receptacle. If the problem persists contact
your authorized dealer.
334Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

WARNING:In an emergency, add water to the cooling system to
reach an authorized dealer. Have the system checked by a
properly trained technician as soon as possible.
WARNING:To reduce the risk of personal injury, make sure the
Electric Powertrain Assembly (EPA) is cool before unscrewing
the coolant pressure relief cap. The cooling system is under pressure;
steam and hot liquid can come out forcefully when the cap is loosened
slightly.
WARNING:Do not add coolant further than the MAX mark.
Note:Coolant replacement can only be completed by an authorized
dealer. If not performed properly, damage could occur to the cooling
system components and may void the warranty.
Note:Do not use stop leak pellets or cooling system sealants/additives
as they can cause damage to the cooling and/or heating systems. This
damage would not be covered under your vehicle’s warranty.
Note:During normal vehicle operation, the coolant may change color
from orange to pink or light red. As long as the coolant is clear and
uncontaminated, this color change does not indicate the coolant has
degraded nor does it require the coolant to be drained, the system to be
flushed, or the coolant to be replaced.
•DO NOT MIX different colors or types of coolant in your vehicle. Make
sure the correct coolant is used. Mixing of coolants may harm your
cooling system. The use of an improper coolant may harm the Electric
Powertrain Assembly (EPA) and cooling system components and may
void the warranty.
•A large amount of water without coolant may be added, in case of
emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained, chemically cleaned with Motorcraft
Premium Cooling System Flush, and refilled with prediluted coolant as
soon as possible. Water alone (without coolant) can cause damage
from corrosion, overheating, freezing or plugging.
•Do not use alcohol, methanol, brine or any coolants mixed with
alcohol or methanol antifreeze (coolant). Alcohol and other liquids can
cause damage from overheating or freezing.
•Do not add extra inhibitors or additives to the coolant. These can be
harmful and compromise the corrosion protection of the coolant.
338Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

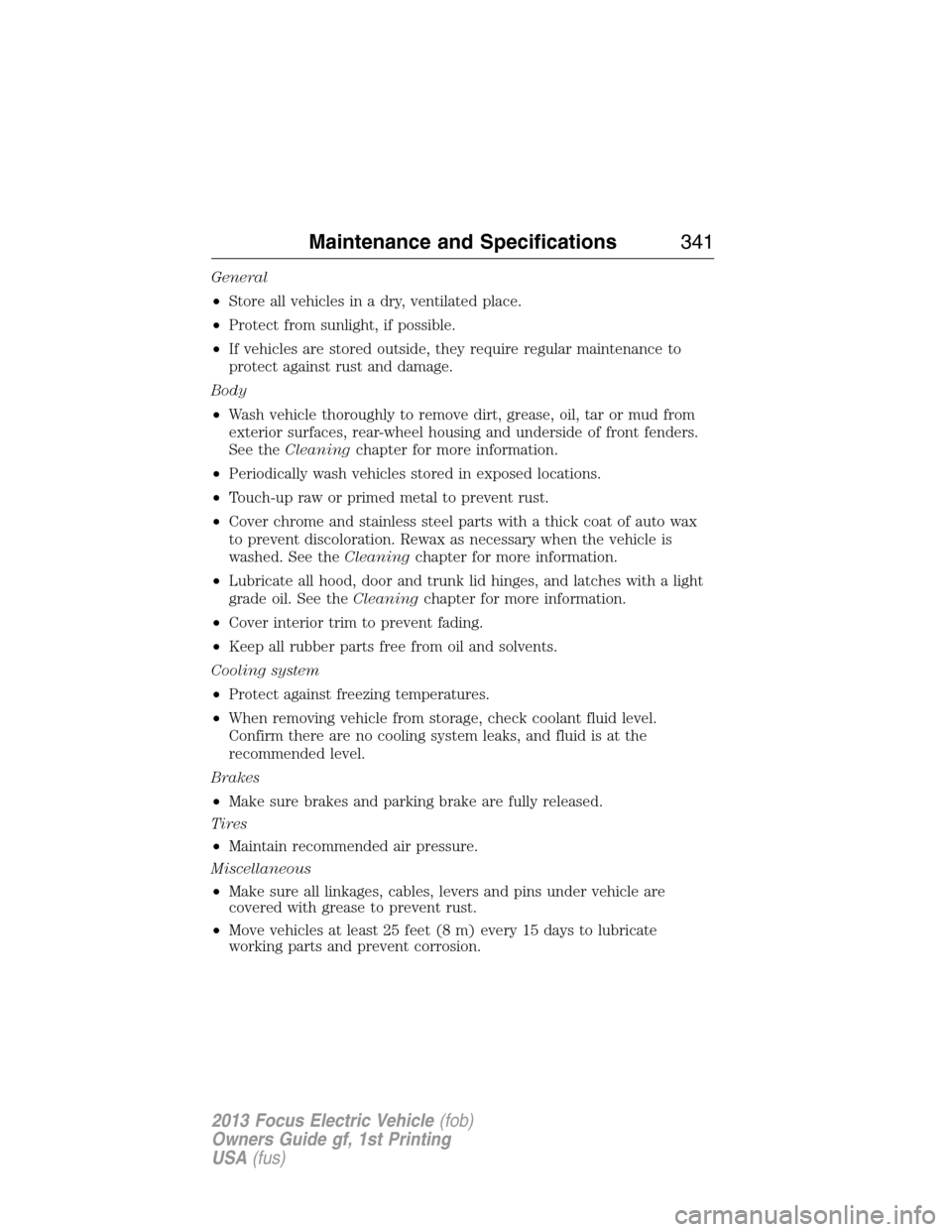

General
•Store all vehicles in a dry, ventilated place.
•Protect from sunlight, if possible.
•If vehicles are stored outside, they require regular maintenance to
protect against rust and damage.
Body
•Wash vehicle thoroughly to remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing and underside of front fenders.
See theCleaningchapter for more information.
•Periodically wash vehicles stored in exposed locations.
•Touch-up raw or primed metal to prevent rust.
•Cover chrome and stainless steel parts with a thick coat of auto wax
to prevent discoloration. Rewax as necessary when the vehicle is
washed. See theCleaningchapter for more information.
•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Maintenance and Specifications341
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Coolant change intervals
Initial change10 years or 150,000 miles (240,000 km)
(whichever comes first)
After initial changeEvery 5 years or 50,000 miles (80,000 km)
Check every month
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance353
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
