WARNING:All occupants of the vehicle including the driver
should always wear their safety belts even when an airbag SRS
and side curtain airbag is provided.
WARNING:To reduce risk of injury, do not obstruct or place
objects in the deployment path of the side curtain airbag.
WARNING:If the side curtain airbags have deployed,the side
curtain airbags will not function again. The side curtain
airbags (including the A, B and C pillar trim and headliner)
must be inspected and serviced by an authorized dealer.If the
side curtain airbag is not replaced, the unrepaired area will increase the
risk of injury in a collision.
A side curtain airbag will deploy during significant side collisions. The
side curtain airbags are mounted to the roof side-rail sheet metal, behind
the headliner, above each row of seats. In certain lateral collisions, the
side curtain airbag on the impacted side of the vehicle will be activated.
The side curtain airbags are designed to inflate between the side window
area and occupants to further enhance protection provided in side
impact collisions.
The system consists of the
following:
•Side curtain airbags fitted above
the trim panels over the front
and rear side windows identified
by a label or wording on the
headliner or roof-pillar trim.
•A flexible headliner which opens above the side doors to allow side air
curtain deployment.
•Crash sensors and monitoring system with readiness
indicator. Refer toCrash sensors and Airbag Indicator
later in this chapter.
52Supplementary Restraints System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Children 12 years old and under should always be properly restrained in
the back seats. The side curtain airbags will not interfere with children
restrained using a properly installed child or booster seat because it is
designed to inflate downward from the headliner above the doors along
the side window opening.
The design and development of the side curtain airbags included
recommended testing procedures that were developed by a group of
automotive safety experts known as the Side Airbag Technical Working
Group. These recommended testing procedures help reduce the risk of
injuries related to the deployment of side curtain airbags.
CRASH SENSORS AND AIRBAG INDICATOR
WARNING:Modifying or adding equipment to the front end of
the vehicle (including frame, bumper, front end body structure
and tow hooks) may affect the performance of the airbag system,
increasing the risk of injury. Do not modify the front end of the vehicle.
The vehicle has a collection of crash and occupant sensors which provide
information to the Restraints Control Module (RCM) which deploys
(activates) the front safety belt pretensioners, driver airbag, passenger
airbag, knee airbag, seat mounted side airbags, and the side curtain
airbags. Based on the type of collision (frontal impact or side impact) the
restraints control module will deploy the appropriate safety devices.
The restraints control module also monitors the readiness of the above
safety devices plus the crash and occupant sensors. The readiness of the
safety system is indicated by a warning indicator light in the instrument
cluster or by a backup tone if the warning light is not working. Refer to
Warning lamps and indicatorsin theInstrument Clusterchapter.
Routine maintenance of the airbag is not required.
A difficulty with the system is indicated by one or more of the following:
•The readiness light will either flash or stay lit.
•The readiness light will not illuminate immediately after the
ignition is turned on.
•A series of five beeps will be heard. The tone pattern will repeat
periodically until the problem and/or light are repaired.
Supplementary Restraints System53
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

If any of these things happen, even intermittently, have the supplemental
restraint system serviced at an authorized dealer immediately. Unless
serviced, the system may not function properly in the event of a
collision.
The safety belt pretensioners and the airbag supplemental restraint
system are designed to activate when the vehicle sustains longitudinal
deceleration sufficient to cause the restraints control module to deploy a
safety device.
The fact that the safety belt pretensioners or front airbags did not
activate for both front seat occupants in a collision does not mean that
something is wrong with the system. Rather, it means the restraints
control module determined the accident conditions (crash severity, belt
usage, etc.) were not appropriate to activate these safety devices.
•Front airbags are designed to activate only in frontal and near-frontal
collisions (not rollovers, side impacts or rear impacts) unless the
collision causes sufficient longitudinal deceleration.
•The safety belt pretensioners are designed to activate in frontal and
near-frontal collisions, and may also activate when a side curtain
deploys.
•The knee airbag deploys from under the instrument panel when the
passenger airbag activates in a collision.
•Side airbags and side curtain airbags are designed to inflate in
side-impact collisions, not rollovers, rear impacts, frontal or
near-frontal collisions, unless the collision causes sufficient lateral
deceleration.
AIRBAG DISPOSAL
Contact your authorized dealer as soon as possible. Airbags MUST BE
disposed of by qualified personnel.
54Supplementary Restraints System
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

5. Turn the ignition on. The module is now in programming mode.
Note:A chime sounds as acknowledgement that the programming mode
has been entered. The safety belt must be engaged otherwise the
Belt-Minderchime will take priority over other chimes.
6. Once in programming mode, the autolock or autounlock feature can be
programmed independently of each other.
•To program the autolock feature, press the power door lock control
for greater than two seconds and release. Each long press of the
power door lock control toggles the state of the autolocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
•To program the autounlock feature, press the power door lock control
for less than 1 second and release. Each short press of the power
door lock control toggles the state of the autounlocking feature
between enabled and disabled. A chime sounds when the feature is
enabled or disabled.
7. Turn the ignition off to exit programming. If a setting was toggled, a
chime will be heard.
Illuminated Entry
The interior lamps illuminate for 25 seconds when:
•the vehicle is unlocked by any method other than the interior power
door lock control.
•a door has been opened or closed.
The lamps will turn off:
•if the ignition is turned on.
•if the vehicle is locked by any method other than the interior power
door lock control.
•after 25 seconds of illumination.
66Locks
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Door Ajar
Displays when the ignition is in the on position and any door is
not completely closed.
Engine Coolant Temperature
Illuminates when the engine coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let
cool. Have the system checked by your authorized dealer.
Engine Oil
If it illuminates with the engine running or when you are
driving, this indicates a malfunction. Stop your vehicle as soon
as it is safe to do so and switch the engine off. Check the
engine oil level.
Note:Do not resume your journey if it illuminates despite the level
being correct. Have the system checked by your authorized dealer.
Fasten Safety Belt
It will illuminate and a chime will sound to remind you to fasten
your safety belt.
High Beam
It will illuminate when the headlamp high beam is switched on.
It will flash when you use the headlamp flasher.
Hill Start Assistance (If Equipped):
Displays when using hill start assist and it is not available.
Information
It will illuminate when a new message is stored in the
information display. It will be red or amber in color depending
on the severity of the message and will remain on until the
cause of the message has been rectified. .
Instrument Cluster89
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

SITTING IN THE CORRECT POSITION
WARNING:Sitting improperly out of position or with the
seatback reclined too far can take off weight from the seat
cushion and affect the decision of the passenger sensing system,
resulting in serious injury or death in a crash. Always sit upright against
your seatback, with your feet on the floor.
WARNING:Do not recline the seatback as this can cause the
occupant to slide under the seat’s safety belt, resulting in severe
personal injury in the event of a collision.
WARNING:Do not place objects higher than the seatbacks to
reduce the risk of injury in a collision or during heavy braking or
when stopping suddenly.
When you use them properly, the
seat, head restraint, safety belt and
airbags will provide optimum
protection in the event of a
collision. We recommend that you
follow these guidelines:
•Do not recline the seatback more
than 30 degrees from vertical.
•Sit in an upright position with the
base of your spine as far back as
possible.
•Adjust the head restraint so that the top of it is level with the top of
your head and as far forward as possible, remaining comfortable.
•Keep sufficient distance between yourself and the steering wheel. We
recommend a minimum of 10 inches (250 mm) between your
breastbone and the airbag cover.
•Hold the steering wheel with your arms slightly bent.
•Bend your legs slightly so that you can press the pedals fully.
•Position the shoulder strap of the safety belt over the center of your
shoulder and position the lap strap tightly across your hips.
Make sure that your driving position is comfortable and that you can
maintain full control of your vehicle.
11 8Seats
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Your heated seats include both a heated seat cushion and heated seatback.
To operate the heated seats:
•Press the button located on the instrument panel to
activate.
•Press again to deactivate.
The heated seats will activate when the ignition is in the on position and
the engine is running.
REAR SEATS
Folding Down the Rear Seat
WARNING:Before returning the seatback to its original position,
make sure that cargo or any objects are not trapped behind the
seatback. Make sure that the safety belt is not laying on the seat latch.
After returning the seatback to its original position, pull on the
seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
Note:Before lowering the seatbacks, lower or remove the outboard head
restraints to the lowest position.
One or both rear seatbacks can be folded down to provide additional
cargo space.
To lower the seatback(s) from inside the vehicle:
1. Press the unlock buttons (A)
down and hold them there.
2. Push the seatback forward.
AA
124Seats
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

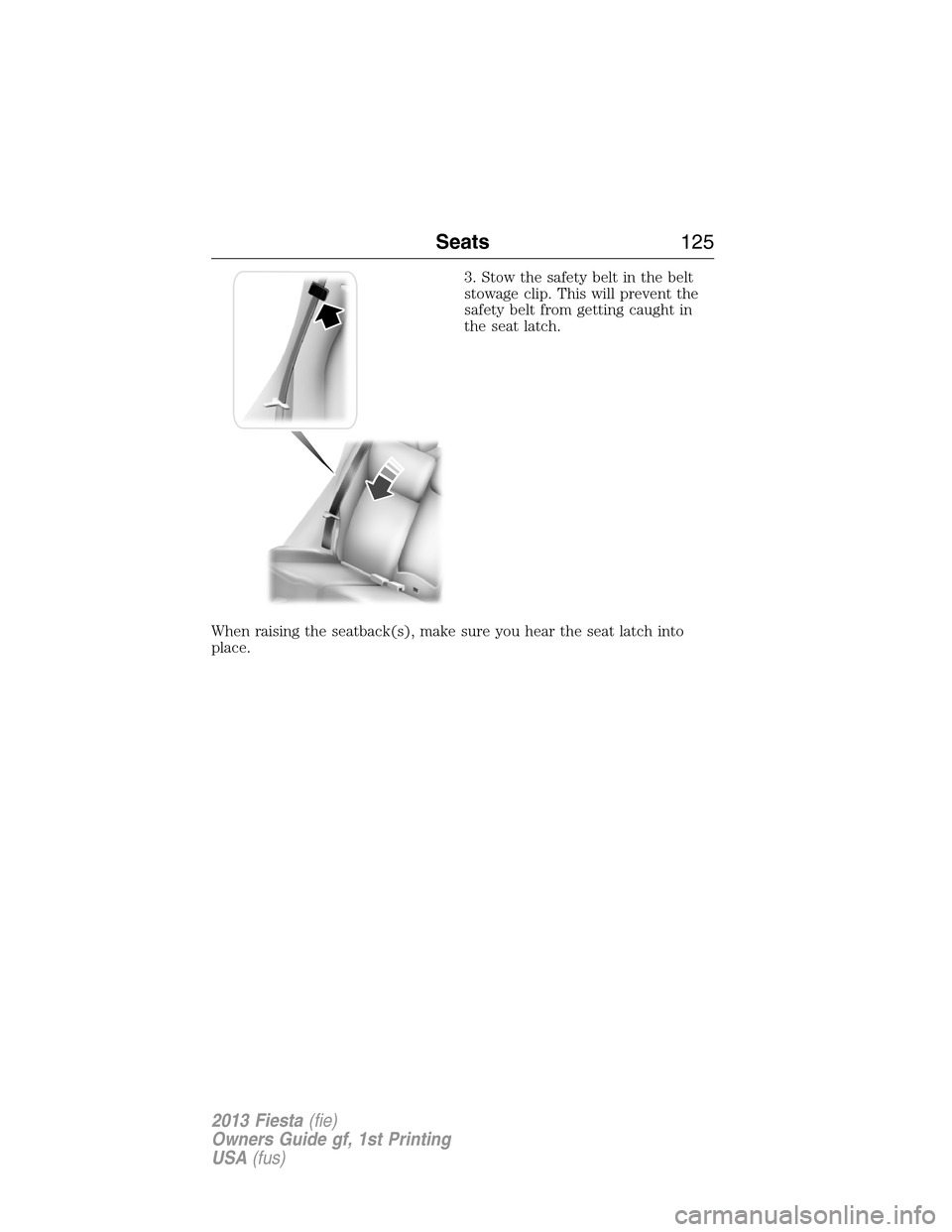

3. Stow the safety belt in the belt
stowage clip. This will prevent the
safety belt from getting caught in
the seat latch.
When raising the seatback(s), make sure you hear the seat latch into
place.
Seats125
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
