2013 FORD EXPEDITION navigation system

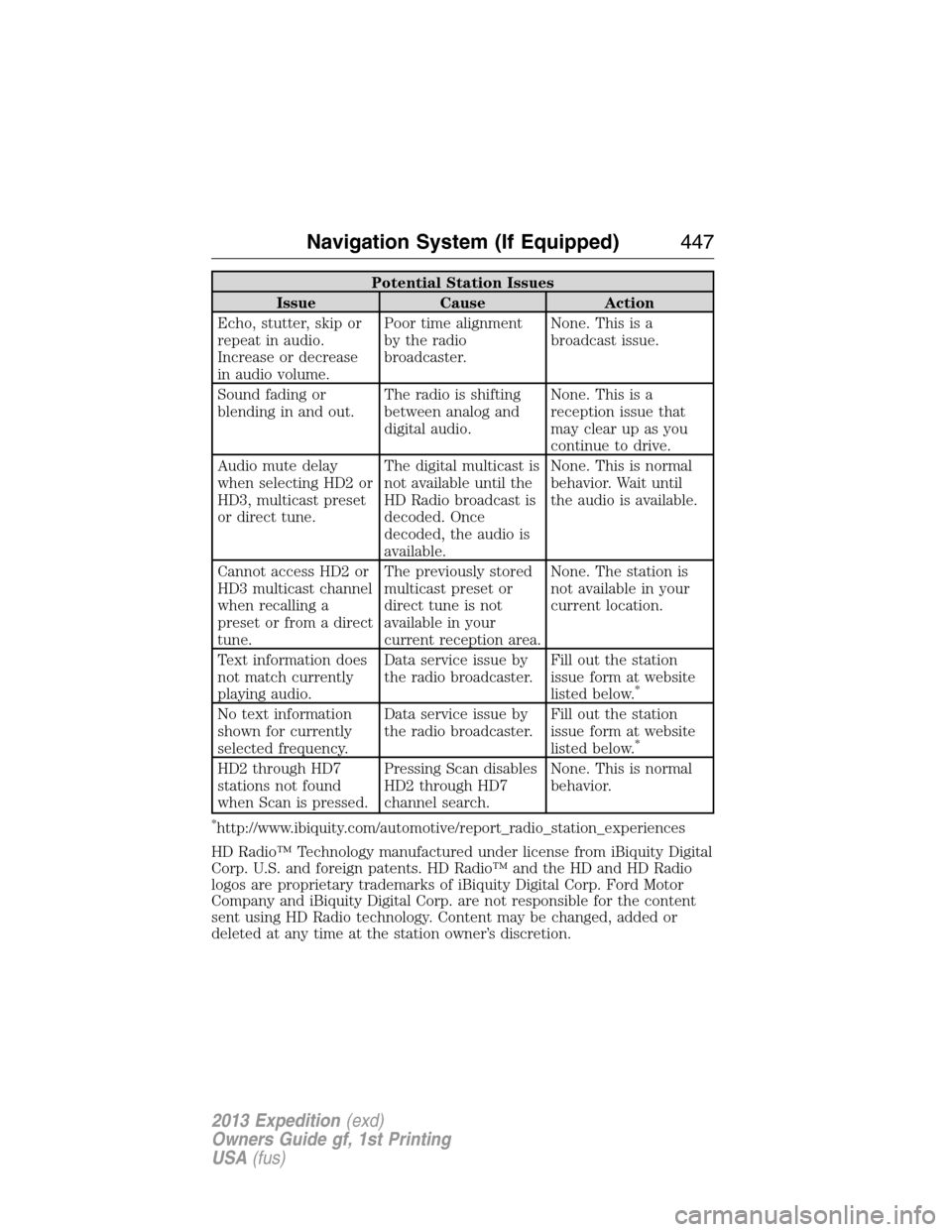

Potential Station Issues
Issue Cause Action
Echo, stutter, skip or
repeat in audio.
Increase or decrease
in audio volume.Poor time alignment
by the radio
broadcaster.None. This is a
broadcast issue.
Sound fading or
blending in and out.The radio is shifting
between analog and
digital audio.None. This is a
reception issue that
may clear up as you
continue to drive.
Audio mute delay
when selecting HD2 or
HD3, multicast preset
or direct tune.The digital multicast is
not available until the
HD Radio broadcast is
decoded. Once
decoded, the audio is
available.None. This is normal
behavior. Wait until
the audio is available.
Cannot access HD2 or
HD3 multicast channel
when recalling a
preset or from a direct
tune.The previously stored
multicast preset or
direct tune is not
available in your
current reception area.None. The station is
not available in your
current location.
Text information does
not match currently
playing audio.Data service issue by
the radio broadcaster.Fill out the station
issue form at website
listed below.
*
No text information
shown for currently
selected frequency.Data service issue by
the radio broadcaster.Fill out the station
issue form at website
listed below.
*
HD2 through HD7
stations not found
when Scan is pressed.Pressing Scan disables
HD2 through HD7
channel search.None. This is normal
behavior.
*http://www.ibiquity.com/automotive/report_radio_station_experiences
HD Radio™ Technology manufactured under license from iBiquity Digital
Corp. U.S. and foreign patents. HD Radio™ and the HD and HD Radio
logos are proprietary trademarks of iBiquity Digital Corp. Ford Motor
Company and iBiquity Digital Corp. are not responsible for the content
sent using HD Radio technology. Content may be changed, added or
deleted at any time at the station owner’s discretion.
Navigation System (If Equipped)447
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

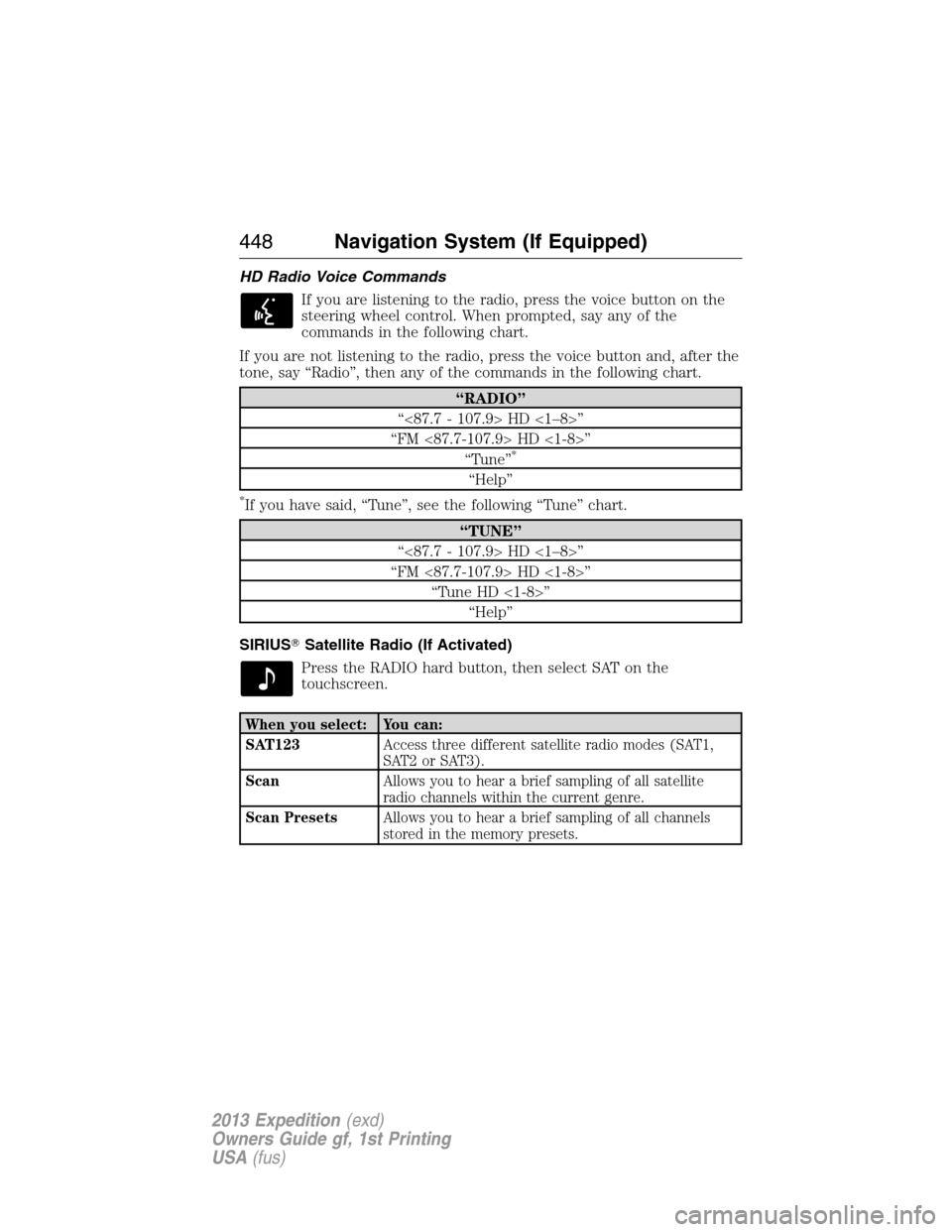

HD Radio Voice Commands
If you are listening to the radio, press the voice button on the
steering wheel control. When prompted, say any of the
commands in the following chart.
If you are not listening to the radio, press the voice button and, after the
tone, say “Radio”, then any of the commands in the following chart.
“RADIO”
“<87.7 - 107.9> HD <1–8>”
“FM <87.7-107.9> HD <1-8>”
“Tune”
*
“Help”
*If you have said, “Tune”, see the following “Tune” chart.
“TUNE”
“<87.7 - 107.9> HD <1–8>”
“FM <87.7-107.9> HD <1-8>”
“Tune HD <1-8>”
“Help”
SIRIUSSatellite Radio (If Activated)
Press the RADIO hard button, then select SAT on the
touchscreen.
When you select: You can:
SAT123Access three different satellite radio modes (SAT1,
SAT2 or SAT3).
ScanAllows you to hear a brief sampling of all satellite
radio channels within the current genre.
Scan PresetsAllows you to hear a brief sampling of all channels
stored in the memory presets.
448Navigation System (If Equipped)
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

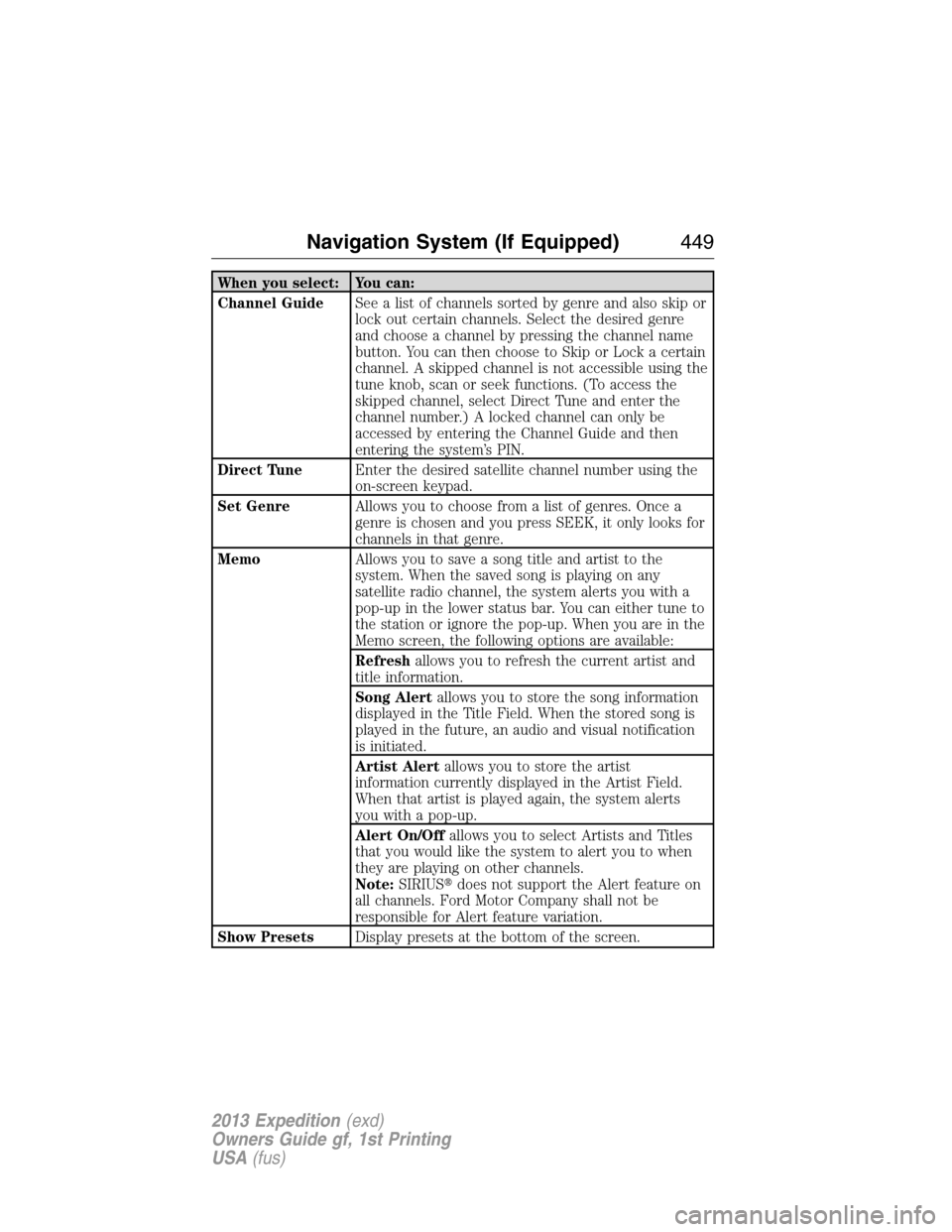

When you select: You can:
Channel GuideSee a list of channels sorted by genre and also skip or
lock out certain channels. Select the desired genre
and choose a channel by pressing the channel name
button. You can then choose to Skip or Lock a certain
channel. A skipped channel is not accessible using the
tune knob, scan or seek functions. (To access the
skipped channel, select Direct Tune and enter the
channel number.) A locked channel can only be
accessed by entering the Channel Guide and then
entering the system’s PIN.
Direct TuneEnter the desired satellite channel number using the
on-screen keypad.
Set GenreAllows you to choose from a list of genres. Once a
genre is chosen and you press SEEK, it only looks for
channels in that genre.
MemoAllows you to save a song title and artist to the
system. When the saved song is playing on any
satellite radio channel, the system alerts you with a
pop-up in the lower status bar. You can either tune to
the station or ignore the pop-up. When you are in the
Memo screen, the following options are available:
Refreshallows you to refresh the current artist and
title information.
Song Alertallows you to store the song information
displayed in the Title Field. When the stored song is
played in the future, an audio and visual notification
is initiated.
Artist Alertallows you to store the artist
information currently displayed in the Artist Field.
When that artist is played again, the system alerts
you with a pop-up.
Alert On/Offallows you to select Artists and Titles
that you would like the system to alert you to when
they are playing on other channels.
Note:SIRIUSdoes not support the Alert feature on
all channels. Ford Motor Company shall not be
responsible for Alert feature variation.
Show PresetsDisplay presets at the bottom of the screen.
Navigation System (If Equipped)449
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

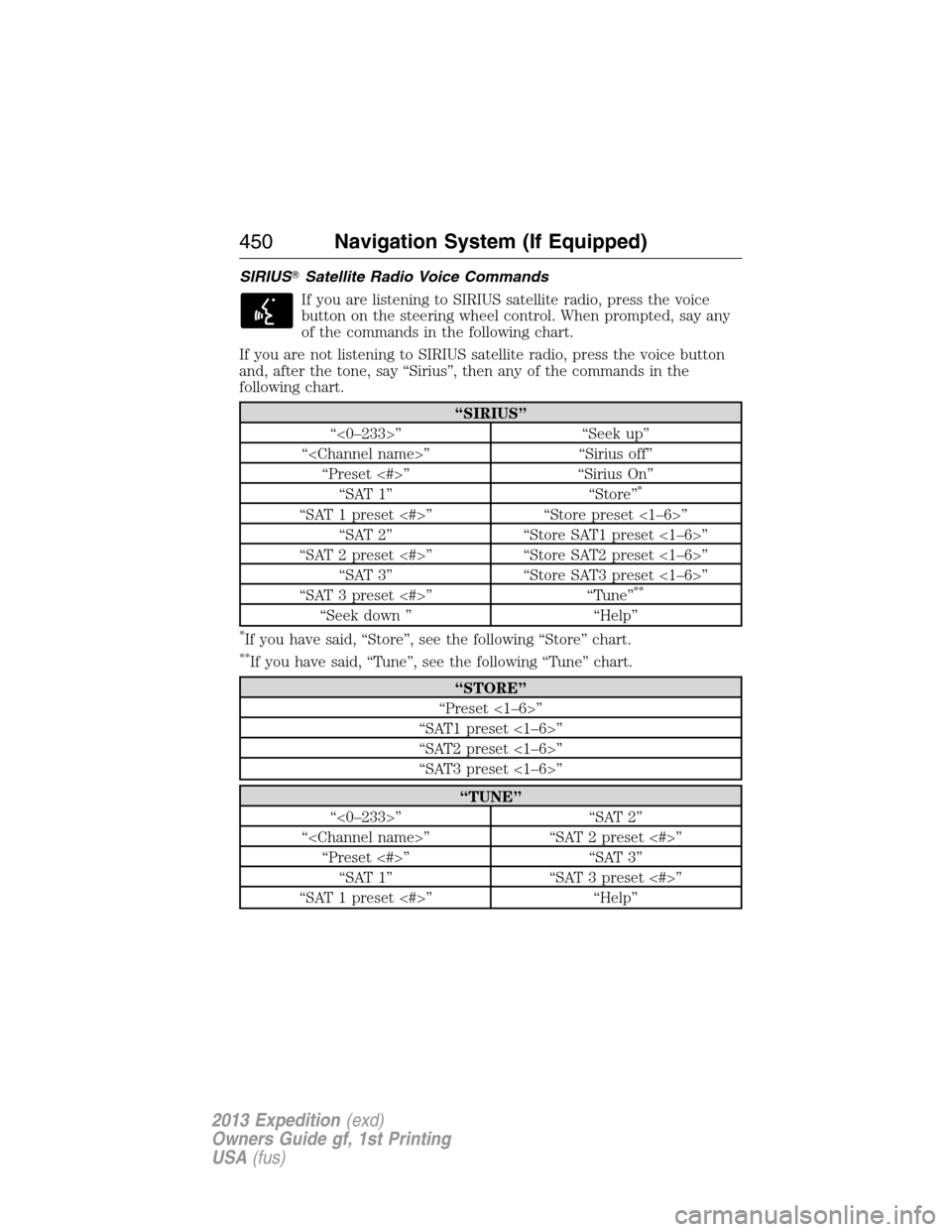

SIRIUSSatellite Radio Voice Commands
If you are listening to SIRIUS satellite radio, press the voice
button on the steering wheel control. When prompted, say any
of the commands in the following chart.
If you are not listening to SIRIUS satellite radio, press the voice button
and, after the tone, say “Sirius”, then any of the commands in the
following chart.
“SIRIUS”
“<0–233>” “Seek up”
“” “Sirius off”
“Preset <#>” “Sirius On”
“SAT 1” “Store”
*
“SAT 1 preset <#>” “Store preset <1–6>”
“SAT 2” “Store SAT1 preset <1–6>”
“SAT 2 preset <#>” “Store SAT2 preset <1–6>”
“SAT 3” “Store SAT3 preset <1–6>”
“SAT 3 preset <#>” “Tune”
**
“Seek down ” “Help”
*If you have said, “Store”, see the following “Store” chart.
**If you have said, “Tune”, see the following “Tune” chart.
“STORE”
“Preset <1–6>”
“SAT1 preset <1–6>”
“SAT2 preset <1–6>”
“SAT3 preset <1–6>”
“TUNE”
“<0–233>” “SAT 2”
“” “SAT 2 preset <#>”
“Preset <#>” “SAT 3”
“SAT 1” “SAT 3 preset <#>”
“SAT 1 preset <#>” “Help”
450Navigation System (If Equipped)
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

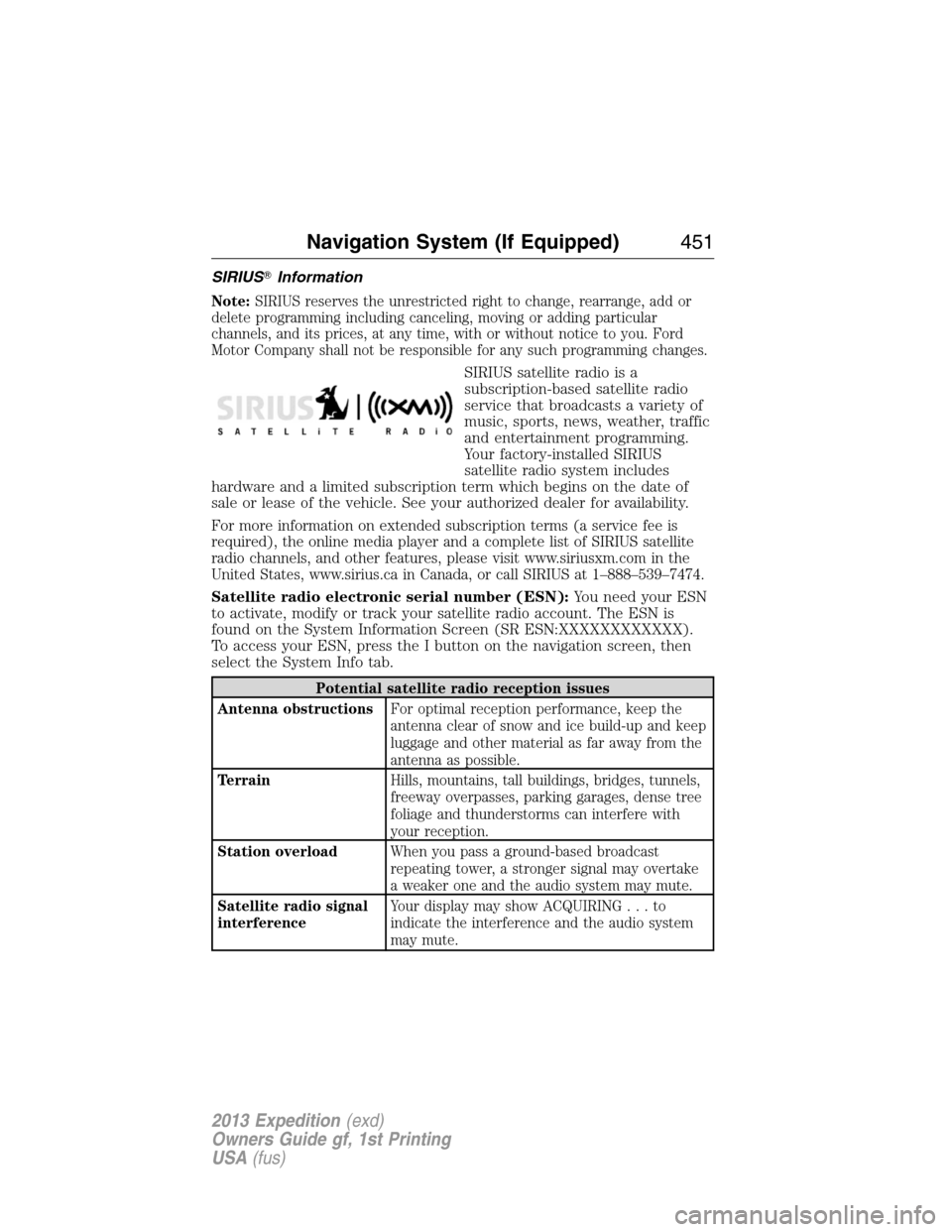

SIRIUSInformation
Note:SIRIUS reserves the unrestricted right to change, rearrange, add or
delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming changes.
SIRIUS satellite radio is a
subscription-based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory-installed SIRIUS
satellite radio system includes
hardware and a limited subscription term which begins on the date of
sale or lease of the vehicle. See your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS satellite
radio channels, and other features, please visit www.siriusxm.com in the
United States, www.sirius.ca in Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio electronic serial number (ESN):You need your ESN
to activate, modify or track your satellite radio account. The ESN is
found on the System Information Screen (SR ESN:XXXXXXXXXXXX).
To access your ESN, press the I button on the navigation screen, then
select the System Info tab.
Potential satellite radio reception issues
Antenna obstructionsFor optimal reception performance, keep the
antenna clear of snow and ice build-up and keep
luggage and other material as far away from the
antenna as possible.
TerrainHills, mountains, tall buildings, bridges, tunnels,
freeway overpasses, parking garages, dense tree
foliage and thunderstorms can interfere with
your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may overtake
a weaker one and the audio system may mute.
Satellite radio signal
interferenceYour display may show ACQUIRING...to
indicate the interference and the audio system
may mute.
Navigation System (If Equipped)451
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

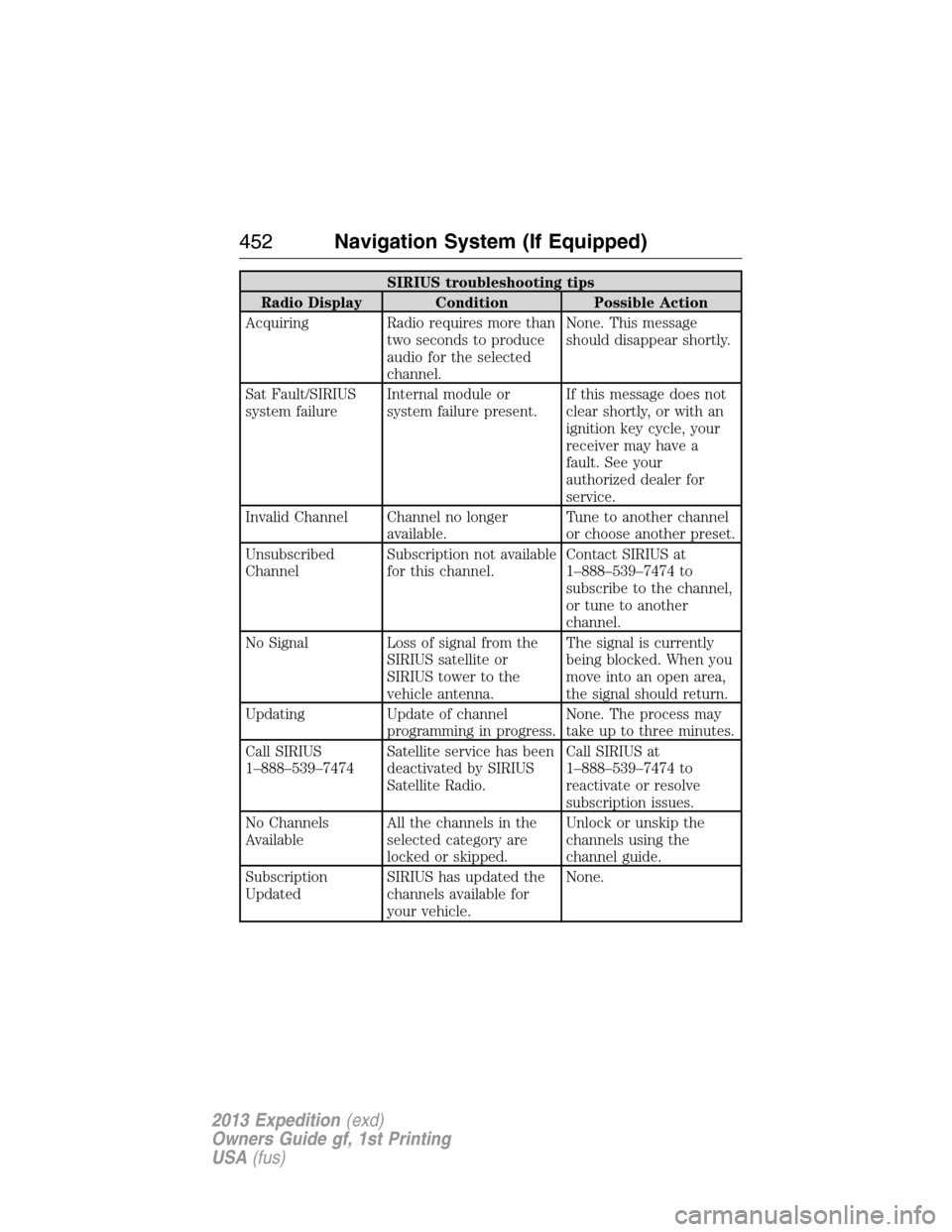

SIRIUS troubleshooting tips
Radio Display Condition Possible Action
Acquiring Radio requires more than
two seconds to produce
audio for the selected
channel.None. This message
should disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does not
clear shortly, or with an
ignition key cycle, your
receiver may have a
fault. See your
authorized dealer for
service.
Invalid Channel Channel no longer
available.Tune to another channel
or choose another preset.
Unsubscribed
ChannelSubscription not available
for this channel.Contact SIRIUS at
1–888–539–7474 to
subscribe to the channel,
or tune to another
channel.
No Signal Loss of signal from the
SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.The signal is currently
being blocked. When you
move into an open area,
the signal should return.
Updating Update of channel
programming in progress.None. The process may
take up to three minutes.
Call SIRIUS
1–888–539–7474Satellite service has been
deactivated by SIRIUS
Satellite Radio.Call SIRIUS at
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels
AvailableAll the channels in the
selected category are
locked or skipped.Unlock or unskip the
channels using the
channel guide.
Subscription
UpdatedSIRIUS has updated the
channels available for
your vehicle.None.
452Navigation System (If Equipped)
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

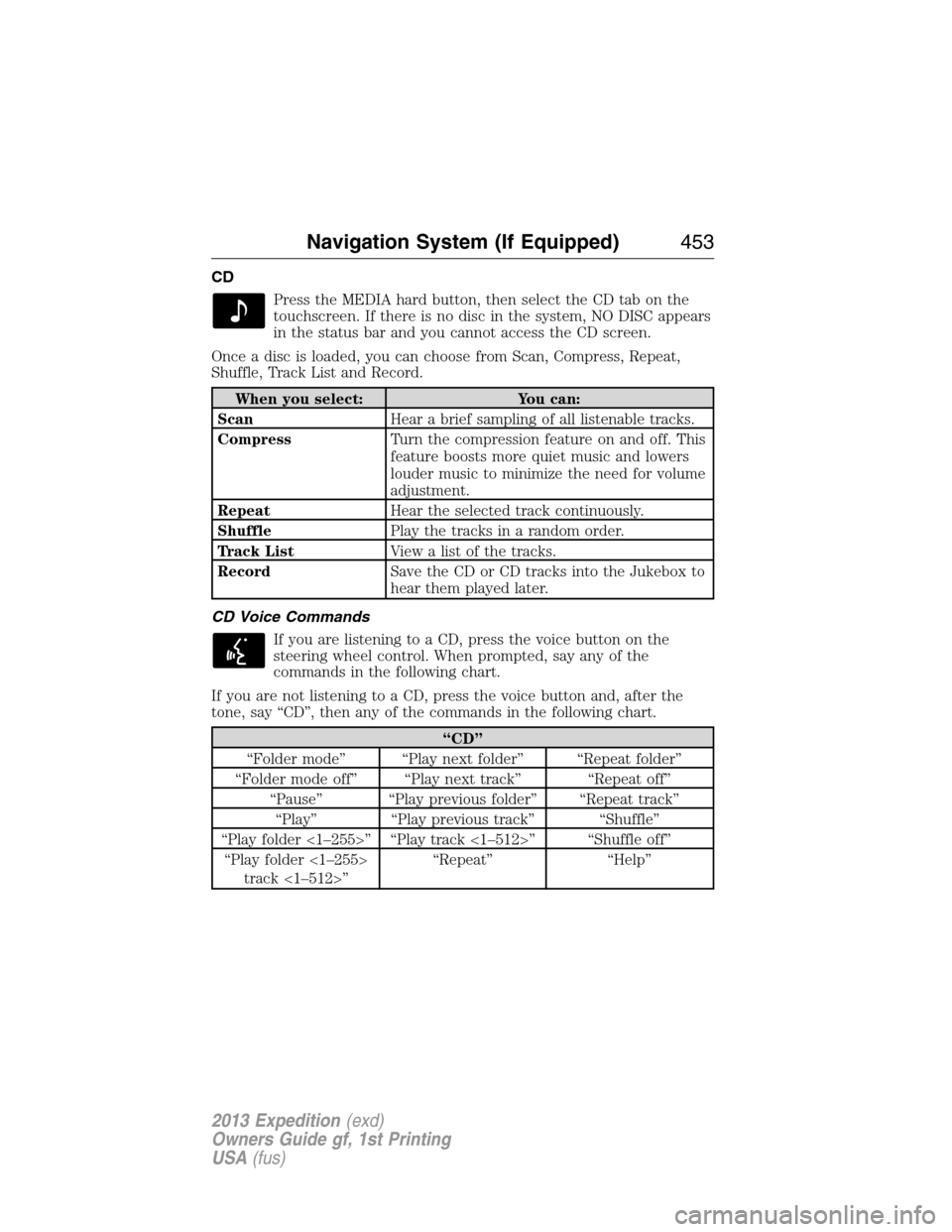

CD
Press the MEDIA hard button, then select the CD tab on the
touchscreen. If there is no disc in the system, NO DISC appears
in the status bar and you cannot access the CD screen.
Once a disc is loaded, you can choose from Scan, Compress, Repeat,
Shuffle, Track List and Record.
When you select: You can:
ScanHear a brief sampling of all listenable tracks.
CompressTurn the compression feature on and off. This
feature boosts more quiet music and lowers
louder music to minimize the need for volume
adjustment.
RepeatHear the selected track continuously.
ShufflePlay the tracks in a random order.
Track ListView a list of the tracks.
RecordSave the CD or CD tracks into the Jukebox to
hear them played later.
CD Voice Commands
If you are listening to a CD, press the voice button on the
steering wheel control. When prompted, say any of the
commands in the following chart.
If you are not listening to a CD, press the voice button and, after the
tone, say “CD”, then any of the commands in the following chart.
“CD”
“Folder mode” “Play next folder” “Repeat folder”
“Folder mode off” “Play next track” “Repeat off”
“Pause” “Play previous folder” “Repeat track”
“Play” “Play previous track” “Shuffle”
“Play folder <1–255>” “Play track <1–512>” “Shuffle off”
“Play folder <1–255>
track <1–512>”“Repeat” “Help”
Navigation System (If Equipped)453
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

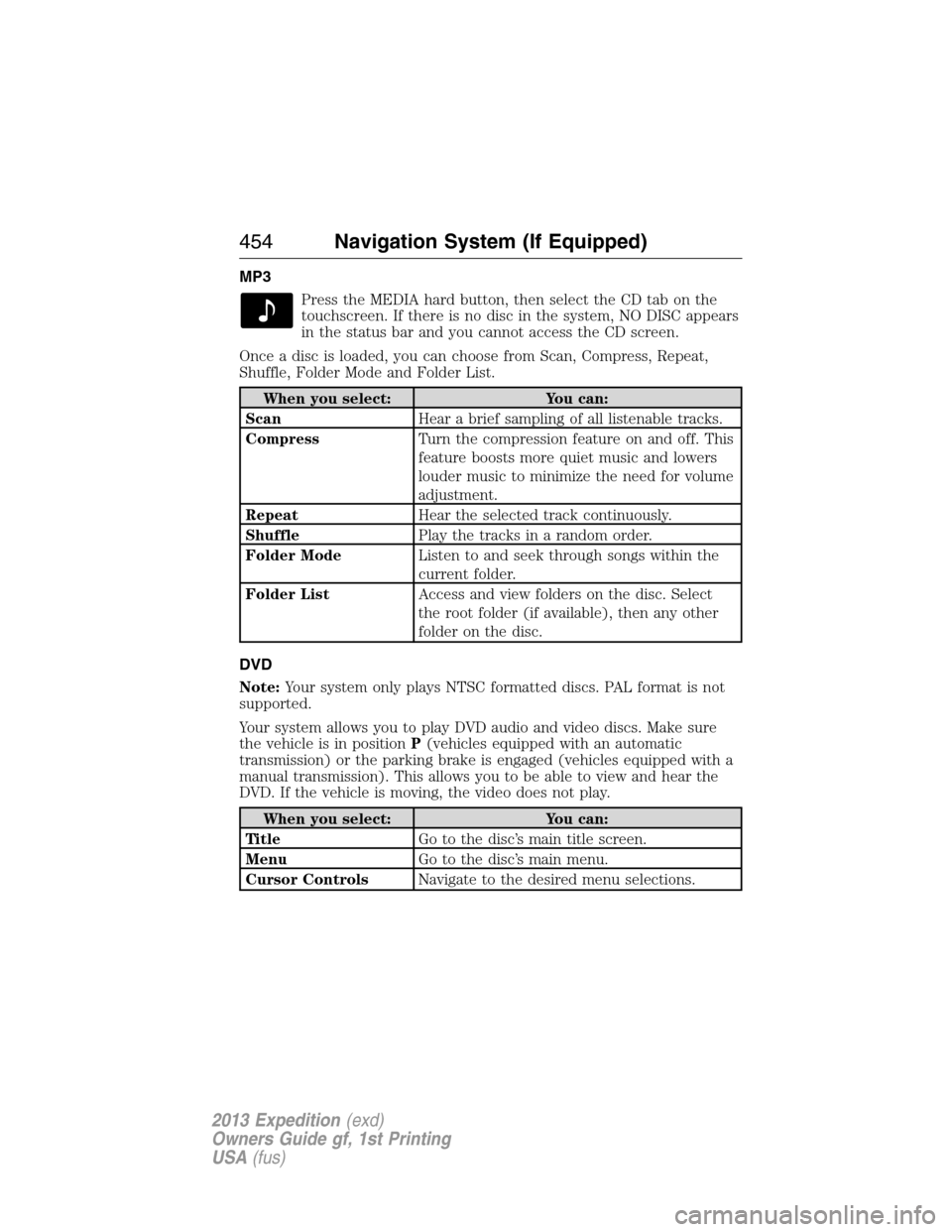

MP3
Press the MEDIA hard button, then select the CD tab on the
touchscreen. If there is no disc in the system, NO DISC appears
in the status bar and you cannot access the CD screen.
Once a disc is loaded, you can choose from Scan, Compress, Repeat,
Shuffle, Folder Mode and Folder List.
When you select: You can:
ScanHear a brief sampling of all listenable tracks.
CompressTurn the compression feature on and off. This
feature boosts more quiet music and lowers
louder music to minimize the need for volume
adjustment.
RepeatHear the selected track continuously.
ShufflePlay the tracks in a random order.
Folder ModeListen to and seek through songs within the
current folder.
Folder ListAccess and view folders on the disc. Select
the root folder (if available), then any other
folder on the disc.
DVD
Note:Your system only plays NTSC formatted discs. PAL format is not
supported.
Your system allows you to play DVD audio and video discs. Make sure
the vehicle is in positionP(vehicles equipped with an automatic
transmission) or the parking brake is engaged (vehicles equipped with a
manual transmission). This allows you to be able to view and hear the
DVD. If the vehicle is moving, the video does not play.
When you select: You can:
Ti t l eGo to the disc’s main title screen.
MenuGo to the disc’s main menu.
Cursor ControlsNavigate to the desired menu selections.
454Navigation System (If Equipped)
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)
