CavityVehicle Fuse
NumberMini FuseDescription
1F127.5 Amp Brown Right Low Beam
2F325 Amp Tan Front and Rear Ceiling Lights Trunk and Door
Courtesy Lights
3F535 Amp Tan Instrument Panel Node
4F3820 Amp Yellow Central Door Locking
5F3610 Amp Red Diagnostic Socket, Car Radio, Climate Control Sys-
tem
6F4320 Amp Yellow Bi-Directional Washer
7F4820 Amp Yellow Passenger Power Window
8F137.5 Amp Brown Left Low Beam, Headlamp Leveling
9F507.5 Amp Brown Airbag
7
MAINTAINING YOUR VEHICLE 343

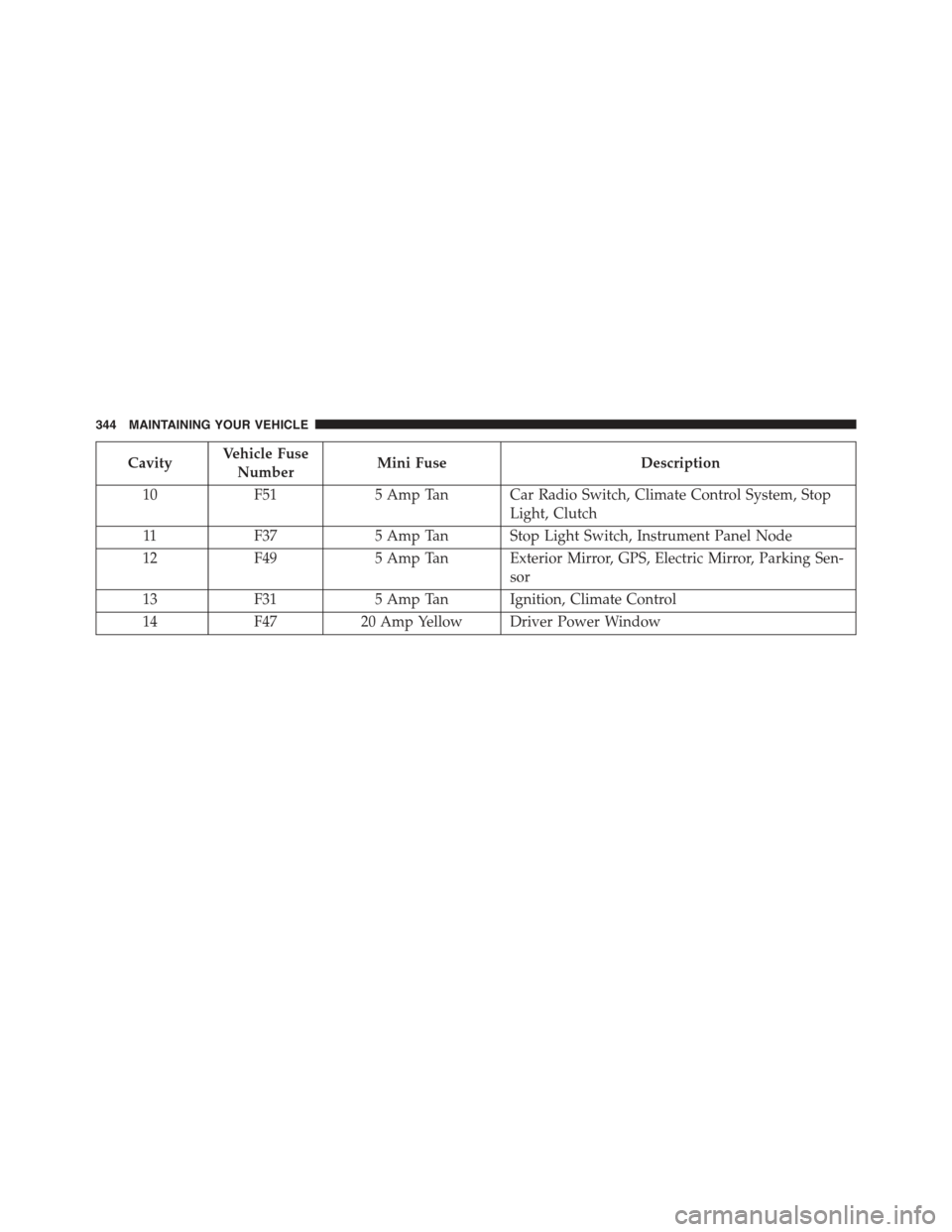

CavityVehicle Fuse
NumberMini FuseDescription
10F515 Amp Tan Car Radio Switch, Climate Control System, Stop
Light, Clutch
11F375 Amp Tan Stop Light Switch, Instrument Panel Node
12F495 Amp Tan Exterior Mirror, GPS, Electric Mirror, Parking Sen-
sor
13F315 Amp Tan Ignition, Climate Control
14F4720 Amp Yellow Driver Power Window
344 MAINTAINING YOUR VEHICLE

Underhood Fuses
The Front Distribution Unit is located on the right side of
the engine compartment, next to the battery. To access the
fuses, press the release tabs and remove the cover.
The ID number of the electrical component correspond-
ing to each fuse can be found on the back of the cover.
Front Distribution Unit
7
MAINTAINING YOUR VEHICLE 345

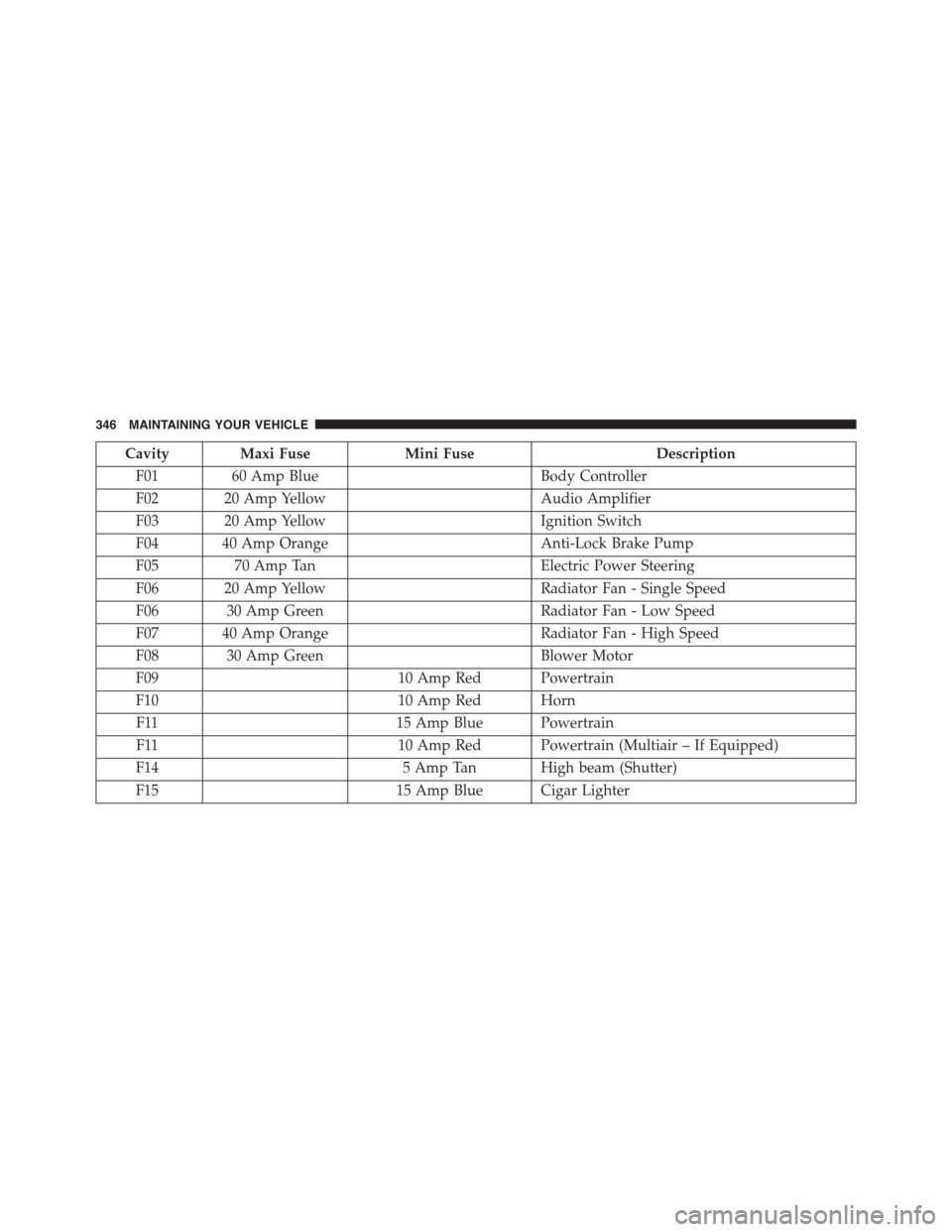

Cavity Maxi FuseMini FuseDescription
F01 60 Amp BlueBody Controller
F02 20 Amp YellowAudio Amplifier
F03 20 Amp YellowIgnition Switch
F04 40 Amp OrangeAnti-Lock Brake Pump
F0570 Amp TanElectric Power Steering
F06 20 Amp YellowRadiator Fan - Single Speed
F06 30 Amp GreenRadiator Fan - Low Speed
F07 40 Amp OrangeRadiator Fan - High Speed
F08 30 Amp GreenBlower Motor
F0910 Amp Red Powertrain
F1010 Amp Red Horn
F1115 Amp Blue Powertrain
F1110 Amp Red Powertrain (Multiair – If Equipped)
F145 Amp Tan High beam (Shutter)
F1515 Amp Blue Cigar Lighter
346 MAINTAINING YOUR VEHICLE

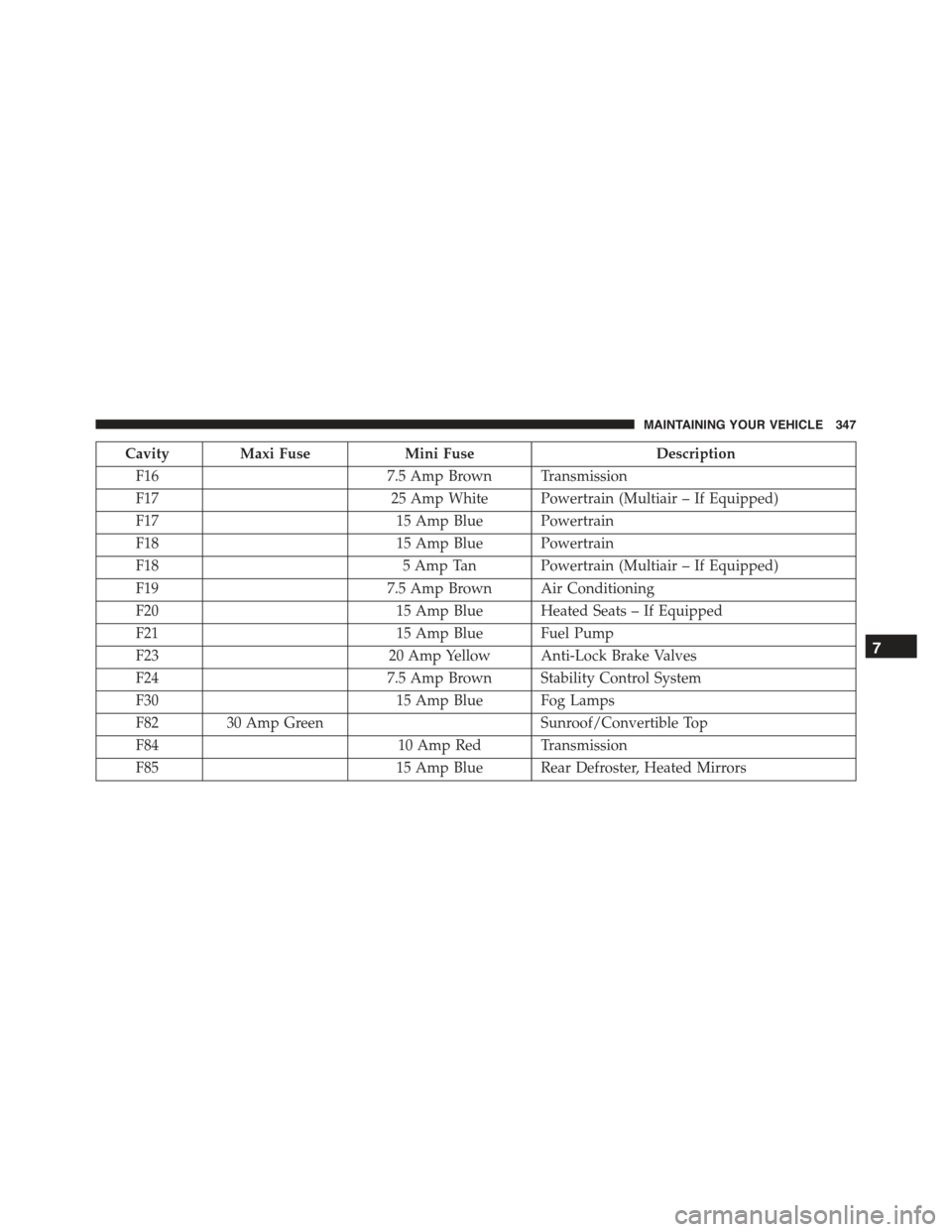

Cavity Maxi FuseMini FuseDescription
F167.5 Amp Brown Transmission
F1725 Amp White Powertrain (Multiair – If Equipped)
F1715 Amp Blue Powertrain
F1815 Amp Blue Powertrain
F185 Amp Tan Powertrain (Multiair – If Equipped)
F197.5 Amp Brown Air Conditioning
F2015 Amp Blue Heated Seats – If Equipped
F2115 Amp Blue Fuel Pump
F2320 Amp Yellow Anti-Lock Brake Valves
F247.5 Amp Brown Stability Control System
F3015 Amp Blue Fog Lamps
F82 30 Amp GreenSunroof/Convertible Top
F8410 Amp Red Transmission
F8515 Amp Blue Rear Defroster, Heated Mirrors
7
MAINTAINING YOUR VEHICLE 347

Cavity Maxi FuseMini FuseDescription
F875 Amp Tan Lights
F905 Amp Tan Heated Mirrors

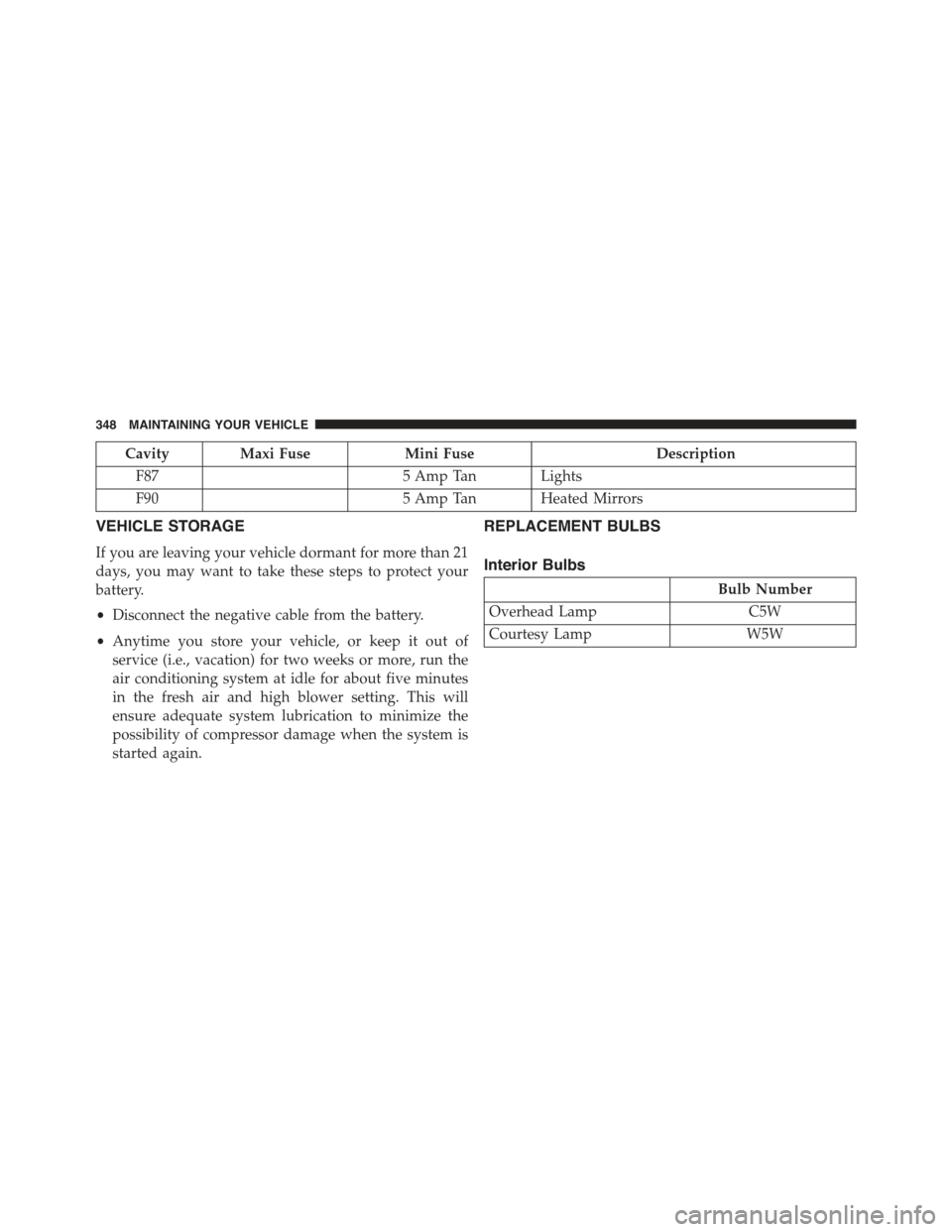

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead LampC5W
Courtesy LampW5W
348 MAINTAINING YOUR VEHICLE

Exterior Bulbs
Bulb Number
Front Low and High
Beam Headlamp
HIR2
Front Parking/Daytime
Running Lamps
W21/5W
Front Fog Lamps H11
Front Side Marker Lamps W3W
Front Turn Signal Lamps WY21W
Side Direction Lamps W5W
Rear Turn Signal Lamps PY21W
Rear Side Marker Lamps W3W
Rear Tail and Stop
Lamps
PY21W/5W
Rear Backup Lamps W16W
Bulb Number
Center High Mounted
Stop Lamp
W5W
License Plate Lamps LED (See Authorized stu-
dio)
NOTE:Numbers refer to commercial bulb types that
can be purchased from your authorized studio.
If a bulb needs to be replaced, visit your authorized
studio or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
7
MAINTAINING YOUR VEHICLE 349

Headlamps Low beam and High beam
1. Remove the plastic cap from the back of the headlamp
housing.
2. Rotate the bulb counter-clockwise.
3. Remove the bulb and replace as needed.
4. Install the bulb and rotate clockwise to lock in place.
5. Reinstall the plastic cap.
Front Turn Signal, Parking And Daytime Running
Lamps
1. Turn the steering wheel completely to the left or right.
2. Open the wheel housing access door.
3. Remove the plastic cap from the back of the lamp
housing.
4. Rotate bulb/socket counter-clockwise.
5. Remove the bulb and replace as needed.
