Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
• A “Turn Signal On” message will appear in the EVIC
(if equipped) and a continuous chime will sound if the
vehicle is driven more than 1 mi (1.6 km) with either
turn signal on.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
NOTE: If the multifunction lever is held in the flash-to
pass position for more than 15 seconds, the high beams
will shut off.
222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
This gauge measures engine revolutions-per-minute
(RPM x 1000).
2. Park/Headlight ON Indicator — If EquippedThis indicator will illuminate when the park
lights or headlights are turned on.
3. Turn Signal Indicators The arrow will flash with the exterior turn
signal when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle
is driven more than 1 mile (1.6 km) with either
turn signal on, a continuous chime will sound to alert
you to turn the signals off. If either indicator flashes at a
rapid rate, check for a defective outside light bulb. 4. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front
fog lights are on.
5. High Beam Indicator This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
6. Odometer Display / Electronic Vehicle Information
Center (EVIC) Display
Odometer Display
The odometer display shows the total distance the ve-
hicle has been driven.
U.S. Federal regulations require that upon transfer of
vehicle ownership, the seller certify to the purchaser the
correct mileage that the vehicle has been driven. If your
4
UNDERSTANDING YOUR INSTRUMENT PANEL 311

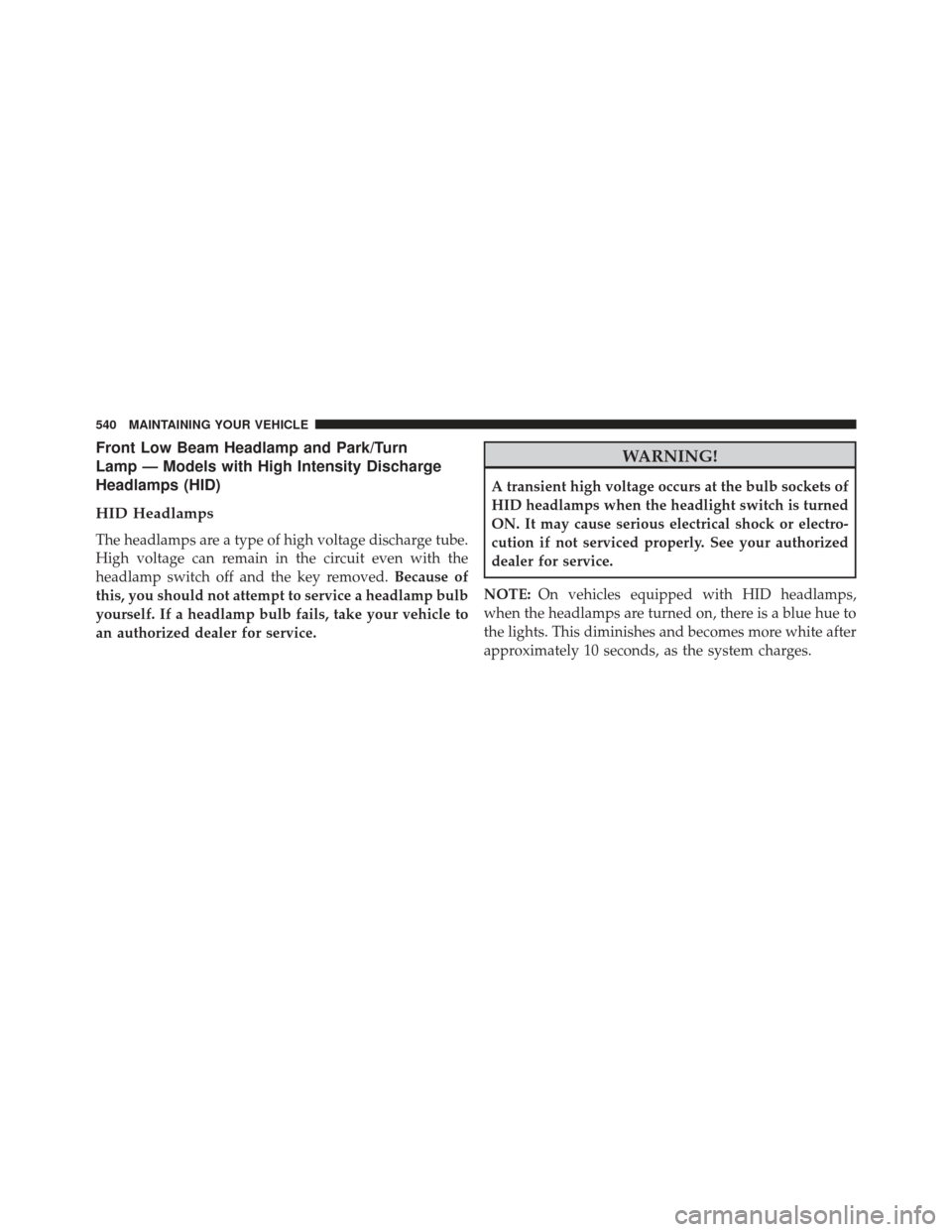

Front Low Beam Headlamp and Park/Turn
Lamp — Models with High Intensity Discharge
Headlamps (HID)
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlight switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
NOTE: On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lights. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
540 MAINTAINING YOUR VEHICLE

Key, Replacement..........................17
Keys ...................................12
Key, Sentry (Immobilizer) ....................16
Knee Bolster .......................... .59, 60
Lane Change and Turn Signals ................222
Lane Change Assist ....................... .222
Lap/Shoulder Belts .........................49
Latches .................................99
Latch Plate ...............................50
Lead Free Gasoline ....................... .458
Leaks, Fluid ..............................99
Life of Tires ............................ .447
Light Bulbs .......................... .99, 537
Lights .............................. .99, 216
Airbag ...................... .67, 72, 97, 315
Alarm .............................. .317
Anti-Lock ............................ .316
Automatic Headlights ....................217 Brake Assist Warning
....................426
Brake Warning ........................ .317
Bulb Replacement ...................... .539
Daytime Running ...................... .220
Dimmer Switch, Headlight .................222
Electronic Stability Program (ESP) Indicator .....426
Exterior ...............................99
Fog ............................. .220, 311
Hazard Warning Flasher ..................472
Headlights ........................ .216, 540
Headlights On Reminder ..................220
Headlights On With Wipers .............218, 229
Headlight Switch ...................... .216
High Beam ........................... .222
High Beam Indicator .....................311
High Beam/Low Beam Select ...............222
Illuminated Entry ........................21
Instrument Cluster ..................... .216
Intensity Control ....................... .225
586 INDEX
