2013 DODGE CHARGER SRT cruise control

To Turn Off
The system will turn off and erase the set speed in
memory if:
•You push and release the ON/OFF button.
• You turn off the ignition.
• You switch off ESC.
If the Cruise Control system is turned off and reactivated,
the system will return to the last driver setting (ACC or
Normal Cruise Control).
Forward Collision Warning — If Equipped
The Forward Collision Warning (FCW) system provides
the driver with audible and visual warnings (within the
EVIC) when it detects a potential frontal collision. The
warnings are intended to provide the driver with enough
time to react and avoid the potential collision. FCW monitors the information from the forward looking
sensor as well as the Electronic Brake Controller (EBC),
wheel speed sensors, i.e., to calculate a probable rear-end
collision. When the system determines that a rear-end
collision is probable a warning message (both audible
and visual) will be displayed on the EVIC. When the
system determines a collision with the vehicle in front of
you is no longer probable, the warning message will be
deactivated.
NOTE:
The minimum speed for FCW activation is
10 mph (16 km/h).WARNING!
Forward Collision Warning (FCW) is not intended to
avoid a collision on its own, nor can FCW detect
every type of potential collision. The driver has the
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

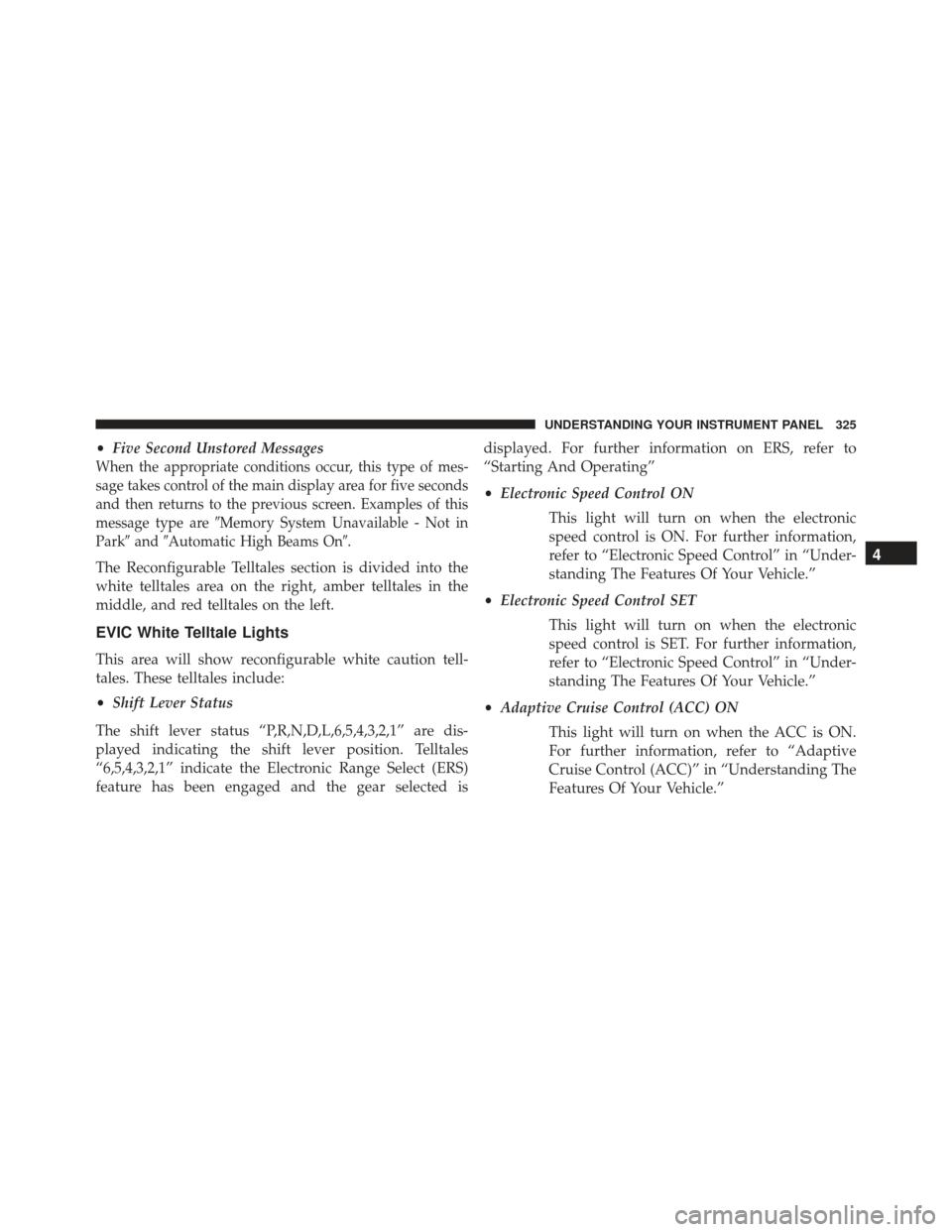

•Five Second Unstored Messages
When the appropriate conditions occur, this type of mes-
sage takes control of the main display area for five seconds
and then returns to the previous screen. Examples of this
message type are Memory System Unavailable - Not in
Park andAutomatic High Beams On .
The Reconfigurable Telltales section is divided into the
white telltales area on the right, amber telltales in the
middle, and red telltales on the left.
EVIC White Telltale Lights
This area will show reconfigurable white caution tell-
tales. These telltales include:
•Shift Lever Status
The shift lever status “P,R,N,D,L,6,5,4,3,2,1” are dis-
played indicating the shift lever position. Telltales
“6,5,4,3,2,1” indicate the Electronic Range Select (ERS)
feature has been engaged and the gear selected is displayed. For further information on ERS, refer to
“Starting And Operating”
•
Electronic Speed Control ON
This light will turn on when the electronic
speed control is ON. For further information,
refer to “Electronic Speed Control” in “Under-
standing The Features Of Your Vehicle.”
• Electronic Speed Control SET
This light will turn on when the electronic
speed control is SET. For further information,
refer to “Electronic Speed Control” in “Under-
standing The Features Of Your Vehicle.”
• Adaptive Cruise Control (ACC) ON
This light will turn on when the ACC is ON.
For further information, refer to “Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 325

•Adaptive Cruise Control (ACC) SET
This light will turn on when the ACC is SET.
For further information, refer to “Adaptive
Cruise Control (ACC)” in “Understanding The
Features Of Your Vehicle.”
EVIC Amber Telltale Lights
This area will show reconfigurable amber caution tell-
tales. These telltales include:
•Forward Collision Warning (FCW) OFF
This light warns the driver of a potential colli-
sion with the vehicle in front and prompts the
driver to take action in order to avoid the
collision. For further information, refer to
“Adaptive Cruise Control (ACC)” in “Understanding
The Features Of Your Vehicle.” •
Low Fuel Light
When the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
• Windshield Washer Fluid Low Indicator
This light will turn on to indicate the wind-
shield washer fluid is low.
• Adaptive Cruise Control (ACC) Malfunction
This light will turn on when a ACC is not
operating and needs service. For further infor-
mation, refer to “Adaptive Cruise Control
(ACC)” in “Understanding The Features Of
Your Vehicle.”
326 UNDERSTANDING YOUR INSTRUMENT PANEL

Cavity Car-tridgeFuse Mini-
Fuse Description
46 — 10 Amp RedAdaptive Cruise
Control
47 — 10 Amp RedAdaptive Front
Lighting
48 — 20 Amp YellowActive Suspension
49 — — Fuse — Spare
50 — — Fuse — Spare
51 — 20 Amp YellowFront Heated Seats
52 — 10 Amp RedHeated Cupholders/
Rear Heated Seat
SwitchesCavity Car-
tridgeFuse Mini-
Fuse Description
53 — 10 Amp RedHVAC Module/In
Car Temperature
Sensor
54 — — Fuse — Spare
55 — — Fuse — Spare
56 — — Fuse — Spare
57 — — Fuse — Spare
58 — 10 Amp RedAirbag Module
59 — — Fuse — Spare
60 — — Fuse — Spare
61 — — Fuse — Spare
62 — — Fuse — Spare
7
MAINTAINING YOUR VEHICLE 535

About Your Brakes....................... .413
ABS (Anti-Lock Brake System) ................416
Adaptive Cruise Control (ACC) (Cruise Control) . . .241
Adding Engine Coolant (Antifreeze) ............513
Adding Fuel ............................ .462
Adding Washer Fluid ..................... .508
Additives, Fuel .......................... .460
Adjustable Pedals ........................ .235
Airbag .............................. .59, 69
Airbag Deployment ........................70
Airbag Light .....................67, 72, 97, 315
Airbag Maintenance ........................72
Airbag, Side ........................ .63, 66, 69
Airbag, Window (Side Curtain) ...........63, 66, 69
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .502
Air Conditioner Maintenance .................504
Air Conditioning Filter ..................384, 505
Air Conditioning, Operating Tips ..............385
Air Conditioning Refrigerant ..............504, 505Air Conditioning System
.................382, 504
Air Pressure, Tires ........................ .439
Alarm Light ............................ .317
Alarm, Panic .............................24
Alarm (Security Alarm) ......................18
Alarm System (Security Alarm) ................18
Alterations/Modifications, Vehicle ...............7
Antifreeze (Engine Coolant) ...............512, 543
Disposal ............................. .515
Anti-Lock Brake System (ABS) .............416, 418
Anti-Lock Warning Light ....................316
Anti-Theft Security Alarm (Theft Alarm) ..........18
Appearance Care ........................ .522
Arming Theft System (Security Alarm) ...........18
Assist, Hill Start ......................... .423
Auto Down Power Windows ..................41
Automatic Dimming Mirror ..................108
Automatic Door Locks ......................33
Automatic Headlights ..................... .217
578 INDEX

Inspection........................... .515
Points to Remember .....................516
Pressure Cap ......................... .514
Radiator Cap ......................... .514
Selection of Coolant (Antifreeze) ......512, 543, 544
Corrosion Protection ...................... .522
Cruise Control (Speed Control) ................241
Cupholders ......................... .298, 527
Customer Assistance ...................... .567
Data Recorder, Event .......................73
Daytime Brightness, Interior Lights .............226
Daytime Running Lights ....................220
Dealer Service ........................... .498
Deck Lid, Emergency Release .................45
Deck Lid, Power Release .....................44
Defroster, Rear Window .....................305
Defroster, Windshield ....................97, 379
Delay (Intermittent) Wipers ..................227 Diagnostic System, Onboard
.................496
Dimmer Switch, Headlight ...................222
Dipsticks Oil (Engine) .......................... .499
Disposal Antifreeze (Engine Coolant) ................515
Door Locks ..............................30
Door Locks, Automatic ......................33
Driving Through Flowing, Rising, or Shallow Standing
Water ............................... .410
Driving to Achieve Maximum Fuel Economy ......331
Electrical Power Outlets .....................293
Electric Rear Window Defrost .................305
Electric Remote Mirrors .....................111
Electronic Brake Control System ...............418
Anti-Lock Brake System ..................418
Brake Assist System .....................419
10
INDEX 581

Traction Control System...................418
Electronic Power Distribution Center (Fuses) ......527
Electronic Speed Control (Cruise Control) .....237, 241
Electronic Stability Control (ESC) ..............419
Electronic Vehicle Information Center (EVIC) ......276
Emergency Deck Lid Release ..................45
Emergency, In Case of Freeing Vehicle When Stuck ................487
Hazard Warning Flasher ..................472
Jump Starting ......................... .483
Overheating .......................... .472
Emergency Trunk Release ....................45
Emission Control System Maintenance ..........496
Engine ................................ .495
Air Cleaner .......................... .502
Block Heater ......................... .396
Break-In Recommendations .................94
Checking Oil Level ..................... .499
Compartment ......................... .495Coolant (Antifreeze)
..................512, 544
Cooling ..............................511
Exhaust Gas Caution ..................96, 462
Fails to Start .......................... .394
Flooded, Starting ...................... .394
Fuel Requirements ..................... .458
Jump Starting ......................... .483
Oil .......................... .499, 543, 544
Oil Change Interval ..................329, 500
Oil Filler Cap ......................... .501
Oil Selection ...................... .500, 543
Oil Synthetic ......................... .501
Overheating .......................... .472
Starting ............................. .391
Temperature Gauge ..................... .320
Engine Oil Viscosity ...................... .501
Enhanced Accident Response Feature ............70
Entry System, Illuminated ....................21
Ethanol ............................... .459
582 INDEX

Service Contract......................... .570
Service Engine Soon Light (Malfunction Indicator). . .314
Service Manuals ......................... .572
Shifting ............................... .396
Automatic Transmission ..................396
Shift Lever Override ...................... .489
Shoulder Belts ............................49
Shoulder Belt Upper Anchorage ................54
Side Airbag ..............................69
Side View Mirror Adjustment .................109
Signals, Turn ...................... .99, 222, 311
SmartBeams ............................ .218
Snow Chains (Tire Chains) ...................449
Snow Tires ............................. .442
Spare Tire .......................... .444, 445
Spark Plugs ............................ .544
Specifications Fuel (Gasoline) ........................ .544
Oil................................. .544Speed Control (Cruise Control)
............237, 241
Speedometer ............................ .315
Starting ............................. .26, 391
Automatic Transmission ..................391
Cold Weather ......................... .394
Engine Fails to Start .....................394
Remote ...............................26
Starting and Operating .....................391
Starting Procedures ....................... .391
Steering Column Lock ......................... .231
Power .............................. .412
Tilt Column ....................... .231, 232
Wheel, Heated ........................ .233
Wheel, Tilt ........................ .231, 232
Steering Wheel Audio Controls ...............370
Steering Wheel Mounted Sound System Controls . . .370
Storage ............................... .536
Storage, Vehicle ...................... .383, 536
592 INDEX
