2013 DODGE CHALLENGER SRT remote start

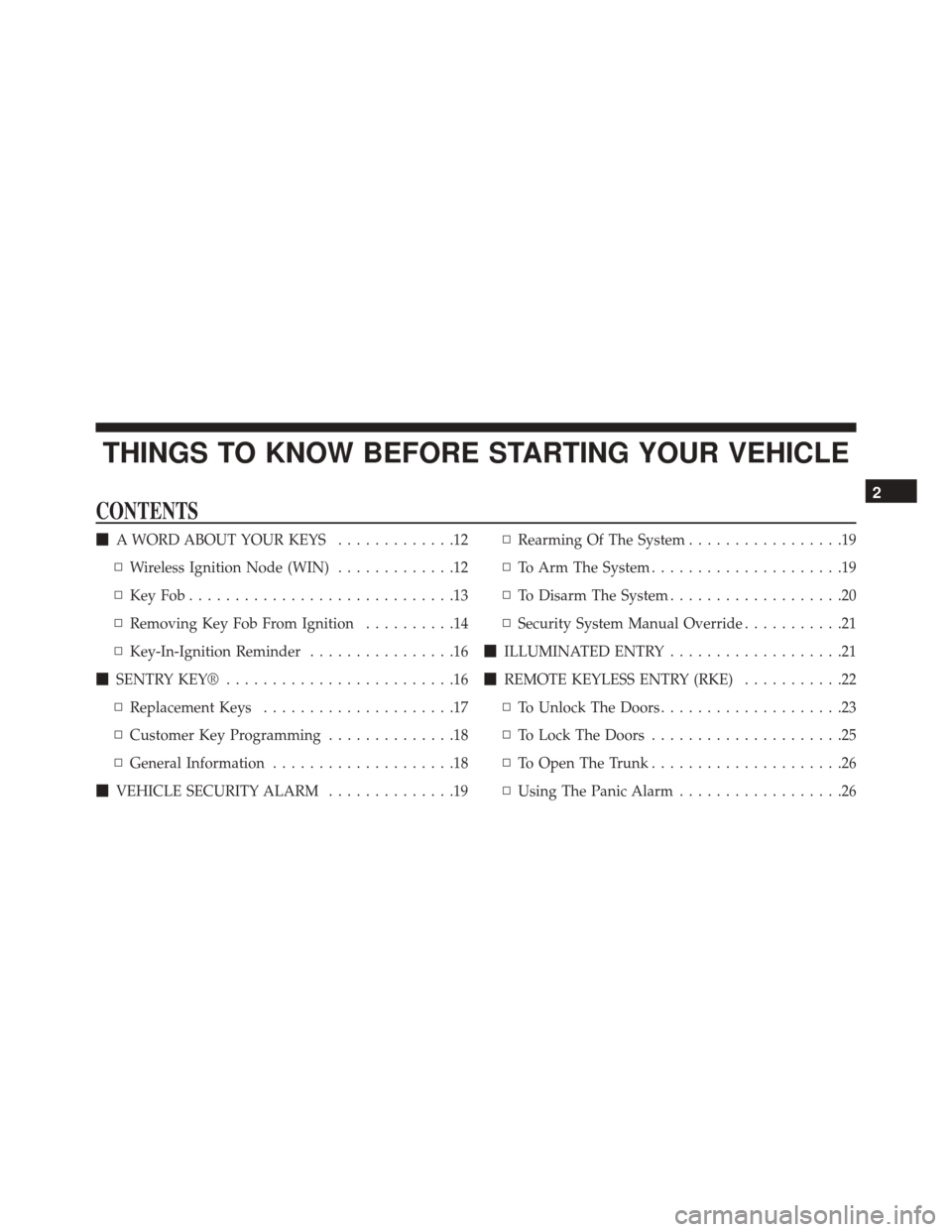

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............12
▫ Wireless Ignition Node (WIN) .............12
▫ KeyFob.............................13
▫ Removing Key Fob From Ignition ..........14
▫ Key-In-Ignition Reminder ................16
 SENTRY KEY® .........................16
▫ Replacement Keys .....................17
▫ Customer Key Programming ..............18
▫ General Information ....................18
 VEHICLE SECURITY ALARM ..............19▫
Rearming Of The System .................19
▫ To Arm The System .....................19
▫ To Disarm The System ...................20
▫ Security System Manual Override ...........21
 ILLUMINATED ENTRY ...................21
 REMOTE KEYLESS ENTRY (RKE) ...........22
▫ To Unlock The Doors ....................23
▫ To Lock The Doors .....................25
▫ To Open The Trunk .....................26
▫ Using The Panic Alarm ..................26
2

▫Programming Additional Transmitters ........27
▫ Transmitter Battery Replacement ...........27
▫ General Information ....................28

REMOTE STARTING SYSTEM — IF EQUIPPED . .28
▫ How To Use Remote Start ................29
 DOOR LOCKS .........................32
▫ Manual Door Locks .....................32
▫ Power Door Locks .....................33
 KEYLESS ENTER-N-GO™ — IF EQUIPPED ....36
 WINDOWS ...........................41
▫ Power Windows .......................41
▫ Wind Buffeting .......................43
 TRUNK LOCK AND RELEASE .............43
TRUNK SAFETY WARNING ................44
▫ Trunk Emergency Release ................45
 OCCUPANT RESTRAINTS ................45
▫ Lap/Shoulder Belts ....................49
▫ Lap/Shoulder Belt Untwisting Procedure .....54
▫ Seat Belts In Passenger Seating Positions ......54
▫ Automatic Locking Retractor Mode (ALR) — If
Equipped ............................55
▫ Energy Management Feature ..............56
▫ Seat Belt Pretensioners ..................56
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert®) ..........................57
▫ Seat Belts And Pregnant Women ...........58
▫ Seat Belt Extender .....................58
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Keyless Ignition Node (KIN).
Keyless Enter-N-Go™ Feature
This vehicle is equipped with the Keyless Enter-N-Go™
feature, (refer toKeyless Enter-N-Go™ inThings To
Know Before Starting Your Vehicle for further informa-
tion).
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent posi-
tions are OFF, ACC, and ON/RUN. The START position
is a spring-loaded momentary contact position. When
released from the START position, the switch automati-
cally returns to the ON/RUN position.
NOTE: If your vehicle is equipped with Keyless Enter-
N-Go™, the Electronic Vehicle Information Center
(EVIC) will display the ignition switch position (OFF/
ACC/RUN). Refer to “Electronic Vehicle Information
Center (EVIC) — If Equipped” in “Understanding Your
Instrument Panel” for further information.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
The emergency key is also for locking the glove box. You
can keep the emergency key with you when valet park-
ing.
NOTE:Entering a vehicle using the emergency key with
the theft alarm armed, will result in the alarm sounding.
Insert the Key Fob (even if the Key Fob battery is dead)
into the ignition switch to disarm theft alarm.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACCESSORY (ACCESSORY)
3 — ON/RUN
4 — START
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from vehicle, cycle the ignition
OFF with Keyless Enter-N-Go™, and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:The Key-In-Ignition reminder only sounds when
the Key Fob is placed in the OFF or ACC ignition
position.
If your vehicle is equipped with Keyless Enter-N-Go™,
opening the driver’s door when the vehicle’s ignition
switch is placed in ACC or ON/RUN (engine stopped) will cause the reminder chime to sound. Refer to “Start-
ing Procedures” in “Starting And Operating” for further
information.
SENTRY KEY®
The Sentry Key® Immobilizer System prevents unau-
thorized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with factory-mated Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The
system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

After placing the ignition switch in the ON/RUN posi-
tion, the Vehicle Security Light will turn on for three
seconds for a bulb check. In addition, if the light begins to
flash after the bulb check, it indicates that someone used
an invalid Key Fob to start the engine. If the light remains
on after the bulb check, it indicates that there is a problem
with the electronics. This condition will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the electron-
ics. Should this occur, have the vehicle serviced as soon
as possible by an authorized dealer.CAUTION!
The Sentry Key® Immobilizer system is not compat-
ible with some after-market remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

same exterior zone (refer toKeyless Enter-N-Go™
in Things To Know Before Starting Your Vehicle for
further information).
• Press the LOCK button on the Remote Keyless Entry
(RKE) transmitter.
3. If any doors are open, close them.
To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
• Press the UNLOCK button on the Remote Keyless
Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle (if
equipped, refer to Keyless Enter-N-Go™ inThings
To Know Before Starting Your Vehicle for further
information). •
For vehicles equipped with Keyless Enter-N-Go™,
press the Keyless Enter-N-Go™ Start/Stop button
(requires at least one valid Key Fob in the vehicle).
• For vehicles not equipped with Keyless Enter-N-Go™,
insert a valid key into the ignition switch and turn the
key to the ON position.
NOTE: The driver ’s door key cylinder and the trunk
button on the RKE transmitter cannot arm or disarm the
Vehicle Security Alarm.
• The Vehicle Security Alarm remains armed during
trunk entry. Pressing the trunk button will not disarm
the Vehicle Security Alarm. If someone enters the
vehicle through the trunk and opens any door the
alarm will sound.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

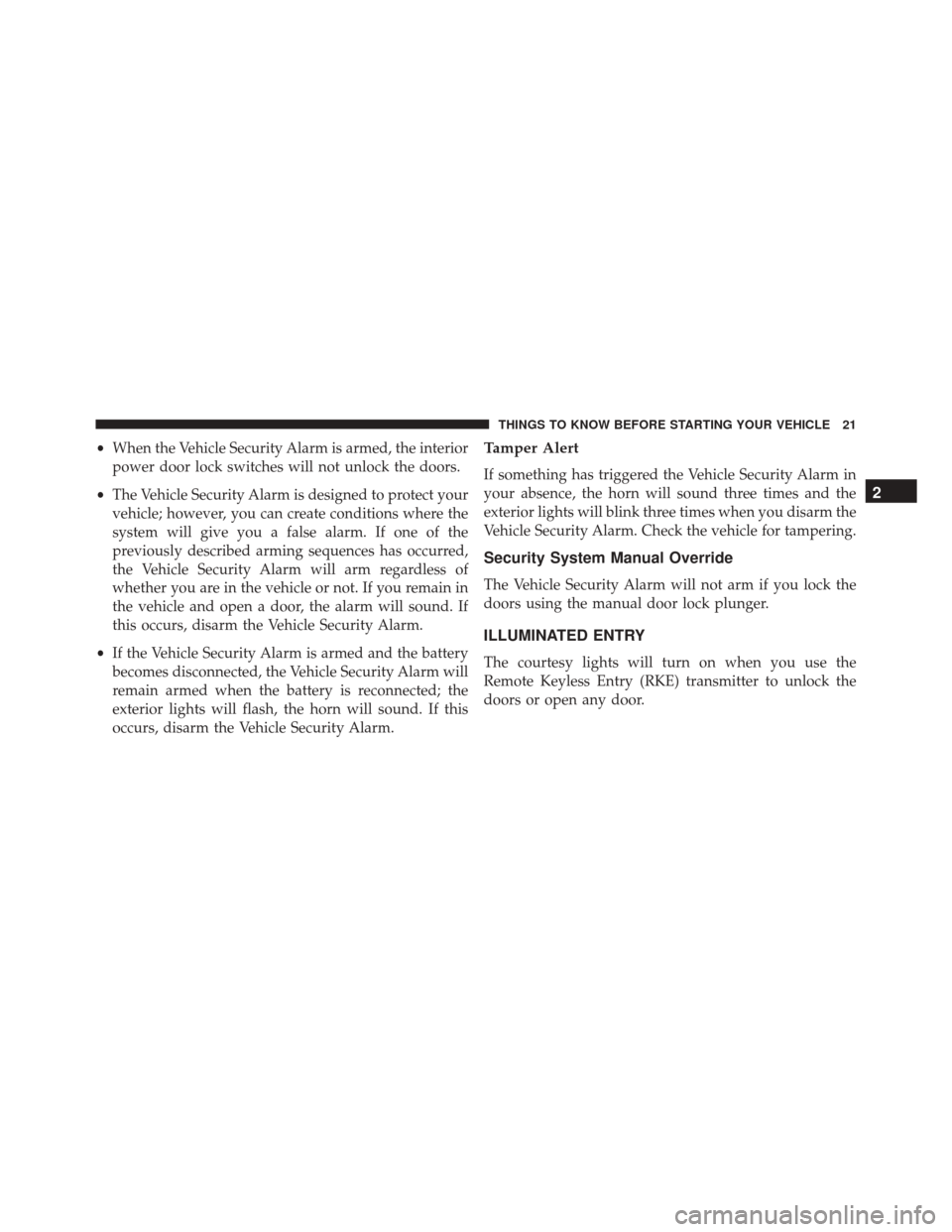

•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
• The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
system will give you a false alarm. If one of the
previously described arming sequences has occurred,
the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in
the vehicle and open a door, the alarm will sound. If
this occurs, disarm the Vehicle Security Alarm.
• If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights will blink three times when you disarm the
Vehicle Security Alarm. Check the vehicle for tampering.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
ILLUMINATED ENTRY
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
