2013 DODGE CHALLENGER SRT remote start

CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery is stored under an access cover in the trunk.
Remote battery posts are located on the right side of the
engine compartment for jump-starting.
Remote Battery Posts
1 — Remote Positive(+)Post
2 — Remote Negative (-)Post
400 WHAT TO DO IN EMERGENCIES

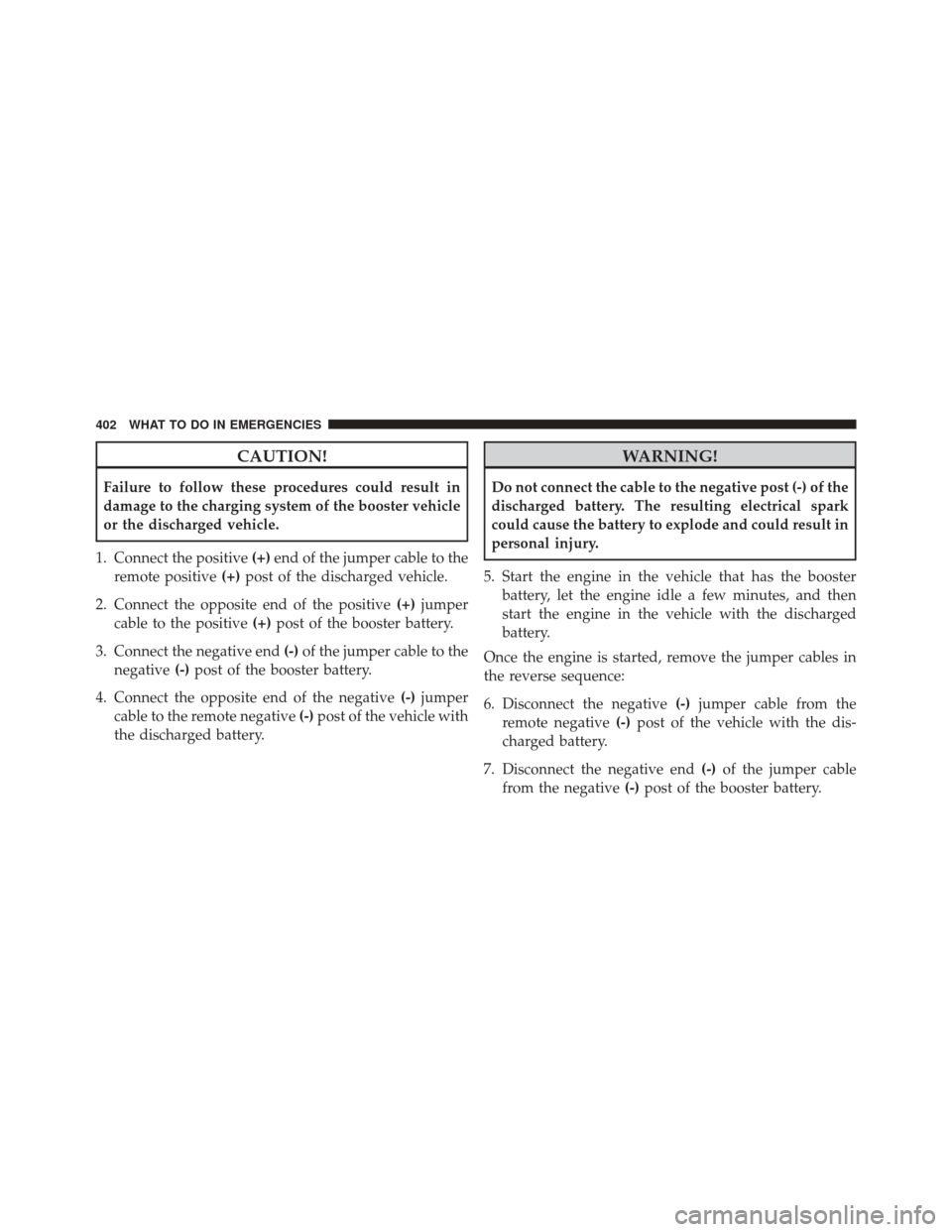

CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
1. Connect the positive (+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then
start the engine in the vehicle with the discharged
battery.
Once the engine is started, remove the jumper cables in
the reverse sequence:
6. Disconnect the negative (-)jumper cable from the
remote negative (-)post of the vehicle with the dis-
charged battery.
7. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
402 WHAT TO DO IN EMERGENCIES

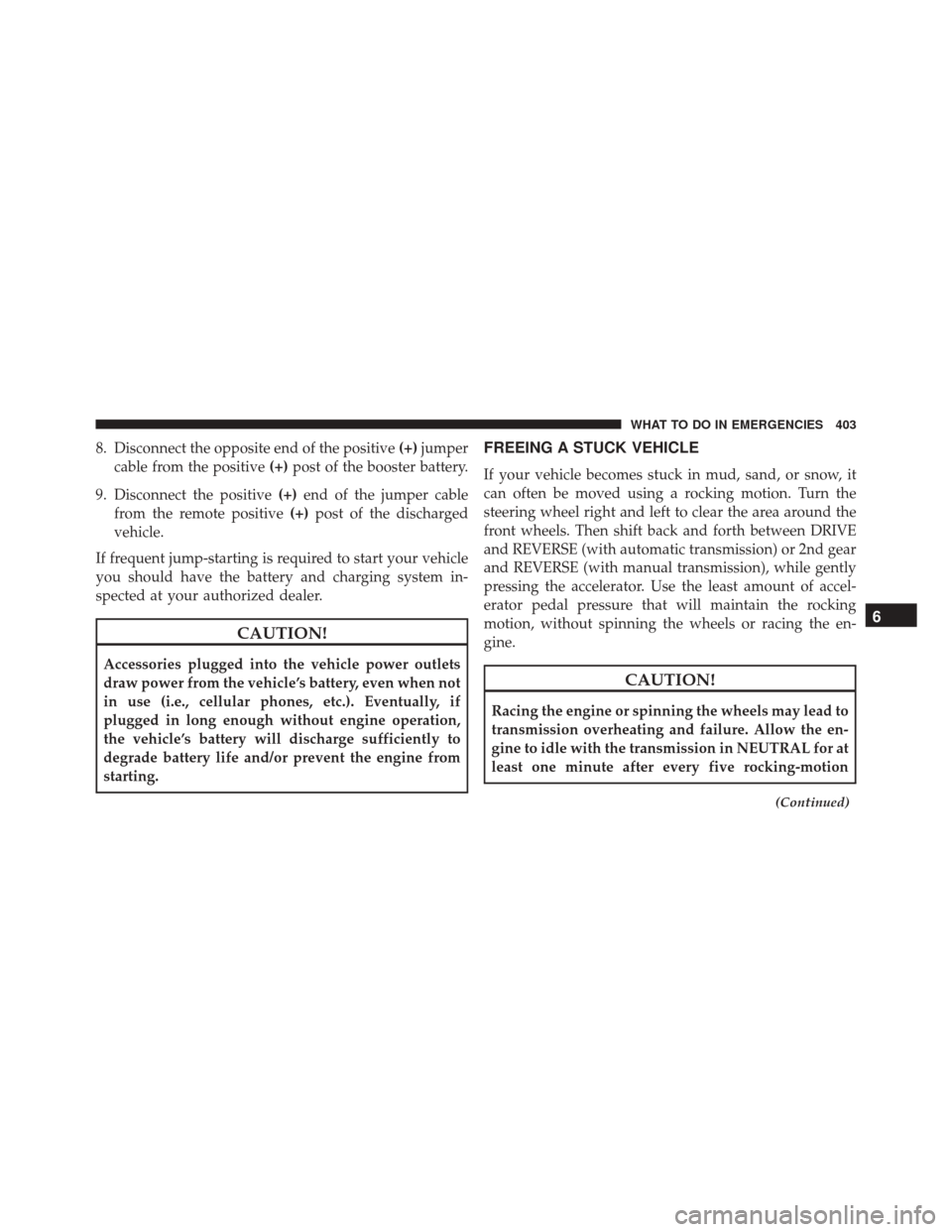

8. Disconnect the opposite end of the positive(+)jumper
cable from the positive (+)post of the booster battery.
9. Disconnect the positive (+)end of the jumper cable
from the remote positive (+)post of the discharged
vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.
CAUTION!
Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough without engine operation,
the vehicle’s battery will discharge sufficiently to
degrade battery life and/or prevent the engine from
starting.
FREEING A STUCK VEHICLE
If your vehicle becomes stuck in mud, sand, or snow, it
can often be moved using a rocking motion. Turn the
steering wheel right and left to clear the area around the
front wheels. Then shift back and forth between DRIVE
and REVERSE (with automatic transmission) or 2nd gear
and REVERSE (with manual transmission), while gently
pressing the accelerator. Use the least amount of accel-
erator pedal pressure that will maintain the rocking
motion, without spinning the wheels or racing the en-
gine.
CAUTION!
Racing the engine or spinning the wheels may lead to
transmission overheating and failure. Allow the en-
gine to idle with the transmission in NEUTRAL for at
least one minute after every five rocking-motion
(Continued)
6
WHAT TO DO IN EMERGENCIES 403

ENGINE COMPARTMENT — 6.4L (392 HEMI)
1 — Remote Jump Start (Positive Battery Post)6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Power Steering Fluid Reservoir
3 — Engine Oil Fill 8 — Integrated Power Module (Fuses)
4 — Brake Fluid Reservoir 9 — Washer Fluid Reservoir
5 — Engine Coolant Reservoir
7
MAINTAINING YOUR VEHICLE 413

WARNING!(Continued)
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPAR® engine air
cleaner filters are a high quality filter and are recom-
mended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required. NOTE:
The battery is stored under an access cover in the
trunk. Remote battery terminals are located in the engine
compartment for jump-starting. Refer to “Jump-Starting
Procedures” in “What To Do In Emergencies” for further
information.
Battery Location
7
MAINTAINING YOUR VEHICLE 421

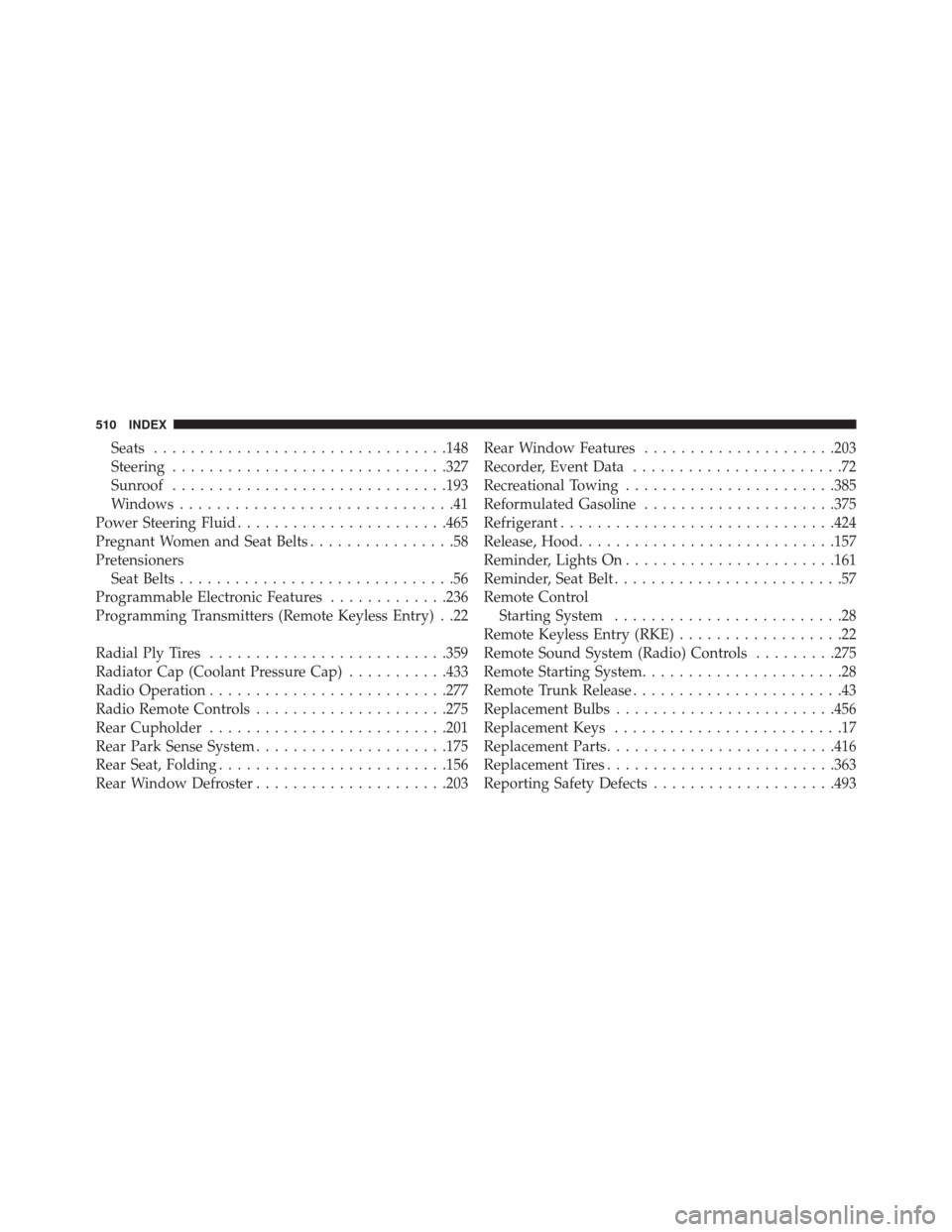

Seats............................... .148
Steering ............................. .327
Sunroof ............................. .193
Windows ..............................41
Power Steering Fluid ...................... .465
Pregnant Women and Seat Belts ................58
Pretensioners Seat Belts ..............................56
Programmable Electronic Features .............236
Programming Transmitters (Remote Keyless Entry) . .22
Radial Ply Tires ......................... .359
Radiator Cap (Coolant Pressure Cap) ...........433
Radio Operation ......................... .277
Radio Remote Controls .....................275
Rear Cupholder ......................... .201
Rear Park Sense System .....................175
Rear Seat, Folding ........................ .156
Rear Window Defroster .....................203 Rear Window Features
.....................203
Recorder, Event Data .......................72
Recreational Towing ...................... .385
Reformulated Gasoline .....................375
Refrigerant ............................. .424
Release, Hood ........................... .157
Reminder, Lights On ...................... .161
Reminder, Seat Belt .........................57
Remote Control Starting System .........................28
Remote Keyless Entry (RKE) ..................22
Remote Sound System (Radio) Controls .........275
Remote Starting System ......................28
Remote Trunk Release .......................43
Replacement Bulbs ....................... .456
Replacement Keys .........................17
Replacement Parts ........................ .416
Replacement Tires ........................ .363
Reporting Safety Defects ....................493
510 INDEX

Selection of Oil.......................... .419
Sentry Key (Immobilizer) ....................16
Sentry Key Programming ....................18
Sentry Key Replacement .....................17
Service Assistance ........................ .489
Service Contract ......................... .491
Service Engine Soon Light (Malfunction Indicator) . .220
Service Manuals ......................... .494
Settings, Personal ........................ .236
Setting the Clock ......................... .242
Shift Indicator Light ...................... .303
Shifting ............................... .304
Automatic Transmission ..................304
Shift Lever Override ...................... .405
Shift Speeds ............................ .302
Shift Speeds, Manual Transmission .............302
Shoulder Belts ............................49
Side Airbag ..............................67
Side View Mirror Adjustment .................107Side Window Demisters (Defrosters)
............285
Signals, Turn .............................99
Snow Chains (Tire Chains) ...................364
Snow Tires ............................. .360
Sound System Kicker .............................. .274
Spark Plugs ............................ .464
Specifications Fuel (Gasoline) ........................ .464
Oil................................. .464
Speed Control (Cruise Control) ................171
Speedometer ............................ .210
Starting .................................28
Automatic Transmission ..................292
Cold Weather ......................... .297
Engine Fails to Start .....................297
Remote ...............................28
Starting and Operating .....................291
Starting Procedures ....................... .291
512 INDEX

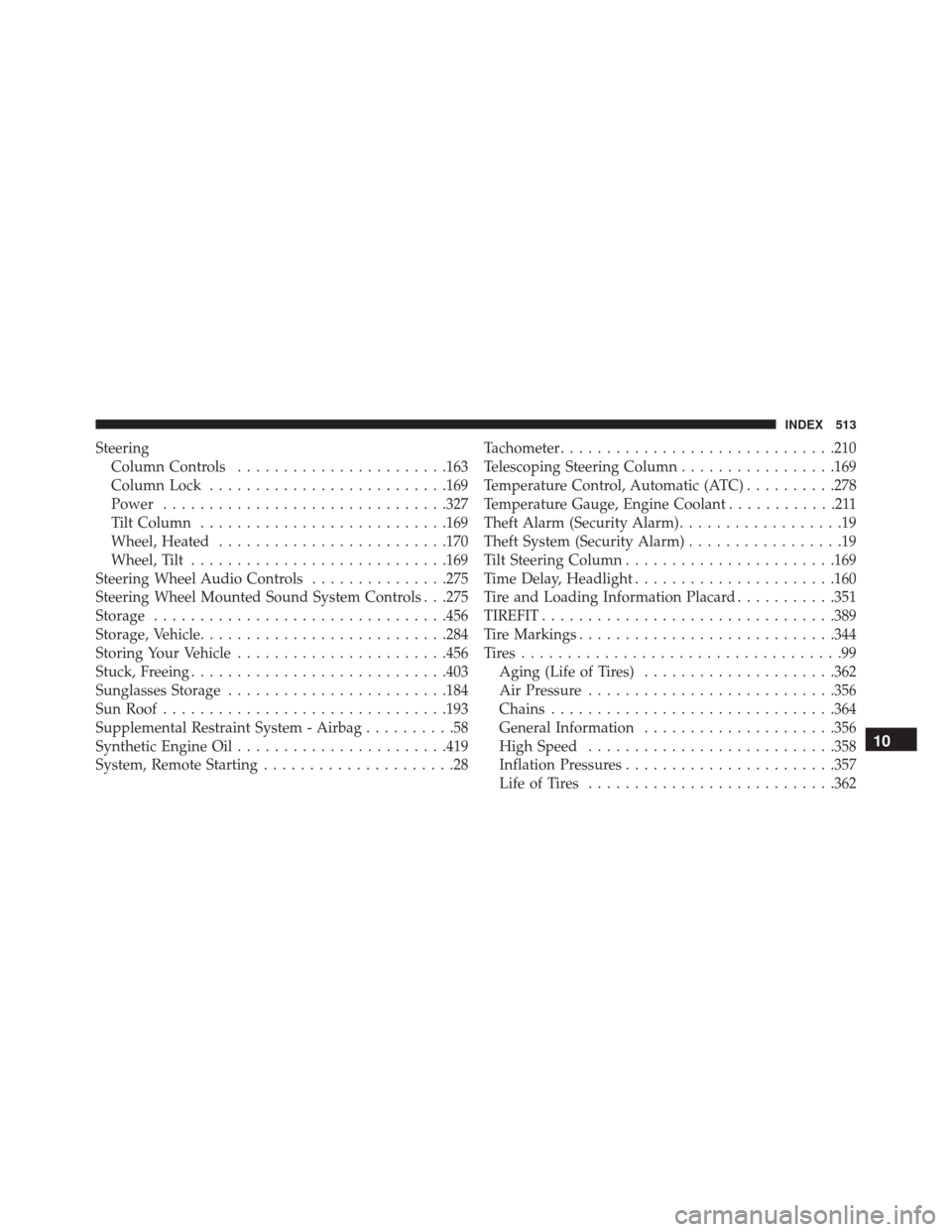

SteeringColumn Controls ...................... .163
Column Lock ......................... .169
Power .............................. .327
Tilt Column .......................... .169
Wheel, Heated ........................ .170
Wheel, Tilt ........................... .169
Steering Wheel Audio Controls ...............275
Steering Wheel Mounted Sound System Controls . . .275
Storage ............................... .456
Storage, Vehicle .......................... .284
Storing Your Vehicle ...................... .456
Stuck, Freeing ........................... .403
Sunglasses Storage ....................... .184
Sun Roof .............................. .193
Supplemental Restraint System - Airbag ..........58
Synthetic Engine Oil ...................... .419
System, Remote Starting .....................28 Tachometer
............................. .210
Telescoping Steering Column .................169
Temperature Control, Automatic (ATC) ..........278
Temperature Gauge, Engine Coolant ............211
Theft Alarm (Security Alarm) ..................19
Theft System (Security Alarm) .................19
Tilt Steering Column ...................... .169
Time Delay, Headlight ..................... .160
Tire and Loading Information Placard ...........351
TIREFIT ............................... .389
Tire Markings ........................... .344
Tires...................................99 Aging (Life of Tires) .....................362
Air Pressure .......................... .356
Chains .............................. .364
General Information .....................356
High Speed .......................... .358
Inflation Pressures ...................... .357
Life of Tires .......................... .362
10
