Ouverture et fermeture des portes (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
OPENING AND CLOSING THE DOORS (2/2)
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 3 on each door and check from
the inside that the doors are securely
locked.
3
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.41
ENG_UD38141_5
Poste de conduite direction à gauche (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Side demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s airbag.
6 Steering column stalk for winds-
creen and rear screen wash/wipe.
On-board computer information
readout control.
7 Centre air vents.
8 Central demister outlet.
9 Location for passenger airbag.
10 Side demister outlet.
11 Side air vent. 12 Passenger airbag activation/deac-
tivation switch.
13 Glovebox.
14 Hazard warning lights switch.
15 Electric central locking switch.
16 Location for radio or storage com-
partment.
17 Heating and ventilation controls.
18 Rear screen and door mirror de-
icing control
19 Cigarette lighter.
Accessories socket.
20 Handbrake.
21 Activation/deactivation controls for
the Stop and Start. function
22 LPG control
23 Location for ashtray or cup holder. 24 Gear lever.
25 ECO mode switch.
26 Cruise control/speed limiter main
control.
27 Ignition switch.
28 Radio remote control.
29 Cruise control/speed limiter
controls.
30 Beam height adjustment control.
31 Fuse box.
Storage box.
32 Bonnet release control.
33 Controls for:
– activating/deactivating the trac-
tion control system,
– activating/deactivating the par-
king distance control.
34 Door mirror adjustment control.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.43
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
WARNING LIGHTS (2/5)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
ÔCoolant temperature war-
ning light
If this remains lit while driving, ac-
companied by a beep, this means the
engine is overheating. Stop and allow
the engine to run at idle speed for a
minute or two. The temperature should
drop. If not, stop the engine. Let it cool
down before checking the coolant level.
Contact an authorised dealer if neces-
sary.
ÄWarning light for monitoring
exhaust gas
It comes on when the ignition is
switched on and then goes out.
– If it lights up continuously, consult an
authorised dealer as soon as pos-
sible;
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and antipollution advice”
in Section 2.
ÒWarning light malfunction
(red or orange)
Urgent stop warning light (red)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately,
for your own safety, as soon as traffic
conditions allow. Switch off the engine
and do not restart it.
Contact an approved Dealer.
Warning light (orange)
This lights up when the ignition is
switched on and goes out as soon as
the engine is started. It may comes on
in conjunction with other warning lights
on the instrument panel.
It means you should drive very care-
fully to an authorised dealer as soon
as possible. If you fail to follow this re-
commendation, you risk damaging your
vehicle.
DHandbrake “on” warning
light and brake circuit inci-
dent warning light
This comes on when the ignition is
switched on. If it comes on during brak-
ing and is accompanied by a beep, it in-
dicates that the fluid level in the circuit
is low; it may be dangerous to continue
driving - please contact an authorised
dealer.
A

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.44
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
WARNING LIGHTS (3/5)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
ÉPreheating warning light (on
diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. It goes
out after preheating is sufficient and the
engine can be started.
åAirbag warning light
This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it does not come on
when the ignition is switched on or if it
flashes, there is a fault in the system.
Contact an approved Dealer as soon as
possible.
ÚBattery charge warning light
If it comes on when you are
driving, it indicates that the circuit has
discharged. Stop and consult an appro-
ved Dealer as soon as possible.
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS
system.
Contact an approved Dealer as soon as
possible.
LLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after
a few seconds. If it comes on when dri-
ving accompanied by a beep, fill up with
fuel as soon as possible. There is only
approximately 30 miles (50 km) worth
of fuel left after the warning light first
comes on.
Tyre pressure loss warning
Please refer to the information
on the “Tyre pressure loss warning” in
Section 2.
ÀOil pressure warning light
This lights up when the ignition
is switched on and goes out after a few
seconds.
If it comes on on the road, accompa-
nied by a beep, stop immediately and
cut the ignition.
Check the oil level (refer to “Engine oil
level: general information” in Section
4). If the level is normal, the light has
come on for another reason: Consult an
authorised dealer straight away.
A

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.45
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
WARNING LIGHTS (4/5)
Warning light for electronic
stability program ( ESC ) and
traction control system
There are several reasons for the warn-
ing light to come on: see “Electronic
Stability Program ESC with understeer
control and traction control” in Section 2.
A
2 Door(s) open warning light
Refer to “Opening/closing the doors” in
Section 1.
ECO mode warning light

This comes on when ECO mode is ac-
tivated.
Please refer to the information on
“Driving advice, Eco-driving” in
Section 2.
ϦCruise control warning
lights
Refer to the information on “Cruise
control” in Section 2.
ÐSpeed limiter warning light
Refer to the information on the
“Speed limiter” in Section 2.
Traction control system de-
activation warning light
Refer to the information on “Driving cor-
rection devices and aids” in Section 2.
^Water in the diesel filter war-
ning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
Engine standby warning
light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
Unavailability of engine
standby warning light
Please see information in the para-
graph on “Stop and Start Function” in
Section 2.
Excess speed warning light
A beep will sound and the warn-
ing light will come on if the vehicle ex-
ceeds 70 mph (120 km/h). The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.46
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
™Seat belt reminder light
It is displayed on the console B.
It stays on when the engine is started if
the driver and/or passenger seat belt is
not fastened. When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened.
]Front passenger air bag
deactivated warning light
Refer to the information on “Child
safety: deactivating, activating the front
passenger airbag".
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
WARNING LIGHTS (5/5)
B
If no lights or sounds are
apparent, this indicates
a fault in the instrument
panel. This indicates that
it is essential to stop immediately
(as soon as traffic conditions allow).
Ensure that the vehicle is correctly
immobilised and contact an appro-
ved Dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.58
ENG_UD24422_1
Avertisseurs sonore et lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1

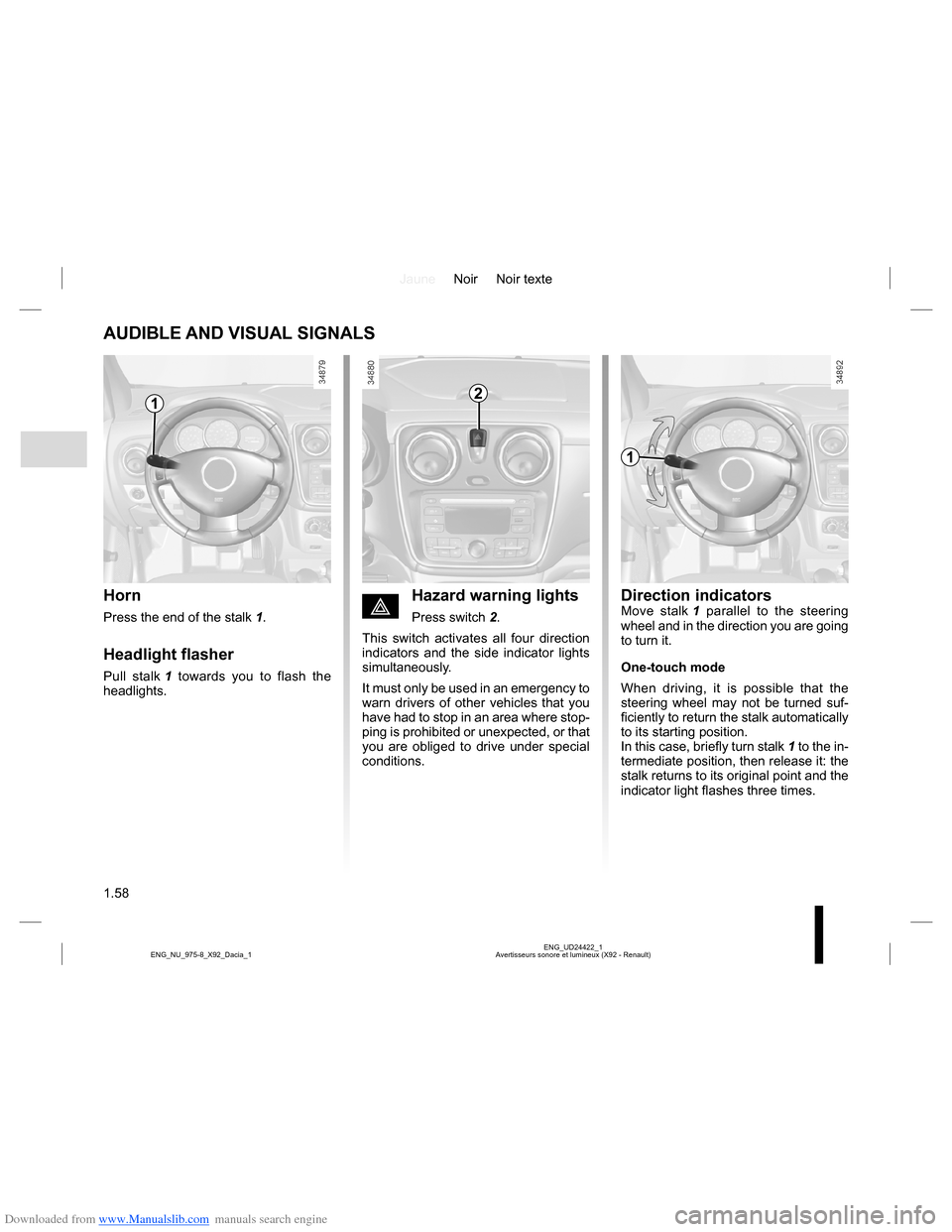

AUDIBLE AND VISUAL SIGNALS
Horn
Press the end of the stalk 1.
Headlight flasher
Pull stalk 1 towards you to flash the
headlights.
Direction indicatorsMove stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
One-touch mode
When driving, it is possible that the
steering wheel may not be turned suf-
ficiently to return the stalk automatically
to its starting position.
In this case, briefly turn stalk 1 to the in-
termediate position, then release it: the
stalk returns to its original point and the
indicator light flashes three times.éHazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously.
It must only be used in an emergency to
warn drivers of other vehicles that you
have had to stop in an area where stop-
ping is prohibited or unexpected, or that
you are obliged to drive under special
conditions.
1
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.61
ENG_UD38129_4
Réservoir carburant (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
FUEL TANK (1/5)
Petrol and diesel versions
Capacity of the fuel tank: 50 litres ap-
proximately.
The cap 1 can be unlocked with the ig-
nition key.
For details on filling the fuel tank, refer
to the information on “Filling with fuel”.
There is a cap holder 2 on the fuel filler
flap for holding the cap when the tank is
being filled.Fuel filler cap: this is spe-
cific to the vehicle type. If
you have to replace it, make
sure the new cap is of the
same type. Contact an approved
dealer.
Never place the cap near a source
of heat or flame.
Do not wash the filler area with a
high-pressure washer.
2
1
Do not mix even small
amounts of petrol (un-
leaded or E85) with diesel.
Do not use ethanol-based
fuel if your vehicle is not compatible
with this fuel.
Do not add any additives to the fuel,
you risk damaging the engine.
Do not wash the filler
area with a high-pressure
washer.
B
Depending on the vehicle, lift lever 3 to
unlock the fuel filler flap A. Open it, then
unscrew fuel filler cap 1.
3
A
Vehicle fitted with the Stop and
Start function
To fill up with fuel, the engine must
be stopped (and not on standby):
stop the engine (please refer to the
information on “Starting and stop-
ping the engine” in Section 2).
