2013 DACIA LODGY display

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.1
ENG_UD38220_8
Sommaire 1 (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
Section 1: Getting to know your vehicle
Keys, radio frequency remote control: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
Locking and unlocking the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5
Automatic locking when driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.7
Opening and closing the doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8
Headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.10
Front seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.12
Methods of restraint in addition to the front seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.17
Side protection devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.21
Additional method of restraint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.22
Child safety: general information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.23
mounting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.26
fitting a child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.28
deactivating, activating the front passenger airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.36
Rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.39
Driving position: left-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.40
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.42
Displays and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.47
Trip computer and warning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.49
Steering wheel, Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.54
Exterior lighting and signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.55
Adjusting the headlight beam height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.57
Audible and visual signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.58
Windscreen washer, wiper, De-icing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.59
Fuel tank (filling with fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.61

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.46
ENG_UD38115_5
Tableau de bord : témoins lumineux (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
™Seat belt reminder light
It is displayed on the console B.
It stays on when the engine is started if
the driver and/or passenger seat belt is
not fastened. When the vehicle is being
driven, it comes on and a beep sounds
for approximately 2 minutes until the
driver’s seat belt is fastened.
]Front passenger air bag
deactivated warning light
Refer to the information on “Child
safety: deactivating, activating the front
passenger airbag".
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.
WARNING LIGHTS (5/5)
B
If no lights or sounds are
apparent, this indicates
a fault in the instrument
panel. This indicates that
it is essential to stop immediately
(as soon as traffic conditions allow).
Ensure that the vehicle is correctly
immobilised and contact an appro-
ved Dealer.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.47
ENG_UD38074_3
Afficheurs et indicateurs (X67 - X92 - Renault) ENG_NU_975-8_X92_Dacia_1
DISPLAYS AND INDICATORS (1/2)
Rev counter 1 (rpm x 1,000) Speedometer 2 (km or miles
per hour)
12

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.48
ENG_UD38074_3
Afficheurs et indicateurs (X67 - X92 - Renault) ENG_NU_975-8_X92_Dacia_1
DISPLAYS AND INDICATORS (2/2)
Fuel gauge warning light 3
or 4
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light flashes.
On-board computer A or B
Refer to the information on the “Trip
computer and warning system” in
Section 1.
4
B
3
A
5
Automatic gearbox display 5
This indicates the gear engaged. Refer
to the information on the “Automatic
gearbox” in Section 2.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.49
ENG_UD38169_5
Ordinateur de bord (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
ON-BOARD COMPUTER (1/5)
Interpreting some of the
values displayed after
resetting
The values showing average fuel
consumption, range and average
speed will become more stable and re-
liable the further you travel after pres-
sing the reset button.
For the first few miles after pressing
the reset key you will notice that the
range increases as you travel. This
range takes into account the average
fuel consumption since the last time the
reset button was pressed. Therefore,
the fuel consumption may decrease
when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Resetting is automatic when the maxi-
mum capacity of any of the memories
is exceeded.
On-board computer 1
Display selection key 2
The display depends on the vehicle and
the country.
Scroll through the following information
by pressing the button 2:
a) Total mileage recorder
b) Trip mileage recorder
c) Fuel consumed
d) Average fuel consumption
e) Current fuel consumption
f) Estimated range
g) Distance travelled
h) Average speed
i) Oil change interval
j) Reset the tyre pressure
k) Speed limiter
l) Clock
m) Exterior temperature information.
Refer to the table on the following
pages showing display examples.
Resetting the trip mileage
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button 2.
1
2

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.50
ENG_UD38169_5 Ordinateur de bord (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
ON-BOARD COMPUTER (2/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of selections
Interpreting the display selected
Display A Display B
a) Total mileage recorder.
b) Trip mileage recorder.
–c) Fuel used since the last time the reset button was pressed.
–
d) Average fuel consumption since the last time the reset button was pressed.This value is displayed after driving 400 metres and takes into account the distance travelled and the fuel used since the last time the reset button was pressed.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.51
ENG_UD38169_5 Ordinateur de bord (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
ON-BOARD COMPUTER (3/5)
Examples of selections
Interpreting the display selected
Display A Display B
–
e) Current fuel consumption . This value is displayed after a speed of approximately 20 mph (30 km/h) is reached.
–
f) Estimated range with remaining fuel.This range takes into account the average fuel consumption since the last time the reset button was pressed.The value is displayed after driving around 400 metres.
–
g) Distance travelled since the last time the reset button was pressed.
–
h) Average speed since the last reset. The value is displayed after driving around 400 metres.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

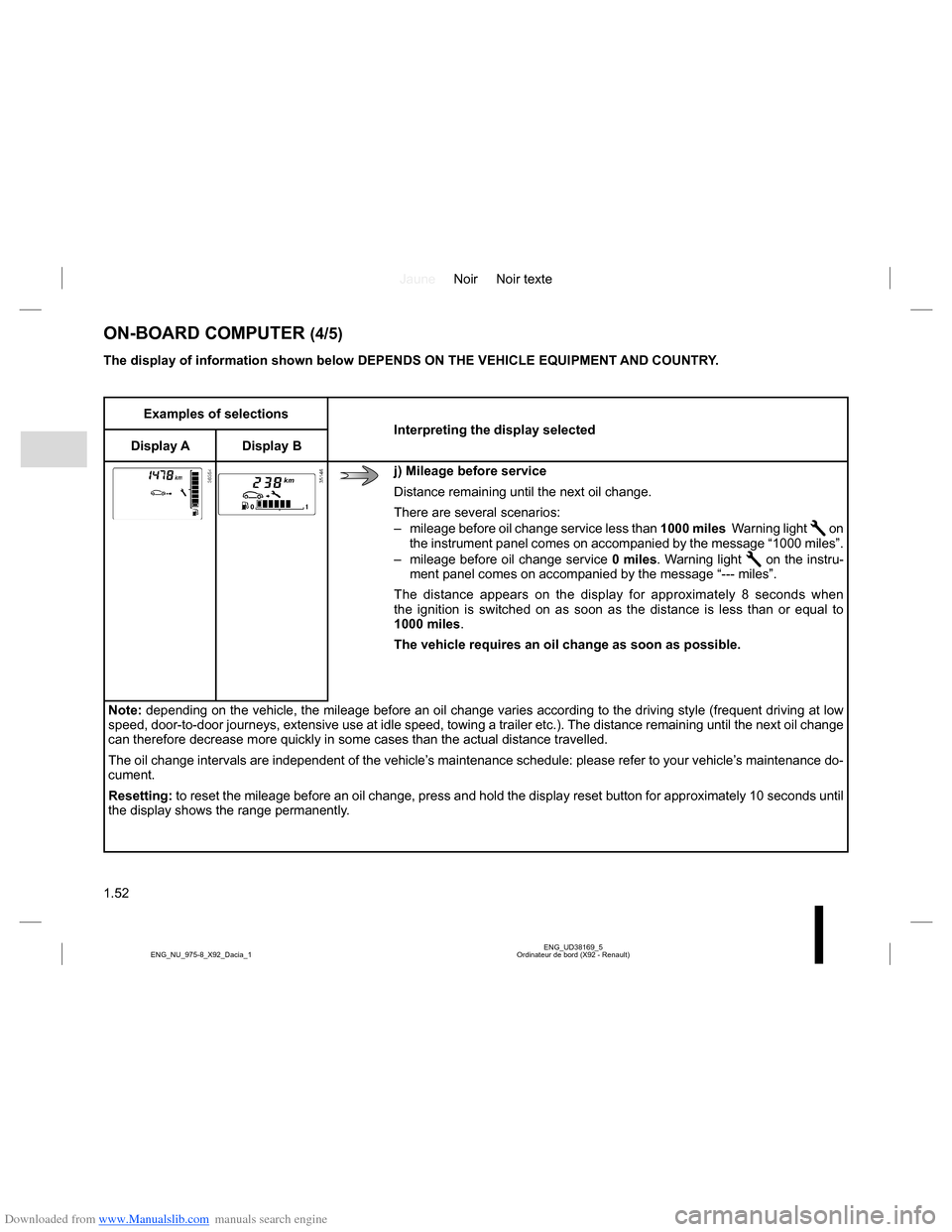

1.52
ENG_UD38169_5 Ordinateur de bord (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
Examples of selections
Interpreting the display selected
Display A Display B
j) Mileage before service
Distance remaining until the next oil change.
There are several scenarios:
– mileage before oil change service less than 1000 miles Warning light Ê on the instrument panel comes on accompanied by the message “1000 miles”.
– mileage before oil change service 0 miles. Warning light Ê on the instru- ment panel comes on accompanied by the message “--- miles”.
The distance appears on the display for approximately 8 seconds when the ignition is switched on as soon as the distance is less than or equal to 1000 miles .
The vehicle requires an oil change as soon as possible.
Note: depending on the vehicle, the mileage before an oil change varies according to the driving style (frequent driving at low speed, door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next oil ch ange can therefore decrease more quickly in some cases than the actual distance travelled.
The oil change intervals are independent of the vehicle’s maintenance schedule: please refer to your vehicle’s maintenance do- cument.
Resetting: to reset the mileage before an oil change, press and hold the display reset button for approximately 10 seconds until the display shows the range permanently.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
ON-BOARD COMPUTER (4/5)
