167
9
TECHNI
CAL DAT
A


Dimensions






SIDE DOOR






L1
L2
L3
L4





H1
H2
H1
H2
H2
H3
H2
H3

P Height of the sliding side door
1 485
1 755
1 485
1 755

Q Width of the sliding side door
1 075
1 250

168





Dimensions

169
9
TECHNI
CAL DAT
A


Dimensions

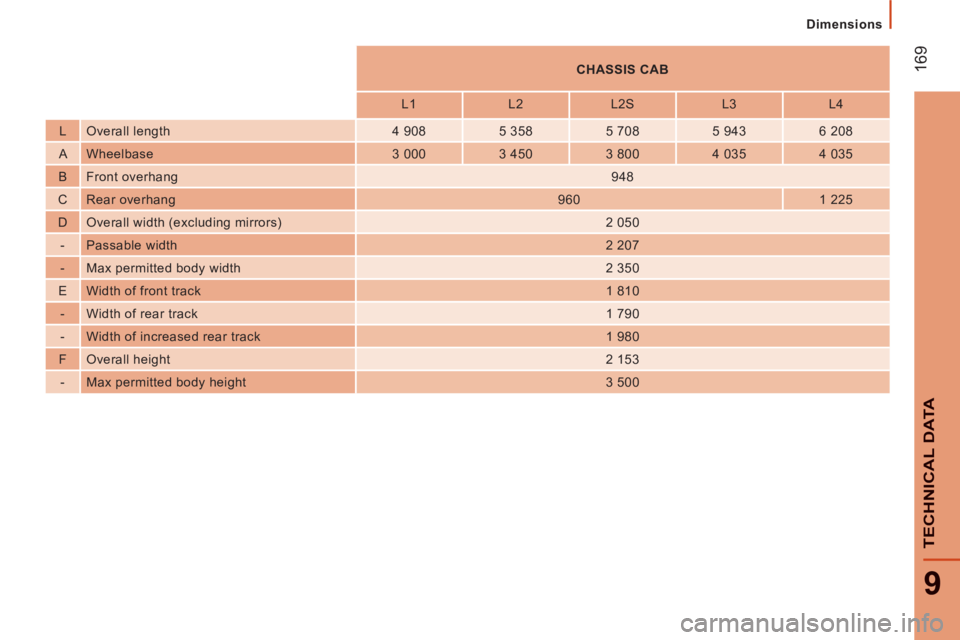

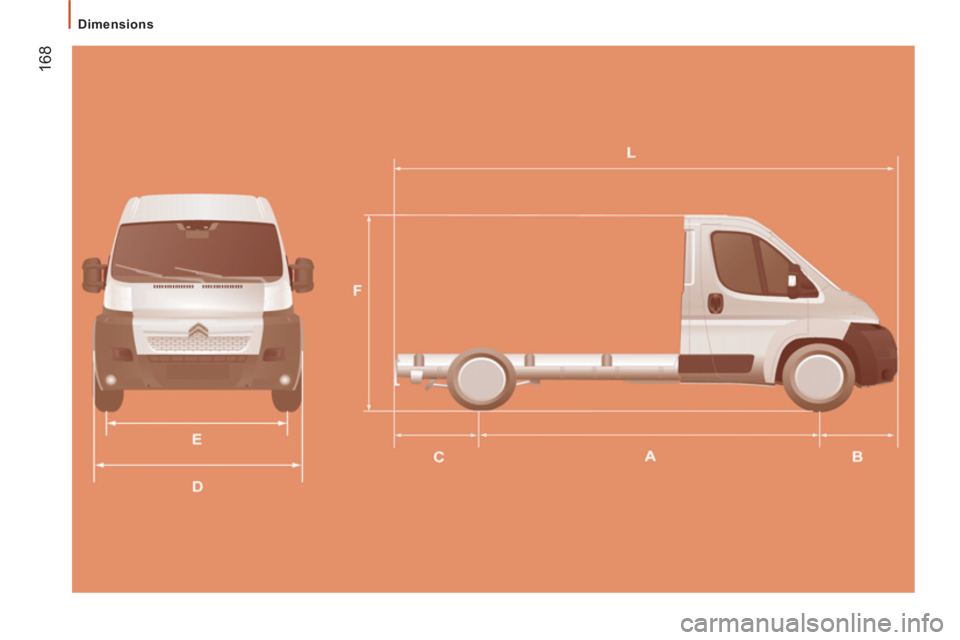

CHASSIS CAB






L1
L2
L2S
L3
L4

L Overall length
4 908
5 358
5 708
5 943
6 208

A Wheelbase
3 000
3 450
3 800
4 035
4 035

B Front overhang

948

C Rear overhang
960
1 225

D Overall width (excluding mirrors)
2 050

- Passable width

2 207

- Max permitted body width
2 350

E Width of front track
1 810

- Width of rear track
1 790

- Width of increased rear track
1 980

F Overall height

2 153

- Max permitted body height
3 500

17
0





Dimensions








L1H1


L2H2



A

751
872
1 201
1 322


B

1 201
1 743
1 651
2 193


C

-
860
-
860

17
1
9
TECHNI
CAL DAT
A


Diesel engines
Quality of the fuel used for Diesel engines


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to
7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a CITROËN dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).


ENGINES and gearboxes - Diesel





2.2 litre HDi 110


2.2 litre HDi 130


2.2 litre
HDi 150


3 litre
HDi 150


3 litre
HDi 160


3 litre
HDi 180


Gearbox

Manual
Gears
5
6
6
6
6
6
6
Maximum power (hp)
100
11 0
120
130
150
145
156
180
EU standard maximum power (kW)
74
81
88
96
11 0
107
11 5
130
Cubic capacity (cc)
2 198
2 198
2198
2 999
2 999
2 999
Bore x stroke (mm)
86 x 94.6
86 x 94.6
86 x 94.6
95.8 x 104
95.8 x 104
95.8 x 104
Max power engine speed (rpm)
2 900
3 500
3 500
3 500
3 500
3 500
3 600
EU standard max torque (daNm)
250
320
320
400
400
400
Max torque engine speed (rpm)
1 500
2 000
2 000
1 400
1 400
1 400
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
Ye s
Particle emissions filter
-
Ye s
-
Ye s
Ye s
Ye s
Ye s
Ye s





Engine oil capacity (in litres) after
draining and oil filter replacement
6.4
6.2
6.4
6.2
6.2
9
9
9

172

Weights

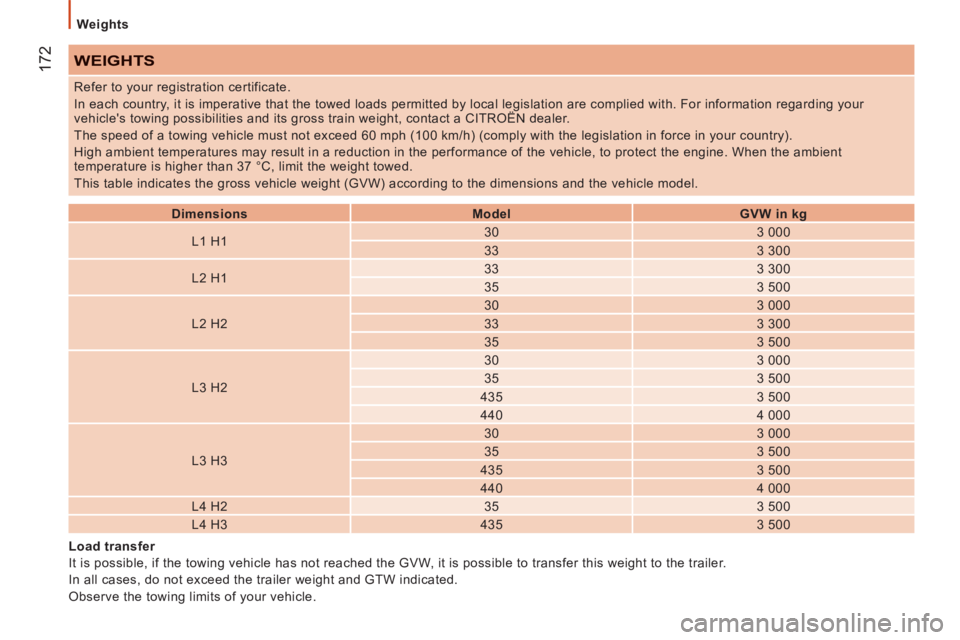

WEIGHTS



Dimensions


Model


GVW in kg


L1 H1
30
3 000

33
3 300

L2 H1
33
3 300

35
3 500

L2 H2
30
3 000

33
3 300

35
3 500

L3 H2
30
3 000

35
3 500

435
3 500

440
4 000

L3 H3
30
3 000

35
3 500

435
3 500

440
4 000

L4 H2
35
3 500

L4 H3
435
3 500 Refer to your registration certificate.
In each country, it is imperative that the towed loads permitted by local legislation are complied with. For information regarding your
vehicle's towing possibilities and its gross train weight, contact a CITROËN dealer.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle, to protect the engine. When the ambient
temperature is higher than 37 °C, limit the weight towed.
This table indicates the gross vehicle weight (GVW) according to the dimensions and the vehicle model.

Load transfer
It is possible, if the towing vehicle has not reached the GVW, it is possible to transfer this weight to the trailer.
In all cases, do not exceed the trailer weight and GTW indicated.
Observe the towing limits of your vehicle.

17
3
9
TECHNI
CAL DAT
A
Identification markings
IDENTIFICATION MARKINGS
A. Manufacturer's plate

1 -
VF Type serial number.

2 -
Gross vehicle weight (GVW).

3 -
Gross train weight (GTW).

4.1 -
Maximum weight on front axle.

4.2 -
Maximum weight on rear axle.


B. Serial number behind
the windscreen D. Paint code

C. T
yres

The label C
(image given as an indication
only) affixed to the van pillar, on the right-
hand door side, indicates:


- the wheel and tyre sizes,

- the tyre pressures (the pressures must
be checked when cold, at least once a
month).


E. Serial number on the
bodywork
The number is located under the plastic
cover, at the sill inside the right-hand door.

174
Exterior

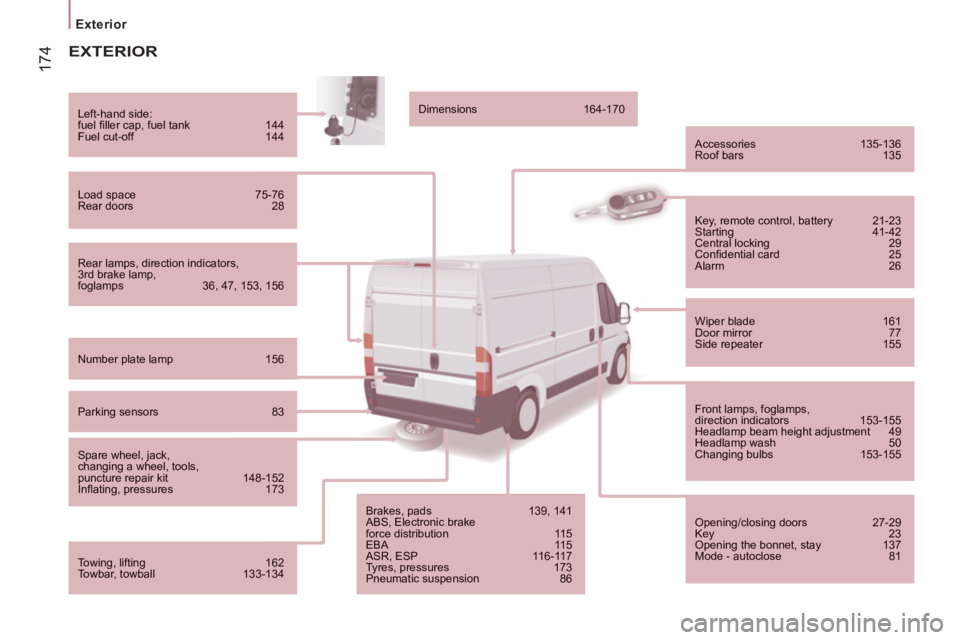

EXTERIOR


Rear lamps, direction indicators,3
rd brake lamp,foglamps 36, 47, 153, 156


Left-hand side: fuel fi ller cap, fuel tank 144
Fuel cut-off 144


Load space 75-76
Rear doors 28



Number plate lamp 156



Parking sensors 83

Spare wheel, jack,changing a wheel, tools,puncture repair kit 148-152
Infl ating, pressures 173


Towing, lifting 162
Towbar, towball 133-134
Dimensions 164-170

Accessories 135-136
Roof bars 135
Brakes, pads 139, 141 ABS, Electronic brakeforce distribution 115EBA 11 5 ASR, ESP 116-117Tyres, pressures 173Pneumatic suspension 86


Key, remote control, battery 21-23 Starting 41-42
Central locking 29
Confi dential card 25 Alarm 26


Wiper blade 161 Door mirror 77
Side repeater 155


Front lamps, foglamps,direction indicators 153-155
Headlamp beam height adjustment 49
Headlamp wash 50 Changing bulbs 153-155

Opening/closing doors 27-29
Key 23 Opening the bonnet, stay 137
Mode - autoclose 81
