2013 Citroen DS5 tow

With the ignition on or the engine running,
to release the parking brake, pressthe brakepedal , pull
then release control lever A.
The full release of the parking brake
is confirmed b
y:

Manual release



- the braking warning lamp and
the Pwarning lamp in the control lever A going off,

- display of the message "Parking brake off".
I
f you pull the control lever A
without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.
I
f necessary, you can make a maximum application
of the parking brake. It is obtained
by means of a long pull
on control lever A
,
until you see the message "Parking brake
applied fully" and an audible signal is heard.
Maximum application is essential:

- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are activated but you are applying the parking
brake manually,

- when the slope
you are parked on may
vary (e.g. on a ferry, on a lorry, duringtowing).


Maximum application


In the case of towing, a loaded vehicle or parking on a gradient, make amaximum application of the parking brake then turn the front wheels towardsthe pavement and engage a gear when you park.
After a maximum application, therelease time will be longer.



Before leaving the vehicle, check thatparking brake warning lamps in the instrument panel and the control lever Aare on fixed, not flashing.
With the vehicle stationary, to apply the parkingbrake whether the engine is running or off, pullcontrol lever A.
Manual application
The application of the parking brake is confirmed by:


- illumination of the brakin
g warning
lamp and of the P warning lamp in
the control lever A,
- display of the message "Parkingbrake on".
When the driver
’s door is opened with the engine running, there is an audible signal and amessage is displayed if the parking brake has not been applied, unless the selector lever is
in position P (Park) in the case of an automatic
gearbox.

Driving

For safety reasons, you must contact a
CITROËN dealer as soon as possible toreplace the protective cover. Ta k e care not to allow moisture or dust in the proximity of the protective cover.
Following an emergency unlocking,immobilisation of the vehicle is nolonger guaranteed once the manualemergency release has been deployedand the manual control does not allowthe re-application of your parking brake. Take no action, either on the control lever A, or stopping or star ting theengine while the release device is engaged.
To r e - e ngage the electric parking brake(after correction of the fault or batteryproblem), make a long pull on the
control lever A
until the parking brake warning lamp in the instrument panel flashes then make a second long pull until this warning lamp comes on fixed. Front left seat moved back full
y.
)Slide the front left-hand seat back as far aspossible.)Raise the pre-cut zone Bin the carpetunder the seat.)Pierce the protective cover Con the tube Dwith the release device (located in the
boot). )Place the release device in the tube D.)Turn the release device clockwisemaking several dozen turns
For safety reasons
, it is essential
to
continue turning the device as far as it will go.
The parking brake is released.
) Remove the release device and stow it. )
The operation of the parking brake reinitialises after the ignition is switched off
then on again. If the reinitialisation of the
parking brake proves impossible, contact a
CITROËN dealer or a qualified workshop.) The (subsequent) time required for
application may be longer than during
normal operation.

Manual operation
)Select position M
for sequentialchanging
of the six gears.)Push the lever towards the + sign to change up a gear.
)Pull the lever towards the -
sign to change
down a gear.
It is onl
y possible to change from one gear to
another if the vehicle speed and engine speedpermit; otherwise, the gearbox will operate
temporarily in automatic mode.
D disappears and the gears engaged appear in succession on theinstrument panel.
I
f the engine speed is too low or too high, the
gear selected flashes for a few seconds, then
the actual gear engaged is displayed.
It is possible to chan
ge from position D(automatic) to position M
(manual) at any time.
When the vehicle is stationary or moving
very slowly, the gearbox selects gear 1automatically.
The spor t and snow programmes do not
operate in manual mode.
Sport and snow programmes
Sport programme "S"
)Press button "S"
, after star ting the engine.
The gearbox automatically favours a dynamicstyle of driving.
S appears in the instrument panel.
Snow programme "7
"
)Press button "7", after star ting the engine.
The gearbox adapts to driving on slipperyroads. This programme improves star ting and drive
when traction is poor.
7appears in the instrument panel.



Return to automatic
operation
)
At any time, press the button selected
again to quit the programme engaged and
return to auto-adaptive mode. These two special pro
grammes supplement the automatic operation in very specific conditions of use.

127Driving
)With the engine running, press button 1.The activated/deactivated status when theengine was switched off is retained when
the engine is switched on again.
The strip retracts automatically 3 seconds after switching off the engine except in STOP mode
of Stop & Start.

Activation / Deactivation
)
With the engine running, adjust the brightness of the information usingbutton 3:


- towards the rear to increase thebrightness,

- towards the front to decrease the
brightness.
Brightness adjustment
We recommend that adjustments areonly made using these buttons whenthe vehicle is stationary.
When stationary or while driving, no objects should be placed around thetransparent strip (or on its cover) toavoid blocking the strip output and preventing its correct operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...)the head-up display may not be legibleor may suffer temporary inter ference.
Some sunglasses may hamper readingof the information. To clean the transparent strip, use aclean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not usea dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.



Height adjustment
)With the engine running, adjust the display
to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display down.

When the cruise control is switched on, be careful if you maintain the pressure on one of the programmed speed changing buttons: this may result in a very rapid change in the speed of your vehicle. Do not use the cruise control on slipperyroads or in heavy traffic.
On a steep descent, the cruise control will not be able to prevent the vehiclefrom exceeding the programmed speed. On steep climbs or when towing, the programmed speed may not be reached or maintained.
To a v o i d a ny risk of jamming of the pedals:


- ensure that the mat is positioned correctly,

- never fit one mat on top of another.

Programming
)Turn dial 1
to the "CRUISE"
position: the cruise control mode is selected but is not
switched on (Pause).)Set the programmed speed by acceleratingto the required speed, then press button 2or 3 (e.g.: 70 mph (11 0 k m/h)); the cruisecontrol system is activated (ON).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed speed results
in flashing of this speed in the screen.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically cancels theflashing of the speed.
Exiting cruise control mode
)Turn dial 1 to the "0"
position: the cruise control mode is deselected.
It disappears
from the screen.



Operating fault

In the event of a cruise control malfunction,
the speed is cleared resulting in flashing of the
dashes.
Have it checked by a CITROËN dealer or a qualified workshop.
You can then change the programmed speed using buttons
2 and 3
:
- by + or - 1 mph (km/h) = shor t press,
- in steps of + or - 5 mph (km/h) = maintained press.
If storing speeds is available and activated on your vehicle, theprogrammed speed will stop at the closest stored speed; refer to thecorresponding section.)Stop the cruise control system by pressing button 4: this is confirmed in the screen (Pause). )Switch on the cruise control again with another press on button 4.

In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)indicates that the sensors may be dirty. Cer tain sound sources (motorcycle,lorry, pneumatic drill, etc.) may trigger the audible signals of the parkingsensor system.
In th
e event of a malfunctionof the system, when reverse gear is engaged this warning
lamp is displayed in the instrument paneland/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a CITROËN dealer or a qualified
workshop.

Operating fault
In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph
(10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no fur ther obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).



Deactivation / Activation of thefront and rear parking sensors

The function is deactivated by pressing this button.The indicator lamp in the button comes on.
Pressing this button again reactivates the function. The indicator lamp in the button goes off.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle is in front or behind.

149Visibility

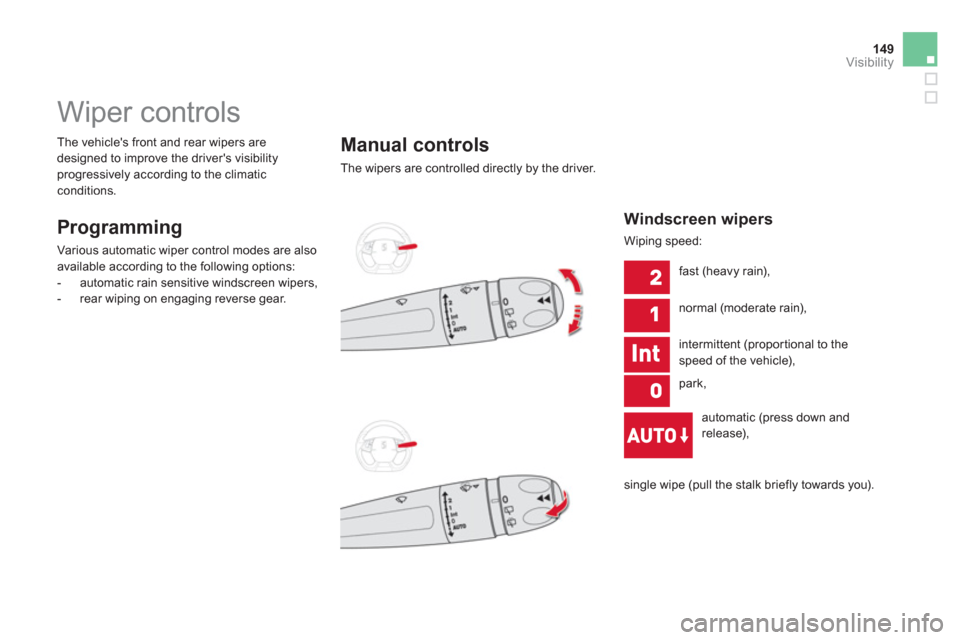

Wiper controls


Programming

Various automatic wiper control modes are also
available according to the following options:


- automatic rain sensitive windscreen wipers,

- rear w
iping on engaging reverse gear.

Manual controls
The wipers are controlled directly by the driver. The vehicle's
front and rear wipers are
designed to improve the driver's visibility
progressively according to the climaticconditions.

Windscreen wipers

Wiping speed:
fast
(heavy rain),
normal
(moderate rain),
intermittent
(proportional to the
speed of the vehicle),
park,
automatic
(press down and
release),
single wipe
(pull the stalk briefly towards you).

Rear wiper
If a significant accumulation of snowor ice is present, or when using a bicycle carrier on the boot, deactivatethe automatic rear wiper via theconfiguration menu.
park,
intermittent wipe,
wash-wipe
(set duration).

Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
Th
e function is activated or
deactivated via the configuration menu.
This function is activated by default.
Programming
)Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.

The headlamp washers only operate when
the dipped beam headlamps are on.
Windscreen and headlamp
wash
Rear wiper selection ring:
