2013 Citroen DS5 HYBRID4 boot

113Comfort








Ski fl ap
Facility for storing and transporting long
objects.)Lower the rear armrest for a more comfor table position.
It may be fitted with cup holders and also gives
access to the ski flap.







Rear armrest
Opening
)
Lower the armrest.)
Press the flap opening control. )
Lower the flap.)
Load the objects from inside the boot.

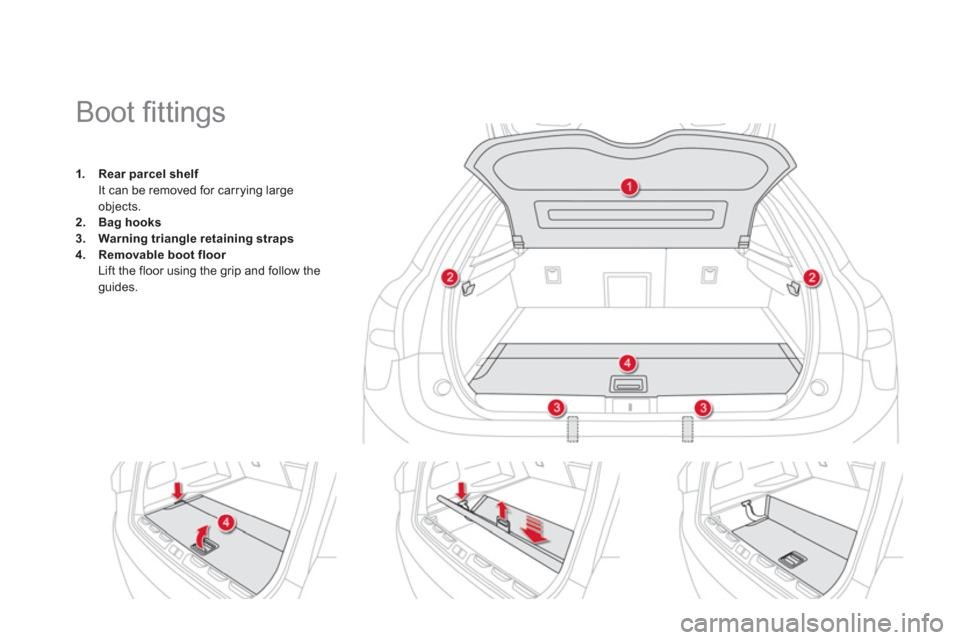

Boot fi ttings
1.Rear parcel shelffIt can be removed for carrying large
objects.2.Bag hooks3.Warning triangle retaining straps4.Removable boot floorLift the floor using the grip and follow the guides.

115
Comfort








Warning triangle (stowing)

Use the straps on the interior boot trim to stow
the folded triangle or its storage box.
Before getting out of your vehicle toassemble the triangle and place it on the road, put on your high visibility vest. The triangle is available as an accessory, contact a CITROËN dealer or a qualified workshop. R
efer to the manufacturer's instructions for useof the triangle.



Placing the triangle in the
road
) Place the triangle at a distance behind
the vehicle, as shown in the table below,according to the type of road and the level
o
f ambient light.
Distance from your vehicle (in metres)
RoadMotorwayDayNight

50 m
80 m
15 0 m
These are the internationally recognised values.
Use the triangle in line with local drivingregulations.

11 7Comfort
In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing and warranty booklet. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
You can switch off the air conditioning (AC button) and stay in Automatic mode in order to limit fuel consumption. If misting appears while in this mode, you can switch the air conditioning back on temporarily to improve the situation.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.












Recommendations for ventilation and air conditioning


If after an extended stop in sunshine,
the interior temperature is very high, firstventilate the passenger compar tment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment. The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.


The condensation created by the air conditioning results in a dischargeof water under the vehicle which is
perfectly normal.

129Driving

Emergency braking


In the event of a failure of the main servicebrake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuouspull on the control lever A will stop the vehicle.
The Dynamic Stability Control system provides stability during emergency braking.
If the emer
gency braking malfunctions, amessage is displayed.
Emergency release
)
Take the vehicle blocks and the release
device, located under the boot carpet.
) On sloping ground, secure the vehicle byplacing chocks in front or behind the front
wheels, on the falling side of the slope. In the event of the electric parkin
g brake
malfunctioning or the battery running flat, an
emergency manual device can release theparking brake. ) Immobilise the vehicle and with the hybridsystem active, place the gear selector inposition M
or R.)
Switch off the engine then switch the
ignition back on (press the STA R T/STOP switch twice). If it is impossible to
immobilise the vehicle, do not operate the
control and contact a CITROËN dealer or
a qualified workshop urgently.
The emergency braking must only be used in exceptional circumstances.
If a failure of the DSC system is
signalled by the illumination of this warning lamp, then braking stability isnot guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release" actions on the control lever A.

For safety reasons, you must contact a
CITROËN dealer as soon as possible to replace the protective cover. Ta k e care not to allow moisture or dust in the proximity of the protective cover.
Following an emergency unlocking, immobilisation of the vehicle is no longer guaranteed once the manualemergency release has been deployed and the manual control does not allow the re-application of your parking brake. Take no action, either on the controllever A, or stopping or star ting the engine while the release device is engaged.
To r e - e ngage the electric parking brake(after correction of the fault or battery problem), make a long pull on the control lever A
until the parking brake warning lamp in the instrument panel flashes then make a second long pulluntil this warning lamp comes on fixed. Front left seat moved back full
y.
)Slide the front left-hand seat back as far aspossible. )Raise the pre-cut zone B in the carpetunder the seat.)Pierce the protective cover Con the tube Dwith the release device (located in
the boot).)Place the release device in the tube D.)Turn the release device clockwisemaking several dozen turnsFor safety reasons, it is essential
to
continue turning the device as far as it will go. The parking brake is released.
)
Remove the release device and stow it. )
The operation of the parking brake
reinitialises after the ignition is switched off
then on again. If the reinitialisation of the
parking brake proves impossible, contact a
CITROËN dealer or a qualified workshop.) The (subsequent) time required for
application may be longer than during
normal operation.

Manual adjustment
of halogen
headlamps







Automatic adjustment of xenon headlamps
To avoid causing a nuisance to other road
users, the height of the halogen headlampsshould be adjusted according to the load in the
vehicle.0.1 or 2 people in the front seats. -.Intermediate setting. 1. 5 people + maximum authorised load. -.Intermediate setting. 2.
Driver + maximum authorised load. -.Intermediate setting. 3.
5 people + maximum load in the boot.

The initial setting is position "0".
If a fault occurs, this warning lamp is displayedin the instrument panel,
accompanied by an audible signal and a
message in the instrument panel screen.
The s
ystem then places your headlamps in the lowest position.
In order to avoid causing a nuisance to other road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, in relation to the load in the vehicle.

If a fault occurs, do not touch the xenonbulbs. Contact a CITROËN dealer or aqualified workshop.

Rear wiper
If a significant accumulation of snowor ice is present, or when using a bicycle carrier on the boot, deactivatethe automatic rear wiper via theconfiguration menu. park,
intermittent wipe,
wash-wipe
(set duration).


Reverse gear

When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operatin
g.
Th
e function is activated or
deactivated via the configuration menu.
This function is activated by default.

Programming
)Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.

The headlamp washers only operate when the dipped beam headlamps are on.
Windscreen and headlamp
wash
Rear wiper selection ring:
