2013 Citroen C4 PICASSO ESP

299
7
Practical information

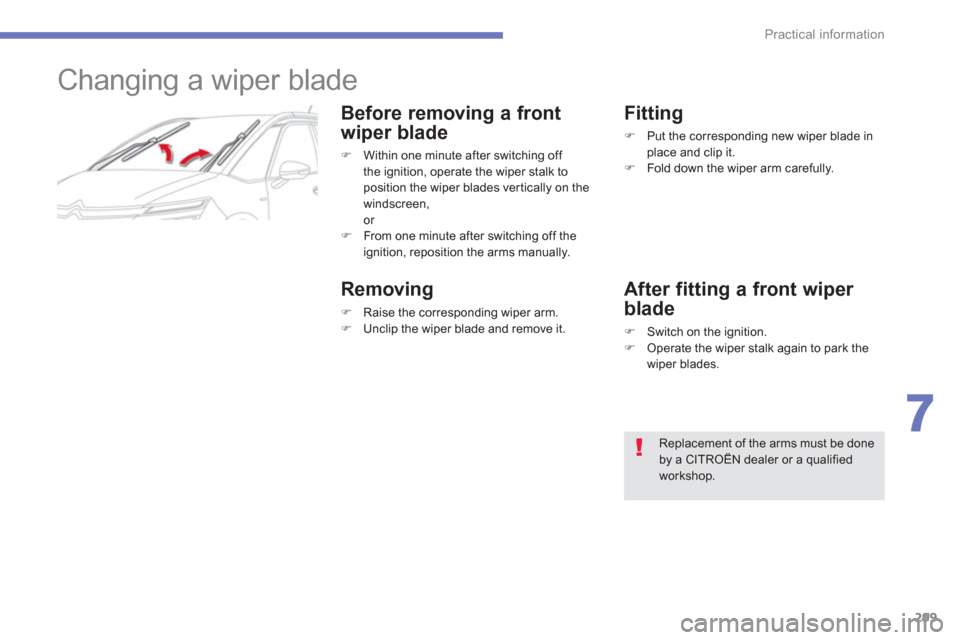

Changing a wiper blade
Before removing a front
w
iper blade
) Within one minute after switching off
t
he ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen,
or ) From one minute after switching off the
ignition, reposition the arms manually.

Removing
)
Raise the corresponding wiper arm. )
Unclip the wiper blade and remove it.



Fitting
)
Put the corresponding new wiper blade inplace and clip it.
)
Fold down the wiper arm carefully.



After fitting a front wiper
blade
) Switch on the ignition.)
Operate the wiper stalk again to park the
wiper blades.


Replacement of the arms must be done by a CITRO

308
Practical information
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.

Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle, breathalyzers and spare bulbs and fuses available in thevehicle.
"Multimedia":
Speakers, Hi-Fi module, Bluetooth hands-freesystem, head-up display screen, por tablesatellite navigation system, semi-integralsuppor t bracket for por table navigation system,
driving assistance systems, reversing camera, por table video screen, por table video carrier,
telephone carrier, two-screen video pack,
por table video player, CD player, solar USB charger, 230 V/50 Hz socket, 230 V/12 Vadaptor, iPhone/iPad charger, Wi-Fi on board...
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products (interior and exterior) - including ecologicalproducts in the "TECHNATURE" range, products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...

317
8
Checks











Running out of fuel (Diesel)

On vehicle fitted with HDi engines, the fuel system must be primed if you run out of fuel;
refer to the corresponding engine compar tment
view.
1.6 litre HDi engine
)
Fill the fuel tank with at least five litres of diesel.
)
Open the bonnet.)
If necessary, unclip the styling cover for
access to the priming pump.) Squeeze and release the priming pumprepeatedly until resistance is felt (there may be resistance at the first press). )
Operate the star ter until the engine starts(if the engine does not star t at the first
attempt, wait around 15 seconds before
tr
ying again). ) If the engine does not star t after a few
attempts, operate the priming pump again
then star t the engine.) Clip the styling cover back in place. )
Close the bonnet.


If the tank on your vehicle is fitted witha misfuel prevention device, refer to the"Misfuel prevention (Diesel)" section.


If the engine does not star t first time, don't keep trying but star t the procedureagain from the beginning.

318
Checks






Checking levels


Ta k e c a r e w h e n w o r k i ng under the bonnet, as certain areas of the engine may be extremelyhot (risk of burns) and the cooling fan could star t at any time (even with the ignition off).
Oil level

The check is carried out either when
the ignition is switched on using theoil level indicator in the instrument
panel, or using the dipstick.
Engine oil change

Refer to the maintenance and warranty guidefor details of the interval for this operation.
In order to maintain the reliability of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer'srecommendations.
Check all of these levels re
gularly, in line with the maintenance and warranty guide. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.
Dipstick

There are two marks on the dipstick:
A= maximum
If you fill past this mark, contact a CITROËN dealer or a qualified workshop. B= minimum
Top up the level through the
oil filler orifice, using thecorrect grade of oil for your engine. The level must never be below this mark.
It will onl
y be correct if the vehicle is on level ground and the engine has been off for more
than 30 minutes.It is normal to top up the oil level between
two ser vices (or oil changes). CITROËNrecommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
After topping up the oil, the check whenswitching on the ignition with the oil level
indicator in the instrument panel is not valid
durin
g the 30 minutes after topping up.

9
323
Technical data
Petrol enginesVTi 120THP155
Gearboxes
Manual(5-speed)


Manual(6-speed)
Model codes:3D... 3E... 3A...5FS0/1
5FV8 - 8/1

Cubic capacity (cc)
1 598

1 598

Bore x stroke (mm)
77 x 85.8
77 x 85.8

Max power * : EU standard (kW)
88
115

Max power en
gine speed (rpm) 6 000
6 000

Max torque: EU standard
(Nm)

160240

Max torque en
gine speed (rpm) 4 2501 400

F
uel Unleaded Unleaded
Catal
ytic converter yes
yes
Oil capacities (in litres)

Engine (with filter replacement)
4.25

4.25


* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).















Petrol engines and gearboxes
3D...:CITROËN C4 Picasso (5-seat).3A...:CITROËN Grand C4 Picasso (7- s e at).3E...:
CITROËN Grand C4 Picasso (5-seat).

9
325
Technical data
Diesel enginesHDi 90e-HDi 90 Airdream
Gearboxes

Manual(5-speed)


Electronic gearbox system(6-speed)
Model codes:3D... 3E... 3A...
9HP0/1 9HP8/2PS
Cubic capacity (cc) 1 560

Bore x stroke
(mm)

75 x 88.3

Max power * : EU standard (kW)
68

Max power engine speed (rpm)
4 000
Max torque: EU standard
(Nm)

230

Max torque engine speed (rpm) 1 750

F
uel

Diesel

Catalytic converter
yes

Particle emission filter
yes
Oil capacities (in litres)

Engine (with filter replacement) 3.75

.../S: e-HDi model fitted with Stop & Star t.3D...:CITROËN C4 Picasso (5-seat).














Diesel engines and gearboxes


* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
3E...:CITROËN Grand C4 Picasso (5-seat). 3A...:CITROËN Grand C4 Picasso (7-seat).

326
Technical data
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).











Diesel engines and gearboxes
.../S: e-HDi model fitted with Stop & Star t.3D...:CITROËN C4 Picasso (5-seat). 3E...:
CITROËN Grand C4 Picasso (5-seat). 3A...:
CITROËN Grand C4 Picasso (7-seat).
Diesel enginesHDi 115e- HDi 115 Airdream
GearboxesManual (6-speed)


Manual(6-speed)Electronic gearbox system(6-speed)

Model codes:3D... 3E... 3A...9HC8/1
9HC8/1S
9HC8/1PS - 8/2PS


Cubic capacity (cc)
1 5601 560

Bore x stroke
(mm)75 x 88.3

75 x 88.3

Max power * : EU standard (kW)
8585
Max power engine speed
(rpm) 3 6003 600
Max torque: EU standard
(Nm)
270270 - 285

Max torque en
gine speed (rpm) 1 7501 750

F
uel
Diesel
Diesel

Catalytic conver ter yes yes

Particle emission filter no
yes
Oil capacities (in litres)

Engine (with filter replacement) 3.75
3.75

9
327
Technical data

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).











Diesel engines and gearboxes

.../S: e-HDi model fitted with Stop & Start.3D...:CITROËN C4 Picasso (5-seat).3E...:
CITROËN Grand C4 Picasso (5-seat). 3A...:
CITROËN Grand C4 Picasso (7- s e at).
Diesel enginese-HDi 150 Airdream
Gearboxes

Manual(6-speed)

Automatic
(6-speed)
Model codes:3D... 3E... 3A...
AHXM/S - M/1S


AHXT/S - T/1S

Cubic capacity (cc)

1 997
Bore x stroke
(mm) 85 x 88

Max power * : EU standard
(kW)
11 0

Max power engine speed (rpm) 3 750
Max torque: EU standard
(Nm)370

Max torque en
gine speed (rpm) 1 750

F
uel

Diesel

Catalytic converter
yes

Particle emission filter
yes
Oil capacities (in litres)

Engine (with filter replacement) 6.1
