2013 Citroen C4 PICASSO display

395
08

Depending on your telephone, you may be asked to accept
automatic connection every time the ignition is switched on.

Dependin
g on the type of telephone, the system will ask you to accept or not the transfer of your contacts.
The services available depend on the network, the
SIM card and thecompatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.

On return to the vehicle, the last telephone connected automatically
reconnects, within around 30 seconds after switching on the ignition (Bluetooth activated).
To modif
y the automatic connection mode, select the telephone in
the list then select the desired profi le.
The tele
phone is added to the list.
BLUETOOTH

If not, select "Update
".

Automatic reconnection















Connecting a Bluetooth peripheral

On switching on the ignition, the telephone connected when the
ignition was last switched off is automatically reconnected, if this connection mode had been activated during the pairing procedure (see previous pages).

The connection is con
fi rmed by the display of a message and the name of the telephone.

Press on Telephoneto display the primary page then go to the secondary page.


Manual connection

Select "Bluetooth
" to display the list of pairedperipherals.

Select the peripheral to connect.

Press on "Search".


The connection is confi rmed by the display of a message and the name of the telephone.

08
396

Receiving a call

An incoming call is announced by a ring and a superimposed display
in the screen.

Make a short press on the steering mounted TEL
button to accept an incoming call.

Make a lon
g press on the steering mountedTEL
button to reject the call.

or

Select "End call".






Managing paired telephones
Press on Telephone
to display the primarypage then go to the secondary page.
Select " Bluetooth" to display the list of paired
peripheral devices.
Select the peripheral in the list.
Select:
-"Search"
or "Disconnect
" to connect or disconnect the Bluetooth connection with
the peripheral selected.
-
"Delete" to remove the pairing.


BLUETOOTH
This function allows the connection or disconnection of a peripheral
device as well as the deletion of a pairing.

397
08

Press on Telephoneto display the primary page.


Calling a new number







Calling a contact






Making a call

Use of the telephone is not recommended while driving.
We recommended that you park safely or make use of thesteering mounted controls.

Enter the phone number usin
g the keypad then
" Call
" to start the call.

Pr
ess on Telephone
to display the primary page.

Select "Contacts ".

Select the desired contact from the list offered.

Select "CALL".

CONTACTS

Or make a long press on the steering mountedTEL button.

398
08


Calling a recently used number



Ending a call


It is always possible to make a call directly from the telephone; park
the vehicle fi rst as a safety measure.
Select "Call log".


Press on Telephoneto display the primary page.

Select the desired contact from the list offered.
Select " End call".
or
Make a long press on the steering mounted
TEL
button.

CALL LOG

399
08

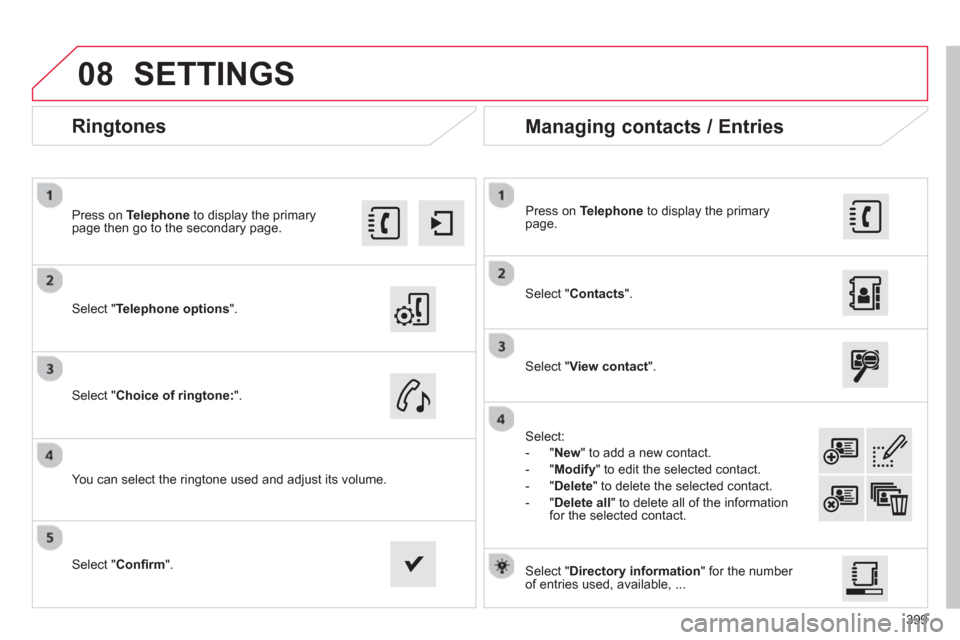

Ringtones

Select "Telephone
options ".
Pr
ess on Telephoneto display the primary page then go to the secondary page.

Select "Choice of ringtone:".

You can select the ringtone used and adjust its volume.
Select " Contacts".

Press on Telephoneto display the primary page.

Select " View contact".
Select:
-
"New" to add a new contact.
- "Modify" t
o edit the selected contact.
- "
Delete
" to delete the selected contact.
- "
Delete all
" to delete all of the informationfor the selected contact.

Select "Confi rm
".

Select " Directory information
" for the number
of entries used, available, ...

Managing contacts / Entries
SETTINGS

401
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Certain traffi c jams
along the route are not
indicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received correctly (display of the traffi c information icons on
the map).
Th
e fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, onl
y major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
Th
e altitude is not
displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then select "GPS coverage").
Dependin
g on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal receptionconditions.
Telephone, Bluetooth
I cannot connect myBluetooth telephone.The telephone's Bluetooth function may be switched off or the telephone
may not be visible.
- Check that your telephone's Bluetoothfunction is switched on.

- Check in the telephone settin
gs that it is "visible to all".
The Bluetooth telephone is not compatible with the system.
A list of compatible Bluetooth mobile telephones is available from the dealer network.
Th
e volume of thetelephone connected
in Bluetooth mode isinaudible. The volume depends both on the s
ystem and on the telephone. Increase the volume of the audio system, tomaximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an in
fl uence on the quality of telephone communication. Reduce the ambient noise level (close the windows,reduce the booster fan speed, slow down, ...).

402
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
Some contacts areduplicated in the list.The options for synchronizing contacts are synchronizing the contacts
on the SIM card, the contacts on the telephone, or both. When both
synchronizations are selected, some contacts may be duplicated. Select "Display SIM card contacts" or "Displaytelephone contacts".

Contacts are not shown
in alphabetical order.Some telephones offer display options. Depending on the settingschosen, contacts can be transferred in a specifi c order. Modify the display setting in the telephone
directory.
The system does notreceive SMS text messages. The Bluetooth mode does not permit sending SMS text messages to the
system.
CD
, MP3
The CD is ejected
automatically or is not played by the player. The CD is inserted upside down, is unpla
yable, does not contain any audio data or contains an audio format which the player cannot play.

- Check that the CD is inserted in the player the right
way up.

-
Check the condition of the CD: the CD cannot beplayed if it is too damaged.

-
Check the content in the case of a recorded CD:
refer to the advice in the "AUDIO" section.

- The audio s
ystem's CD player does not play DVDs.

-
Some recorded CDs will not be played by the audiosystem because they are not of the correct quality.
The CD has been recorded in a format that is not compatible with the player.
The
CD is protected by an anti-pirating protection system which is not recognised by the audio system.
There is a long waiting
period following the insertion of a CD or connection of aUSB memory stick.
When a new medium is inserted, the system reads a certain amount of
data (directory, title, artist, etc.). This may take from a few seconds to afew minutes. This phenomenon is normal.
The
CD player sound ispoor.The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settin
gs (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

403
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
Some characters in themedia information are not
displayed correctly while playing. The audio s
ystem does not display some types of characters. Use standard characters to name tracks andfolders.
Pla
ying of streaming fi lesdoes not start. The peripheral device connected does not support automatic play. Start the playback from the device.
Th
e names of tracks and
the track length are not
displayed on the screen
when streaming audio. The Bluetooth
profi le does not allow the transfer of this information.
Radio
The qualit
y of receptionof the radio station
listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is
displayed...). The vehicle is too
far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the "RDS" function by means of theshort-cut menu to enable the system to check
whether there is a more powerful transmitter in thegeographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
I
cannot fi nd some radiostations in the list of stations received.The station is not received or its name has chan
ged in the list.
Some radio stations send other information in place of their name (the
title of the song for example).
The s
ystem interprets this information as the name of the station. The name of the radio station changes.
