2013 CHEVROLET CRUZE Owners Manual

Black plate (3,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
In Brief 1-3
1.Exterior Lamp Controls on
page 6‑1.
Front Fog Lamps on page 6‑4 (If
Equipped).
Instrument Panel Illumination
Control on page 6‑5.
2. Air Vents on page 8‑6.
3. Headlamp High/Low-Beam
Changer on page 6‑2.
Turn Signal Lever. See Turn and
Lane-Change Signals on
page 6‑4.
Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) on page 5‑22.
4. Instrument Cluster on page 5‑8.
5. Driver Information Center (DIC)
on page 5‑22.
6. Steering Wheel Controls on
page 5‑2.
7. Windshield Wiper/Washer on
page 5‑3. 8.
Infotainment on page 7‑1.
Satellite Radio on page 7‑10 (If
Equipped).
9. Infotainment Display Screen.
10. Instrument Panel Storage on
page 4‑1.
11. Light Sensor. See Automatic
Headlamp System on
page 6‑3.
12. Passenger Airbag. See Where
Are the Airbags? on page 3‑19.
13. Hood Release. See Hood on
page 10‑4.
14. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5‑13.
15. Instrument Panel Fuse Block
on page 10‑37.
16. Cruise Control on page 9‑36.
17. Steering Wheel Adjustment on
page 5‑2. 18.
Horn on page 5‑3.
Driver Airbag. See Where Are
the Airbags? on page 3‑19.
19. Ignition Switch or Keyless Ignition Button (If Equipped).
SeeIgnition Positions (Key
Access) on page 9‑15 or
Ignition Positions (Keyless
Access) on page 9‑17.
20. Driver Knee Airbag. See Where
Are the Airbags? on page 3‑19.
21. Power Door Locks on
page 2‑11.
22. Hazard Warning Flashers on
page 6‑4.
23. Power Outlets on page 5‑6.
24. Parking Brake on page 9‑33.
25. Shift Lever. See Automatic
Transmission on page 9‑26 or
Manual Transmission on
page 9‑30.

Black plate (4,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
1-4 In Brief
26.Traction Control System (TCS)
on page 9‑34.
StabiliTrak
®System on
page 9‑35.
27. Climate Control Systems on
page 8‑1 (If Equipped).
Automatic Climate Control
System on page 8‑3 (If
Equipped).
Heated Front Seats on
page 3‑5 (If Equipped).
28. Passenger Airbag Status
Indicator on page 5‑12.
29. Passenger Knee Airbag. See Where Are the Airbags? on
page 3‑19.
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter may work up to 60 m
(195 ft) away from the vehicle.
RKE Transmitter with Remote
Start Shown
Press the key release button to
extend the key blade. The key can
be used for the ignition and all
locks.
Press
Kto unlock the driver door or
all doors.
Press
Qto lock all doors.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5‑32.

Black plate (5,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
In Brief 1-5

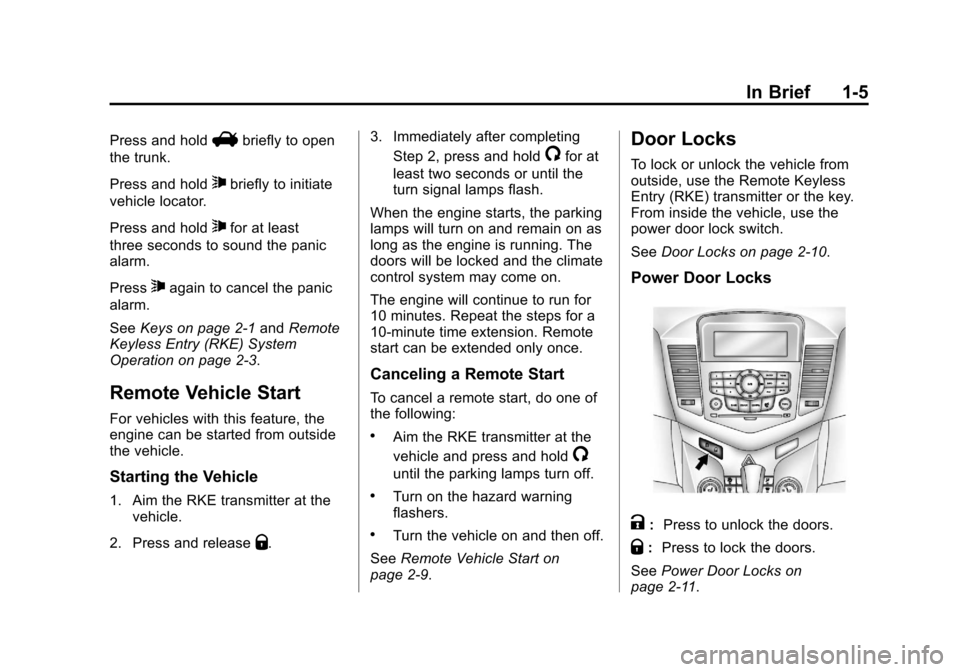

Press and holdVbriefly to open
the trunk.
Press and hold
7briefly to initiate
vehicle locator.
Press and hold
7for at least
three seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys on page 2‑1 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.
Remote Vehicle Start
For vehicles with this feature, the
engine can be started from outside
the vehicle.
Starting the Vehicle
1. Aim the RKE transmitter at the vehicle.
2. Press and release
Q. 3. Immediately after completing
Step 2, press and hold
/for at
least two seconds or until the
turn signal lamps flash.
When the engine starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑9.
Door Locks
To lock or unlock the vehicle from
outside, use the Remote Keyless
Entry (RKE) transmitter or the key.
From inside the vehicle, use the
power door lock switch.
See Door Locks on page 2‑10.
Power Door Locks
K:Press to unlock the doors.
Q:Press to lock the doors.
See Power Door Locks on
page 2‑11.

Black plate (6,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
1-6 In Brief

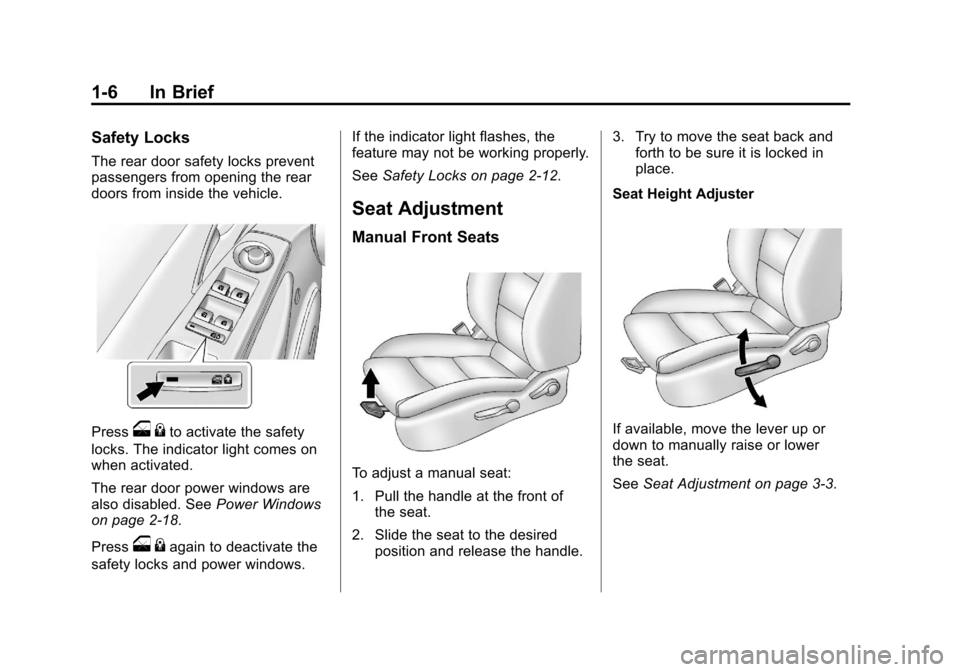

Safety Locks
The rear door safety locks prevent
passengers from opening the rear
doors from inside the vehicle.
Presso{to activate the safety
locks. The indicator light comes on
when activated.
The rear door power windows are
also disabled. See Power Windows
on page 2‑18.
Press
o {again to deactivate the
safety locks and power windows. If the indicator light flashes, the
feature may not be working properly.
See
Safety Locks on page 2‑12.
Seat Adjustment
Manual Front Seats
To adjust a manual seat:
1. Pull the handle at the front of
the seat.
2. Slide the seat to the desired position and release the handle. 3. Try to move the seat back and
forth to be sure it is locked in
place.
Seat Height Adjuster
If available, move the lever up or
down to manually raise or lower
the seat.
See Seat Adjustment on page 3‑3.

Black plate (7,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
In Brief 1-7

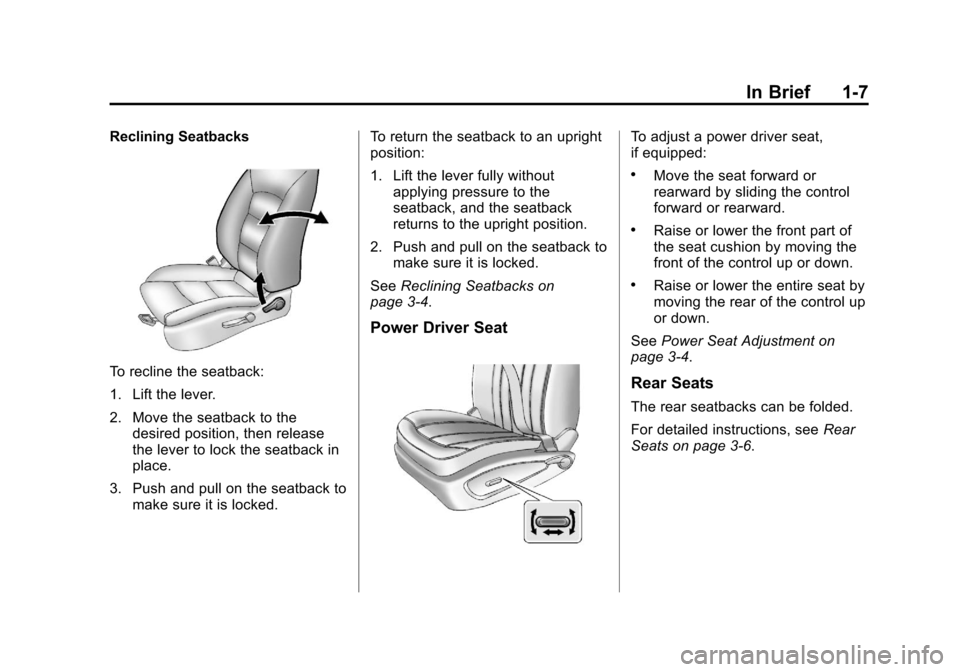

Reclining Seatbacks
To recline the seatback:
1. Lift the lever.
2. Move the seatback to thedesired position, then release
the lever to lock the seatback in
place.
3. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright
position:
1. Lift the lever fully without
applying pressure to the
seatback, and the seatback
returns to the upright position.
2. Push and pull on the seatback to make sure it is locked.
See Reclining Seatbacks on
page 3‑4.
Power Driver Seat
To adjust a power driver seat,
if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the entire seat by
moving the rear of the control up
or down.
See Power Seat Adjustment on
page 3‑4.
Rear Seats
The rear seatbacks can be folded.
For detailed instructions, see Rear
Seats on page 3‑6.

Black plate (8,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
1-8 In Brief

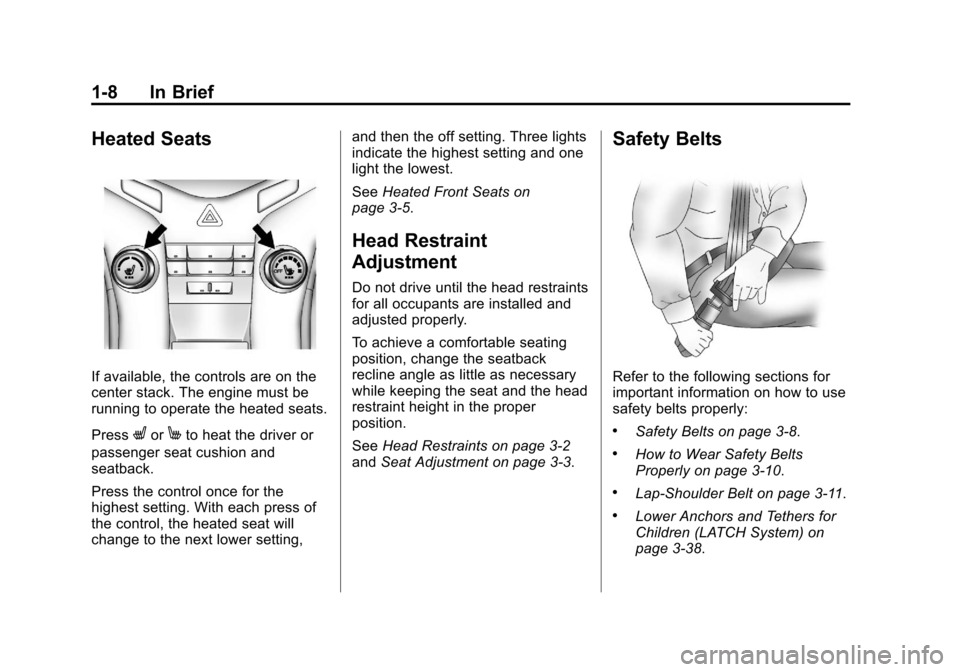

Heated Seats
If available, the controls are on the
center stack. The engine must be
running to operate the heated seats.
Press
LorMto heat the driver or
passenger seat cushion and
seatback.
Press the control once for the
highest setting. With each press of
the control, the heated seat will
change to the next lower setting, and then the off setting. Three lights
indicate the highest setting and one
light the lowest.
See
Heated Front Seats on
page 3‑5.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints on page 3‑2
and Seat Adjustment on page 3‑3.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3‑8.
.How to Wear Safety Belts
Properly on page 3‑10.
.Lap-Shoulder Belt on page 3‑11.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑38.

Black plate (9,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
In Brief 1-9

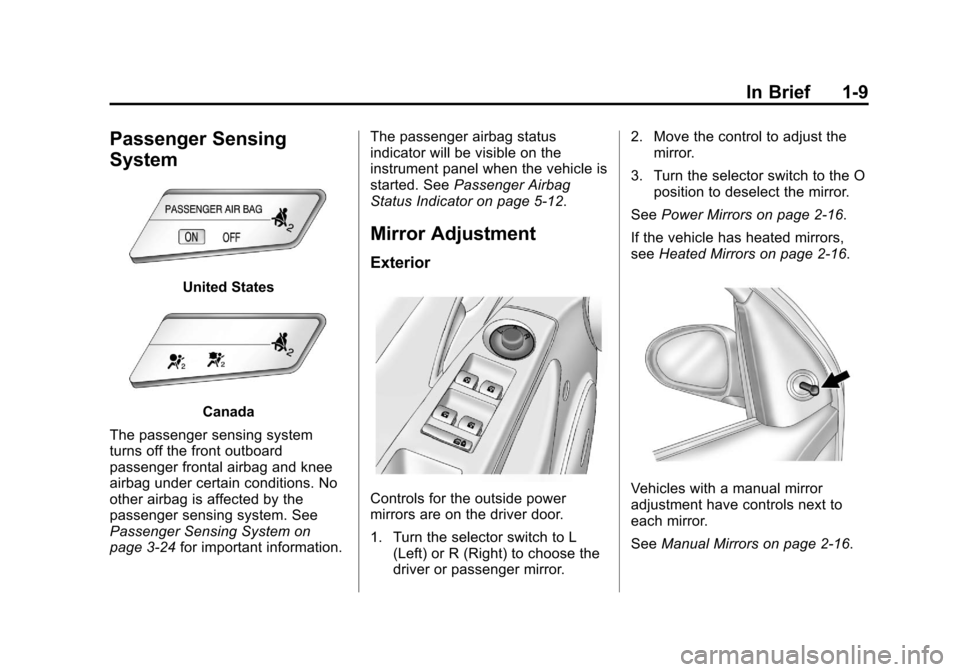

Passenger Sensing
System
United States
Canada
The passenger sensing system
turns off the front outboard
passenger frontal airbag and knee
airbag under certain conditions. No
other airbag is affected by the
passenger sensing system. See
Passenger Sensing System on
page 3‑24 for important information. The passenger airbag status
indicator will be visible on the
instrument panel when the vehicle is
started. See
Passenger Airbag
Status Indicator on page 5‑12.
Mirror Adjustment
Exterior
Controls for the outside power
mirrors are on the driver door.
1. Turn the selector switch to L (Left) or R (Right) to choose the
driver or passenger mirror. 2. Move the control to adjust the
mirror.
3. Turn the selector switch to the O position to deselect the mirror.
See Power Mirrors on page 2‑16.
If the vehicle has heated mirrors,
see Heated Mirrors on page 2‑16.Vehicles with a manual mirror
adjustment have controls next to
each mirror.
See Manual Mirrors on page 2‑16.

Black plate (10,1)Chevrolet Cruze Owner Manual - 2013 - crc - 10/16/12
1-10 In Brief
Interior Mirror
Adjustment
Adjust the rearview mirror to view
the area behind the vehicle.
Manual Rearview Mirror
If equipped with a manual rearview
mirror, push the tab forward for
daytime use and pull it for nighttime
use to avoid glare from the
headlamps from behind. See
Manual Rearview Mirror on
page 2‑17.
Automatic Dimming Rearview
Mirror
If equipped with an automatic
dimming rearview mirror, the mirror
will automatically reduce the glare of
headlamps from behind. The
dimming feature and indicator light
come on each time the vehicle is
started. SeeAutomatic Dimming
Rearview Mirror on page 2‑17.
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up
or down.
3. Pull or push the steering wheel closer or away from you.
4. Push the lever up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Interior Lighting
Dome Lamps
The dome lamp controls are located
in the headliner.
*: Press to turn the lamps off,
even when a door is open.
I: Press to turn the lamps on
automatically when a door is
opened.
+: Press to turn on the dome
lamps.
