Black plate (8,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12

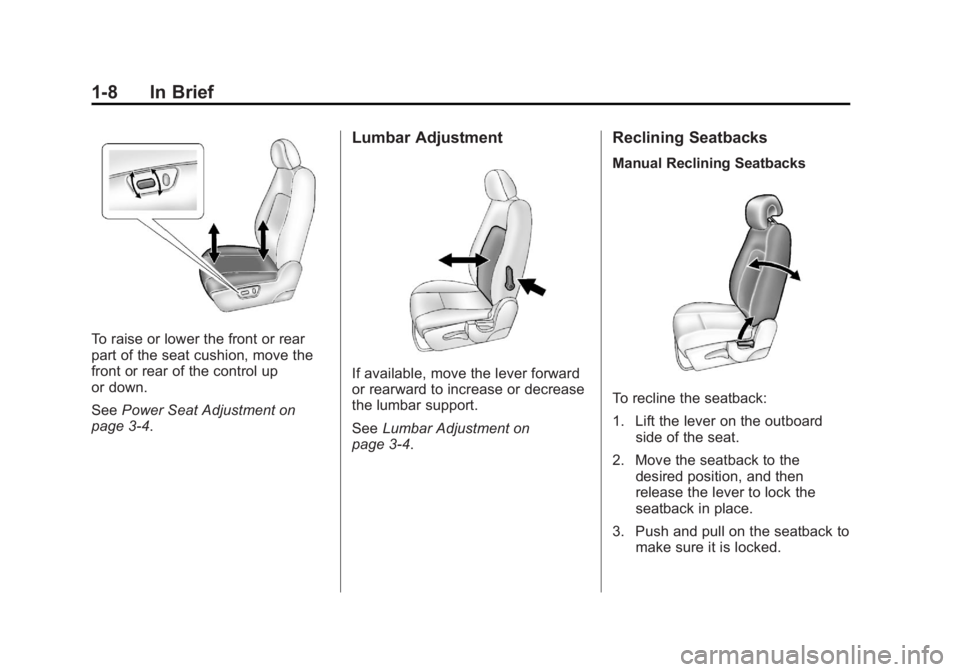

1-8 In Brief
To raise or lower the front or rear
part of the seat cushion, move the
front or rear of the control up
or down.
See Power Seat Adjustment on
page 3 ‑ 4 . Lumbar Adjustment
If available, move the lever forward
or rearward to increase or decrease
the lumbar support.
See Lumbar Adjustment on
page 3 ‑ 4 . Reclining Seatbacks Manual Reclining Seatbacks
To recline the seatback:
1. Lift the lever on the outboard
side of the seat.
2. Move the seatback to the
desired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
Black plate (4,1)Chevrolet Captiva Sport Owner Manual - 2013 - crc - 11/12/12
3-4 Seats and Restraints
Power Seat Adjustment
If available, move the control
forward or rearward to adjust the
seat position. To raise or lower the front or rear
part of the seat cushion, move the
front or rear of the control up
or down. Lumbar Adjustment
If equipped, move the lever forward
or rearward to increase or decrease
the lumbar support.
