High-beam Assistant  85Roadside parking lamps   85Computer  73Settings and information about
the vehicle   74Instrument lighting   876Steering wheel buttons, leftTelephone  196VolumeActivate/deactivate the voice acti‐
vation system   257Shift paddles  678Instrument cluster   149Steering wheel buttons, rightChange the radio station
Select a music track
Scroll through the redial listNext entertainment sourceRecirculated air mode   11010Start/stop the engine and switch
the ignition on/off   5711Steering column stalk, rightWindshield wipers   62Rain sensor  63Rear window wiper   6412Ignition lock  5713Steering wheel heating   5114Horn, the entire surface15Adjust the steering wheel   5116Cruise control  10117Opening tailgate   3618Releasing the hood   242Seite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 911 269 - VI/13

Instrument cluster1Speedometer2Indicator/warning lamps  153Tachometer  724Current fuel consumption   72
Engine oil temperature   725Display for▷Clock  71▷External temperature   71▷Indicator/warning lamps   15▷Cruise control  1016Display for▷Automatic transmission position   66▷Hill Descent Control  99▷Computer  73▷Date of next scheduled service, and re‐
maining distance to be driven   78▷Odometer and trip odometer  71▷Checking engine oil level  243▷Settings and information  74▷ Check Control message
present   807Fuel gauge   728Resetting the trip odometer   71Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 911 269 - VI/13

Indicator/warning lampsThe concept
The indicator and warning lamps can light up in
a variety of combinations and colors.
Several of the lamps are checked for proper
functioning when the engine is started or the
ignition is switched on, and light up briefly.
Text messages Text messages at the upper edge of the Con‐
trol Display explain the meaning of the dis‐
played indicator and warning lamps.
Supplementary text messages
You can call up more information, e.g., on the
cause of a malfunction and on how to respond,
via Check Control, refer to page 80.
In urgent cases, this information will be shown
as soon as the corresponding lamp comes on.
Indicator lamps without text
messages
The following indicator lamps notify you that
certain functions are active:
SymbolFunction or systemTurn signals, refer to page 62High beams/headlamp flasher, refer
to page 85SymbolFunction or systemFront fog lamps, refer to page 86Lamp flashes:
DSC or DTC is regulating the pro‐
pulsive forces in order to maintain
driving stability, refer to page 97The handbrake is set, refer to
page 61Canada: the parking brake is set, re‐
fer to page 61.Engine malfunction with adverse ef‐
fect on emissions, refer to
page 248Canada: engine malfunction with
adverse effect on exhaust emis‐
sions, refer to page 248Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 911 269 - VI/13

All around the center console1Headliner  172Control Display   183Air vent  1114Hazard warning system   257Central locking system  355Automatic climate control   1086Glove compartment  1237Radio and CD/DVD drive   166
Programmable memory buttons   228PDC Park Distance Control  103
rearview camera   105HDC Hill Descent Control   99Deactivate the Automatic Engine
Start/Stop Function   59DSC Dynamic Stability Con‐
trol   97
DTC Dynamic Traction Con‐
trol   98ECO PRO   1389Selector lever with automatic transmis‐
sion   6510Controller with buttons   18Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 911 269 - VI/13

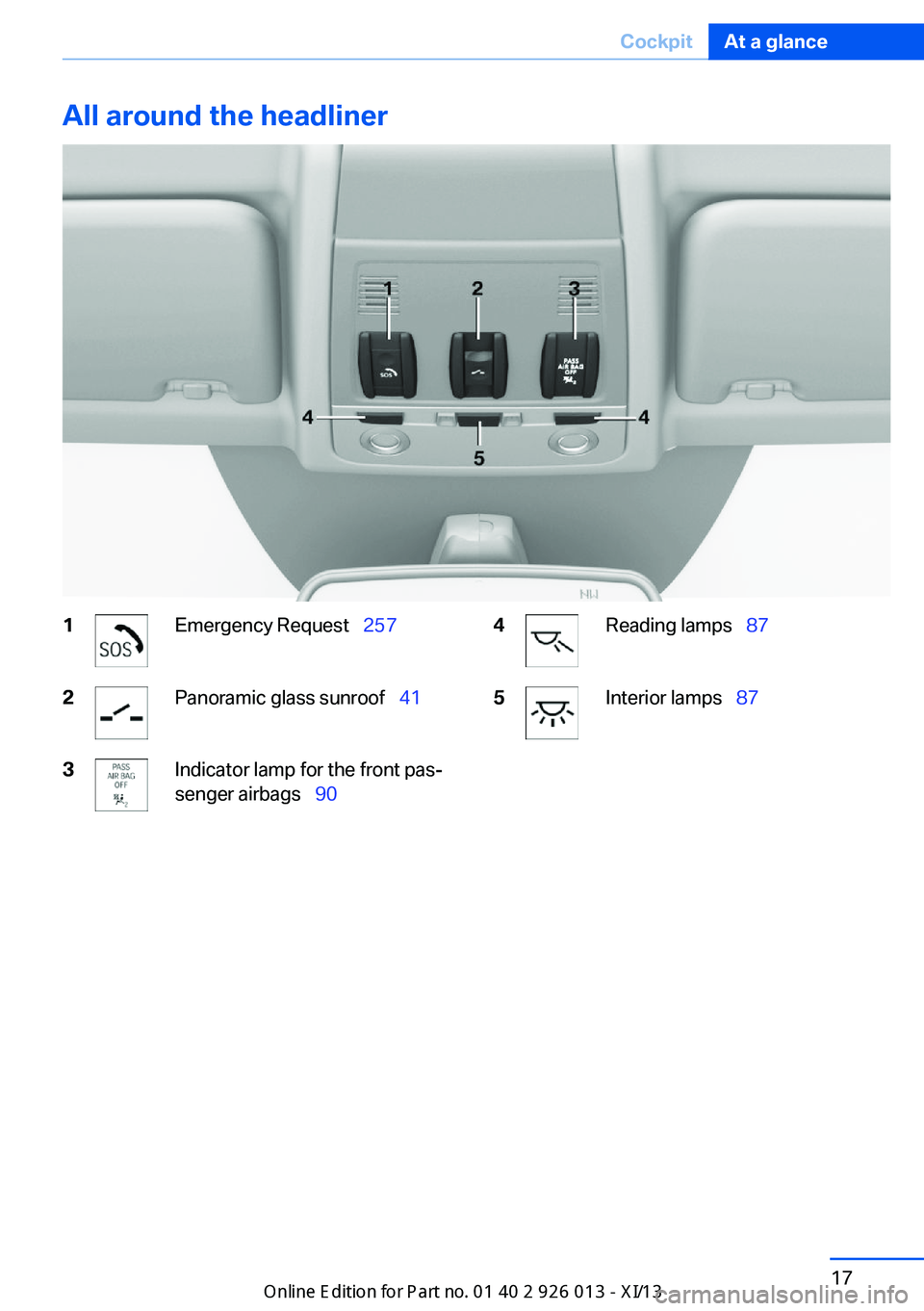

All around the headliner1Emergency Request  2572Panoramic glass sunroof   413Indicator lamp for the front pas‐
senger airbags   904Reading lamps   875Interior lamps  87Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 911 269 - VI/13

iDriveVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and
systems.
The concept
The iDrive combines the functions of a multi‐
tude of switches. Thus, these functions can be
operated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other road users, never at‐
tempt to use the controls or enter information
unless traffic and road conditions allow this.◀
Controls at a glance Controls1Control Display2Controller with buttonsThe buttons can be used to open the me‐
nus directly. The controller can be used to
select menu items and create the settings.
Control Display
Notes
▷To clean the Control Display, follow the
care instructions, refer to page 266.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1. Press the button.2."Switch off control display"
Switching on
Press the controller again to switch the screen
back on.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 911 269 - VI/13

Controller
Select menu items and create settings.1.Turn.2.Press.3.Move in four directions.
Buttons on controller
Press the but‐
tonFunctionMENUOpens the main menu.RADIOOpens the Radio menu.MEDIAOpens the CD/Multimedia
menu.Press the but‐
tonFunctionNAVOpens the Navigation menu.TELOpens the Telephone menu.BACKDisplays the previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press the button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Menu items shown in white can be selected.
1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 911 269 - VI/13

Menu items in the Owner's ManualIn the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.▷Move the controller to the left.
The current panel is closed and the previ‐
ous panel is displayed.
The previous panel is opened again by
pressing the BACK button. In this case, the
current panel is not closed.▷Move the controller to the right.
A new panel is opened on top of the previ‐
ous display.
White arrows pointing to the left or right indi‐
cate that additional panels can be opened.
View of an opened menu
When a menu is opened, it generally opens
with the panel that was last selected in that
menu. To display the first panel of a menu:
▷Move the controller to the left repeatedly
until the first panel is displayed.▷Press the menu button on the controller
twice.
Opening the Options menu
Press the button.
The "Options" menu is displayed.
Additional options: move the controller to the
right repeatedly until the "Options" menu is
displayed.
Options menu The "Options" menu consists of various areas:
▷Screen settings, e.g., "Switch off control
display".▷Control options for the selected main
menu, e.g., for "Radio".▷If applicable, further operating options for
the selected menu, for instance "Store
station".
Changing settings
1.Select a field.2.Turn the controller until the desired setting
is displayed.3.Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐
box. It indicates whether the function is acti‐
vated or deactivated. Selecting the menu item
activates or deactivates the function.
Seite 20At a glanceiDrive20
