~ Contact your authorized Audi dea ler fo r as -
sistance if necessary.
If the engine coolant level is co rrect, then the
radiato r fan may be the cause of the malfunc­
tion.
If the . warning symbol (alternator ma l­
f u nction) a lso l ights up on the instr ument
panel ¢
page 31, then the fan belt may be
damaged .
A WARNING
- If your vehicle should break down for
mechanica l or other reasons, park at a
safe distance from moving traffic, turn off the engine and turn on the hazard
warning lights¢
page 60, Emergency
flasher.
-
- Never open the hood if you see or hear
steam o r coolant escap ing from the en­
gine compartment - you risk being scald­
ed. Wait until you can no longe r see or
hear steam or coo lant escaping.
- The e ngine compartment of any veh icle
is a da ngerous a rea. Before you perfo rm
any wor k in the engine compar tment,
t ur n o f the eng ine and allow it to cool.
Follow the warning stickers¢
page 255,
Engine compartment .
(D Note
Do not cont in ue d riving if the . symbol
illuminates. There is a ma lf u nct ion in the
engine cooling system -you co uld damage
your eng ine.
9=:7-Engine oil pressure malfunction
The red engine oil pressure warning symbol
requires immediate service or repair. Driving
with a low-oil -pressure indication is likely to
inflict severe damage to the engine.
If the . symbol appears in the display and
b links, the oil press ure is too low . An addition ­
a l dr iver message can also be disp layed by
press ing the
I CH ECKi button:
Switch off engine! Oil p ressure too low
Dri ver information di spla y 33
Immediate act ions
~ Pull off the road.
~ Stop the vehicle.
~ T ur n off the engine .
~ Check the engine oil level with the dipstick
¢ page
269 .
Dipstick readings check s too low
~ Top off oil to the prope r level ¢ page 2 70 .
~ Make sure that the oil pressure wa rning
symbo l. appears no longer in the d isp lay
before you sta rt driving again.
Dipstick read ing checks OK
~ If the oil p ress ure warning symbol.
s t arts flashing aga in even though the en­
gine oil level checks OK on t he dipstick,
do
not continue d riving and do not let the en­
gine run in idle .
Instead, contact your au­
thorized A udi dealer for assistance.
(D Tips
- The engine oil pressure symbol. is
not an indi cator for a low eng ine o il lev­
el. Do not rely on it . Instead, check the
oil level in your engine at regula r inter­
vals, preferably each time you refuel,
and always before going on a long trip .
- The yellow oil lev el warn ing indication
II requires oil r efill or work shop serv­
i ce without delay . Do not wait until th e
red oil pressure warning. start s to
flash bef ore you re spond to th e low oil
le vel warning
l!I . By then , your engine
ma y already have suffe red serious dam­
age.
i Steering malfunction
If there is a malfunction in the electronic
steering column lock, the steering cannot be
unlocked .
If the . symbo l in the display b links, there is
a malfunction in the electro nic steering col­
u mn lock. An additional driver message can
also be displayed by pressing the
ICHECK I but-
ton:
~

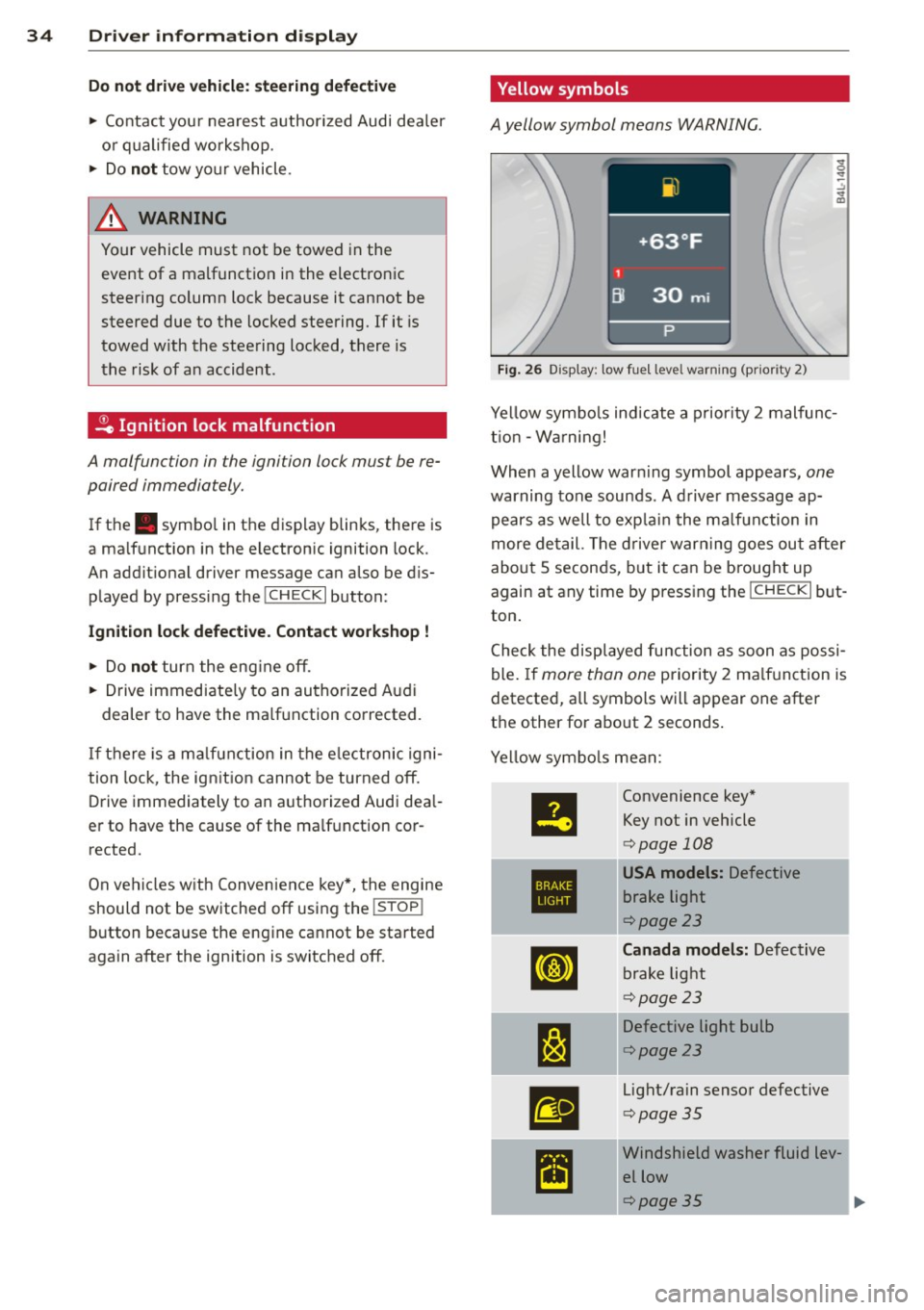

34 Driver information display
Do not drive vehicle: steering defective
• Contact you r nearest authorized Audi dea le r
or qualified workshop.
• Do
not tow yo ur vehicle .
.&, WARNING
-
Your vehicle must not be towed in the
event of a malfunction in the electronic
steering column lock because it cannot be
steered due to the locked steering. If it is
towed w ith the steering locked, there is
the risk of an accident .
~ Ignition lock malfunction
A malfunction in the ignition lock must be re­
paired immediately.
If the . symbo l in the display blinks, there is
a ma lfunction in the electronic ignition lock.
An addit ional driver message ca n also be d is­
played by pressing the
! CHECK I button:
Ignition lock defective. Contact workshop !
• Do not turn the eng ine off.
• Drive immediately to an authorized Audi
dealer to have the ma lf u nction corrected.
If there is a ma lfunction in the e lectronic igni ­
tion lock, the ignition cannot be turned off.
Drive immediately to an authorized Audi dea l­
er to have the cause of the ma lfunction cor­
rected.
On vehicles with Convenience key*, the engine
should not be switched off using the
! STOP !
button beca use the engine ca nnot be sta rted
again after the ignition is switched off.
' Yellow symbols
A yellow symbol means WARNING.
Fig . 26 Display: low fuel level warning (priority 2)
Yellow symbo ls indicate a priority 2 malfunc­
t ion -Warning!
When a yellow war ning symbol appears,
one
warning tone sounds . A driver message ap­
pears as well to exp lain the malfunction in
more de tail. The driver warning goes out after
about 5 seconds, but it can be brought up
again at any time by pressing the
! CHECK I but­
ton .
Check the displayed function as soon as possi­
ble. If more than one priority 2 ma lf u nction is
detected, all symbols will appear one after
the other for about 2 seconds .
Yellow symbols mean:
II
Convenience key"
Key not in vehicle
c> page 108
•
USA models: Defective
brake light
c>pa ge23
[IJ
Canada models: Defective
brake light
c> page 23
1:1
Defective light bulb
c>page 23
.
m
Light/rain sensor defective
c>pag e 35
~
Windshield washer fluid lev-
el low
1 .. c>page35

II
AdBlue ,/'
II
•
•
•
m
m
-
[I]
Low fuel level
¢page 35
Refill Ad Blue*
¢page261
AdBlue malfunction*
¢poge261
Battery voltage
¢page36
Worn brake pads ¢page36
Dynamic headlight range
control defective
¢page36
Check engine oil level
¢poge36
Engine oil sensor malfunc­
tion ¢poge36
Engine speed limitation*
¢page36
Diesel particulate filter*
clogged
¢poge37
Adaptive light* defective
¢poge37
Ignition lock malfunction
¢poge37
Windshield wiper defective
¢poge37
-Tire pressure monitoring
system
Loss of air pressure
¢poge299
Tire pressure monitoring
system
System not available
¢poge299
Driver information display 35
Battery in remote control
key
¢page39
Automatic transmission
malfunction
¢ page 141
...?c, Key not in vehicle
Applies to vehicles: with Convenience key
I!! Key not in vehicle
This reminder appears along with the I!! sym­
bol if the master key is removed from the
ve­
hicle with the engine running. It is intended
to remind you (e.g . when chang ing drivers)
not to continue the journey without the mas­
ter key.
If the master key is no longer in the vehicle,
you cannot switch off the ignit ion after stop­
ping the engine and you also cannot start the
engine again. What is more, you cannot lock
the vehicle from the outside.
@. D Light/rain sensor defective
E;I Automatic headlights/ automatic wipers
defective
If the symbol illuminates, the light sensor has
failed. For safety reasons the low beams are
turned on permanently with the switch in
AU­
TO. However, you can continue to turn the
lights on and off using the light switch. In the
case of a defect in the rain sensor, the wind ­
shield wiper lever functions are still available.
Have the light/rain sensor checked as soon as
possible by an authorized Audi dealer .
c)3 Windshield washer fluid level too low
~ Please refill washer fluid
If the symbol illumina tes, add windshield
washer fluid to the washer system and also to
the headlight washer system
¢ page 2 79.
Eli) Fuel supply too low
II) Please refuel

36 Driver in formation d isplay
When this symbo l Ii] il luminates for the first
time, the fuel reserve in your vehicle is sti ll
between
2 .6 and 3 .2 gallons (10- 12 liters) .
Refue l as soon as possib le
¢ page 258.
If the symbol lights up, even when there is
ample fuel in the tank, and the text
T a nk sys ­
tem malfunction! Cont act wor kshop
appears
in the display, there is a fault in the system.
Contact a qualified workshop to have the fau lt
rectified .
t::l Battery voltage
If the battery's state of charge is not in the
optimal range , the (•) symbo l is shown in the
d isp lay and the dr iver message
Low battery
c harge : battery will be charged while driving
appears.
W hil e this dr iver not ificat io n is displayed, you
have to be p repared for lim ited start ing capa­
b ili ty.
Driver m essage appears and goes out
again
I f t his driver message appea rs after the igni ­
tion is turned o n or wh ile driving and it goes
out again after a while, the battery has been
adequately recharged .
Driver message appears and does not go
out again
If th is driver notification appe ars after the ig ­
nition is turned on or while driving and does
not go out again, the battery 's state of charge
is not in the opt imal range. Starting capability
is restricted. Have the battery checked by an
authorized Audi dealer as soo n as poss ible.
{0 : Worn brake pads
llJ Brake pads!
If the warn ing light illum inates, immediately
contact your authorized Audi dealer or quali­
fied workshop to have all brake pads inspect ­
ed . On USA models the wa rning lig ht
llJ
l ) - : USA mod els only
comes on together with the warning light
1111 . Both sets of brake pads on an ax le
must a lways be rep laced at the same time.
A WARNING
=
Driving w it h bad brakes can cause a colli-
sion and ser ious personal in jury.
- I f the warn ing light
llJ and the warning
light
11111 ' with the message Brake
pads!
comes o n in the inst rument cluste r
d isp lay, immediately contact your au­
thor ized A udi dealer or qualified wo rk­
shop to have all b rake pads checked or
re placed if ne cessa ry.
~(i) Headlight range control
fl Headlight rang e control defe ctive !
-
If the symbol illuminates, th e dynamic head­
li ght rang e control is no longer work ing prop­
erly. Have the system checked and repa ired at
yo ur authorized Aud i dea le r.
~ -Engine oil level
Ill Please check oil level
When the symbol illum inates, check the en­
gine o il level a s soon as possible ¢
page 269.
Top off t he oil at your ear liest opportu nity
¢ page 270 .
't::r.~ Engine oil sensor defective
Ill Oil le vel ! Sensor defect ive
If t he symbol illum ina tes, contact yo ur au ­
thorized Aud i dea le r and have the oil sensor
inspected. Unti l yo u have this done, check t he
oi l level each time you refue l just to be on the
safe s ide
¢ page 269.
! ?')
Engine speed limitation
Applies to vehicles: wit h engine speed limitatio n
(m Do not e xceed ma x. engine speed of
XXXX rpm

The IJI symbol illuminates when there is an
engine control malfunction. The indicator
light
[mi n the instrument cluster also illumi­
nates. The engine speed is limited to the
speed d isplayed in the driver information sys­
tem. Keep in mind that the engine speed will
not exceed the value displayed in the drive r in­
formation system, for example when down­
shifting.
Please go to an authorized Aud i dealer or oth­
e r qualified workshop to have the malfunction
repaired.
~ Diesel particulate filter clogged
Applies to vehicles: with diesel engine and diesel part icu­
late filter
B Particulate filter See owner's manual
When the II symbol illuminates, you can a l­
ter your driving style to assist the filter self­
cleaning process. Drive for approx imately
15
minutes with the selector lever in the S pos i­
tion at a min imum speed of 37 mph (60 km/
h) and an engine speed of approx imately
2,000 RPM. The temperature increase that
will resu lt from this can burn off the soot in
the filter. The symbol wi ll switch off when the
cleaning is successf ul. After a successful
cleaning, there is no need to bring the car to
an author ized dealer or qualified workshop
because this is part of normal vehicle opera­
tion .
If the symbo l
II does not switch off, see
your authorized dealer or other qualified
workshop to have the prob lem corrected.
F or more information on the diesel particu­
late filter, refer to¢ page
235.
A WARNING
Always adapt yo ur speed to the current
weathe r, road and traffic condit ions. You
should never disobey traffic laws in order
to follow dr iving recommendations.
-
Driver information display 37
~O Adapt ive light defective
Applies to vehicles: with adaptive light
mi adaptive light defective
When this symbol mi illuminates, it means
that adaptive light is defect ive. Go to an au­
thorized dea lership to have the headlights or
the control unit for the adaptive light re­
paired.
~ Ignition lock malfunction
If them symbo l in the display comes on,
there is a ma lfunction in the e lectronic igni­
tion lock. An additional driver message can be
displayed by pressing the
I CHECK! button:
Ignition lock defective
11> Drive to an authorized Audi dealer or quali­
fied workshop at your earl iest convenience
t o have the malfunction corrected.
~ Windshield wipers faulty
f?5 Windshield wiper defective
When this symbo1 £-.$ illuminates, it means
that the electronics for the windsh ield wipers
are defective. Please go to an authorized Audi
dealer or qualified workshop to have the
winds hield wiper system repaired.

52 Openin g and clo sing
opened are the power windows switched
off.
- Be careful when closing the windows .
Check to see that no one is in the way, or
serious injury could result!
- Always remove the ignition key whenever
you leave your vehicle.
- If you lock your vehicle from the outside,
no one, especia lly children, sho uld re­
main in the vehicle .
- Do not stick anything on the windows or
the windshield that may interfere with
the driver's fie ld of vision.
In addition to t he switches in the drive r's
door there is a separate switch in each
door for the power window in that door
¢ page 53, fig. 47.
Switches in the driver's door
T he driver can operate all windows.
I f the respective switch is pushed or pulled
the w indow will open or close. The power win­
dow switches have a
two -positi on fun ction :
Opening the windows
.. Push the sw itch to the fir st stop and hold it
there unt il the wi ndow has lowered to the
desired position.
.. Push the switch briefly to the
sec ond stop:
the window wi ll automatically open all the
way.
Closing the windows
.. Pu ll the switch up to the fir st stop and ho ld
it there until the window has risen to the de ­
sired position .
.. Pu ll the switch q uickly to the
second po si­
tion :
the w indow w ill automatically close all
t he way ¢
A in Controls on page 5 l.
Activating /deactivating the r ear windows
.. Press the left [!I switch ¢ page 51 , fig. 46 to
deactivate on ly the window regulator in the
left door. The indicator light in the switch i l­
luminates.
.. Press the right
[!I switch ¢ page 51, fig. 46
to
d eacti vate only the window regu lator in
the
right door. The ind icator light in the
sw itch illuminates .
.. Press the
[!I sw itch aga in to reactivate the
w indow regu lator . The indicato r light in the
sw itch goes out .
If you press both
[!I switches ® in succession,
the following funct ions are switched off in the
rear of the vehicle:
- The window regulator switches in the rear
doors .
- The buttons for the Panoramic slid ing su n­
roof* .
- On veh icles with rear climate control*, oper­
ation from the rear is blocked . Dashes" ---"
are show n in the displays for the rear cli­
mate cont ro ls, and the rear air-cond ition ing
can only be operated from the climate con­
trols in the cabin ¢page 97.
- I f
only th e left [!I sw itch was pressed, the
w indow regu lator in the
left rear do or and
t he buttons in t he rear for the Panoramic
sliding sunroof* are deactivated . In addi­
t ion , the door is locked .
- If
o nly the right [!I switch was pressed, the
w indow regu lator in the
right re ar door and
the buttons in the rear for the Panoramic
sliding sunroof* are deactivated . In addi ­
tion, the door is locked.
T his feature has been provided for the safety
of small children riding in the rear of the ve hi­
cle .
(D Tips
- T he windows can sti ll be opened and
closed for about ten minutes after the
ignition has been t urned off . The powe r
w indows are not shut off unt il one of the
front doors is opened.
- In order to act ivate the child safety lock
on the left and the right side, you have to
press the two safety switches in succes­
sion . Make certa in that the check light
comes on the correspond ing safety

Clear vision Lights
Switching the headlights on and off
In the "AUTO" position, a light sensor auto·
matically switch es t he head· and taillights on
and off in r espons e to light conditions .
Fig. 53 Instrument pane l: lig ht sw itch
The ligh t sw itch m ust not be overturned pas t
the stops in
eit her direct ion .
Sw itching on automatic headlight control
,.. Turn the light switch to AUTO ¢ fig . 53 .
Swi tching on the side m ark e r lights
,.. Turn the light switch to :;oo:;.
Sw itching on the headlights and high
be am
,.. Turn the light switch to io .
,.. Push the high beam lever forward towards
the instrument panel
9 page 60 .
Switching off the light s
,.. Turn the light switch to 0.
The headlights only wo rk when the ignition is
sw itched on. While s tart ing the engine or
when switching
off the ignition, the head ·
lights will go
off and on ly the s ide marker
lights will be on .
Afte r star ting t he engine, the headlights are
automatically adjusted* to the load and angle
of the vehicle (for example, during accelera ·
tion, braking). This prevents oncoming traffic
from experiencing unnecessary headlight glare from your headlights.
Clear vi sion 5 7
If the system is not ope rat ing properly, a
warning symbol in the Auto-Check Control is displayed ¢
page 36.
With the side ma rker ligh ts or he ad ligh ts
switched on, the symbol next to the light
switch i lluminates
:oo :.
Daytime running lights
- USA model s:
The daytime runn ing lights
w il l come on automatically whe n the igni­
tion is t urne d on and the l ight sw itch
¢
fig. 53 is in the O position or the AUTO po ­
sition (only in daylight conditions). The
Day­
time running lights
function can be turned
on and
off in the MMI menu E xter ior l ight ·
ing
¢ page 58.
- Canada models: The dayt ime running lights
w ill come on automatically when the igni·
tion is turned on and the light switch
¢
fig. 53 is in the O position o r the AUTO po ·
sition (only in daylight condit ions) ¢ .&. .
Automatic headlight control
In the switch position AUTO the automatic
headlight control
i s turned on. The low
beams and tail lights are turned on automati·
ca lly through a light sensor as soon as amb i­
ent b rightness (e.g . when driving into a t un­
nel) fa lls below a value p reset a t the factory.
When ambien t brightn ess increases ag ain ,
the low beams are turned
off ag ain automati­
ca lly ¢ .&. .
In the
AUTO posi tion the low beams a re
swi tched
off au tom ati cally when the igni tion
is tur ned
off.
Light Sensor Malfunction
In the event of a light sensor malfunction, the
dr ive r is notified in the instrument cluster dis­
play:
g Automatic h eadlights / automatic w ipers
defective
For safety reasons the low beams are t urned
o n permanently with the switch in
AUTO .
However, you can conti nue to turn the lights
o n and
off using the light switch . Hav e the II>

58 Clear vis ion
li g ht sensor checked as soo n as poss ible at an
author ized Audi dealer or qua lified wor kshop .
.&_ WARNING
-Daytime ru nning lights and automatic
headlights are only intended to assist
the driver. They do not relieve the driver
of his respons ib ility to check the head­
lights and to turn them on manually ac­
co rding to the current light and v is ibi lity
condit ions. For example, fog cannot be
dete cted by the light sensors*. So alw ays
switch on the headlights
io u nder these
weather conditions and when driving in
the dark.
- Crashes can happen when yo u cannot see
the road ahead and when you cannot be seen by other motorists. Always turn on
the headlights so that you can see ahead
and so that others can see yo ur car from
the back.
- Please obey a ll laws when using the
lighting systems described here.
@ Tips
- With the switch in AUTO front fog lights
and rear fog lights cannot be turned on in addition.
- The light senso r for headlight contro l is
l ocated in the rear view m irror mount.
You should therefore not app ly any st ick­
ers to the windsh ield in this area in o rder
to preve nt ma lfunctions o r failures.
- Some exterior lighting functions can be
adjusted
c:> page 58.
-When you remove your key from the igni­
tion while the vehicle's lights are turned
on, a buzzer sou nds as long as the driv­
er's door is open .
- In coo l o r damp weather, t he ins ide of
t h e headlights, turn signa ls and tail
li ghts can fog ove r du e to t he tempera­
tu re diffe re n ce between the inside and
outside. They will cle ar sho rtly after
swi tching them on. This does not affect
t h e service li fe of the lighting . -
In the event o f a light sensor malfunc­
tion, the driver is notified in the instru­
ment cl uster display
c:> page 35 .
Adjusting exterior lighting
The functions are set in the MMI.
• Select: I CAR I func tion button > Systems *
cont ro l but to n > Exterior lighting . Or
.. Select:
!CAR ! function b utton> Car sys­
tem s* contro l button > Vehicle setting s >
Exterior lighting.
Coming home (Lights when leaving car ),
Leaving home (Lights when unlock ing car )
T he coming home f unction ill umi nates the
area o utside the vehicle when you tu rn the ig­
nition off and open t he driver's door. Depend­
ing on vehicle eq uipment, the f unction can be
switched on and off or the length of t ime the
lights remain on* can be adjusted .
The leaving home illum inates the area outside
the vehicle when you unlock the vehicle. This
funct ion can be switched on and off .
The Coming home and Leaving home func­
tions only operate when it is dark and the light switch is in the AUTO position.
Daytime running lights
USA models: The daytime r unning lights can
be turned on or off using th is function.
Canad a model s: Th e fu nction ca n no t be
tu rned off .
It is activated automati cally each
time the ignition is t urned on. This menu item
is shown "greyed out" .
Front fog lights
Fig . 54 Instrument pa nel: light switch
