2013 AUDI A8 display

steering angle. The pedestrian warning prompts you to pay even closer attention to
the area in front of the vehicle and to watch
out for pedestrians.
If another display such as the trip comp uter
replaces the image from the night vision as­
sistant, the indicator light turns red when
there is a pedestrian warn ing .
c:> fig. 118 .
@ Tips
The pedestrian marking and warning tone
can be adjusted in the MMI
r=>poge 114.
General information
Applies to vehicles: with night v isio n ass istant
N 0
8 :i:
~
Fig. 119 Fron t of the veh icle: night vision ass istant
camera
The following situations may affect the func­
tion of the night vision assistant system:
- poor v is ib ility such as snow, rain, fog or
heavy road spray
- dirty lens on the night vision assistant cam-
era
Make sure the night vision assistant camera
i::> fig. 119 is not cove red by stickers, deposits
or any other obstructions because that can
prevent the camera from working properly.
F or information on cleaning the lens, refer to
c:> page 218.
Pedestrian detection depends on the differ­
ence in temperature between the person and
the background. Pedestrians may not be de­
tected if the temperature difference is too
sma ll. The pedestrian highlighting feature is
deactivated at temperatures above 77 °F (25
0
() and when it is light outside.
Night vision assistant 113
A WARNING
Night vision assistant has limits and can­
not always detect pedestr ians . Always pay
close attention to traffic and the area
around your vehicle even when night vision
assistant is switched on.
- Night vision assistant can only warn
about people located within the visual
range of the infrared camera. The visual
range corresponds to the image in the in­
strument cluster display.
- Night vision assistant may not detect
peop le and highlight them if
- they are not in an upright posit ion, for
example if they are sitt ing, crouching
or lying down and/or
- if the outline in the display is incom­
plete or interrupted, for example be­
cause the person is part ially hidden by
a parked vehicle .
@ Tips
-Pedestrian detection and the pedestrian
warm ing are limited to objects that are
detected as pedestrians. The system
does not detect an imals. Even though
the shape and warmth radiated by each
object detected is evaluated, the system
does have limitations and it can give in­
correct warnings .
- For technical reasons, the image pauses
in split second intervals.
Switching on and off
Applies to vehicles: wit h night vision assistant
Fig . 120 Area around th e ligh t sw itch: night vis ion as·
s istant button .,.

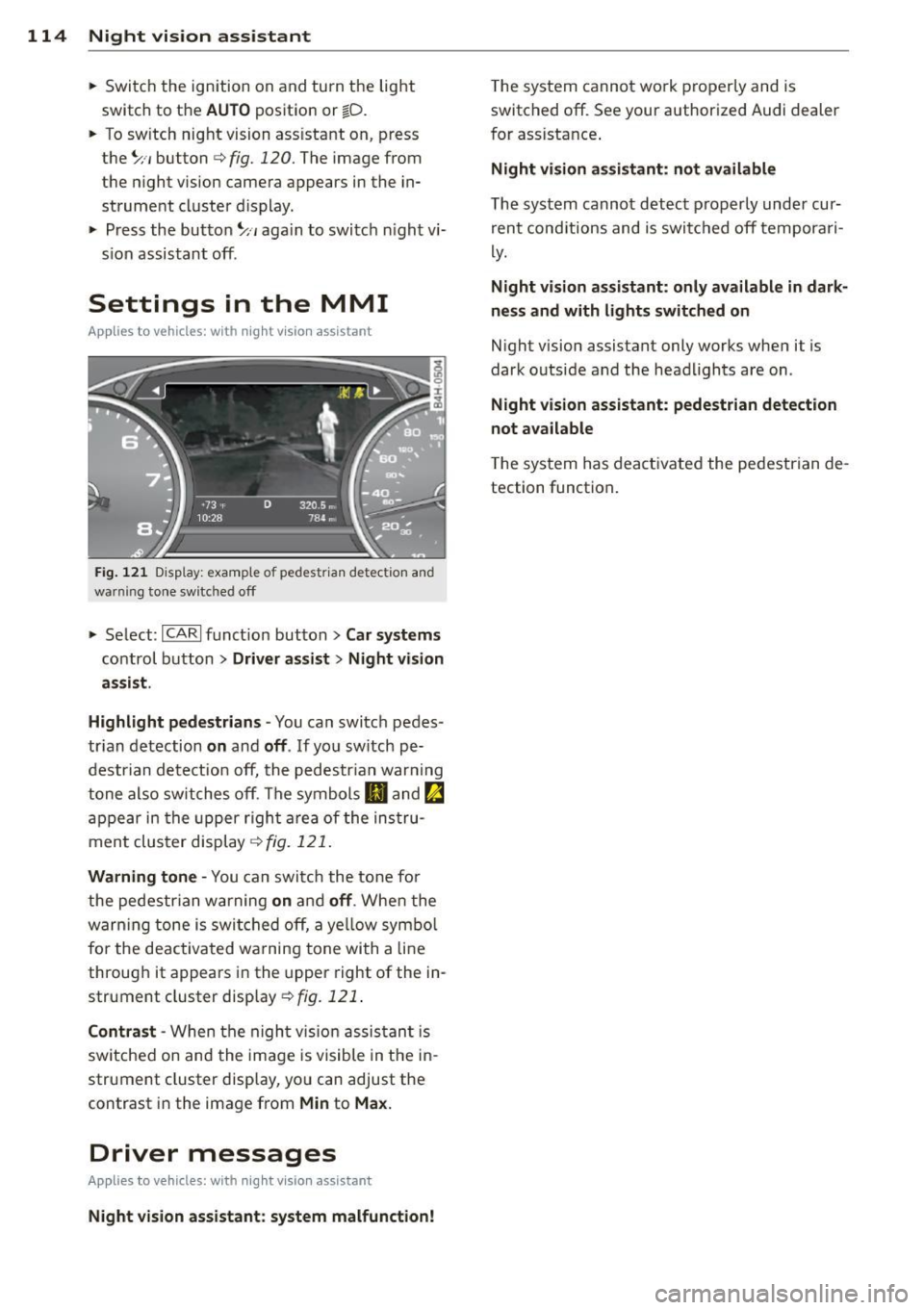

114 Night vision assistant
• Switch the ignition on and turn the light
sw itch to the
AUTO position or tD .
• To sw itch night vision ass istant on, press
the~ ,, button
c> fig. 120 . The image from
the night vision camera appea rs in the in­
strument cluster display .
• Press the button~ -, aga in to switc h night vi­
s ion assistant off .
Settings in the MMI
Appl ies to vehicles: with night v isio n ass istant
Fig. 121 Disp la y: examp le of pede strian detect ion and
warn ing tone switc hed off
• Select : I CARI funct ion button > Car systems
control button > Driver assist > Night vision
assist.
Highlight pedestrians -
You can switch pedes­
tr ian detection
on and off . If you sw itch pe­
destrian detection off, the pedestr ian war ning
tone also switches off. The symbols
IJ and ~
appear in the upper right area of the instru­
ment cluster display
c> fig. 121.
Warning tone -You can switch the tone for
the pedestrian warning
on and off . When the
warn ing tone is switched off, a ye llow symbol
for the deactivated wa rning tone with a line
through it appears in the upper right of the in­
strument cluster display
c> fig. 121 .
Contrast -When the night vis ion assistant is
sw itched on and the image is visible in the in­
strument cluster display, you can adjust the
contrast in the image from
Min to Max.
Driver messages
Appl ies to veh icles: with night visi on ass istant
Night vision assistant: system malfunction!
The system cannot work properly and is
switched off. See your authorized Audi dealer
for assistance .
Night vision assistant: not available
The system cannot detect properly under cur­
rent cond itions and is switched off temporari­
ly.
Night vision assistant: only available in dark­
ness and with lights switched on
Night vision assistant only works when it is
dark outside and the headlights are on.
Night vision assistant: pedestrian detection
not available
T he system has deactivated the pedestrian de­
tection function.

Automatic Transmission
tiptronic (8-speed
transmission)
Introduction
Your vehicle is equipped with an electronically
controlled 8-speed automatic transmission .
Upshifting and downshifting occurs automati­
cally and is controlled electronically. The driv­
ing style continuously influences the selection
of the driving program.
When a
moderate driving style is used, the
transmission selects the most econom ical
driving mode. It will then change up early and
delay the downshifts to give better fuel econ­
omy.
The transmission switches to a sporty mode
after a kick-down or when the driver uses a
sporty driving style characterized by quick ac­
celerator pedal movements, heavy accelera­
tion, frequent changes in speed and traveling
at the maximum speed.
If desired, the driver can also select the gears
manually (tiptronic mode) ¢ page 118.
Indicator in the display
Fig. 122 Display: selector lever pos it ion
@ -The current selector lever position is dis ­
played continuously. The gear is also dis­
played in manual mode M.
@-This indicator appears temporarily if you
change the selector lever position or if you
press the button on the selector lever
Automatic Transmission 115
¢ page 115, fig. 123 . The current selector
lever position is shown with a white back­
ground.
Selecting a selector lever position
Fig. 123 Selector lever
---R--- -t
--- N---_..
- D/S--
Fig. 124 Pressing the button o n the selector leve r
The current selector lever position is displayed
on the selector lever¢
fig. 123.
.. You may need to release the selector lever
lock depending on which selector lever posi­
tion is selected and which one you would
like to select ¢
page 116, Selector lever
lock .
.. To engage the nearest selector lever posi­
tion, move the selector lever forward/back
until you fee l the first pressure point. The
selector lever will return to its original posi­
tion .
.. To skip over one (or two) selector lever posi­
tions, move the selector lever past the first (and second) pressure point into the desired
position. The selector lever will return to its
original position.
For example, to move directly from the D se­
lector lever position to P when stopping the
vehicle, you can shift past the N and R selector
lever positions . ..,.

Parking systems
General information
App lies to vehicles: with park in g system plus/rear view
camera/peripheral cameras
Depending on your vehicle's equipment, vari­
ous parking aids will help you when parking
and maneuvering.
The
advanced parking system with rear view
camera
ass ists you when parking by audibly
and v isua lly indicating objects detected
in
front of
and behind the vehicle . The rear view
camera shows the area behind the vehicle in
the Infotainment display. This display assists
you when you are cross or para llel parking
c:;,page 122.
The peripheral cameras assist you with park­
ing and maneuvering. You are aided by various
cameras depending on the vehicle equipment level ¢
page 126. In addition, you are assist­
ed by the functions from the sensors
c:;, page 122, Sensors, c:;, page 124 , Visual
display .
A WARNING
-Always look fo r traff ic and check the area
around your vehicle by looking at it di­
rect ly as well. The parking system cannot
replace the driver's attention. The driver
is a lways respons ible for safety during
parking and for all other maneuvers.
- Please note that some sur faces, such as
clothing, are not detected by the system .
- Sensors and cameras have blind spots in
which peop le and objects cannot be de­
tected. Be especially cautious of children
and animals.
- The sensors can be displaced by impacts
or damage to the radiator grille, bumper,
wheel housing and the underbody. The
parking systems may become impaired
as a result. Have your authorized Audi
dealer or qualified workshop check their
function.
- Make sure the sensors are not covered by
stickers, deposits or any other obstruc­
t ions as it may impair the sensor func-
Parking systems 121
tion. For information on cleaning, refer
to
c:;, page 218.
(D Note
-Some objects are not detected by the
system under certain circumstances:
- Objects such as barr ier chains, trailer
draw bars, vertical poles or fences
- Objects above the sensors such as wall
extensions
- Objects w ith specific surfaces or struc­
tures such as chain link fences or pow­
der snow .
- If you continue driving closer to a low-ly­
ing object, it may disappear from the
sensor range. Note that you w ill no lon­
ger be warned about this obstacle .
(D Tips
- The system may provide a warning even
though there are no obstacles in the cov­
erage area in some situations, such as:
- certain road surfaces or for long grass.
- externa l ult rason ic so urces e.g. from
cleaning vehicles.
- heavy rain, snow or thick vehicle ex ­
haust.
- We recommend that you practice park­
ing in a traffic-free location or parking
lot to become familiar w ith the system.
When doing this, there should be good
light and weather cond itions.
- You can change the volume and pitch of
the signals as we ll as the disp lay
c:;, page 131.
-Please refer to the instructions for tow­
ing a trailer
c:;, page 131.
- What appears in the infotainment dis­
play is somewhat time-delayed.

If the distance to an obstacle remains con­
stant, the volume of the distance warning
gradually drops after about four seconds (this
does not apply in the continuous tone range).
Rear view camera
The rear view camera is locat ed above the rear
license plate bracket. Make sure that the lens
for the parking system
r::;, fig. 131 is not cov­
ered by deposits or any other obstructions be­
cause this can affect the function of the park­
ing system. For information on clean ing, refer
to
c;, page 218.
The rear view camera coverage area includes
(Dr::;, fig. 130. Only this area is shown in the
Infotainment display. Objects that are outside
of this area @are not displayed.
The accuracy of the orientation lines and the
blue surfaces is reduced if the adaptive air
suspens ion* is faulty, if the veh icle is lifted or
if the
dynamic mode is activated r::;, page 109.
A WARNING
-Always read and follow the applicable
warnings
r::;, &. in General information on
page 121.
- If the position and the installation angle
of the rear view camera was changed, for
example, after a collision, do not contin­
ue to use the system for safety reasons.
Have it checked by your authorized Audi
dealership or authorized repair facility.
- Only use the rear view camera to assist
you if it shows a good, clear picture. For
example, the image may be affected by
the sun shining into the lens, dirt on the
lens or if there is a system fault.
- Use the rear view camera only if the lug­
gage compartment lid is comp letely
closed. Make sure any objects you may
have mounted on the luggage compart­
ment lid do not block the rear view cam­
era .
- The camera lens enlarges and distorts the field of vision. The object appears both altered and inaccurate on the
screen.
Parking systems 123
-In certain situations, people or objects in
the display appear closer or further
away:
- objects that do not touch the ground,
such as the bumper of a parked vehicle,
a trailer hitch or the rear of a truck. Do
not use the help lines in this case.
- If driven from a level surface onto an
inclin e, or a downward slope.
-If driven toward protruding objects.
- If the vehicle is carrying too much load
in the rear.
(D Note
-Always read and follow the applicable
warnings
r::;, (D in General information on
page 121.
- The orange colored orientation lines in
the Infotainment display show the vehi­ cle path depending on the steering
wheel angle. The front of the vehicle
front swings out more than the rear of
the vehicle. Maintain plenty of distance
so that your outside mirror or a corner of
your vehicle does not collide with any ob­ stacles.

124 Park in g sy ste m s
Switching on /off
Appl ies to vehicles: with advanced parking system wit h
rear view camera
Fig. 132 Center console: Park ing system switch
Fig. 133 Infota inment: visual distance d isplay
Switching on
.. Shift into reverse or
.. press the
P,#A button in the center console
¢ fig. 132. A short confirmat ion tone
sounds a nd the L ED in the button t urns on.
Sw itching between the rear view camer a
and optical displa y
.. Press the Graphic control button ®
¢ page 124, fig. 134 to see the opt ical dis­
play .
.. Press the
Rearv ie w control button to see
the rear view camera image .
Switching off
.. Drive forwa rd faster than 6 mph (10 km/h),
o r
.. Press the
P'#A b utton, o r
.. Switch the ignition off.
Visual displa y
Using the segments, you can estimate the dis­
tance to an object in front of or behind the ve­
h icle
¢fig .133. T he red lines mark the ex-pected direction of t
ravel according to the
steering ang le . A white segment indicates an
identified obstacle that is outside of the vehi­
cle's path. Red segments show identified ob­
stacles that are in your vehicle's path. As your
vehicle comes closer to the obstacle, the seg­
ments move closer to the vehicle. At the lat­
est the collision area has been reached when
the next to last segment is displayed . Obsta­
cles in the collision area , includ ing those out­
s ide of the vehicle's path, are shown in red. Do
not cont inue driving farther forward or in re­
verse
¢ .&. in General information on
page 121,
¢ 0 in General information on
page 121.
(D Tips
The visual display in the left part of the
display should help you detect the critical
vehicle areas.
Cross parking
Applies to vehicles: with advanced parking system with
rear view ca mera
This view may be used when parking in a ga­
rage or in a parking space .
Fig . 1 34 Infota inment: aimi ng a t a parking space
Fig. 135 Infotainment: aligning th e ve hicle

.. Turn the In fotainme nt on and shift into re­
verse gear .
.. The orange colored orientation lines@
show the direction of travel of the vehicle.
Turn the steer ing wheel until the orange ori­
entat io n lines appear in the parking space
¢
fig. 134 . Use the markings @to help you
est imate the distance from an obstacle .
E ach ma rking represen ts about 3 ft ( 1 m).
The blue area rep resents an extens ion of the
vehicle's out line by approximately 16 ft
(S m) to the rear .
.. While driving in reverse gear, adjust the
steering wheel angle to fit the park ing space
with the aid of the orange orientation lines
¢ & in General information on page 123,
c:>(D in General information on page 123.
@ marks t he rear bumper. Stop the veh icle
when the red orientation line@ borders an
object.
Parallel parking
Appl ies to vehicles : with advanced parking system with
rear vi ew camera
This view may be used when parallel parking
along the side of a street.
Fig . 136 Infotainment: blue s urface aligned in the
parking space
F ig . 137 Infotainment: contact of t he blue curved line
with the curb
P arking sys tems 125
Parking on the right is descr ibed here. It is
identical when parking on the left.
If there is an obstacle next to the parking
space (su ch as a wall), re fer to info rmat io n for
" P ark ing next to obstacles"
¢ page 125.
.. Ac tivate the t urn signa l.
.,. Pos it io n your veh icle next to a par ked vehi­
cle in fro nt of the des ired parking space. The
distance to this vehicle should be approxi­
mate ly 3 ft (1 m) .
.. Turn the Infotainment on and shift into re­
verse gear . The parking system is turned on
and the
cross parking indicator is displayed.
.. Press the control button o n the Infotain­
ment un it CD ¢
fig. 136. The parallel park­
ing
ind icator is displayed.
.. Bac k up and alig n your vehicle so the blue
a rea @ borders on the rear end of the veh i­
cle behind you or on the parking space line
¢ & in General information on page 123,
¢ (D in General information on page 123.
The blue area represents an extension of the
veh icle's outline by approximately 16 ft
(S m) to the rear. The long side of the blue
area should be on the c urb . The entire b lue
area must fit into the parking space .
.,. With the vehicle stopped, t urn the stee ring
wheel to the r ight as fa r as it will go .
.. Ba ck into the p arking space until t he bl ue
curve ¢
fig. 137 to uches the cu rb ¢ & in
General information on page 123,
c:>(D in
General information on page 123 .
Stop the
veh icle .
.. With the vehicle stopped, turn the steering
wheel to the left as far as it will go .
.,. Continue to back into t he parking space un­
til the veh icle is pa rked parallel to the curb
c::> .&, in Gen eral information on page 123,
c::> (D in General informa tion on page 123.
@ marks the rear bumper. Stop the vehicle,
a t the la tes t, when the red orien tat ion line
@ borders an object . Keep an eye on the
front of your vehicle while doing this.
Parking next to obstacles
If there is an obstacle (su ch as a wa ll) next to
t he pa rking space, pos ition the vehicle so
there is mo re space on that side. Pos ition the
II--

126 Parking systems
long side of the blue surface so that there is
sufficient space from the obstacle. The sur­
face m ust not be to uchi ng. You will a lso need
to start tur ning the steer ing wheel much ear­
lier. The blue curve
r:::;, fig. 13 7 must not touch
the obstacle and should have sufficient room .
@ Tips
The left or right orientation lines and sur­
faces will be displayed, depending on the turn signa l be ing used .
Peripheral cameras
Introduction
Applies to vehicles: with top view camera system
In addition to the f unctions from the sensors
c::> page 122, Sensors, c::> page 124, Visual dis ­
play,
this parking system contains peripheral
cameras. Depending on the ve hicle equ ip­
ment, you are assisted by various
views such
as periphera l view, corner views at the front
and rear of the veh icle, and views di rectly in
fro nt of o r behind the vehicle.
General information
Applies to vehicles: with top view camera system
Fig. 138 Locat io n of peripheral cameras
Depending on the vehicle equ ipment, the pe­
ripheral cameras are found in the radiator
grille, i n the luggage compartment lid and on
both exterior mirrors
r:::;, fig . 138 . Make sure
that the lenses are not covered by deposits or
any other obstructions as it may impair the
system. For information on cleani ng, refer to
c::> page 218.
In the to p view mode, b lack corners are
shown in t he vehicle silhouette . Objects in
these areas are outside of the camera 's field
of
view and are not detected .
T he accuracy of the o rientation lines and the
blue surfaces is reduced if the adaptive air
suspension * is faulty, if the vehicle is lifted or
if the
dy namic mode is activated r:::;, page 109.
A WARNING
-- Always read and follow the applicable
warn ings
r:::;, & in General information on
page 121 .
-If the position or the installat io n angle
of a camera was changed, after a colli­
sion for example, do not continue to use
the system fo r safety reasons. Have it
checked by your author ized Audi deale r­
sh ip.
- Keep in mind that the image in the dis­
p la y is distorted if the exterior mi rror
housing has bee n manually adjusted .
- U se the
rear mode and the corn er view
( rear)
m od e only when the luggage com­
partment lid is fu lly closed . Otherw ise
the image in the display will be d istort­
ed .
- The vehicle surro undings are shown us­
ing the came ra images. The vehicle im­
age is shown by the system. Ob jects and
obstacles above the camera are not d is­
p layed.
- Camera lenses enlarge and distort the field of vision. The objects appear both
altered and inaccurate on the screen.
(D Note
- Always read and follow the applica ble
warnings
¢ (I) in General information on
page 121.
- The Infotainment d isplay shows the di ­
rection in which the rear of the vehicle is
traveling based on the steer ing whee l
ang le. The front of the vehicle front
sw ings out mo re than the rear of the
ve­
hicl e. M aintain pl enty of d istance so that .,_
