2013 Alfa Romeo MiTo technical specifications

218GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
GENERAL INFORMATION 1.4 MultiAir 1.4 Turbo MultiAir 135 HP
Type code 955A6000 955A2000
Cycle Otto Otto
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 80.4 72.0 x 80.4
Total displacement (cm³) 1368 1368
Compression ratio 10,8 9,8
Maximum power (EEC) (kW) 77 99
Maximum power (EEC) (HP) 105 135
corresponding engine speed (rpm) 6500 5000
NATURAL DYNAMIC
Maximum torque (EEC) (Nm) 130 190 206
Maximum torque (EEC) (kgm) 13,2 19.3 21
corresponding engine speed (rpm) 4000 50 1750
Spark plugs NGK DCPR7E-N-10 NGK IKR9F8
FuelUnleaded petrol 95 RON or 98 RON
(EN 228 specification)Unleaded petrol 95 RON or 98 RON
(EN 228 specification) 42

GENERAL INFORMATION 1.4 Turbo MultiAir 170 HP Quadrifoglio Verde
Type code955A8000
(*)
940A2000
CycleOtto
Number and arrangement of cylinders 4 in line
Piston bore and stroke (mm) 72.0 x 80.4
Total displacement (cm³)1368
Compression ratio9.8
Maximum power (EEC) (kW)
120
(*)
/125
Maximum power (EEC) (HP)
163
(*)
/170
corresponding engine speed (rpm)
5500
(*)
/5500
NATURAL DYNAMIC
Max torque (EEC) (Nm) 230 250
Maximum torque (EEC) (kgm) .
corresponding engine speed (rpm) 500 0
Spark plugsNGK IKR9F8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)
(*) For versions/markets, where provided
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
23 4
225.5
250

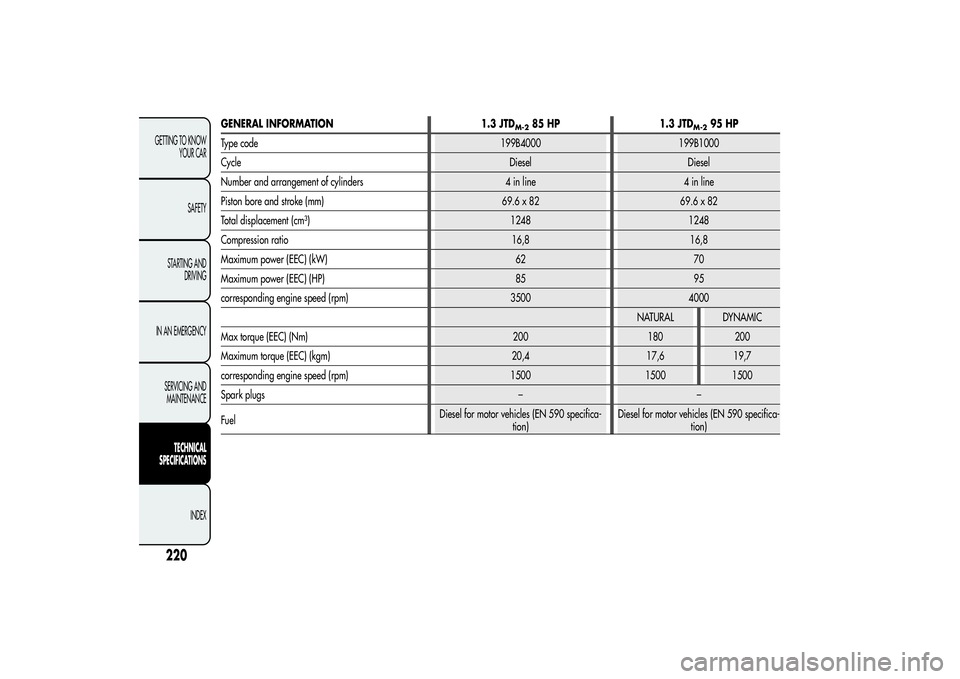

GENERAL INFORMATION 1.3 JTD
M-2
85 HP 1.3 JTD
M-2
95 HP
Type code 199B4000 199B1000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 69.6 x 82 69.6 x 82
Total displacement (cm³) 1248 1248
Compression ratio 16,8 16,8
Maximum power (EEC) (kW) 62 70
Maximum power (EEC) (HP) 85 95
corresponding engine speed (rpm) 3500 4000
NATURAL DYNAMIC
Max torque (EEC) (Nm) 200 180 200
Maximum torque (EEC) (kgm) 20,4 17,6 19,7
corresponding engine speed (rpm) 1500 1500 1500
Spark plugs – –
FuelDiesel for motor vehicles (EN 590 specifica-
tion)Diesel for motor vehicles (EN 590 specifica-
tion)
220GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GENERAL INFORMATION
1.6 JTD
M115 HP
(*)
1.6 JTD
M120 HP
Type code 955A4000 955A3000
Cycle Diesel Diesel
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 79.5 x 80.5 79.5 x 80.5
Total displacement (cm³) 1598 1598
Compression ratio 16,5 16,5
Maximum power (EEC) (kW) 85 88
Maximum power (EEC) (HP) 115 120
corresponding engine speed (rpm) 4000 3750
NATURAL DYNAMIC NATURAL DYNAMIC
Max torque (EEC) (Nm) 260 300 280 320
Maximum torque (EEC) (kgm) 26,5 30,6 28,6 32,6
corresponding engine speed (rpm) 1500 1500 1500 1750
Spark plugs – –
FuelDiesel for motor vehicles (EN 590 specifica-
tion)Diesel for motor vehicles (EN 590 specifica-
tion)
(*) For versions/markets, where provided
221GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

FUEL SUPPLYVersionsFuel supply
Turbo TwinAir–1.4 petrolTimed, sequential Multipoint electronic injection with knock control
1.4 MultiAir–1.4 Turbo MultiAirTimed sequential electronic injection with knock control and variable
intake valve actuation
1.3 JTD
M-2
– 1.6 JTD
M
Electronically controlled Common Rail MultiJet direct injection with
turbo and intercooler
Modifications or repairs to the fuel supply system that are not carried out correctly or do not take the system's technical
specifications into account can cause malfunctions leading to the risk of fire.
222GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TRANSMISSION
223GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
Versions Gearbox Clutch Drive
1.4 Petrol
Five forward gears and reverse
with synchronizers for forward
gear engagementSelf-adjusting pedal without idle
strokeFront 1.4 Turbo MultiAir 135 HP
1.3 JTD
M-2
Turbo TwinAir
Six forward gears plus reverse
with synchronisers for forward
gear engagementSelf-adjusting pedal without idle
strokeFront 1.4 MultiAir
1.4 Turbo MultiAir 170 HP
Quadrifoglio Verde
1.6 JTD
M

BRAKESVersions Front brakes Rear brakes Parking brake
Turbo TwinAir
Self-ventilated discs DiscControlled by hand lever, acting
on the rear brakes 1.4 petrol
1.4 MultiAir
1.4 Turbo MultiAir
1.3 JTD
M-2
1.6 JTD
M
IMPORTANT Water, ice and salt spread on the roads may deposit on the brake disks reducing braking efficiency the first time the brakes are
applied.
224GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SUSPENSIONVersions Front Rear
Turbo TwinAir
McPherson independent wheels with anti-roll bar Interconnected wheels with torsion beam 1.4 petrol
1.4 MultiAir
1.4 Turbo MultiAir
1.3 JTD
M-2
1.6 JTD
M
