Dry the less visible parts (e.g. door frames, bonnet, headlight frames
etc.) with special care, as water may stagnate more easily in these
areas. Do not wash the car after it has been left in the sun or with the
bonnet hot: this may alter the shine of the paintwork.
Exterior plastic parts must be cleaned in the same way as the rest of
the car.
Detergents pollute the environment. Only wash your car in
areas equipped to collect and treat wastewater from this
type of activity.In order to preserve the aesthetic properties of the
paintwork, abrasive products and/or polishes should not
be used to clean the car.
IMPORTANT
Avoid parking under trees; the resin dropped by trees makes the
paintwork go opaque and increases the possibility of corrosion.
Bird droppings must be washed off immediately and thoroughly as the
acid they contain is particularly aggressive.
Windows
Use specific detergents and clean cloths to prevent scratching or
altering the transparency.
IMPORTANT Wipe the inside surface of the rear window gently with a
cloth in the direction of the filaments to avoid damaging the heating
device.Front headlights
Use a soft, damp cloth soaked in water and detergent for washing
cars.
IMPORTANT Never use aromatic substances (e.g. petrol) or ketenes
(e.g. acetone) for cleaning the plastic lenses of the front headlights.
Engine compartment
At the end of every winter, wash the engine compartment thoroughly,
taking care not to aim the jet of water directly at the electronic control
units or at the windscreen wiper motors. Have this operation
performed at a specialised workshop.
IMPORTANT The washing should take place with the engine cold and
the ignition key in the STOP position. After washing, make sure that the
various protective devices (e.g. rubber caps and guards) have not
been removed or damaged.
210GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

INTERIORSPeriodically check for water puddles under the mats that could cause
the panels to rust.
Never use flammable products, such as petrol ether or
rectified petrol to clean the inside of the car. The
electrostatic charges which are generated by rubbing
during the cleaning operation may cause a fire.Do not keep aerosol cans in the car: they might
explode. Aerosol cans must not be exposed to a
temperature exceeding 50°C. When the car is exposed
to sunlight, the internal temperature can greatly exceed this
value.
SEATS AND FABRIC PARTSRemove dust with a soft brush or a vacuum cleaner. It is advisable to
use a moist brush on velvet upholstery. Rub the seats with a sponge
soaked in a solution of neutral detergent and water.
LEATHER SEATS(for versions/markets, where provided)
Remove the dry dirt with a buckskin or slightly damp cloth, without
exercising too much pressure. Remove liquid or oil stains using a dry
absorbent cloth, without rubbing. Then clean with a soft cloth or
buckskin cloth dampened with water and neutral soap. If the stain
persists, use specific products and observe the instructions carefully.
IMPORTANT Never use alcohol. Make sure that the cleaning products
used contain no alcohol or alcohol derivatives, even in small quantities.PLASTIC AND COATED PARTSClean interior plastic parts with a damp cloth (if possible made from
microfibre), and a solution of water and neutral, non-abrasive
detergent. To clean oily or persistent stains, use specific products free
from solvents and designed to maintain the original appearance
and colour of the components.
Remove any dust using a microfibre cloth, if necessary moistened with
water. The use of paper tissues is not recommended as these may
leave residues.LEATHER PARTS(for versions/markets, where provided)
Use only water and neutral soap to clean these parts. Never use
alcohol or alcohol-based products. Before using a specific product for
cleaning interiors, make sure that it does not contain alcohol and/or
alcohol based substances.
211GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX
IMPORTANT Never use alcohol. Make sure that the cleaning products
used contain no alcohol or alcohol derivatives, even in small quantities.
CLEANING ALCANTARA SEATSAlcantara trim can be treated and cleaned easily in the same way as
the other trims. The same indications given for cleaning fabrics are
also therefore applicable for this trim.

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAThe identification details of the car are:
❒V.I.N. plate;
❒Chassis marking;
❒Body paintwork identification plate;
❒Engine marking.
V.I.N. PLATEThis is located on the left side of the rear luggage compartment floor
and bears the following data fig. 170:BType-approval number.CVehicle type identification codeDChassis serial number.EMaximum authorised weight of vehicle fully ladenFMaximum authorised weight of vehicle fully laden plus trailer.GMaximum permitted weight on first (front) axleHMaximum permitted weight on second (rear) axleIEngine type.LBodywork version code.M
Spares number.
NCorrect value of smoke coefficient (for diesel engines)
fig. 170
A0J0161
212GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CHASSIS MARKINGThis is printed on the passenger compartment floor, near the front right
seat.
Slide flap A fig. 171 to access.
The marking includes:
❒vehicle type (ZAR 955000);
❒chassis serial number.BODYWORK PAINT IDENTIFICATION
PLATEThis is fitted to the inside of the tailgate and bears the following data
fig. 172:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
ENGINE MARKINGThis is stamped on the cylinder block and gives the model and the
chassis serial number.
fig. 171
A0J0140
fig. 172
A0J0138
213GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

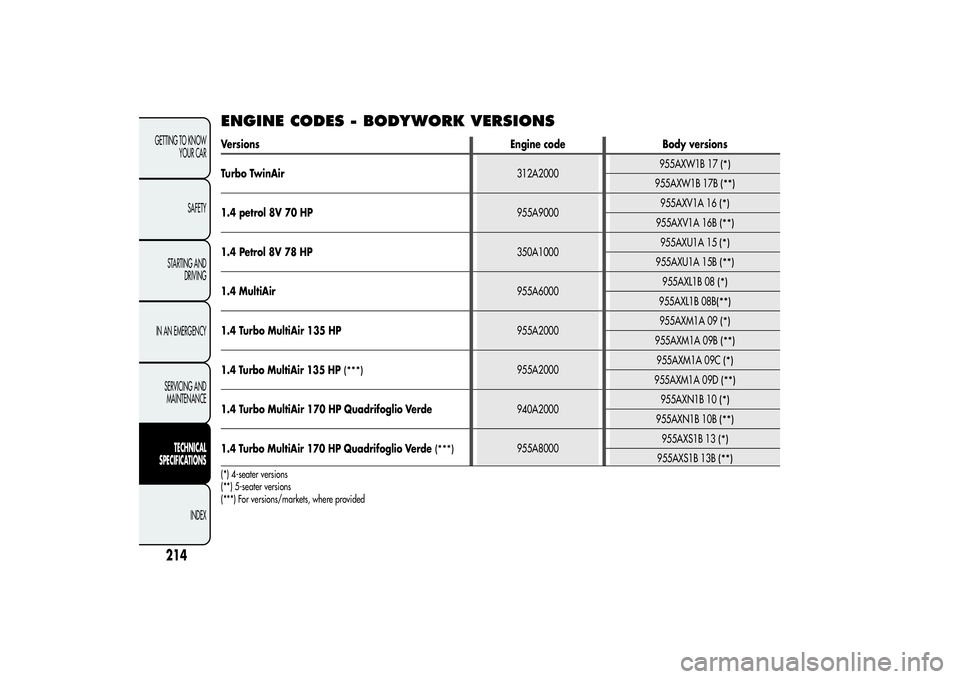

ENGINE CODES - BODYWORK VERSIONSVersions Engine code Body versions
Turbo TwinAir312A2000955AXW1B 17
(*)
955AXW1B 17B
(**)
1.4 petrol 8V 70 HP955A9000955AXV1A 16
(*)
955AXV1A 16B
(**)
1.4 Petrol 8V 78 HP350A1000955AXU1A 15
(*)
955AXU1A 15B
(**)
1.4 MultiAir955A6000955AXL1B 08
(*)
955AXL1B 08B
(**)
1.4 Turbo MultiAir 135 HP955A2000955AXM1A 09
(*)
955AXM1A 09B
(**)
1.4 Turbo MultiAir 135 HP
(***)
955A2000955AXM1A 09C
(*)
955AXM1A 09D
(**)
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde940A2000955AXN1B 10
(*)
955AXN1B 10B
(**)
1.4 Turbo MultiAir 170 HP Quadrifoglio Verde
(***)
955A8000955AXS1B 13
(*)
955AXS1B 13B
(**)
(*) 4-seater versions
(**) 5-seater versions
(***) For versions/markets, where provided
214GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Versions Engine code Body versions
1.3 JTD
M-2
85 HP199B4000955AXT1A 14C
(*)
955AXT1A 14D
(**)
1.3 JTD
M-2
95 HP199B1000955AXP1A 11
(*)
955AXP1A 11B
(**)
1.3 JTD
M-2
95 HP
(***)
199B1000955AXP1A 11C
(*)
955AXP1A 11D
(**)
1.6 JTD
M115 HP
(***)
955A4000955AXE1B 04L
(*)
955AXHE1B 04M
(**)
1.6 JTD
M120 HP (Euro 4)955A3000955AXC1B 02
(*)
955AXC1B 02B
(**)
1.6 JTD
M120 HP (Euro 5)955A3000955AXC1B 02G
(*)
955AXC1B 02H
(**)
(*) 4-seater versions
(**) 5-seater versions
(***) For versions/markets, where provided
215GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

ENGINEGENERAL INFORMATION Turbo TwinAir
Type code312A2000
CycleOtto
Number and arrangement of cylinders 2 in line
Piston diameter and travel (mm) 80.5x86
Total displacement (cm³)875
Compression ratio10
NATURAL DYNAMIC
Maximum power (EEC) (kW)
Maximum power (EEC) (HP)
corresponding engine speed (rpm) 5500 5500
NATURAL DYNAMIC
Max torque (EEC) (Nm) 1 1
Maximum torque (EEC) (kgm) 1 . 14.8
corresponding engine speed (rpm) 2 00 2 00
Spark plugsNGK LKR9CI-8
Fuel Unleaded petrol 95 RON or 98 RON (EN 228 specification)
216GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
10
12
545
0 77 8557 62

GENERAL INFORMATION 1.4 petrol 8V 70 HP 1.4 Petrol 8V 78 HP
Type code 955A9000 350A1000
Cycle Otto Otto
Number and arrangement of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 72.0 x 80.4 72.0 x 80.4
Total displacement (cm³) 1368 1368
Compression ratio 11.1 11.1
Maximum power (EEC) (kW) 51 57
Maximum power (EEC) (HP) 70 78
corresponding engine speed (rpm) 6000 6000
Max torque (EEC) (Nm) 115 115
Maximum torque (EEC) (kgm) 11.7 11.7
corresponding engine speed (rpm) 3000 3000
Spark plugs NGK ZKR7A-10 or Champion RA8MCX4 NGK ZKR7AI-8
FuelUnleaded petrol 95 RON (Specification EN
228)Unleaded petrol 95 RON or 98 RON
(EN 228 specification)
