2013 Alfa Romeo Giulietta headlight bulb

CHANGING A BULBGENERAL INSTRUCTIONS❒Before changing a bulb check the contacts for oxidation;
❒blown bulbs must be replaced with others of the same type and
power;
❒after replacing a headlight bulb, always check its alignment;
❒when a light is not working, check that the corresponding fuse is
intact before changing a bulb. For the location of fuses, refer to
the paragraph “Replacing fuses” in this section.
Halogen bulbs must be handled holding the metal part
only. Touching the transparent part of the bulb with your
fingers may reduce the intensity of the emitted light and
even reduce the lifespan of the bulb. In case of accidental contact, wipe
the bulb with a cloth moistened with alcohol and let the bulb dry.Modifications or repairs to the electric system that are
not carried out properly or do not take the system
technical specifications into account can cause
malfunctions leading to the risk of fire.Halogen bulbs contain pressurised gas which may
cause small fragments of glass to be projected
outwards if the bulb is broken.
Due to the high power supply voltage, gas discharge
bulbs (Bi-Xenon) should only be replaced by
specialised personnel: danger of death! Contact Alfa
Romeo Authorized Services.
IMPORTANT When the weather is cold or damp or after heavy rain or
washing, the surface of headlights or rear lights, may steam up and/or
form drops of condensation on the inside. This is a natural
phenomenon due to the difference in temperature and humidity
between the inside and the outside of the glass which does not indicate
a fault and does not compromise the normal operation of lighting
devices. The mist disappears quickly when the lights are turned on,
starting from the centre of the diffuser, extending progressively towards
the edges.
154GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Bulbs Type Power Re. Figure
Front side lights/Daytime running lights (DRL) LEDs - -
Rear side lights LEDs - -
Dipped headlights H7 55W D
Main beam headlamps H1 55W E
Main/Dipped beams (versions with Bi-Xenon headlights)
(for versions/markets, where provided)F D1S -
Front direction indicators PY24W 24W B
Rear direction indicators R10W 10W B
Side direction indicators LEDs - -
Brake lights LEDs - -
3rd brake light LEDs - -
Number plate light W5W 5W A
Fog lights H3 55W E
Rear fog lights H21W 21W B
Reversing lights P21W 21W B
Front roof light C10W 10W C
Luggage compartment roof light W5W 5W A
Glove compartment light C5W 5W C
156GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING EXTERIOR BULBSFRONT LIGHT CLUSTERSThese contain the bulbs for the side lights/daytime running lights (DRL),
dipped beams, main beams and direction indicators. The bulbs are
arranged as follows fig. 140:ASide lights/daytime running lights and main beam headlightsBDipped headlightsCDirection indicatorsSIDE LIGHTS/DAYTIME RUNNING
LIGHTS (DRL)These are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.
MAIN BEAM HEADLIGHTSTo change the bulb, proceed as follows:
❒remove cover A fig. 141;
❒remove the connector A fig. 141 and then open the tabs B outwards;
❒remove the bulb C and replace it;
❒refit the new lamp, making sure that it is locked correctly, secure the
tabs B again and reconnect the connector A;
❒then refit the cover A fig. 140.
fig. 140
A0K0201
fig. 141
A0K0202
157GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DIPPED HEADLIGHTSTo change the bulb, proceed as follows:
❒remove cover B fig. 140;
❒remove the connector A fig. 142, press the tab B forward and then
release by pushing it towards the inside the car;
❒remove the bulb C and replace it;
❒refit the new lamp, making sure that it is locked correctly, secure the
tab B again and reconnect the connector A;
❒then refit the cover B fig. 140.
DIRECTION INDICATORSFront
To change the bulb, proceed as follows:
❒turn the cover C fig. 140 anticlockwise by ¼ of a turn;
❒replace the bulb + bulb holder assembly A fig. 143.
Side
These are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.FOG LIGHTS(for versions/markets, where provided)
For the replacement of these bulbs, contact Alfa Romeo Authorized
Services.
fig. 142
A0K0203
fig. 143
A0K0204
158GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

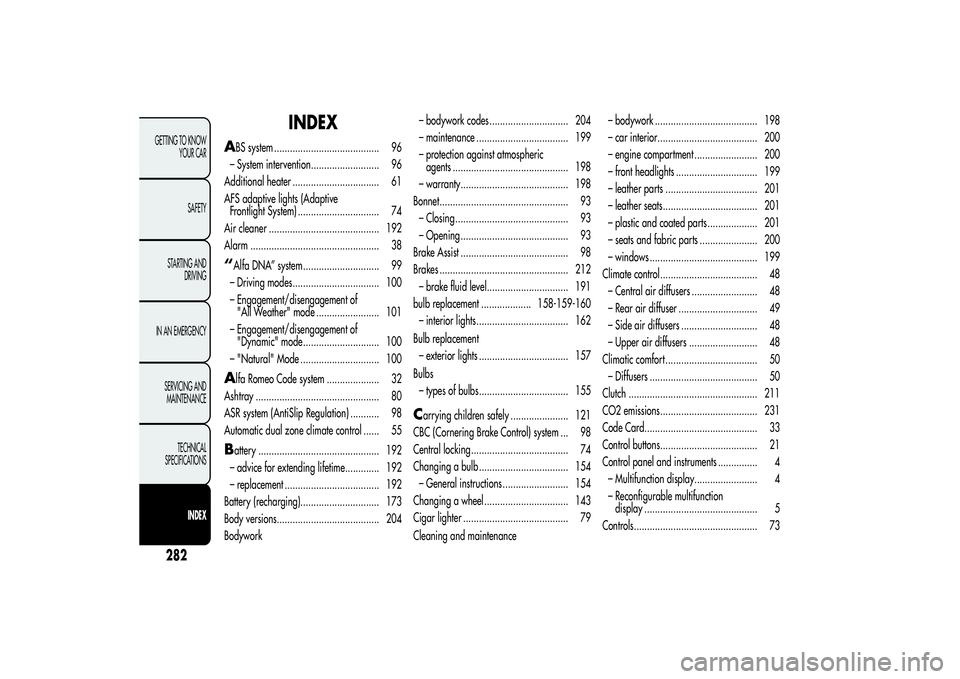

INDEX
