CHANGING A BULBGENERAL INSTRUCTIONS❒Before changing a bulb check the contacts for oxidation;
❒blown bulbs must be replaced with others of the same type and
power;
❒after replacing a headlight bulb, always check its alignment;
❒when a light is not working, check that the corresponding fuse is
intact before changing a bulb. For the location of fuses, refer to
the paragraph “Replacing fuses” in this section.
Halogen bulbs must be handled holding the metal part
only. Touching the transparent part of the bulb with your
fingers may reduce the intensity of the emitted light and
even reduce the lifespan of the bulb. In case of accidental contact, wipe
the bulb with a cloth moistened with alcohol and let the bulb dry.Modifications or repairs to the electric system that are
not carried out properly or do not take the system
technical specifications into account can cause
malfunctions leading to the risk of fire.Halogen bulbs contain pressurised gas which may
cause small fragments of glass to be projected
outwards if the bulb is broken.
Due to the high power supply voltage, gas discharge
bulbs (Bi-Xenon) should only be replaced by
specialised personnel: danger of death! Contact Alfa
Romeo Authorized Services.
IMPORTANT When the weather is cold or damp or after heavy rain or
washing, the surface of headlights or rear lights, may steam up and/or
form drops of condensation on the inside. This is a natural
phenomenon due to the difference in temperature and humidity
between the inside and the outside of the glass which does not indicate
a fault and does not compromise the normal operation of lighting
devices. The mist disappears quickly when the lights are turned on,
starting from the centre of the diffuser, extending progressively towards
the edges.
154GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TYPES OF BULBSThe car has the following light bulbs:
Glass bulbs:(type A) they are press-fitted. Pull to extract.Bayonet-type bulbs:(type B) to remove from its holder, press the bulb
and turn it anti-clockwise, then extract it.
Tubular bulbs:(type C) release them from their contacts to remove.
Halogen bulbs:(type D) to remove the bulb, release the clip holding the
bulb in place.
Halogen bulbs:(type E) to remove the bulb, release the clip holding the
bulb in place.
155GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Bulbs Type Power Re. Figure
Front side lights/Daytime running lights (DRL) LEDs - -
Rear side lights LEDs - -
Dipped headlights H7 55W D
Main beam headlamps H1 55W E
Main/Dipped beams (versions with Bi-Xenon headlights)
(for versions/markets, where provided)F D1S -
Front direction indicators PY24W 24W B
Rear direction indicators R10W 10W B
Side direction indicators LEDs - -
Brake lights LEDs - -
3rd brake light LEDs - -
Number plate light W5W 5W A
Fog lights H3 55W E
Rear fog lights H21W 21W B
Reversing lights P21W 21W B
Front roof light C10W 10W C
Luggage compartment roof light W5W 5W A
Glove compartment light C5W 5W C
156GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING EXTERIOR BULBSFRONT LIGHT CLUSTERSThese contain the bulbs for the side lights/daytime running lights (DRL),
dipped beams, main beams and direction indicators. The bulbs are
arranged as follows fig. 140:ASide lights/daytime running lights and main beam headlightsBDipped headlightsCDirection indicatorsSIDE LIGHTS/DAYTIME RUNNING
LIGHTS (DRL)These are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.
MAIN BEAM HEADLIGHTSTo change the bulb, proceed as follows:
❒remove cover A fig. 141;
❒remove the connector A fig. 141 and then open the tabs B outwards;
❒remove the bulb C and replace it;
❒refit the new lamp, making sure that it is locked correctly, secure the
tabs B again and reconnect the connector A;
❒then refit the cover A fig. 140.
fig. 140
A0K0201
fig. 141
A0K0202
157GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DIPPED HEADLIGHTSTo change the bulb, proceed as follows:
❒remove cover B fig. 140;
❒remove the connector A fig. 142, press the tab B forward and then
release by pushing it towards the inside the car;
❒remove the bulb C and replace it;
❒refit the new lamp, making sure that it is locked correctly, secure the
tab B again and reconnect the connector A;
❒then refit the cover B fig. 140.
DIRECTION INDICATORSFront
To change the bulb, proceed as follows:
❒turn the cover C fig. 140 anticlockwise by ¼ of a turn;
❒replace the bulb + bulb holder assembly A fig. 143.
Side
These are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.FOG LIGHTS(for versions/markets, where provided)
For the replacement of these bulbs, contact Alfa Romeo Authorized
Services.
fig. 142
A0K0203
fig. 143
A0K0204
158GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REAR LIGHT CLUSTERSThese contain the side lights, brake lights, direction indicators (bulbs in
fixed light cluster), reverse light and rear fog light (bulb in light cluster
on boot hatch).
Removing the fixed light cluster
Proceed as follows:
❒open the boot and loosen the rear light cluster fastening screw A fig.
144;
❒extract the light cluster by removing it with both hands in the
direction of the arrow;
❒disconnect the electrical connector and replace the bulb concerned.
SIDE LIGHTS/BRAKE LIGHTSThese are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.DIRECTION INDICATORSWith the light cluster removed, to replace the bulb undo the two screws
A fig. 145, remove the bulb holder and replace bulb B.
fig. 144
A0K0184
fig. 145
A0K0205
159GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

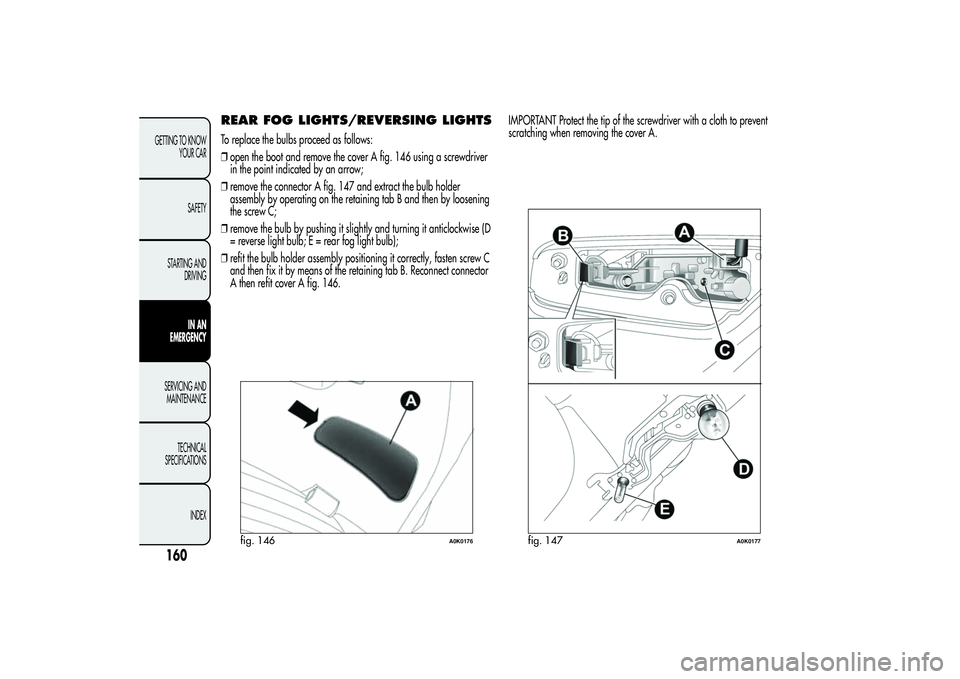

REAR FOG LIGHTS/REVERSING LIGHTSTo replace the bulbs proceed as follows:
❒open the boot and remove the cover A fig. 146 using a screwdriver
in the point indicated by an arrow;
❒remove the connector A fig. 147 and extract the bulb holder
assembly by operating on the retaining tab B and then by loosening
the screw C;
❒remove the bulb by pushing it slightly and turning it anticlockwise (D
= reverse light bulb; E = rear fog light bulb);
❒refit the bulb holder assembly positioning it correctly, fasten screw C
and then fix it by means of the retaining tab B. Reconnect connector
A then refit cover A fig. 146.IMPORTANT Protect the tip of the screwdriver with a cloth to prevent
scratching when removing the cover A.
fig. 146
A0K0176
fig. 147
A0K0177
160GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

3rd
BRAKE LIGHTS
These are LED lights and are located on the spoiler integrated with the
tailgate. Contact Alfa Romeo Authorized Services to replace these
lights.

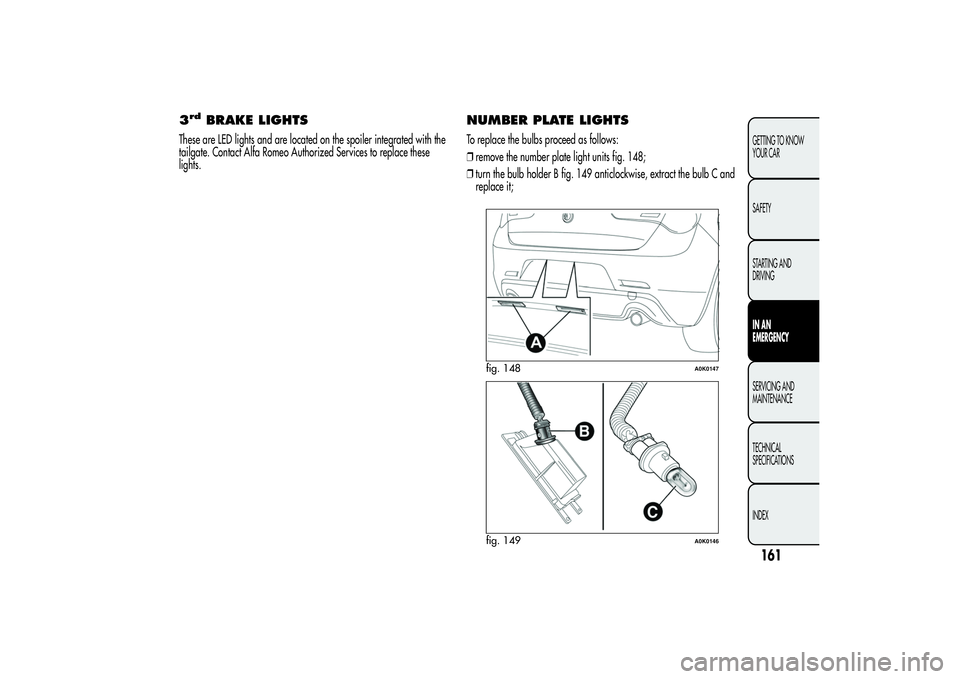

NUMBER PLATE LIGHTSTo replace the bulbs proceed as follows:
❒remove the number plate light units fig. 148;
❒turn the bulb holder B fig. 149 anticlockwise, extract the bulb C and
replace it;
