2013 Abarth 500 Owner handbook (in English)

24
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR

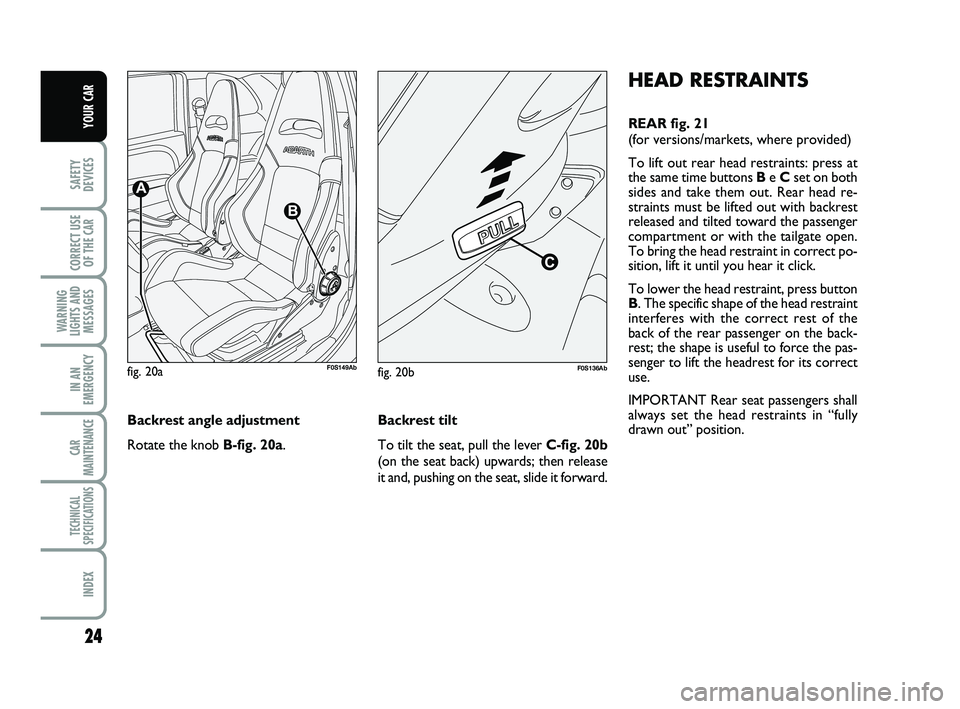

HEAD RESTRAINTS
REAR fig. 21
(for versions/markets, where provided)
To lift out rear head restraints: press at
the same time buttons Be Cset on both
sides and take them out. Rear head re-
straints must be lifted out with backrest
released and tilted toward the passenger
compartment or with the tailgate open.
To bring the head restraint in correct po-
sition, lift it until you hear it click.
To lower the head restraint, press button
B. The specific shape of the head restraint
interferes with the correct rest of the
back of the rear passenger on the back-
rest; the shape is useful to force the pas-
senger to lift the headrest for its correct
use.
IMPORTANT Rear seat passengers shall
always set the head restraints in “fully
drawn out” position.
fig. 20aF0S149Abfig. 20bF0S136Ab
Backrest angle adjustment
Rotate the knob B-fig. 20a.Backrest tilt
To tilt the seat, pull the lever C-fig. 20b
(on the seat back) upwards; then release
it and, pushing on the seat, slide it forward.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 24

25
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
STEERING WHEEL
It can be adjusted vertically (for versions/
markets, where provided).
For adjustment. bring the lever A-fig. 22
downward to position 2then position the
wheel and lock it bringing lever Ato po-
sition 1.
fig. 21F0S021Abfig. 22F0S022Ab
Perform these operations
only when the car is station-
ary and the engine is not running.
WARNING
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 25

26
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
The door mirrors, being
curved, slightly alter the per-
ception of distance.
WARNING
When driving, the mirrors
shall always be in position 1.
WARNING
fig. 23F0S023Ab
DOOR MIRRORS
Electrical adjustment fig. 24
Proceed as follows:
❒ select the mirror with selector B;
❒ adjust the mirror using the joystick A
in the four directions.
Folding back door mirrors fig. 25
When required (for example when the
mirror causes difficulty in narrow spaces)
it is possible to fold the mirror moving it
from position 1open, to position 2closed.
REARVIEW MIRRORS
DRIVING MIRROR fig. 23
The mirror is fitted with a safety device
that causes its release in the event of a vi-
olent crash.
It can be moved using the lever Ato two
different positions: normal or antiglare.
ELECTROCHROMIC
DRIVING MIRROR
(for versions/markets, where provided)
Some versions provide an electrochromic
mirror with automatic antiglare function.
An ON/OFFbutton in the lower area of
the mirror enables/disables the elec-
trochromic function. When the function
is active, a led on the mirror is active. En-
gaging reverse gear, the mirror is auto-
matically set for daylight use.
fig. 25F0S025Ab
fig. 24F0S024Ab
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 26

27
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
CLIMATE COMFORT
VENTS fig. 26
1.Vents for demisting/defrosting the
windscreen
2.Orientable, adjustable central vents
3.Orientable, adjustable side vents
4.Fixed vents for side windows.
5.Lower vents
fig. 26F0S026Ab
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 27

28
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
fig. 27F0S027Ab
HEATING
AND VENTILATION
CONTROLS fig. 27
AAir temperature knob (red-hot / blue-
cold)
BFan speed knob
NOTE Turn the knob to 0to stop the
flow of air coming out of the vents.
CAir recycle knob
…– internal air recycle
Ú– air intake from outside
IMPORTANT Turn the recirculation func-
tion on to prevent the intake of air into
the passenger compartment; this is par-
ticularly advisable when stopped in a tun-
nel or in traffic to prevent the intake of
outside polluted air. Do not use the func-
tion for a long time, particularly if there
are many passengers on board, to prevent
the windows from misting up.
DAir distribution knob
μtoward the body and the side win-
dows
∑toward the body, the side win-
dows and the feet
∂toward the feet only
∏toward the feet and the wind-
shield
-toward the windscreen only.
EButton to activate/deactivate the heat-
ed rear window.
When the function is active, a led on
the button is on.
In order to maintain battery efficien-
cy, the function is automatically deac-
tivated after about 20 minutes.Fast front window
demisting/defrosting
Proceed as follows:
❒ rotate knob Ato red section;
❒ rotate knob Cto Ú;
❒ rotate knob Dto -;
❒ rotate knob Bto 4-(max. fan speed).
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 28

29
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
MANUAL CLIMATE
CONTROL SYSTEM
(for versions/markets, where provided)
CONTROLS fig. 28
AAir temperature knob (red-hot / blue-
cold)
BFan speed knob and climate control
system activation/deactivation. Press
the knob to activate the climate con-
trol system; the led on the knob is ac-
tive. This enables passenger compart-
ment quick cooling.
NOTE Turn the knob to 0to stop the
flow of air coming out of the vents.
CAir recycle knob
…– internal air recycle
Ú– air intake from outside
IMPORTANT Turn the recirculation func-
tion on to prevent the intake of air into
the passenger compartment; this is par-
ticularly advisable when stopped in a tun-
nel or in traffic to prevent the intake of
outside polluted air. Do not use the func-
tion for a long time, particularly if there
are many passengers on board, to prevent
the windows from misting up.fig. 28F0S028Ab
DAir distribution knob
μtoward the body and the side win-
dows
∑toward the body, the side win-
dows and the feet
∂toward the feet only
∏toward the feet and the windshield
-toward the windscreen only.EButton to activate/deactivate the heat-
ed rear window.
When the function is active, a led on
the button is on.
In order to maintain battery efficien-
cy, the function is automatically deac-
tivated after about 20 minutes.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 29

30
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
Fast front window and front side
windows demisting/defrosting
(MAX-DEF)
Proceed as follows:
❒ rotate knob Ato red section;
❒ rotate knob Cto Ú;
❒ rotate knob Dto -;
❒ rotate knob Bto 4-(max. fan speed).IMPORTANT the climate control system
is very useful to accelerate demisting, be-
cause it dehumidifies the air. Adjust the
controls as described above and press
knob Eto switch the climate control sys-
tem on: the LED on the knob will light up.LOOKING AFTER THE SYSTEM
Run the climate control system for at least
10 minutes every month during the win-
ter. Have the system inspected at a Abarth
Abarth Dealershipbefore the summer.
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 30

31
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
YOUR CAR
AUTOMATIC CLIMATE
CONTROL SYSTEM
(for versions/markets, where provided)
According to the temperature set by the
user, the automatic climate control sys-
tem automatically adjusts:
❒the temperature of the air sent to the
passenger compartment;
❒fan speed (continuous air flow varia-
tion);
❒the distribution of air inside the pas-
senger compartment;
❒compressor activation/deactivation (to
cool/dehumidify air);
❒air recycle activation/deactivation;
All functions can be manually changed. In
other words, you may operate the system
selecting one or more functions. The man-
ual setting of a function does not impair
the automatic control of the other func-
tions even if the led of the knob AUTO
is off.
fig. 29F0S029Ab
CONTROLS fig. 29
Button AUTO - A
Activation of the automatic
function of the climate control
system
Pressing the button AUTOand setting
the temperature, the system adjusts the
temperature, the quantity and distribution
of the air into the passenger compartment
and controls the activation of the com-
pressor.Button √- B
Climate control compressor on/off
Pressing the button, with led on, the com-
pressor and the led switch off.
When the compressor is off:
❒the system deactivates air recycle to
avoid window misting;
023-045 ABARTH 500 1ed GB:023-045 ABARTH 500 GB 24-05-2012 14:54 Pagina 31
