2013 Abarth 500 Owner handbook (in English)

152
WARNING
LIGHTS AND
MESSAGES
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
PERFORMANCE
Top admitted speed after initial car use in km/h.
1.4 TB BZ ABARTH205
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 152

153
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
1.4 TB BZ ABARTH
1035
390
830
640
1425
800
400
50
60
WEIGHTS
Weights (kg)
Unladen weight
(with all liquids, fuel tank filled to
90% and without optional equipment):
Carrying capacity (*) including the driver:
Maximum admitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads
– trailer with brakes:
– trailer without brakes:
Maximum load on roof:
Maximum load on tow hitch
(trailer with brakes):
(*) If special equipment is fitted (sunroof, etc.) the unladen car weight increases, thus reducing the specified payload.
(**) Loads not be exceeded. The driver is responsible for arranging the loads in the boot and/or on the roof so that they comply
with these limits.
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 153

154
WARNING
LIGHTS AND
MESSAGES
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CAPACITIES
Fuel tank: litresincluding a reserve of: litres
Engine cooling system: litres
Engine sump: litres
Engine sump and filter: litres
Gearbox/differential casing: litres
Hydraulic brake circuit: kg
Windscreen and rear
window washer fluid tank: litres
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised
water.
1.4 TB BZ ABARTH
35
5
5.15
2.75
2.90
1.65
0.55
2.5Prescribed fuels and
Original lubricants
Unleaded petrol, at least 95
R.O.N. (Specification EN228)
Mixture of 50% distilled water
and PARAFLU
UP(❑)
SELENIA ABARTH 10W50
TUTELA CAR TECHNYX
TUTELA TOP 4
Mixture of water and
TUTELA
PROFESSIONAL SC35
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 154

155
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
According to
Service Schedule
FLUIDS AND LUBRICANTS
RECOMMENDED PRODUCTS AND SPECIFICATIONS
Use Fluid and lubricant specifications Recommended Change
for correct car operation fluids and lubricants intervals
Lubricants for
petrol engines
The use of products with features lower than ACEA C3 could cause engine damage not covered by warranty.
When the vehicle is used under particularly harsh climate conditions request from Abarth Dealership the appropriate product of the
PETRONAS LUBRICANTSrange.SELENIA
ABARTH 10W50
Contractual Technical
Reference N° 0101
All synthetic lubricant SAE 10W50 grade
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 155

156
WARNING
LIGHTS AND
MESSAGES
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS

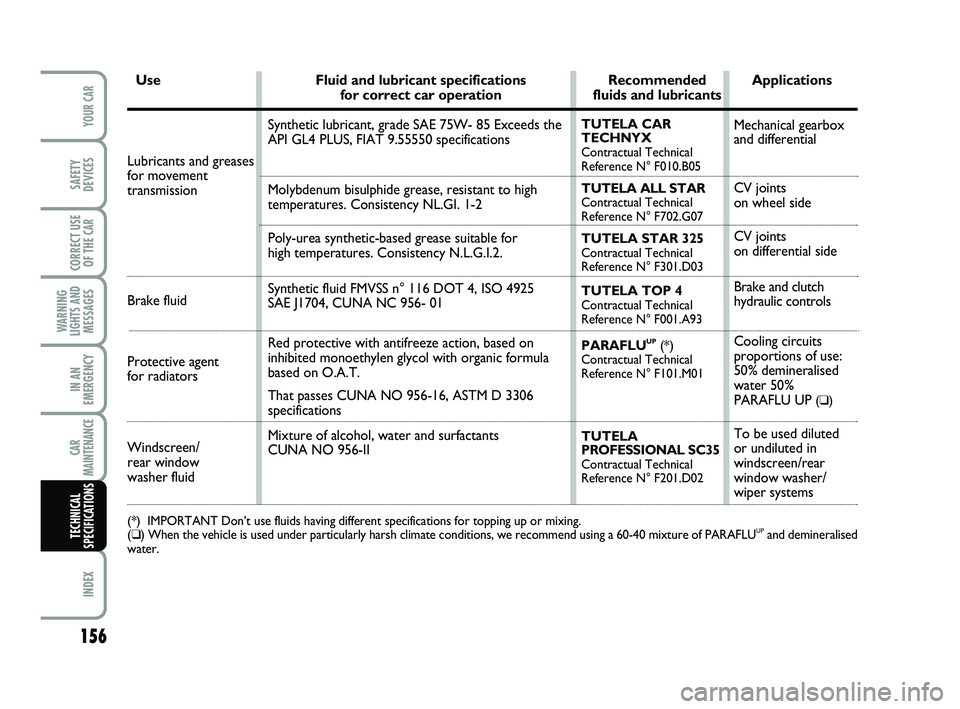

Use Fluid and lubricant specifications Recommended Applicationsfor correct car operation fluids and lubricants
Lubricants and greases
for movement
transmission
Brake fluid
Protective agent
for radiators
Windscreen/
rear window
washer fluid
(*) IMPORTANT Don’t use fluids having different specifications for topping up or mixing.
(❑) When the vehicle is used under particularly harsh climate conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised
water.
Mechanical gearbox
and differential
CV joints
on wheel side
CV joints
on differential side
Brake and clutch
hydraulic controls
Cooling circuits
proportions of use:
50% demineralised
water 50%
PARAFLU UP
(❑)
To be used diluted
or undiluted in
windscreen/rear
window washer/
wiper systems
TUTELA CAR
TECHNYX
Contractual Technical
Reference N° F010.B05
TUTELA ALL STARContractual Technical
Reference N° F702.G07
TUTELA STAR 325Contractual Technical
Reference N° F301.D03
TUTELA TOP 4Contractual Technical
Reference N° F001.A93
PARAFLUUP(*)Contractual Technical
Reference N° F101.M01
TUTELA
PROFESSIONAL SC35
Contractual Technical
Reference N° F201.D02
Synthetic lubricant, grade SAE 75W- 85 Exceeds the
API GL4 PLUS, FIAT 9.55550 specifications
Molybdenum bisulphide grease, resistant to high
temperatures. Consistency NL.GI. 1-2
Poly-urea synthetic-based grease suitable for
high temperatures. Consistency N.L.G.I.2.
Synthetic fluid FMVSS n° 116 DOT 4, ISO 4925
SAE J1704, CUNA NC 956- 01
Red protective with antifreeze action, based on
inhibited monoethylen glycol with organic formula
based on O.A.T.
That passes CUNA NO 956-16, ASTM D 3306
specifications
Mixture of alcohol, water and surfactants
CUNA NO 956-II
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 156

157
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
❒extraurban cycle: frequent accelera-
tions in all gears, simulating extraurban
use of the car: speed varies between 0
and 120 km/h;
❒combined consumption: calculated
weighing about 37% of urban cycle con-
sumption and about 63% of extraurban
consumption.
FUEL CONSUMPTION
The fuel consumption figures given in the
table below are determined on the basis
of the homologation tests set down by
specific European Directives.
The procedures below are followed for
measuring consumption:
❒urban cycle: cold starting followed by
driving that simulates urban use of the
car;IMPORTANT The type of route, traffic
situations, weather conditions, driving
style, general conditions of the car, trim
level/equipment/accessories, load, climate
control system, roof rack, other situations
that affect air drag may lead to different
fuel consumption levels than those mea-
sured.
Fuel consumption according to european Directive in force (litres/100 km)
Versions Urban Extra-urban Combined
1.4 TB BZ ABARTH8.5 5.4 6.5
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 157

158
WARNING
LIGHTS AND
MESSAGES
INDEX
YOUR CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CO2EMISSIONS
The CO2emission levels at the exhaust given in the following tables refer to combined consumption.
Versions CO
2emissions according to european Directive in force (g/km)
1.4 TB BZ ABARTH155
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 158

159
WARNING
LIGHTS AND
MESSAGES
INDEX
YOU CAR
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
141-159 ABARTH 500 1ed GB:141-159 ABARTH 500 GB 24-05-2012 14:36 Pagina 159
