2013.5 PEUGEOT 5008 key

Access
82
Deadlocking using the remote control
 Press the closed padlock to lock the vehicle completely or press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely.
Locking the vehicle
 Press the closed padlock to lock the vehicle completely.
Press the closed padlock for more than two seconds to close the windows automatically in addition to locking (according to version).
Normal locking using the remote control
 Press the closed padlock again within five seconds to deadlock the vehicle.
The direction indicators come on for a few seconds. According to version, the door mirrors fold at the same time, the alarm is activated.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a PEUGEOT dealer or a qualified workshop.
If one of the doors or the boot is not fully closed, locking does not take place. However, the alarm (if fitted) will be fully activated after about 45 seconds. If the vehicle is unlocked inadvertently
and with no action then on the doors or boot, it will relock automatically after about thirty seconds. if the alarm had been activated previously, it will not be reactivated automatically.

4
Access83
Locating your vehicle Folding the key
 First press this button to fold the key.
If you do not press the button when folding the key, there is a risk of damage to the mechanism.
Deadlocking using the key
 Turn the key to the right in the driver's door lock to lock the vehicle completely and hold it in this position for more than two seconds to close the windows automatically in addition to locking (according to version).  Turn the key to the right again within five seconds to deadlock the vehicle. Deadlocking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
According to version, the door mirrors fold at the same time. Deadlocking renders the exterior and interior door controls inoperative. It also deactivates the manual central control button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
 Press the closed padlock to locate your locked vehicle in a car park.
This is indicated by lighting of the direction indicators for a few seconds.

Access
84
Electronic engine immobiliser
The key contains an electronic chip which has a special code. When the ignition is switched on, this code must be recognised in order for starting to be possible. This electronic engine immobiliser locks the engine management system a few minutes after the ignition is switched off and prevents starting of the engine by anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are informed by illumination of this warning lamp, an audible signal and a message in the screen. In this case, your vehicle will not start; contact a PEUGEOT dealer as soon as possible. Keep safely the label attached to the keys given to you on acquisition of the vehicle.
Starting the vehicle
 Insert the key in the ignition switch. The system recognises the starting code.  Turn the key fully towards the dashboard to position 3 (Starting) .  When the engine starts, release the key.
Switching the vehicle off
 Immobilise the vehicle.  Turn the key fully towards you to position 1 (Stop) .  Remove the key from the ignition switch.
Energy economy mode
After switching off the engine (position 1- Stop ), 1- Stop ), 1- Stopyou can still use functions such as the audio and telematics system, the wipers, the dipped headlamps, the courtesy lamps, etc. for a maximum combined period of thirty minutes.
A heavy object (key fob...), attached to
the key and weighing down on its shaft in the ignition switch, could cause a malfunction.
For more information, refer to the "Practical information - Energy economy mode" section.
Switching off the engine leads to a loss of braking assistance.

4
Access85
Remote control problem
Following disconnection of the vehicle battery, replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock or lock your vehicle.  Then, reinitialise the remote control.
Changing the battery Reinitialisation
 Switch off the ignition.  Turn the key to position 2 (Ignition on) .  Press the closed padlock immediately for a few seconds.  Switch off the ignition and remove the key
from the ignition switch. The remote control is fully operational again.
If the battery is flat, you are informed by illumination of this warning lamp, an audible signal and a message.
Battery ref.: CR1620 / 3 volts.
If the problem persists, contact a PEUGEOT dealer as soon as possible.
 Unclip the casing using a coin at the notch.  Slide the flat battery out of its location.  Slide the new battery into its location observing the original direction.  Clip the casing.  Reinitialise the remote control.

Access
86
Lost keys
Go to a PEUGEOT dealer with the vehicle's registration document, your personal identification documents and if possible the key code label. The PEUGEOT dealer will be able to look up the key code and the transponder code required to order a new key.
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. No remote control can operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency. As a safety precaution, never leave children alone in the vehicle, except for a very short period. In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a PEUGEOT dealer, to ensure that only your keys can be used to open and start the vehicle.

4
Access87

Alarm
Locking the vehicle with full
alarm
Exterior perimiter protection
The system detects opening of the vehicle. The alarm is triggered if anyone tries to enter the vehicle by forcing a door, the boot or the
bonnet.
Interior volumetric protection
The system detects any variation in the volume in the passenger compartment. The alarm is triggered if anyone breaks a window or moves inside the vehicle. If you wish to leave a pet in the vehicle or a window partially open, deactivate the interior volumetric protection.
Anti-tamper function
The system detects the putting out of service of its components. The alarm is triggered if anyone tries to put the wires of the siren, the central control or the battery out of service.
Activation
 Switch off the ignition and get out of the
vehicle.  Lock or deadlock the vehicle using the locking button on the remote control. The alarm is activated; the indicator lamp in button A flashes once per second.
System which protects and provides a deterrent against the theft of your vehicle. It provides two types of protection, exterior and interior, as well as an anti-tamper function.
Do not make any modifications to the alarm system, this could cause malfunctions.
If a door, the boot or the bonnet is not fully closed, the vehicle is then not locked, but perimeter monitoring will be active after a period of 45 seconds, at the same time as the volumetric monitoring.
In the event of automatic relocking
of the vehicle (occurs after an unintentional unlocking followed by a period of 30 seconds without opening a door or the boot), the monitoring system is not reactivated automatically. To reactivate the system, it is necessary to unlock the vehicle and then lock it again using the key or the remote control.
Deactivation
 Unlock the vehicle using the unlocking button on the remote control. The alarm is deactivated; the indicator lamp in button A switches off.

Access
88
Reactivation of the interior volumetric protection
 Unlock the vehicle using the unlocking button on the remote control.  Relock the vehicle using the remote control. The alarm is activated again with both types of protection; the indicator lamp in button Aswitches off.

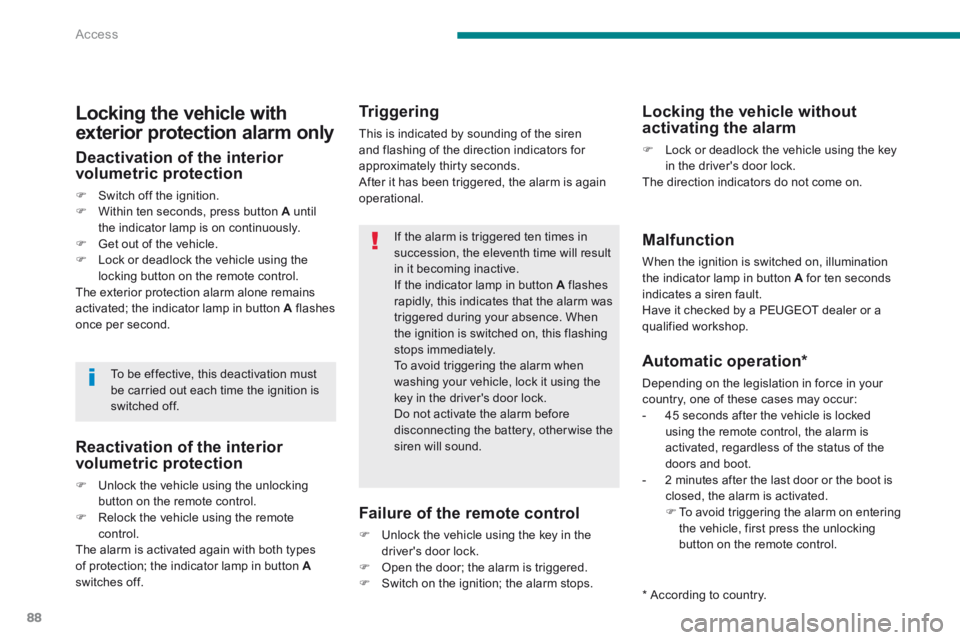

Locking the vehicle with
exterior protection alarm only
Deactivation of the interior volumetric protection
 Switch off the ignition.  Within ten seconds, press button A until the indicator lamp is on continuously.  Get out of the vehicle.  Lock or deadlock the vehicle using the locking button on the remote control. The exterior protection alarm alone remains activated; the indicator lamp in button A flashes once per second.
Triggering
This is indicated by sounding of the siren and flashing of the direction indicators for approximately thirty seconds. After it has been triggered, the alarm is again operational.
Failure of the remote control
 Unlock the vehicle using the key in the driver's door lock.  Open the door; the alarm is triggered.  Switch on the ignition; the alarm stops.
Malfunction
When the ignition is switched on, illumination the indicator lamp in button A for ten seconds indicates a siren fault. Have it checked by a PEUGEOT dealer or a qualified workshop.
Locking the vehicle without activating the alarm
 Lock or deadlock the vehicle using the key in the driver's door lock. The direction indicators do not come on.
Automatic operation *
Depending on the legislation in force in your country, one of these cases may occur: - 45 seconds after the vehicle is locked using the remote control, the alarm is activated, regardless of the status of the doors and boot. - 2 minutes after the last door or the boot is closed, the alarm is activated.  To avoid triggering the alarm on entering the vehicle, first press the unlocking button on the remote control.
To be effective, this deactivation must be carried out each time the ignition is switched off.
If the alarm is triggered ten times in succession, the eleventh time will result in it becoming inactive. If the indicator lamp in button A flashes rapidly, this indicates that the alarm was triggered during your absence. When
the ignition is switched on, this flashing stops immediately. To avoid triggering the alarm when washing your vehicle, lock it using the key in the driver's door lock. Do not activate the alarm before disconnecting the battery, otherwise the siren will sound.
* According to country.

Access
90
Reinitialisation
If a window does not rise automatically or following disconnection of the battery, the anti-pinch function must be reinitialised: For each window:  Pull the control until the window stops.  Release the control and pull it again, repeat these operations until the window closes fully.  Continue to hold the control for approximately one second after the window has closed.  Press the control to lower the window automatically to the low position.  Once the window has reached the low position, press the control again for approximately one second.
Deactivation of the rear
electric windows and doors
 For the safety of your children, with the ignition on, press control 5 to deactivate the rear electric window controls regardless of their position. It is still possible to open the doors from the outside and operate the rear electric windows from the driver's control panel.
The safety anti-pinch function is not operational during these operations.
This control also deactivates the interior controls for the rear doors (see "Child lock").
Indicator lamp on, the rear controls are deactivated. Indicator lamp off, the rear controls are activated.
Any other status of the indicator lamp indicates a malfunction of the electric child lock. Have it checked by a PEUGEOT dealer or a qualified workshop. Always remove the key from the ignition when leaving the vehicle, even for a short time. If an obstacle is encountered during operation of the electric windows, you must reverse the movement of the window. To do this, press the control concerned. When the driver operates the controls for the passengers' electric windows, they must ensure that no one is preventing correct closing of the
windows. The driver must ensure that the passengers use the electric windows c o r r e c t l y. Be aware of children when operating the windows.
