2013.5 Citroen DS4 RHD display

357

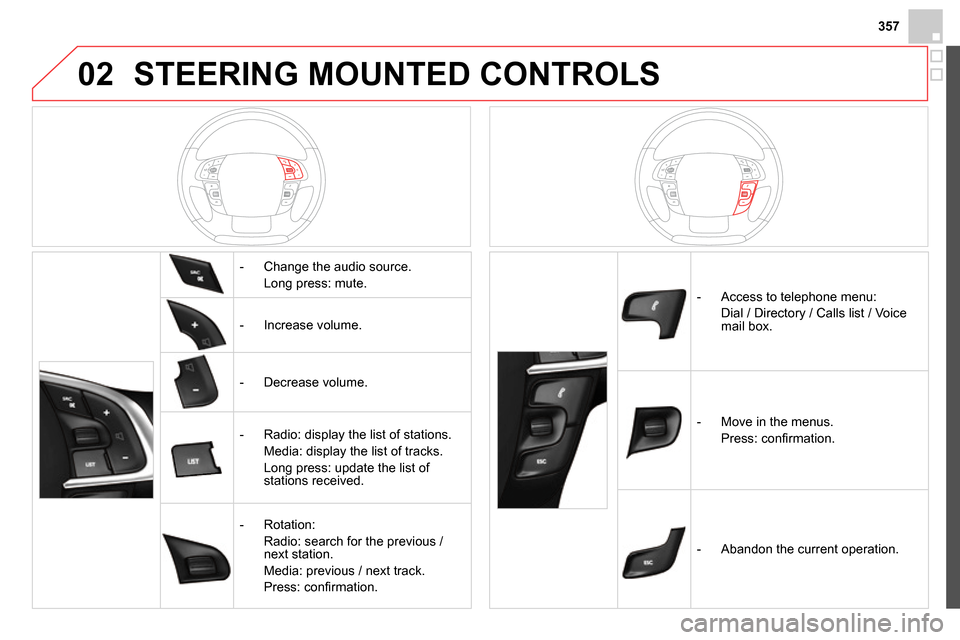

02 STEERING MOUNTED CONTROLS




- Change the audio source.
Long press: mute.


- Increase volume.


- Decrease volume.


- Radio: display the list of stations.
Media: display the list of tracks.
Long press: update the list of
stations received.




- Rotation:
Radio: search for the previous /
next station.
Media: previous / next track.
Press: confi rmation.


- Access to telephone menu:
Dial / Directory / Calls list / Voice
mail box.


- Move in the menus.
Press: confi rmation.


- Abandon the current operation.

03

" Multimedia
": Media parameters,
Radio parameters.
" Trip computer
": Warning log.

For a detailed global view of the
menus available, refer to "Screen
menu map" section.

" Bluetooth connection
":
Connections management,
Search for a device.
" Telephone
": Call, Directory
management, Telephone
management, Hang up.

MAIN MENU


" Personalisation-confi guration
": Defi ne
the vehicle parameters, Choice of language,
Display confi guration, Choice of units, Date
and time adjustment.










Screen C

359
04 AUDIO


Press SOURCE
or SRC
several times in
succession and select radio.

Press BAND
to select a waveband.
Press LIST
to display the list of stations
received in alphabetical order.

A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).







Radio


Select the desired radio station and
confi rm by pressing OK
.
Selecting a station

A long press on LIST
builds or updates
the list of stations; audio reception is cut
momentarily.

The exterior environment (hills, buildings, tunnel, car park, below
ground...) may prevent reception, even in RDS station tracking
mode. This phenomenon is normal in the propagation of radio
waves and is in no way indicative of a fault with the audio system.

04

RDS, if displayed, enables you to continue listening to the same station
by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout
the country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of the station during a journey.


AUDIO


RDS





Receiving TA messages


The TA (Traffi c Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.

Press TA INFO
to activate or deactivate
the reception of traffi c messages.


When the radio is displayed on the
screen, press OK
to display the
contextual menu.

Select " RDS
" and confi rm to save.
" RDS
" is displayed in the screen.

361
04

Make a long press on TA INFO
to
display the list of categories.

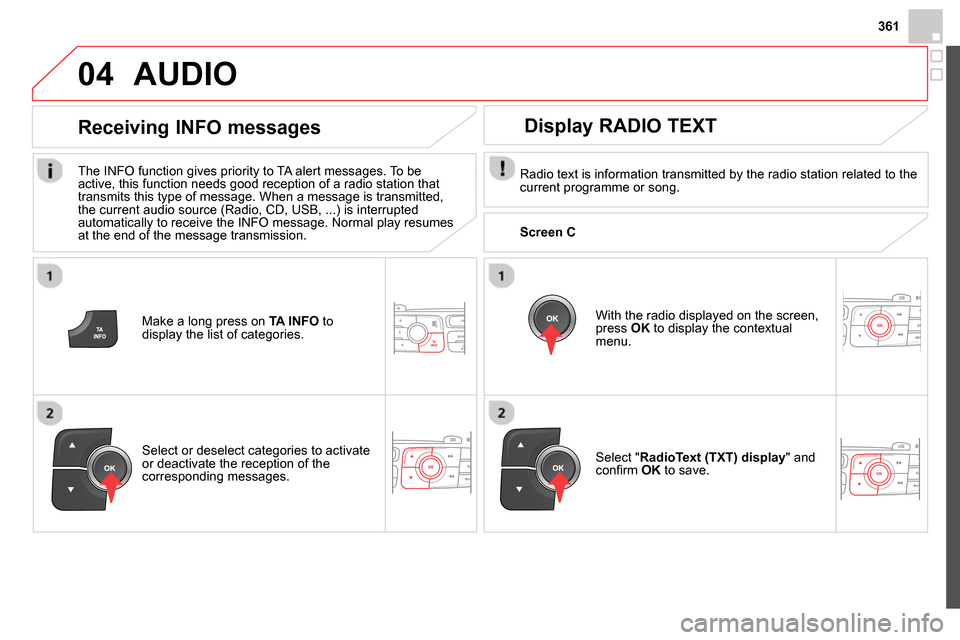

Receiving INFO messages

The INFO function gives priority to TA alert messages. To be
active, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB, ...) is interrupted
automatically to receive the INFO message. Normal play resumes
at the end of the message transmission.
Select or deselect categories to activate
or deactivate the reception of the
corresponding messages.


AUDIO


Radio text is information transmitted by the radio station related to the
current programme or song.

With the radio displayed on the screen,
press OK
to display the contextual
menu.

Select " RadioText (TXT) display
" and
confi rm OK
to save.



Display RADIO TEXT


Screen C

04 AUDIO


Change band (FM1, FM2, DAB, ...)






DAB (Digital Audio Broadcasting)
Digital radio

Digital radio provides a superior audio quality and also additional
categories of traffi c announcements (TA INFO).
The different "multiplex services" offer a choice of radio stations in
alphabetical order.

Change of station within the same "multiplex service".

Start a search for the next "multiplex service".







Digital radio - DAB / FM tracking


"DAB" does not have 100% coverage of the country.
When the digital signal is weak, "DAB / FM auto tracking" allows you
to continue listening to the same station, by automatically switching
to the corresponding analogue "FM" station (if it exists).

Long press: select the desired categories of
announcements from Transport, News, Entertainment
and Flash special (availability according to the station).

When the radio station is displayed in the screen, press on " OK
" to
display the contextual menu.
(Frequency hopping (RDS), DAB / FM auto tracking, RadioText
(TXT) display, Information on the station, ...)

Press the " Menu
" button.

Select " Multimedia
" and confi rm.

Select " DAB / FM auto tracking
" and confi rm

If "DAB / FM auto tracking" is on, there will be a difference of a few
seconds in the programme when the system changes to analogue
"FM" radio, with sometimes a variation in volume.
When the strength of the digital signal is good again, the system
automatically switches back to "DAB"

If the "DAB" station you are listening to is not available on "FM"
(" DAB/FM
" option barred), or if "DAB / FM auto tracking" is not on,
the sound will be cut when the digital signal is too weak.

363
04 AUDIO







Audio CD


Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the
quality of the original player.
Without pressing the EJECT
button, insert a CD in the player, play
begins automatically.

To play a disc which has already been
inserted, press the SOURCE
or SRC

button several times in succession and
select " CD
".

Press one of the buttons to select a
track on the CD.
Playing a CD

Press LIST
to display the list of tracks
on the CD.

Press and hold one of the buttons for
fast forward or backward.

04 AUDIO













CD, USB


Information and advice

On a single disc, the CD player can read up to 255 MP3 fi les spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctly.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.

Do not connect a hard disk or USB device other than audio players to
the USB port. This may cause damage to your installation.

The audio system will only play fi les with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.

It is advisable to restrict fi le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displaying
problems.

The playlists accepted are types .m3u and .pls.
The number of fi les is limited to 5 000 in 500 directories on a
maximum of 8 levels.
