10-1
10
EBU25961

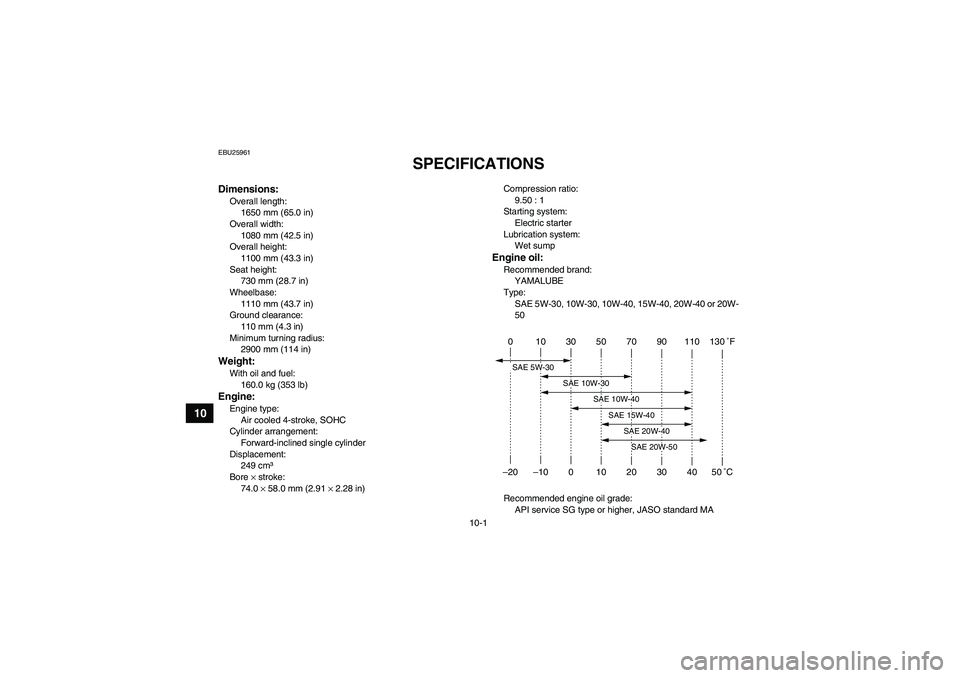

SPECIFICATIONS
Dimensions:Overall length:
1650 mm (65.0 in)
Overall width:
1080 mm (42.5 in)
Overall height:
1100 mm (43.3 in)
Seat height:
730 mm (28.7 in)
Wheelbase:
1110 mm (43.7 in)
Ground clearance:
110 mm (4.3 in)
Minimum turning radius:
2900 mm (114 in)Weight:With oil and fuel:
160.0 kg (353 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
249 cm³
Bore × stroke:
74.0 × 58.0 mm (2.91 × 2.28 in)Compression ratio:
9.50 : 1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
