Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
Tire information
This motorcycle is equipped with spoke
wheels and tube tires.
WARNING
EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, which
could lead to an accident.After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA15541
Have a Yamaha dealer replace
excessively worn tires. Operat-
ing the motorcycle with exces-
sively worn tires decreases
riding stability and can lead to
loss of control.
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the necessary professional knowl-
edge and experience.
It is not recommended to patch
a punctured tube. If unavoid-
able, however, patch the tube
very carefully and replace it as
soon as possible with a high-
quality product.
Ride conservatively after
changing a tire since the tire
must seat itself on the rim prop-
erly. Failure to allow proper
seating may cause tire failure,
which may result in damage to
the motorcycle and injury to the
rider.
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear): 4.0 mm (0.16 in)
12
Front tire:Size:2.50-14 4PR
Manufacturer/model: CHEN SHIN/C-803-2
Rear tire:
Size:3.00-12 4PR
Manufacturer/model:
CHEN SHIN/C-803-2
U5B684E0.book Page 16 Monday, June 13, 2011 4:46 PM
Page 58 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-17
7
EAU21943
Spoke wheels
WARNING
EWA10610
The wheels on this model are not de-
signed for use with tubeless tires.
Do not attempt to use tubeless tires
on this model.To maximize the performance, durabil-
ity, and safe operation of your motorcy-
cle, note the following points regarding
the specified wheels.
The wheel rims should be checked
for cracks, bends, warpage or oth-
er damage, and the spokes for
looseness or damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU44663
Adjusting the clutch free play The clutch free play must be checked
and, if necessary, adjusted as follows
at the intervals specified in the periodic
maintenance and lubrication chart.1. Loosen the locknut.
2. Slowly turn the clutch adjusting screw in direction (a) until resis-
tance is felt, and then turn it 1/8
turn in direction (b).
3. Tighten the locknut to the specified torque.
TIPWhen tightening the locknut, hold the
clutch adjusting screw with a screwdriv-
er so that it does not turn together with
the locknut.
1. Locknut
2. Clutch adjusting screwTightening torque:Locknut:
8 Nm (0.8 m ·kgf, 5.8 ft ·lbf)
1 2
(a)
(b)
U5B684E0.book Page 17 Monday, June 13, 2011 4:46 PM
Page 59 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-18
7
EAU44884
Adjusting the brake lever free
play The brake lever free play should mea-
sure 10.0–20.0 mm (0.39 –0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows. 1. Slide the rubber cover back.
2. Loosen the locknut at the brake le- ver.
3. To increase the brake lever free play, turn the brake lever free play
adjusting bolt in direction (a). To decrease the brake lever free play,
turn the adjusting bolt in direction
(b).
TIPSkip steps 4
–7 if the specified brake le-
ver free play could be obtained as de-
scribed above.4. Fully turn the adjusting bolt at the brake lever in direction (a) to loos-
en the brake cable.
5. Loosen the locknut at the brake shoe plate.
6. To increase the brake lever free play, turn the adjusting bolt at the
brake shoe plate in direction (a).
To decrease the brake lever free
play, turn the adjusting bolt in di-
rection (b). 7. Tighten the locknut at the brake
shoe plate.
8. Tighten the locknut at the brake le- ver, and then slide the rubber cov-
er to its original position.
1. Rubber cover
2. Brake lever free play adjusting bolt
3. Locknut
4. Brake lever free play
3
2
1
(b)
(a) 4
1. Locknut
2. Brake lever free play adjusting bolt
21(b)
(a)
U5B684E0.book Page 18 Monday, June 13, 2011 4:46 PM
Page 60 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-19
7
EAU44671
Adjusting the brake pedal free
play The brake pedal free play should mea-
sure 10.0–20.0 mm (0.39 –0.79 in) at
the brake pedal end as shown. Period-
ically check the brake pedal free play
and, if necessary, adjust it as follows.
To increase the brake pedal free play,
turn the brake pedal free play adjusting
nut at the brake rod in direction (a). To
decrease the brake pedal free play,
turn the adjusting nut in direction (b).
WARNING
EWA14820
After adjusting the drive chain
slack or removing and installing
the rear wheel, always check the
brake pedal free play.
If proper adjustment cannot be
obtained as described, have a
Yamaha dealer make this ad-
justment.
EAU44820
Checking the shift pedal The operation of the shift pedal should
be checked before each ride. If opera-
tion is not smooth, have a Yamaha
dealer check the vehicle.
1. Brake pedal free play adjusting nut
2. Brake pedal free playU5B684E0.book Page 19 Monday, June 13, 2011 4:46 PM
Page 61 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-20
7
EAU22361
Checking the front and rear
brake shoes Front
RearThe front and rear brake shoes must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake is provid-
ed with a wear indicator, which allows
you to check the brake shoe wear with-
out having to disassemble the brake.
To check the brake shoe wear, check
the position of the wear indicator while
applying the brake. If a brake shoe has
worn to the point that the wear indicator
reaches the wear limit line, have a
Yamaha dealer replace the brake
shoes as a set.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22774
To check the drive chain slack
1. Place the motorcycle on the side- stand.TIPWhen checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.2. Shift the transmission into the neu- tral position.
3. Measure the drive chain slack as shown.
1. Brake shoe wear indicator
2. Brake shoe wear limit line
1. Brake shoe wear indicator
2. Brake shoe wear limit line
2
1
12
Drive chain slack:
40.0 –56.0 mm (1.57 –2.20 in)
U5B684E0.book Page 20 Monday, June 13, 2011 4:46 PM
Page 62 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-21
74. If the drive chain slack is incorrect,
adjust it as follows.
EAU40114
To adjust the drive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack.1. Loosen the brake pedal free play adjusting nut, axle nut, and locknut
at each end of the swingarm.
2. To tighten the drive chain, turn thedrive chain slack adjusting nut at
each end of the swingarm in direc- tion (a). To loosen the drive chain,
turn the adjusting nut at each end
of the swingarm in direction (b),
and then push the rear wheel for-
ward.
NOTICE: Improper drive
chain slack will overload the en-
gine as well as other vital parts
of the motorcycle and can lead
to chain slippage or breakage.
To prevent this from occurring,
keep the drive chain slack with-
in the specified limits.
[ECA10571]
TIPUsing the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the same
position for proper wheel alignment.
1. Drive chain slack
1
1. Brake pedal free play adjusting nut
2. Locknut
3. Drive chain slack adjusting nut
1. Axle nut
2. Locknut
3. Drive chain slack adjusting nut
32
1
U5B684E0.book Page 21 Monday, June 13, 2011 4:46 PM
Page 63 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-22
7
3. Tighten the axle nut and both lock-
nuts to the specified torques.
4. Adjust the brake pedal free play. (See page 7-19.)
5. Make sure that the drive chain pull- ers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.
EAU23016
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.NOTICE
ECA10583
The drive chain must be lubricated
after washing the motorcycle, riding
in the rain or riding in wet areas.1. Remove all dirt and mud from thedrive chain with a brush or cloth.TIPFor a thorough cleaning, have a
Yamaha dealer remove the drive chain
and soak it in solvent.2. Spray Yamaha Chain and CableLube or a high-quality spray-type
drive chain lubricant on the entire
chain, making sure that all side
plates and rollers have been suffi-
ciently oiled.
EAU23095
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
housing of cables may result in in-
ternal rusting and cause interfer-
ence with cable movement. Replace
damaged cables as soon as possi-
ble to prevent unsafe conditions.[EWA10711]
1. Alignment marks
2. Locknut
3. Drive chain slack adjusting nut
4. Drive chain pullerTightening torques:Axle nut:60 Nm (6.0 m ·kgf, 43 ft ·lbf)
Locknut: 7 Nm (0.7 m ·kgf, 5.1 ft· lbf)
(a)
(b)
432 1
Recommended lubricant:
Yamaha Chain and Cable Lube or
engine oil
U5B684E0.book Page 22 Monday, June 13, 2011 4:46 PM
Page 64 of 86
PERIODIC MAINTENANCE AND ADJUSTMENT
7-23
7
EAU23114
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated by a
Yamaha dealer at the intervals speci- fied in the periodic maintenance chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from water
entry. Therefore, use care not to pour
water directly onto the cover or cable
when washing the vehicle. If the cable
or cover becomes dirty, wipe clean with
a moist cloth.
EAU43622
Checking and lubricating the
brake lever The operation of the brake lever should
be checked before each ride, and the
lever pivot should be lubricated if nec-
essary.
EAU23182

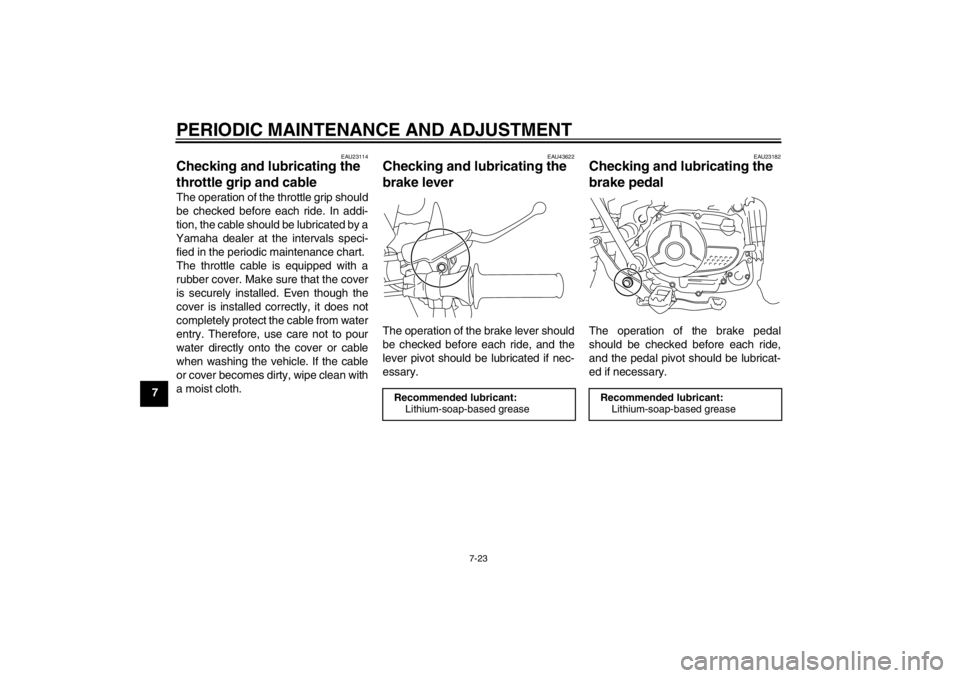

Checking and lubricating the
brake pedal The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
Recommended lubricant: Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
U5B684E0.book Page 23 Monday, June 13, 2011 4:46 PM
