8 Front brake Rear brake
EBU24374Adjusting the front brake lever free
play The brake lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.TIPBefore adjusting the brake lever free play, check
the front brake shoes for wear.
1. Wear limit line
2. Wear indicator
1 2
1. Wear limit line
2. Wear indicator
1
2
U1PY60E0.book Page 28 Friday, March 11, 2011 9:30 AM

8-29
8The brake lever free play should measure 5.0–8.0
mm (0.20–0.31 in) as shown. If the free play is in-
correct, adjust it as follows.
1. Remove the front carrier by removing the
bolts.2. Remove the panel by removing the quick fas-
teners, and then pulling it upward as shown.
1. Brake lever free play
1
1. Front carrier
2. Front carrier bolt
1
22
2
U1PY60E0.book Page 29 Friday, March 11, 2011 9:30 AM

8-30
8 3. Disconnect the coupler shown.4. Remove the V-belt air filter element cover by
removing the screw.
5. Loosen the locknut and fully turn in the brake
lever free play adjusting bolt at the brake le-
ver.
1. Panel
2. Quick fastener
1. Coupler
122
1
1
1. V-belt air filter element cover
2. Screw
12
U1PY60E0.book Page 30 Friday, March 11, 2011 9:30 AM

8-31
86. Make sure the brake cable joint in the equaliz-
er is straight when the brake is applied. If the
cable joint isn’t straight, loosen the locknuts,
and then turn the adjusting nuts on the front
brake cables until the cable joint becomes
straight.
1. Locknut
2. Brake lever free play adjusting bolt
1
2
1. Brake equalizer
2. Cable joint
1. Locknut
2. Adjusting nut
aa'
a=a'
1 2
2
1 1
2
U1PY60E0.book Page 31 Friday, March 11, 2011 9:30 AM

8-32
8 7. Tighten the locknut on each brake cable.
8. Turn the brake lever free play adjusting bolt in
direction (a) to increase the free play, and in
direction (b) to decrease it.
9. Tighten the locknut at the brake lever.
10. Install the V-belt air filter element cover by in-
stalling the screw.
11. Connect the coupler, and then install the pan-
el by installing the quick fasteners.
12. Install the front carrier by installing the bolts,
and then tighten them to the specified torque.
EBU30440Adjusting the rear brake lever free play The brake lever free play must be checked and, if
necessary, adjusted at the intervals specified in the
periodic maintenance and lubrication chart.TIPBefore adjusting the brake lever free play, check
the rear brake shoes for wear.The brake lever free play should measure 5.0–8.0
mm (0.20–0.31 in) as shown. If the free play is in-
correct, adjust it as follows.
1. Locknut
2. Brake lever free play adjusting bolt
3. Brake lever free play
3
1
2
(b)
(a)
Tightening torque:
Front carrier bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U1PY60E0.book Page 32 Friday, March 11, 2011 9:30 AM

8-33

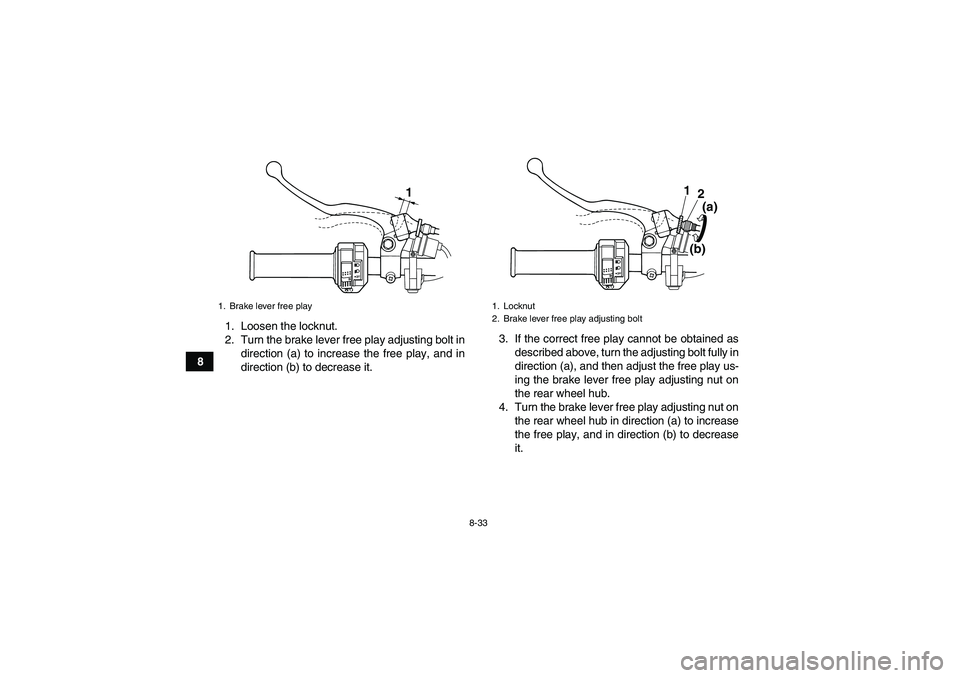

81. Loosen the locknut.
2. Turn the brake lever free play adjusting bolt in
direction (a) to increase the free play, and in
direction (b) to decrease it.3. If the correct free play cannot be obtained as
described above, turn the adjusting bolt fully in
direction (a), and then adjust the free play us-
ing the brake lever free play adjusting nut on
the rear wheel hub.
4. Turn the brake lever free play adjusting nut on
the rear wheel hub in direction (a) to increase
the free play, and in direction (b) to decrease
it.
1. Brake lever free play
1
1. Locknut
2. Brake lever free play adjusting bolt
(a)
(b)2 1
U1PY60E0.book Page 33 Friday, March 11, 2011 9:30 AM

8-34
8 5. Use the adjusting bolt to obtain a precise ad-
justment if necessary, and then tighten the
locknut. If the correct free play cannot be ob-
tained, have a Yamaha dealer adjust it.
EBU24874Drive chain slack The drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack
1. Place the ATV on a level surface.
TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.
3. If the drive chain slack is incorrect, adjust it as
follows.
1. Brake lever free play adjusting nut
1
(a)
(b)
Drive chain slack:
30.0 mm (1.18 in)1. Drive chain slack
1
U1PY60E0.book Page 34 Friday, March 11, 2011 9:30 AM

8-35
8To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the hub stopper bolt locknut and then
the hub stopper bolt.
3. Loosen the axle holding bolts.
4. Loosen the drive chain slack adjusting bolt
locknut. To tighten the drive chain, turn the ad-
justing bolt in direction (a). To loosen the drive
chain, turn the adjusting bolt in direction (b),
and then push the wheels forward. NOTICE:
Improper drive chain slack will overloadthe engine as well as other vital parts of
the ATV and can lead to drive chain slip-
page or breakage. To prevent this from oc-
curring, keep the drive chain slack within
the specified limits.
[ECB00542]
5. Tighten the drive chain slack adjusting bolt
locknut and the axle holding bolts to the spec-
ified torques.
1. Hub stopper bolt
2. Hub stopper bolt locknut
3. Axle holding bolt (lower)
4. Axle holding bolt (upper)1
2
34
1. Locknut
2. Drive chain slack adjusting bolt
1
2
(a)
(b)
