2012 VOLVO V60 climate settings

03 Your driving environment
Volvo Sensus
03
* Option/accessory, for more information, see Introduction.79 General
Control panel in centre console
Navigation* - NAV, see separate owner's
manual (Road and Traffic Information Sys-
tem - RTI).
Infotainment (RADIO, MEDIA, TEL*), see
page 222.
Car settings - MY CAR, see page 144.
Park assist camera - CAM*, see
page 208.
Climate control, see page 152.
Volvo Sensus is the car's operating system, the
heart of your personal Volvo experience. Volvo
Sensus combines and presents many func-
tions in several of the car's systems on the
centre console TV screen. With Volvo Sensusthe car can be personalised by means of an
intuitive user interface. Settings can be made
in Car settings, Infotainment, Climate, etc.
With the centre console buttons and controls
or the steering wheel's right-hand keypad*
functions can be activated or deactivated and
many different settings can be made.
With a press on MY CAR all settings related to
the driving and control of the car are presented,
such as City Safety, Locks and alarm, setting
the clock, etc.
With a press on the respective function:
RADIO, MEDIA, TEL*, NAV* and CAM* other
sources, systems and functions can be acti-
vated, e.g. AM, FM1, CD, DVD*, TV*, Blue-
tooth*, navigation* and park assist camera*.
For more information on all functions/systems,
see the respective section in the owner's man-
ual.
ProCarManuals.com

03 Your driving environment
Windows, rearview and door mirrors
03
104* Option/accessory, for more information, see Introduction.
The rear window is demisted/defrosted auto-
matically if the car is started in an outside tem-
perature lower than +9 °C. Automatic defrost-
ing can be selected in the menu system MY
CAR under Settings
Climate settings
Automatic rear defroster. Select betweenOn or Off. For a description of the menu sys-
tem, see page 145.
Interior rearview mirror
Control for dimming
Manual dimmingBright light from behind could be reflected in
the rearview mirror and dazzle the driver. Usedimming with the dimming control when lights
from behind are distracting:
1. Use dimming by moving the control in
towards the passenger compartment.
2. Return to normal position by moving the
control towards the windscreen.
Automatic dimming*Bright light from behind is automatically
dimmed by the rearview mirror. The control is
not available in mirrors with automatic dim-
ming.
The compass* can only be specified for rear-
view mirrors with automatic dimming, see
page 105.
ProCarManuals.com

04 Comfort and driving pleasure
Menu source MY CAR
04

149
Distance and fuel unit
MPG (UK)
MPG (US)
km/l
l/100km
p. 166
Temperature unit
Celsius
Fahrenheit
Selects the unit for the display of
outside temperature and setting
of the climate control system.
Volumes
Voice output volume
Park assist front volume
Park assist rear volume
Phone ringing volume
Reset system options
All menus in System options are
given original factory settings.
Voice settings
Voice tutorial
This menu option + OK provides
spoken information about how
the system works.
Voice command list
Phone commands
Phone
Phone call con-
tact
Phone dial num-
ber
Navigation commands
Navigation
Navigation
repeat instruc-
tion
Navigation go to
address
General commands
Help
Cancel
Voice tutorial
The menu options under
Phone
commands show several exam-
ples of available voice commands
- only with a Bluetooth
Ÿ-enabled
mobile phone installed. For more
ProCarManuals.com

04 Comfort and driving pleasure
Menu source MY CAR
04
150* Option/accessory, for more information, see Introduction.
and detailed information - see
page 251.
The menu options under
Naviga-
tion commands show several
examples of available voice com-
mands - only with Volvo's navi-
gation system RTI* installed.
Voice user setting
Default setting
User 1
User 2
Here there is the option to create
a second user profile - an advant-
age if more than one person shall
use the car/system regularly.
Default setting gives factory set-
tings.
Voice training
User 1
User 2
With
Voice training the voice
recognition system is taught to
recognise the driver's voice and
pronunciation. A number of phra-
ses are presented on the screen
for the driver to read aloud. When
the system has learnt how the
driver talks, the presentation of
the phrases stops. Following
which e.g.
User 1 can be
selected in Voice user setting in
order that the system shall listen
to the right user.
Voice output volume
•A volume control appears on
the screen - at which point,
proceed as follows:
1. Adjust the volume with the
thumbwheel.
2.
Test-listen using OK.
3.
Use EXIT to store the setting
and the menu is switched off.
Voice POI list
Edit list
The number of facilities is exten-
sive and varies depending on
market. Maximum 30 favourite
facilities can be stored in this list.
Menu option
Voice POI list is
only shown if Volvo's navigation
system RTI* is installed. For more
information on Facilities and
Voice recognition - see the Navi-
gation system's owner's manual.
Audio settingsp. 220
Climate settings
ProCarManuals.com

04 Comfort and driving pleasure
Menu source MY CAR
04
* Option/accessory, for more information, see Introduction.151
Automatic blower adjust
Normal
High
Low
Recirculation timer
On
Off
Automatic rear defroster
On
Off
Interior air quality system
On
Off
Reset climate settings
All menus in
Climate settingsare given original factory settings.
p. 152
Favourites (FAV)p. 226
Volvo On Call
Described in a separate manual.
Information
Number of keysp. 46
VIN numberp. 352
DivX® VOD codep. 239
Bluetooth software version in
carp. 245
Map and software version*
Only in cars with Volvo GPS nav-
igator - see separate manual.
ProCarManuals.com

04 Comfort and driving pleasure
Climate control
04
* Option/accessory, for more information, see Introduction.153
the work. Volvo recommends that you contact
an authorised Volvo workshop.
Total airing functionThe function opens/closes all side windows
simultaneously and can be used for example to
quickly air the car during hot weather, see
page 60.
Passenger compartment filterAll air entering the car's passenger compart-
ment is cleaned with a filter. This must be
replaced at regular intervals. Follow the Volvo
Service Programme for the recommended
replacement intervals. If the car is used in a
severely contaminated environment, it may be
necessary to replace the filter more often.
NOTE
There are different types of passenger com-
partment filter. Make sure that the correct
filter is fitted.
Clean Zone Interior Package (CZIP)*This option keeps the passenger compartment
clear of allergy and asthma inducing sub-
stances. For more information on CZIP, see the
brochure included with the purchase of the car.
The following is included:
•An enhanced fan function that means that
the fan starts when the car is opened withthe remote control key. The fan fills the
passenger compartment with fresh air. The
function starts when required and is dis-
engaged automatically after a time or when
one of the passenger compartment doors
is opened. The amount of time the fan runs
is reduced gradually due to reduced need
up until the car is 4 years old.
•The air quality system IAQS is a fully auto-
matic system that cleans the air in the pas-
senger compartment from contaminants
such as particles, hydrocarbons, nitrous
oxides and ground-level ozone.
NOTE
To keep the CZIP standard in cars with CZIP
the IAQS filter must be changed after
15 000 km or once per year depending on
whichever occurs first. However, up to
75 000 km over 5 years. In cars without CZIP
and where the customer does not want to
keep the CZIP standard the IAQS filter must
be changed at a regular service.
Use of tested materials in the interior
equipment.
The materials have been developed in order to
minimise the quantity of dust in the passenger
compartment and they contribute to making
the passenger compartment easier to keep
clean. The carpets in both the passenger com-
partment and the cargo area are removableand easy to remove and clean. Use cleaning
agents and car care products recommended
by Volvo, see page 346.
Menu settingsIt is possible to activate/deactivate or change
the default settings for four of the climate con-
trol system's functions via the centre console.
For general information about menu naviga-
tion, see page 145:
•Fan speed in automatic mode*, see
page 158.
•Recirculation timer for passenger com-
partment air, see page 159.
•Automatic rear window defrosting, see
page 103.
•Air quality system IAQS*, see page 159
The climate control system's functions can be
reset to the default settings via the menu sys-
tem in MY CAR and this is carried out under:
Settings
Climate settingsReset
climate settings.
ProCarManuals.com

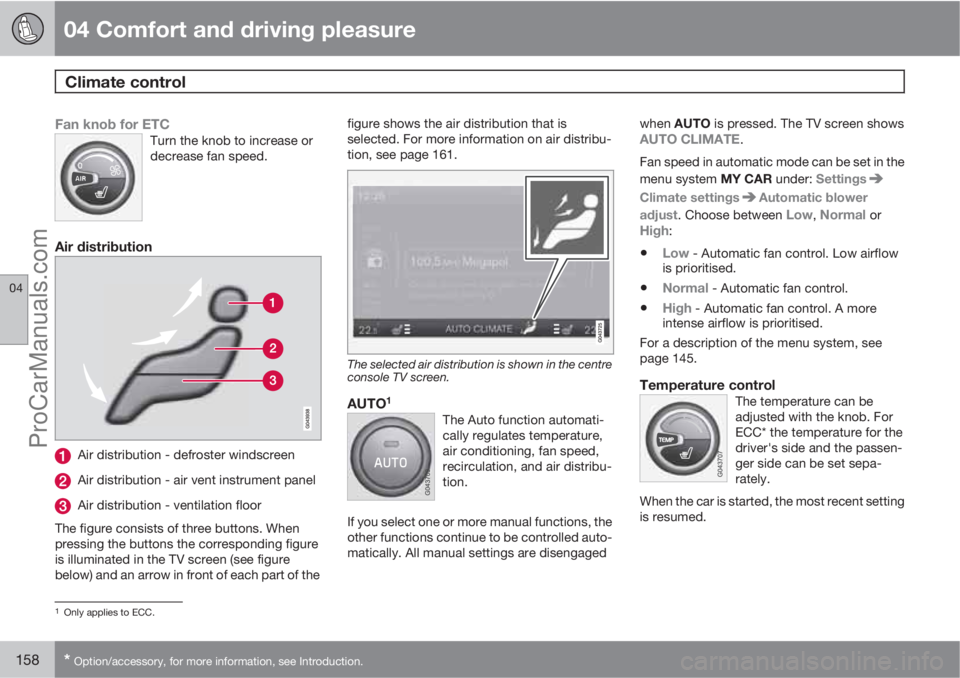

04 Comfort and driving pleasure
Climate control
04
158* Option/accessory, for more information, see Introduction.
Fan knob for ETCTurn the knob to increase or
decrease fan speed.
Air distribution
Air distribution - defroster windscreen
Air distribution - air vent instrument panel
Air distribution - ventilation floor
The figure consists of three buttons. When
pressing the buttons the corresponding figure
is illuminated in the TV screen (see figure
below) and an arrow in front of each part of thefigure shows the air distribution that is
selected. For more information on air distribu-
tion, see page 161.
The selected air distribution is shown in the centre
console TV screen.
AUTO1
The Auto function automati-
cally regulates temperature,
air conditioning, fan speed,
recirculation, and air distribu-
tion.
If you select one or more manual functions, the
other functions continue to be controlled auto-
matically. All manual settings are disengagedwhen AUTO is pressed. The TV screen shows
AUTO CLIMATE.
Fan speed in automatic mode can be set in the
menu system MY CAR under: Settings
Climate settingsAutomatic blower
adjust. Choose between
Low, Normal orHigh:
•Low - Automatic fan control. Low airflow
is prioritised.
•Normal - Automatic fan control.
•High - Automatic fan control. A more
intense airflow is prioritised.
For a description of the menu system, see
page 145.
Temperature controlThe temperature can be
adjusted with the knob. For
ECC* the temperature for the
driver's side and the passen-
ger side can be set sepa-
rately.
When the car is started, the most recent setting
is resumed.
1Only applies to ECC.
ProCarManuals.com

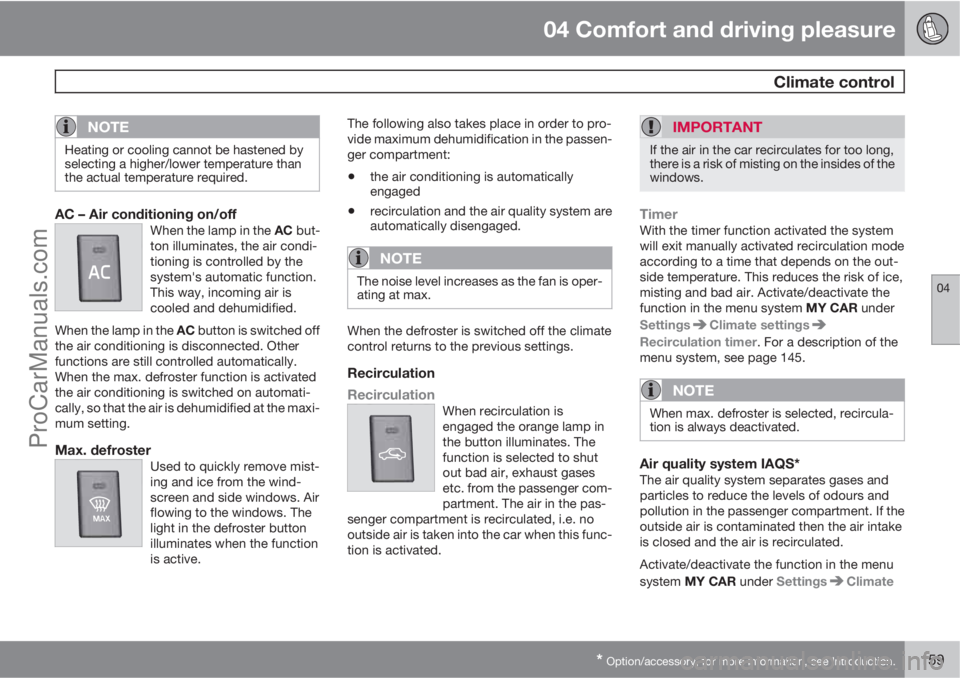

04 Comfort and driving pleasure
Climate control
04
* Option/accessory, for more information, see Introduction.159
NOTE
Heating or cooling cannot be hastened by
selecting a higher/lower temperature than
the actual temperature required.
AC – Air conditioning on/offWhen the lamp in the AC but-
ton illuminates, the air condi-
tioning is controlled by the
system's automatic function.
This way, incoming air is
cooled and dehumidified.
When the lamp in the AC button is switched off
the air conditioning is disconnected. Other
functions are still controlled automatically.
When the max. defroster function is activated
the air conditioning is switched on automati-
cally, so that the air is dehumidified at the maxi-
mum setting.
Max. defrosterUsed to quickly remove mist-
ing and ice from the wind-
screen and side windows. Air
flowing to the windows. The
light in the defroster button
illuminates when the function
is active.
The following also takes place in order to pro-
vide maximum dehumidification in the passen-
ger compartment:
•the air conditioning is automatically
engaged
•recirculation and the air quality system are
automatically disengaged.
NOTE
The noise level increases as the fan is oper-
ating at max.
When the defroster is switched off the climate
control returns to the previous settings.
Recirculation
Recirculation
When recirculation is
engaged the orange lamp in
the button illuminates. The
function is selected to shut
out bad air, exhaust gases
etc. from the passenger com-
partment. The air in the pas-
senger compartment is recirculated, i.e. no
outside air is taken into the car when this func-
tion is activated.
IMPORTANT
If the air in the car recirculates for too long,
there is a risk of misting on the insides of the
windows.
TimerWith the timer function activated the system
will exit manually activated recirculation mode
according to a time that depends on the out-
side temperature. This reduces the risk of ice,
misting and bad air. Activate/deactivate the
function in the menu system MY CAR under
Settings
Climate settings
Recirculation timer. For a description of the
menu system, see page 145.
NOTE
When max. defroster is selected, recircula-
tion is always deactivated.
Air quality system IAQS*The air quality system separates gases and
particles to reduce the levels of odours and
pollution in the passenger compartment. If the
outside air is contaminated then the air intake
is closed and the air is recirculated.
Activate/deactivate the function in the menu
system MY CAR under Settings
Climate
ProCarManuals.com
