2012 VOLVO C70 Owner´s Manual

10 Audio
Bluetooth® hands-free connection
10

265
Call settingsWhile a call is in progress, press MENU or
ENTER on the center console to access the
following functions:
•Mute microphone: mute the audio sys-
tem’s microphone.
•Transfer call to cell: transfer the call from
hands-free to the cell phone.
•Phone book: this feature enables you to
search for a stored telephone number.
NOTE
•On certain cell phones, the connection
is broken when the mute function is
used, which is normal. If this happens,
the hands-free system will prompt you
to reconnect.
•A new call cannot be initiated while
another call is in progress.
Sound settings
Call volumeCall volume can be adjusted while a call is in
progress using the buttons in the steering
wheel keypad.
Audio system volumeWhen PHONE is displayed, volume for the
audio system can be adjusted in the normal
way with the audio system's volume control. In
order to adjust volume during a phone call, the
audio system must be switched to one of the
other modes (FM, CD, etc).
Audio system sound can be automatically
muted when a phone call is received in
Phone Menu…
Phone settings…
Sounds and volume…Mute radio and
adjust the volume with the
/ keys on the
center console.
Ringing volume
Go to Phone Menu…Phone settings…
Sounds and volume…Ring volume
and adjust the volume with the
/ keys on
the center console.
Ringing tonesThe hands-free system’s integrated ringing
tones can be selected in Phone Menu…
Phone settings…Sounds and volume…
Ring signals…Ring signal 1, etc.
NOTE
The connected cell phone’s ring tone may
not be switched off when one of the hands-
free system's ringing tones is used.
If you prefer to use the connected cell phone’s
ring tone1, go to Phone Menu…Phone
settings…
Sounds and volume…Ring
signals…
Use cell phone signal
More information about registering
and connecting cell phones
A maximum of 5 cell phones can be registered
in the hands-free system. Registration only
needs to be done once for each phone. After
registration, the cell phones can then be found
in the list of registered phones. Only one cell
phone can be connected to hands-free at a
time. Phones can be unregistered in Phone
Menu…
Bluetooth…Remove phone
1Not supported by all cell phones.

10 Audio
Bluetooth® hands-free connection
10
266
Automatic connectionWhen the hands-free system is active and the
most recently connected cell phone is within
range, it is detected automatically. When the
audio system searches for the most recently
connected phone, this phone’s name appears
in the display. To manually connect a different
cell phone, press EXIT.
Manual connectionTo connect a phone other than the one that
was most recently connected or to switch
between cell phones that are already regis-
tered in the hands-free system:
Put the audio system in telephone mode and
follow the instructions in the display or change
the connected cell by going into the menu sys-
tem under Phone Menu…
Bluetooth…
Connect phone or Change phone.
Phone book
In order to use the hands-free system’s phone
book (list of contacts), PHONE must be dis-
played at the top of the center console display
and the
symbol must be visible.
The audio system stores a copy of the phone
book of each registered cell phone. The phone
book is automatically copied each time a
phone is connected. This function can be acti-vated in Phone settings…
Synchronize
phone book. Searches for contacts are only
made in the phone book of the currently con-
nected cell phone.
NOTE
If a particular cell phone does not support
copying of the phone book, List is emptywill be displayed when copying has been
completed.
If the phone book contains information about
someone who is trying to call you, this infor-
mation will be shown in the display.
Searching for contactsThe easiest way to search for a contact in the
phone book is to press and hold any of the
buttons 2–9 in the center console (no. 3 in the
illustration on page 263. This starts a search
based on the first letter on the button that has
been pressed.
The phone book can also be accessed by
pressing the navigation buttons
/ on the
center console or by pressing
/ on the
steering wheel keypad. A search can also be
made in the phone book’s search menu in
Phone book…
Search:1. Enter the first letter of the contact’s name
and press ENTER or simply press ENTER.
2. Select the desired contact and press
ENTER to make a call to that person.
Voice controlIf the cell phone that is currently connected
allows calls to be made via voice commands,
this function can be used by pressing and hold-
ing ENTER.
Voice mail numberThe phone number to your voice mail can be
changed in the menu Phone settings…
Call options…Voice mail number. If no
number has been stored, this menu can be
accessed by a prolonged press on button 1.
Once a phone number has been stored, press
and hold 1 to dial this number.
Call listsLists of calls in a particular cell phone are cop-
ied to the hands-free system each time that
phone is connected. These lists are then upda-
ted while the phone is connected. Press
ENTER to show the most recently dialed num-
bers. Other call lists can be found under
Call
register….

10 Audio
Bluetooth® hands-free connection
10
267
NOTE
Certain cell phones display the list of the
most recently dialed numbers in reverse
order.
Entering textText is entered by using the number buttons in
the center console. Press a button once to
enter the first letter on the button, twice to enter
the second letter, etc. Continue to press the
button to display other characters.
Press EXIT briefly to erase a character. Press
and hold EXIT to erase all of the characters that
have been entered. Use the
/ buttons on
the center console to navigate among the char-
acters.
Bluetooth® menus
1. Call register…
1.1. Last 10 missed calls
1.2. Last 10 received calls
1.3. Last 10 dialed calls
2. Call register…
2.1. Search
2.2. Copy fr. cell phone3. Bluetooth…
3.1. Change phone
3.2. Remove phone
3.3. Connect fr. cell phone
3.4. Car Bluetooth info
4. Call options…
4.1. Automatic answer
4.2. Voice mail number
5. Phone settings…
5.1. Sounds and volume…
5.1.1. Ring volume
5.1.2. Ring signals…
5.1.3. Mute radio
5.2. Synchronize phone book

268
Label information.................................................................................. 270
Dimensions and weights....................................................................... 272
Fuel, oils, and fluids..............................................................................275
Engine oil............................................................................................... 277
Engine specifications............................................................................ 278
Electrical system................................................................................... 280
Three-way catalytic converter............................................................... 281
Overview of information and warning symbols..................................... 282
Volvo programs..................................................................................... 284

SPECIFICATIONS

11 Specifications

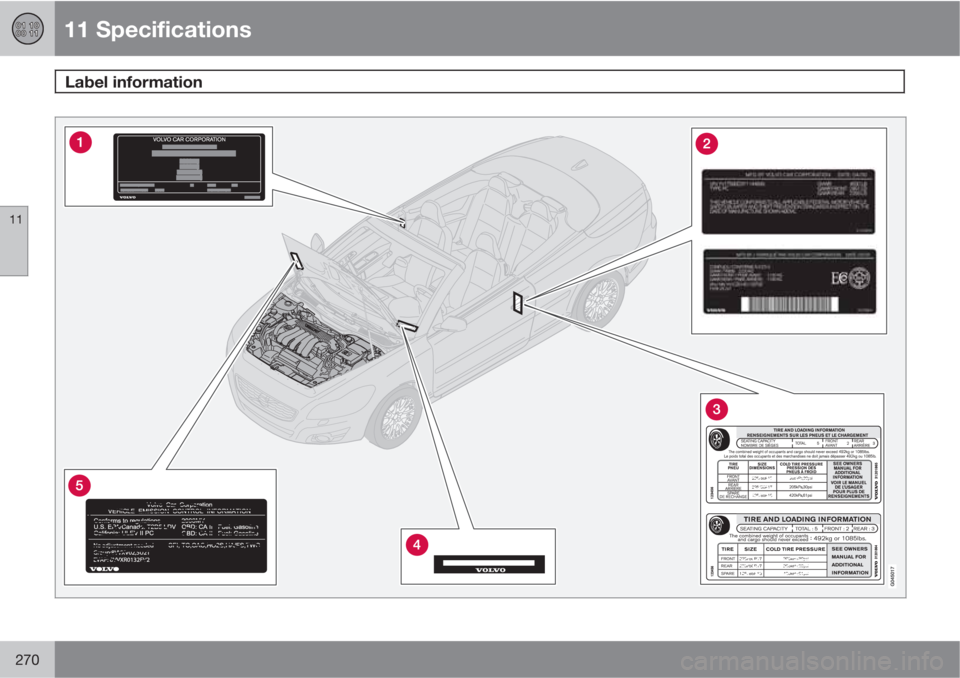

Label information
11
270

11 Specifications
Label information
11
271
Model plate
Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.
The model plate is located on the B-pillar and
the passenger's door must be open in order to
see it.
Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
Tire inflation pressures
This label indicates the correct inflation pres-
sures for the tires that were on the vehicle when
it left the factory.
Canadian models have the upper decal.
U.S. models have the lower decal.
Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.
1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.

11 Specifications
Dimensions and weights
11
272
Dimensions
PositionDimensionIn (mm)
AWheelbase103.9 (2640)
BLength181.7 (4615)
CLoad length, floor33.5 (850)
DTrunk lid upapprox. 7.9 (200)
E1Height55.1 (1400)
E2Heightapprox. 78.7 (2000)
