2012 TOYOTA VERSO The fuse

367 3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

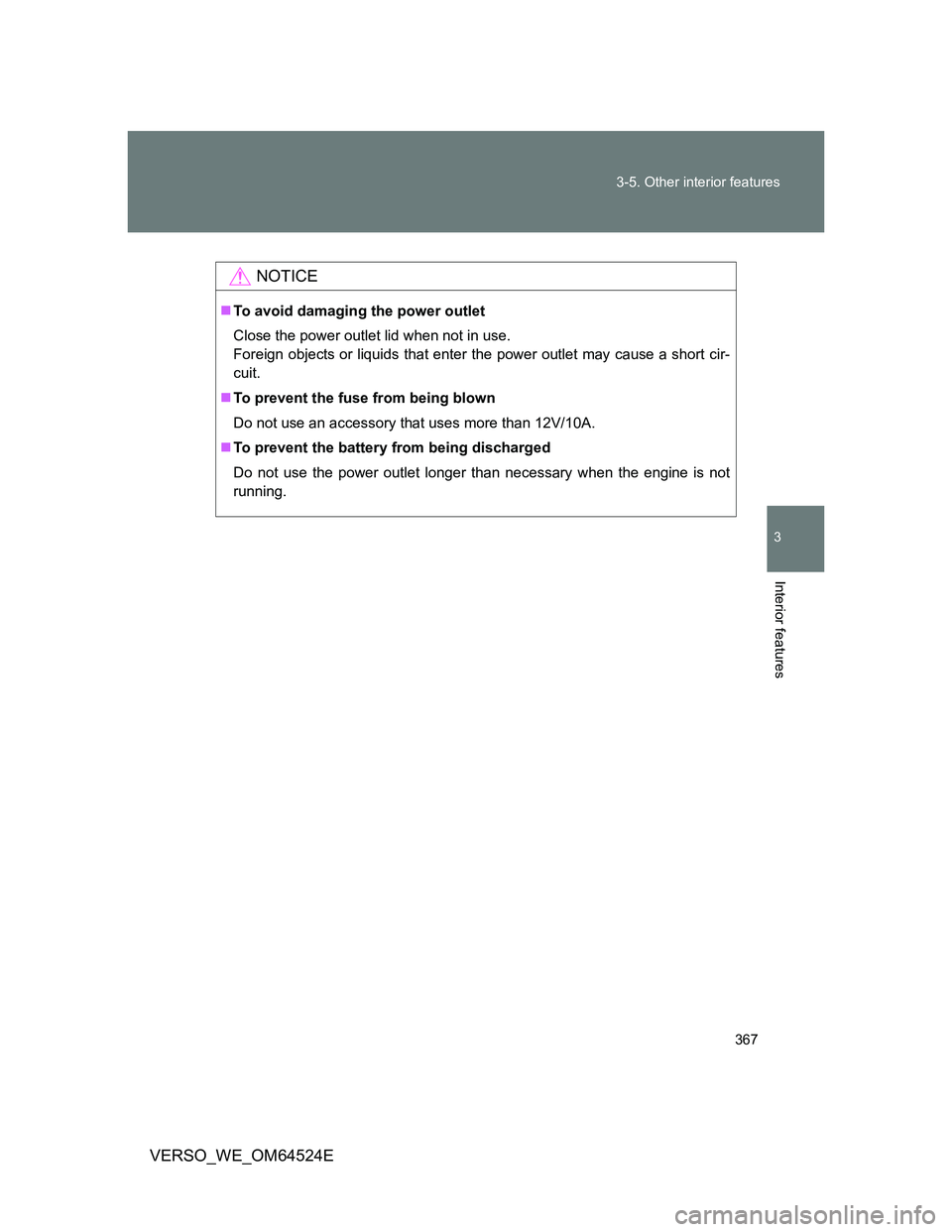

NOTICE
To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is not
running.

4Maintenance and care
387
VERSO_WE_OM64524E
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 388
Cleaning and protecting
the vehicle interior .......... 392
4-2. Maintenance
Maintenance
requirements................... 395
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 398
Hood ................................. 401
Positioning a floor jack ...... 403
Engine compartment......... 405
Tires .................................. 421
Tire inflation pressure ....... 424
Wheels .............................. 426
Air conditioning filter ......... 428
Key battery........................ 432
Checking and replacing
fuses ............................... 436
Light bulbs ........................ 450

398
VERSO_WE_OM64524E
4-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition (P. 415)•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine coolant level (P. 413)• Toyota Super Long Life Coolant
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology. Toyota
Super Long Life Coolant is pre-
mixed with 50% coolant and 50%
deionized water.
Engine oil levelP. 408)• Toyota Genuine Motor Oil or
equivalent
• Rag or paper towel, funnel
(used only for adding oil)
Fuses (P. 436)• Fuse with same amperage rating
as original
Radiator, condenser and inter-
cooler (P. 415)
Tire inflation pressure (P. 424)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 418)• Water washer fluid containing
antifreeze (for winter use)

436
4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

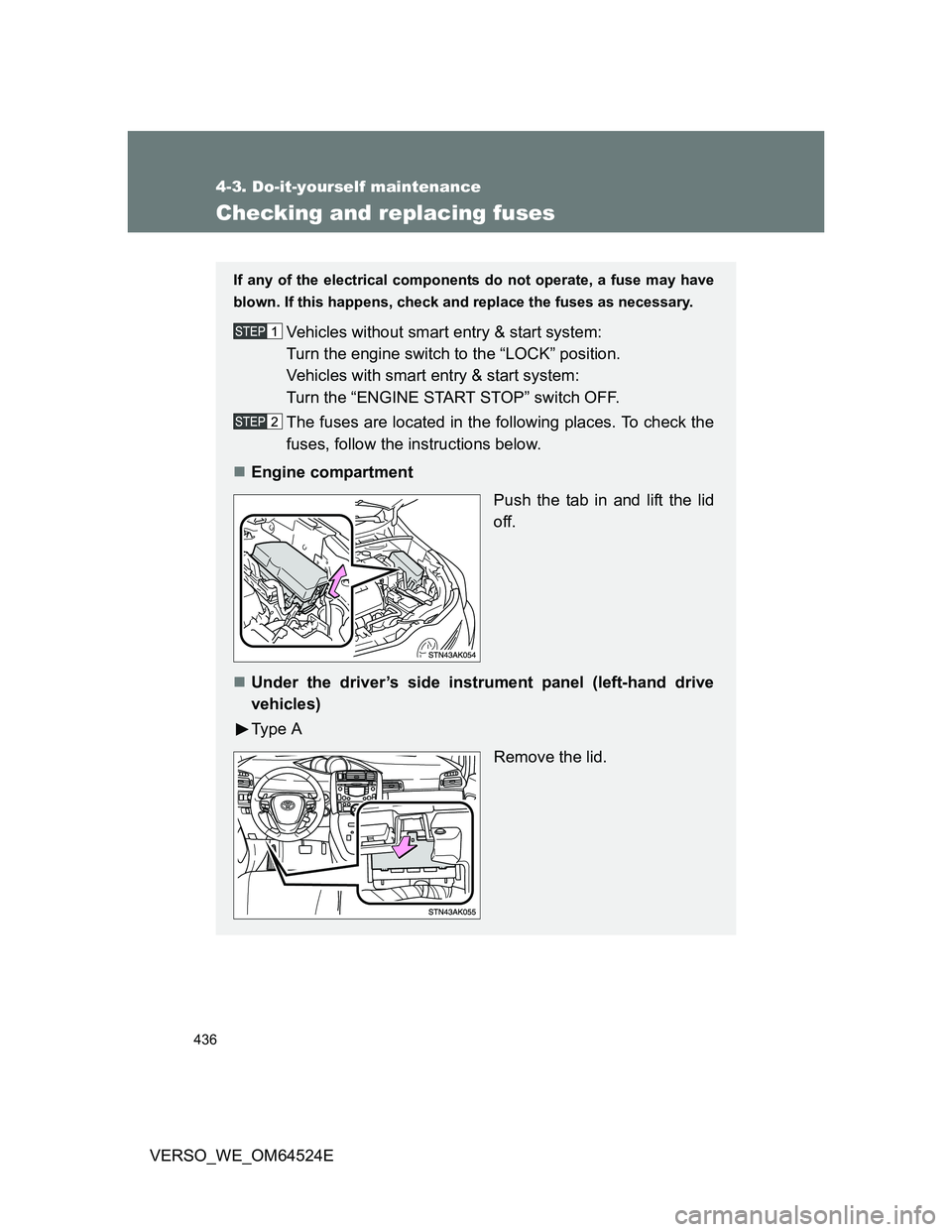

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles without smart entry & start system:
Turn the engine switch to the “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch OFF.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the driver’s side instrument panel (left-hand drive
vehicles)
Ty p e A
Remove the lid.

438 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
Remove the lid.
Ty p e B
1. Open the glove box. Slide
off the damper.
2. Lift the glove box to discon-
nect the claws at the bottom
and remove it.
After a system failure, see “Fuse layout and amperage
ratings” (P. 441) for details about which fuse to check.

439 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.

440 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E

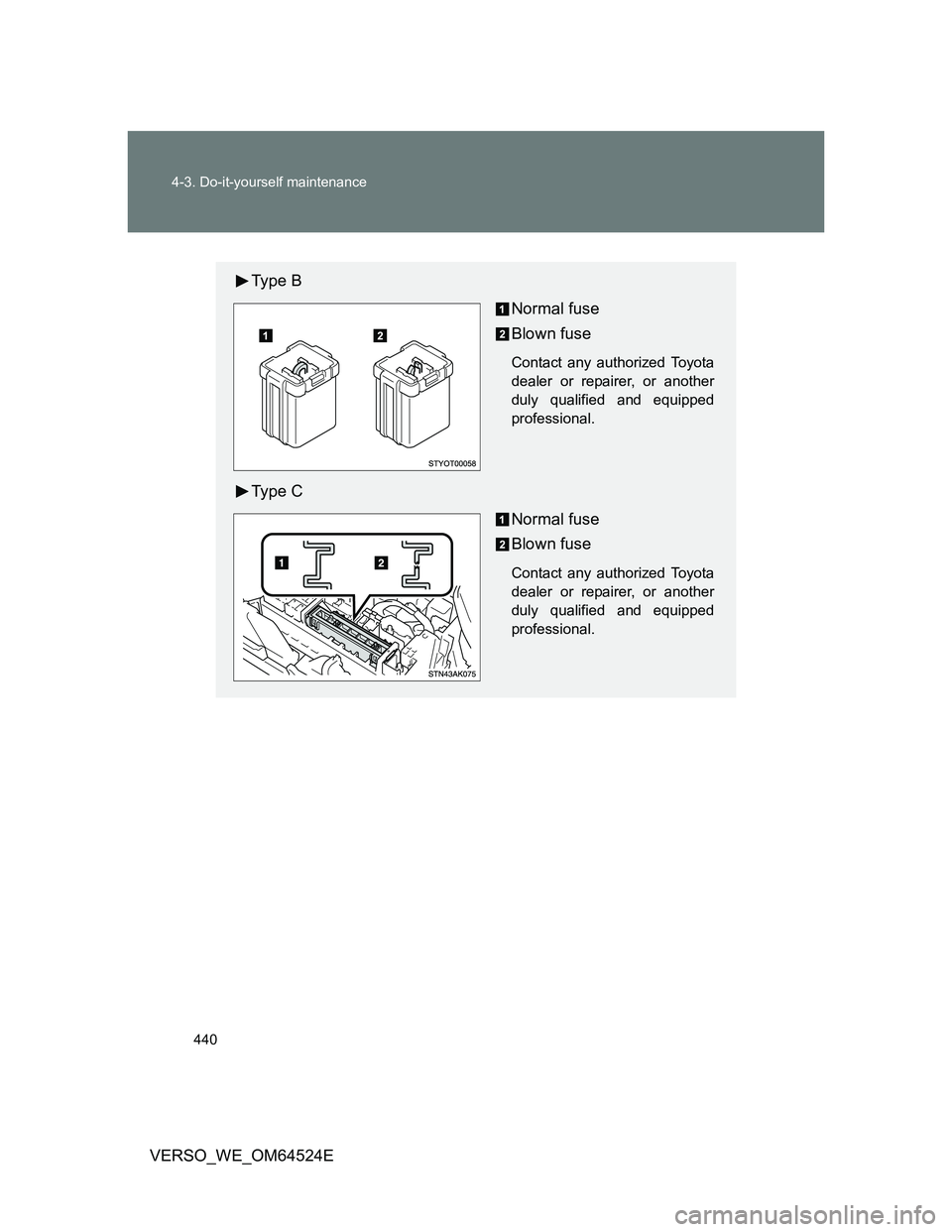

Ty p e B
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.

445 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524EUnder the instrument panel (type A)
FuseAmpereCircuit
1TAIL 10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling dial, instrument cluster
lights
2 PANEL 7.5 AAir conditioning system switch,
audio system, Multidrive or auto-
matic transmission shift lever illumi-
nation, auxiliary box light, airbag
manual on-off system, emergency
flashers, cigarette lighter, head-
light cleaner switch, headlight level-
ing dial, steering switch, VSC OFF
switch, seat heater switch,
“SPORT” switch, Toyota parking
assist-sensor ECU, Toyota parking
assist-sensor switch
3 ECU-IG NO.3 10 APanoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system
4 FR DOOR 20 A Power windows (passenger side)
5 RL DOOR 20 A Power windows (rear left)
6 RR DOOR 20 A Power windows (rear right)
7 CIG 15 A Cigarette lighter
