2012 TOYOTA VERSO cruise control

252
VERSO_WE_OM64524E
2-4. Using other driving systems

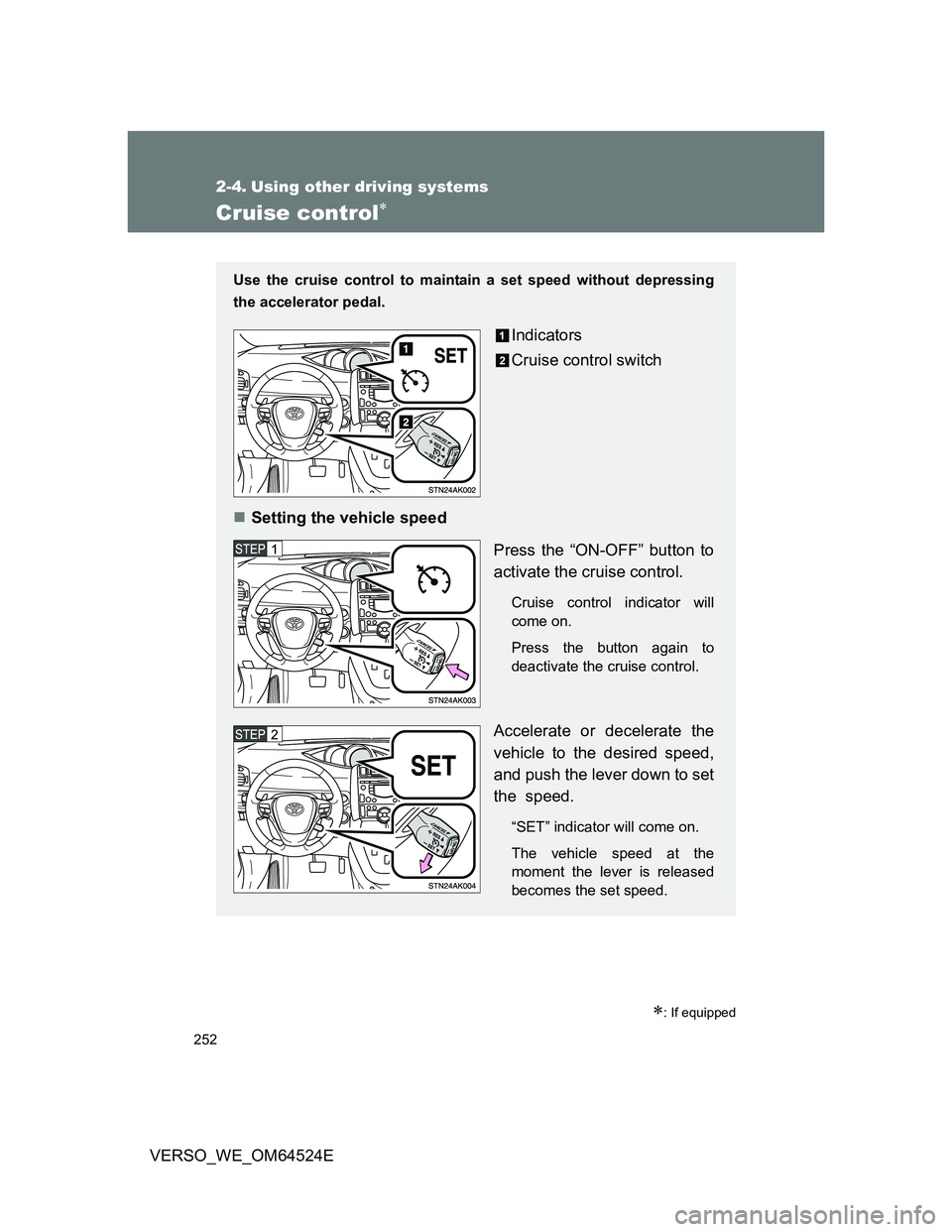

Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.

254 2-4. Using other driving systems
VERSO_WE_OM64524E
Cruise control can be set when
Vehicles with a Multidrive
The shift lever is in the “D” or range 4 or higher of “M” has been selected.
Range 4 or higher has been selected by using the paddle shift.
(vehicles with paddle shift switch)
Vehicle speed is above approximately 40 km/h (25 mph).
Vehicles with an automatic transmission
The shift lever is in “D”.
Range 4 or higher of “D” has been selected by using the paddle shift.
(vehicles with paddle shift switch)
Vehicle speed is above approximately 40 km/h (25 mph).
Accelerating after setting the vehicle speed
The vehicle can be accelerated normally. After acceleration, the set
speed resumes.
Even without canceling the cruise control, the set speed can be
increased by first accelerating the vehicle to the desired speed and then
pushing the lever down to set the new speed.
Automatic cruise control cancellation
Cruise control will stop maintaining the vehicle speed in any of the following
situations.
Actual vehicle speed falls more than approximately 16 km/h (10 mph)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
Actual vehicle speed is below approximately 40 km/h (25 mph).
VSC+ is activated (if equipped).
Speed limiter is activated (if equipped).
If the cruise control indicator light flashes
Press the “ON-OFF” button once to deactivate the system, and then press
the button again to reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.

255 2-4. Using other driving systems
2
When driving
VERSO_WE_OM64524E
CAUTION
To avoid operating the cruise control by mistake
Switch the cruise control off using the “ON-OFF” button when not in use.
Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in loss of control and could cause an accident resulting
in death or serious injury.
In heavy traffic
On roads with sharp bends
On winding roads
On slippery roads, such as those covered with rain, ice or snow
On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
When your vehicle is towing a trailer

256
2-4. Using other driving systems
VERSO_WE_OM64524E

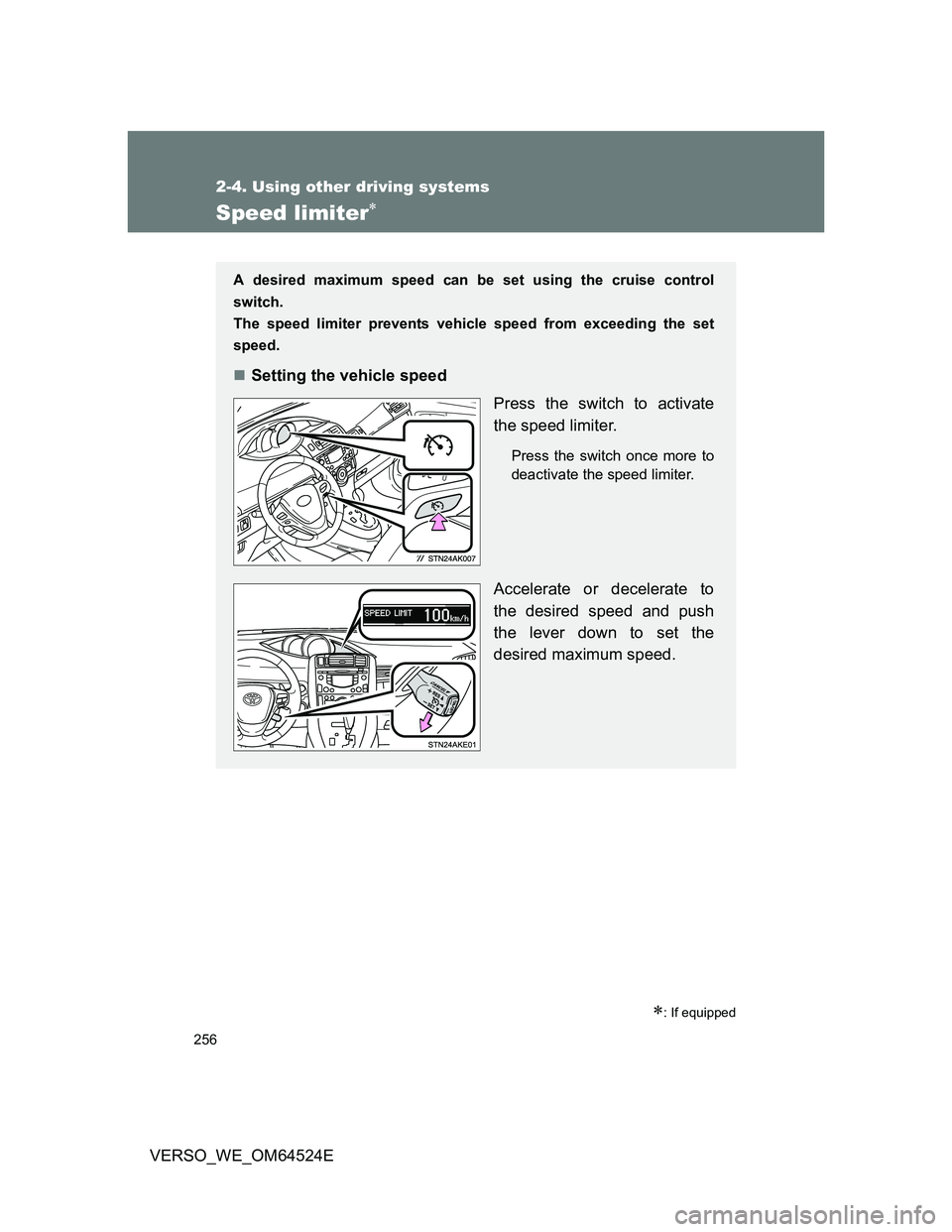

Speed limiter
: If equipped
A desired maximum speed can be set using the cruise control
switch.
The speed limiter prevents vehicle speed from exceeding the set
speed.
Setting the vehicle speed
Press the switch to activate
the speed limiter.
Press the switch once more to
deactivate the speed limiter.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
desired maximum speed.

258 2-4. Using other driving systems
VERSO_WE_OM64524E
Exceeding the set speed
In the following situations, the vehicle speed exceeds the set speed:
Automatic speed limiter cancellation
The set speed is automatically canceled when the cruise control is activated.
CAUTION
To avoid operating the speed limiter by mistake
Keep the speed limiter switch off when not in use.
Situations unsuitable for speed limiter
Do not use the speed limiter in either of the following situations.
Doing so may result in control of the vehicle being lost and could cause a
serious or fatal accident.
On slippery roads, such as those covered with rain, ice or snow
On steep hills
When towing a trailer
When fully depressing the accelerator
pedal
When driving down a hill

290 2-5. Driving information
VERSO_WE_OM64524EWhen parking the vehicle
Always place wheel chocks under the wheels of both the vehicle
and trailer. Firmly set the parking brake and shift the shift lever to
“P” for Multidrive or automatic transmission, and “1” or “R” for man-
ual transmission.
CAUTION
Follow all the instructions described in this section.
Failure to do so could cause an accident resulting in death or serious injury.
Trailer towing precautions
When towing, make sure that none of the weight limits are exceeded.
(P. 283)
Before descending hills or long declines
Reduce speed and downshift. However, never downshift suddenly while
descending steep or long downhill grades.
Operation of the brake
Do not hold the brake pedal depressed often or for long periods.
Doing so may result in the brake overheating or reduce braking effects.
To avoid accident or injury
Do not exceed 100 km/h (62 mph) or the posted towing speed limit, which-
ever is lower.
Do not use cruise control when you are towing.
Vehicles with a compact spare tire: Do not tow if your vehicle has a com-
pact spare tire installed.

476 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
*: Except South Africa, Morocco
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system
*;
• The electronic engine control system;
• The electronic throttle control system;
• The electronic Multidrive or automatic transmission control
system. (if equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS;
• The brake assist system (vehicles with VSC+)
Electric power steering warning light (warning buzzer)
Indicates a malfunction in the EPS system.
(Flashing)Cruise control warning light (if equipped)
Indicates a malfunction in the cruise control system.
Automatic headlight leveling system warning light
(if equipped)
Indicates a malfunction in the automatic headlight leveling
system.

5
505 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
CAUTION
When the spare tire is installed
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & brake assist
VSC+ (if equipped)
TRC (if equipped)
Cruise control (if equipped)
Navigation system (if equipped)
NOTICE
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.
