2012 TOYOTA SIENNA turn signal bulb

241
2-1. Driving procedures
2
When driving
SIENNA_U (OM45477U)
Tur n signal lever
■Turn signals can be operated when
Vehicles without a smart key system:
The engine switch is in the “ON” position.
Vehicles with a smart key system:
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.

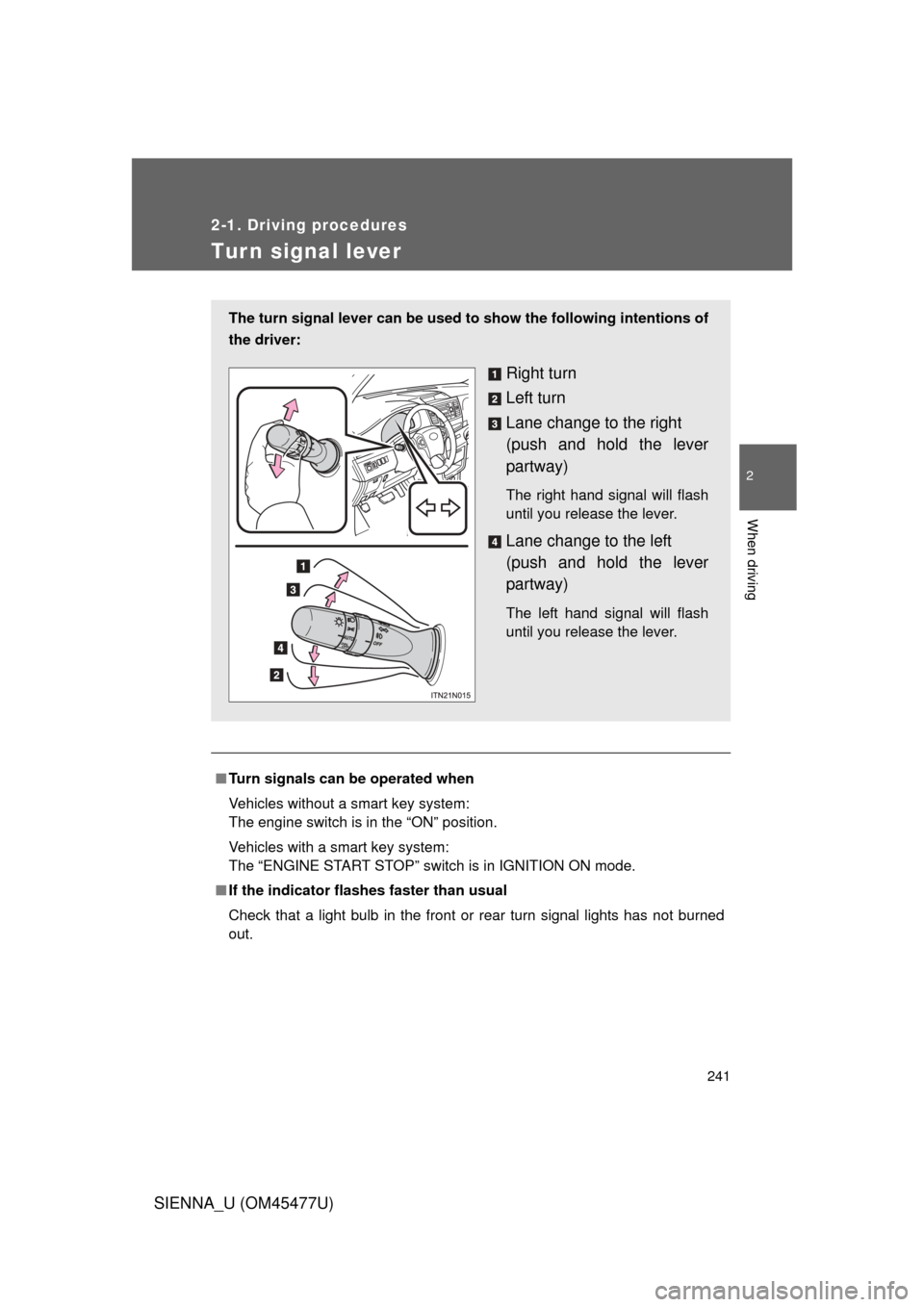

The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signal will flash
until you release the lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signal will flash
until you release the lever.

709
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

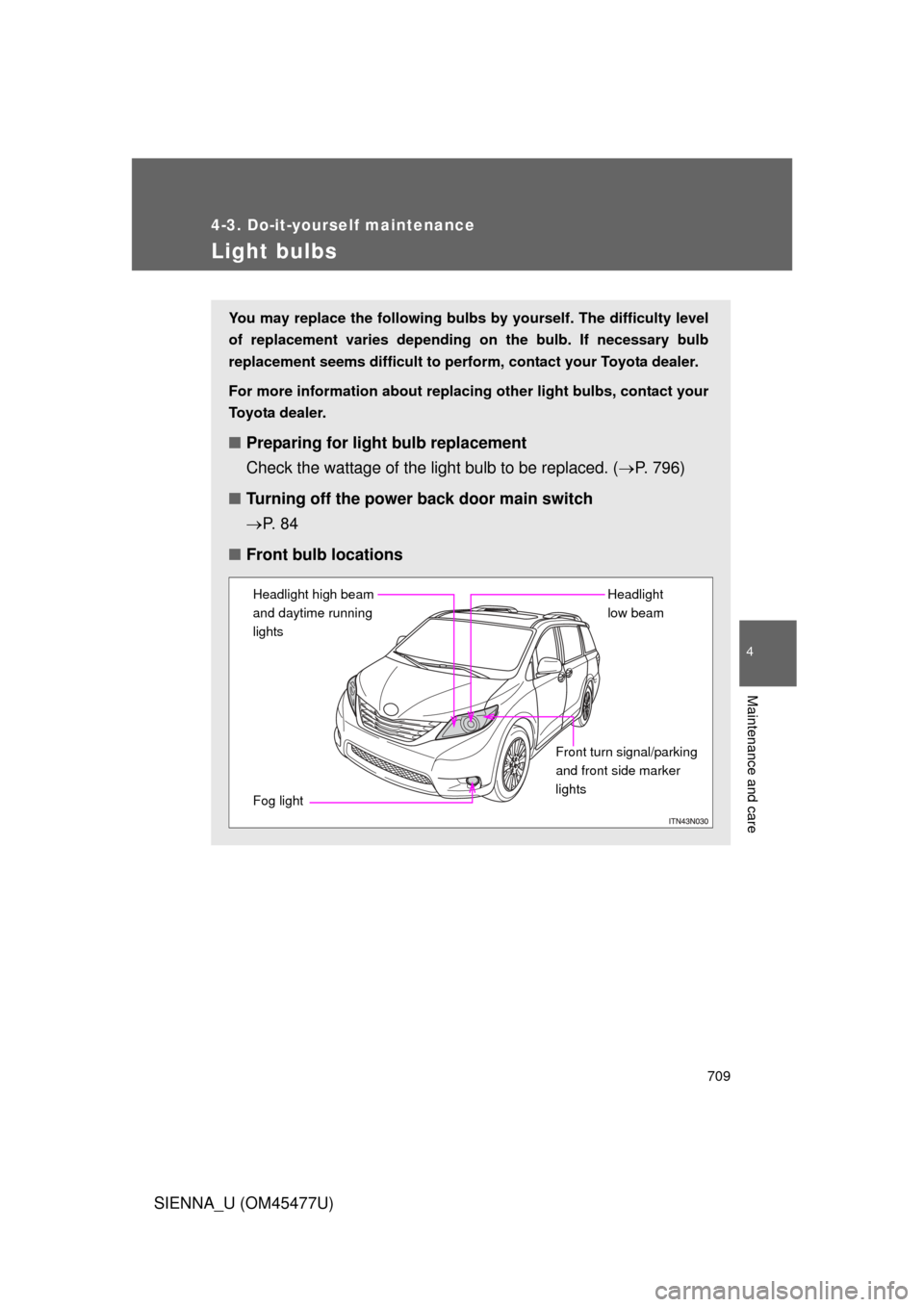

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P. 796)
■ Turning off the power back door main switch
P. 8 4
■ Front bulb locations
Fog light Headlight high beam
and daytime running
lights Headlight
low beam
Front turn signal/parking
and front side marker
lights

710 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
Replacing light bulbs■ Headlight low beams (halogen bulb)
For left side only:
Open the fuse box cover. ( P. 696)
Unplug the connector while
pushing the lock release.
■ Rear bulb locations
Back-up lightRear turn
signal light
License plate
lightsTail light
STEP1
STEP2

713
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
■

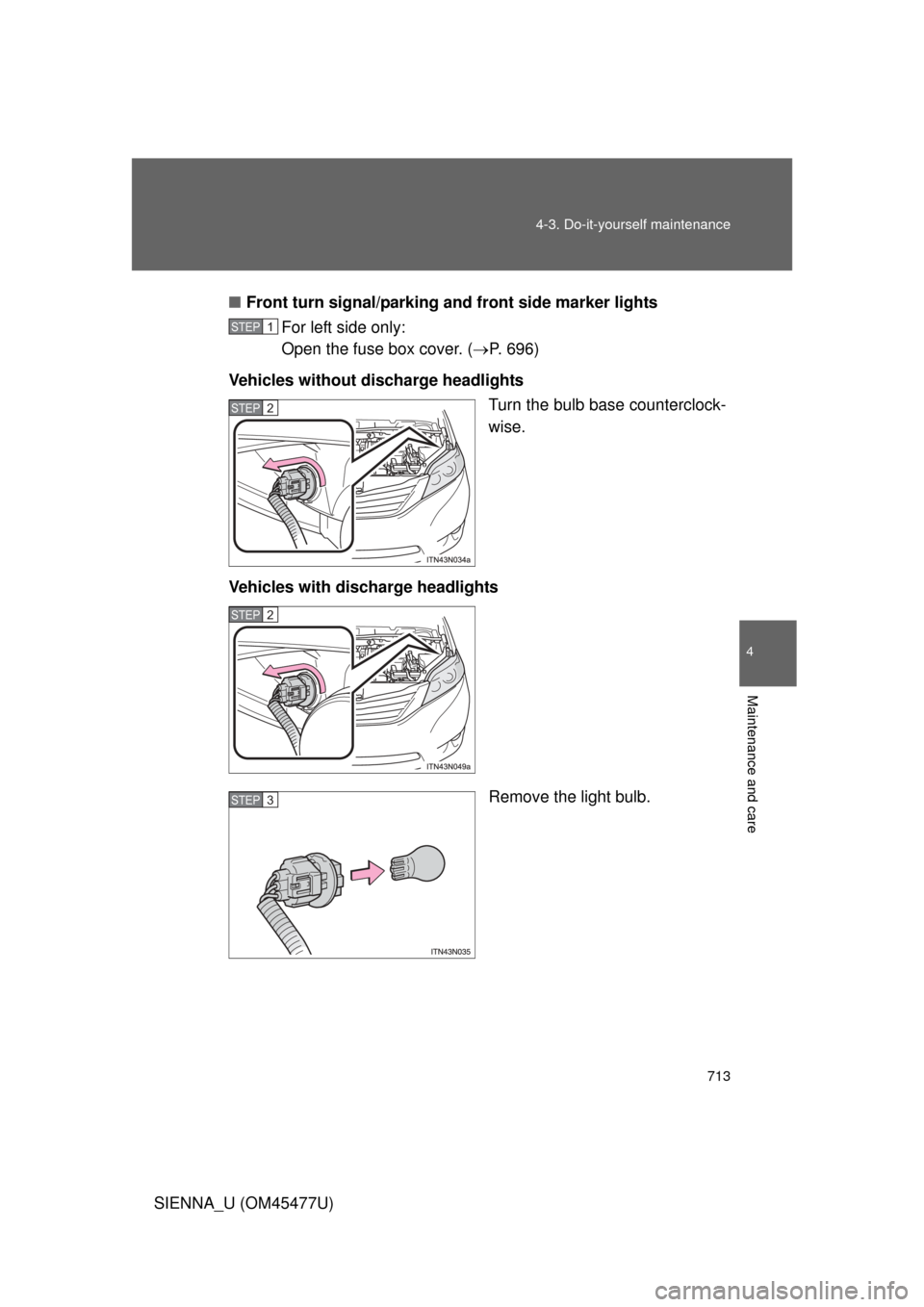

Front turn signal/parking and front side marker lights
For left side only:
Open the fuse box cover. ( P. 696)
Vehicles without discharge headlights Turn the bulb base counterclock-
wise.
Vehicles with discharge headlights
Remove the light bulb.
STEP1
STEP2
STEP2
STEP3

714 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)■

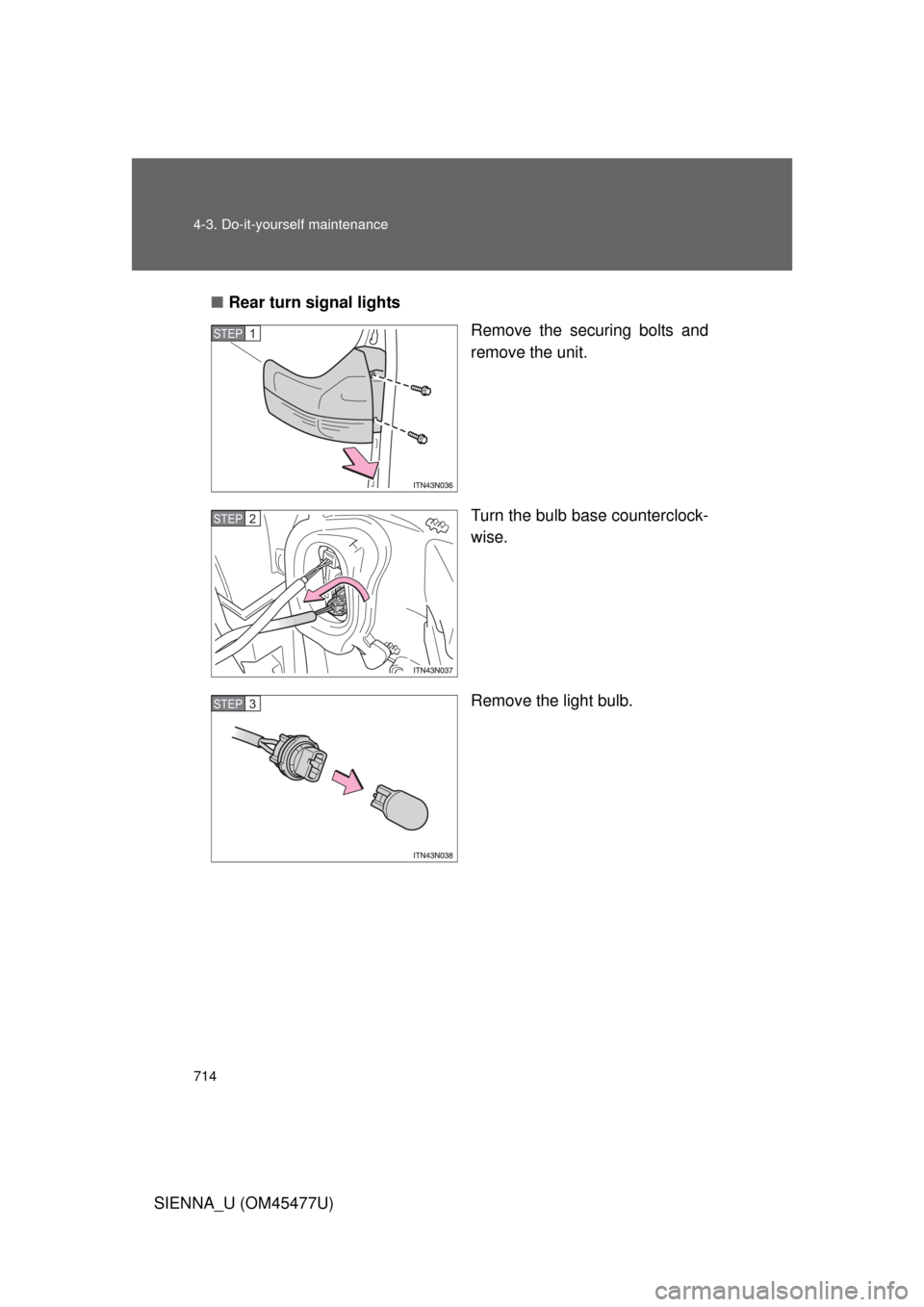

Rear turn signal lights
Remove the securing bolts and
remove the unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

796 6-1. Specifications
SIENNA_U (OM45477U)
Light bulbs
A: D4S discharge bulbsB: H11 halogen bulbs
C: HB3 halogen bulbs D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber) F: Double end bulbs
Light BulbsBulb No.WTy pe
Exterior Headlights (low beam)
Discharge bulbs
Halogen bulbs 
35
55 A
B
Headlights (high beam) 9005 60 C
Front fog lights 55 B
Front turn signal/parking/side
marker lights 3457NAK 28/8 E
Rear turn signal lights WY21W 21 E
Tail lights W5W 5 D
Back-up lights 921 16 D
License plate lights W5W 5 D
Outer foot lights W6W 6 D
Interior Front personal/interior lights W5W 5 D
Rear personal/interior lights W5W 5 D
Luggage compartment light
5F
Vanity lights 2.8 F
Front door courtesy lights 5D
