2012 TOYOTA RAV4 EV Warranty And Maintenance Guide

IMPORTANT MAINTENANCE
INFORMATION
Maintenance Records
Maintaining your vehicle according to the
recommendations in this booklet is
required to ensure that your warranty
coverage remains intact. You should keep
detailed records of vehicle maintenance,
including date of service, mileage at time
of service and a description of service
and/or parts installation performed. The
scheduled maintenance log in this booklet
can help you document this information. If
you sell your vehicle, be sure to give your
maintenance records to the new owner.
Toyota will not deny a warranty claim
solely because you do not have records to
show that you maintained your vehicle.
However, damage or failure caused by lack
of proper maintenance are not covered
under warranty.
Maintenance Providers
Maintenance and repair services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely because
you used a service provider other than a
Toyota dealership for maintenance and
repairs. However, damage or failure
caused by improper maintenance or
repairs are not covered under warranty.
Dealer-Recommended
Maintenance
Your dealer may recommend more
frequent maintenance intervals or more
maintenance services than those listed in
the scheduled maintenance log. These
additional services are not required to
maintain your warranty coverage. Ask your
dealer to explain any recommended
maintenance not included in the scheduled
maintenance log.
For a complete description of Toyota
warranty coverages, see the Warranty
Information portion of this booklet.
Maintaining Your Warranty
Maintenance Log23
MAINTENANCE

R
egular maintenance is essential to
obtaining the highest level of
performance from your Toyota. It
can also increase your vehicle’s resale
value. This booklet presents Toyota’s
maintenance recommendations in
convenient checklists, so you can easily
see what type of maintenance your vehicle
needs and document that the work was
performed.
To ensure that your vehicle receives
first-quality service and parts, Toyota
recommends having maintenance
performed by an authorized Toyota
dealership. Toyota dealership technicians
are experts on Toyota vehicles, and they
use Genuine Toyota Parts designed to your
vehicle’s exact specifications. When you
go to a Toyota dealership, you can be
confident that they will use Genuine Toyota
parts and have Toyota-trained technicians.
Miles or Months?
Toyota recommends obtaining scheduled
maintenance for your vehicle every
5,000 miles or six months, whichever
comes first.
For example:
• If you drive 5,000 miles in less than
six
months, you should obtain
maintenance at 5,000 miles- don’t
wait until six months. •
If at six months you have driven less
than

5,000 miles, you should obtain
maintenance at six months- don’t
wait until 5,000 miles.
Be sure to keep an eye on your mileage
so that you obtain maintenance when
recommended. If you are a low-mileage
driver, mark your calendar to remind
yourself to obtain maintenance every six
months.
Documenting Your Investment
To help you verify that you’ve invested in
proper maintenance, each maintenance
checklist includes space for your Toyota
dealership to certify that you obtained
Genuine Toyota Service for your vehicle.
The dealership may mark the dealer
service verification area with the following
stamp (which may be customized with the
dealership’s name):
Using the Maintenance Log Charts
24Maintenance Log
MAINTENANCE

Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE:You should perform these
additional maintenance services if you
drive
primarilyunder any of the special
operating conditions indicated. If you
drive only occasionally under these
conditions, it is not necessary to
perform the additional services.
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in the Vehicle Maintenance and
Care section of the
Owner’s Manual.Be
sure to perform these procedures regularly
to ensure the most trouble-free operation
of your vehicle.
SuperChrome and Alloy Wheel
Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels, follow
these cleaning guidelines to maintain the
appearance of your alloy wheels:
• If wheels are hot, wait for them to
cool
before washing.
• Use a soft sponge or cotton cloth to
apply

the same mild car-wash soap as
used for the vehicle body. Quickly
rinse off with water. Use a soft cloth
to apply the same car wax as used for
the vehicle body.
• DO NOT USE: Any kind of chemical
based

cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse
abrasives to clean your wheels.
Using the Maintenance Log Charts
Maintenance Log25
MAINTENANCE

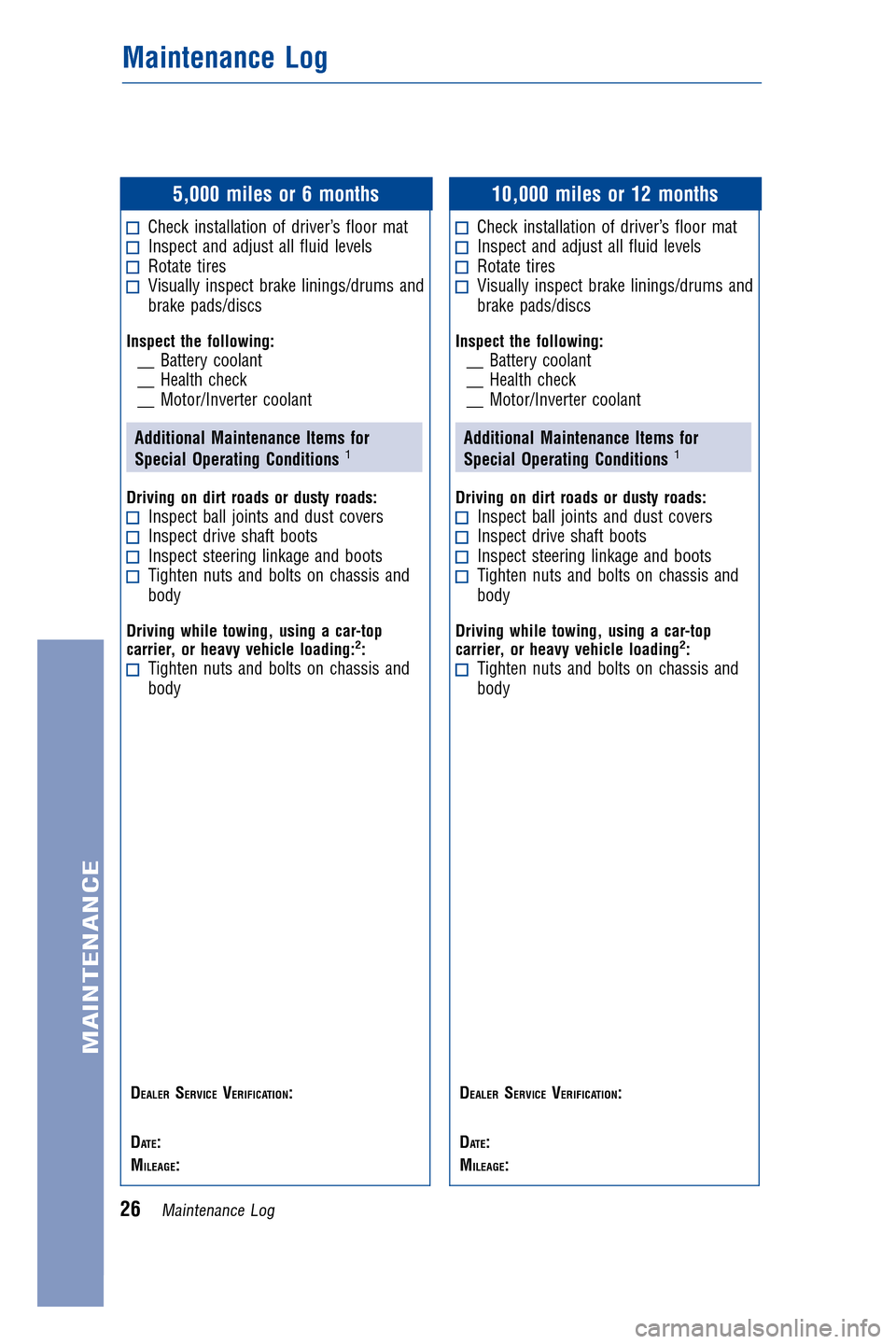

5,000milesor6months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsRotate tiresVisually inspectbrakelinings/drums and
brake pads/discs
Inspect thefollowing:__Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Itemsfor
Special Operating Conditions
1
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading:2:Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
10,000 milesor12 months
Check installation ofdriver’s floormatInspect andadjust allfluid levelsRotate tiresVisually inspectbrakelinings/drums and
brake pads/discs
Inspect thefollowing:__Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Itemsfor
Special Operating Conditions
1
Drivingondirt roads ordusty roads:Inspect balljoints anddust coversInspect driveshaft bootsInspect steering linkageandbootsTighten nutsandbolts onchassis and
body
Driving whiletowing, usingacar-top
carrier, orheavy vehicle loading2:Tightennutsandbolts onchassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
26MaintenanceLog

15,000 miles or 18 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and brake pads/discs
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Drive shaft boots
__ Health check
__ Heater coolant__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may
shorten the life of the cabin air filter. Replacement may be needed if you notice
reduced air flow from the air conditioner and heater or if the windows fog easily when
you use the Freshmode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log27

20,000 miles or 24 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
25,000 miles or 30 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
28Maintenance Log

30,000 miles or 36 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace cabin air filterRotate tires
Inspect the following:
__ Ball joints and dust covers
__ Battery coolant
__ Brake lines and hoses
__ Brake linings/drums and brakepads/discs
2
__ Drive shaft boots
__ Health check __ Heater coolant
__ Motor/Inverter coolant
__ Radiator, condenser, hoses and/or
intercooler
__ Steering gear box
__ Steering linkage and boots
Additional Maintenance Items for Special Operating Conditions
1
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading3:Tighten nuts and bolts on chassis and body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
1Perform these service items only if you drive primarily under the conditions indicated.2Inspect thickness measurement and disc runout.3Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
Maintenance Log
MAINTENANCE
Maintenance Log29

35,000 miles or 42 months
Check installation of driver’s floor matInspect and adjust all fluid levelsRotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
40,000 miles or 48 months
Check installation of driver’s floor matInspect and adjust all fluid levelsReplace battery coolant3
Replace motor/inverter coolant4
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Inspect the following:__ Battery coolant
__ Health check
__ Motor/Inverter coolant
Additional Maintenance Items for
Special Operating Conditions
1
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect steering linkage and bootsTighten nuts and bolts on chassis and
body
Driving while towing, using a car-top
carrier, or heavy vehicle loading2:Tighten nuts and bolts on chassis and
body
DEALERSERVICEVERIFICATION:
D
AT E:
M
ILEAGE:
Maintenance Log
MAINTENANCE
30Maintenance Log
