2012 TOYOTA IQ rear view mirror

25
iQ_WE_74014E

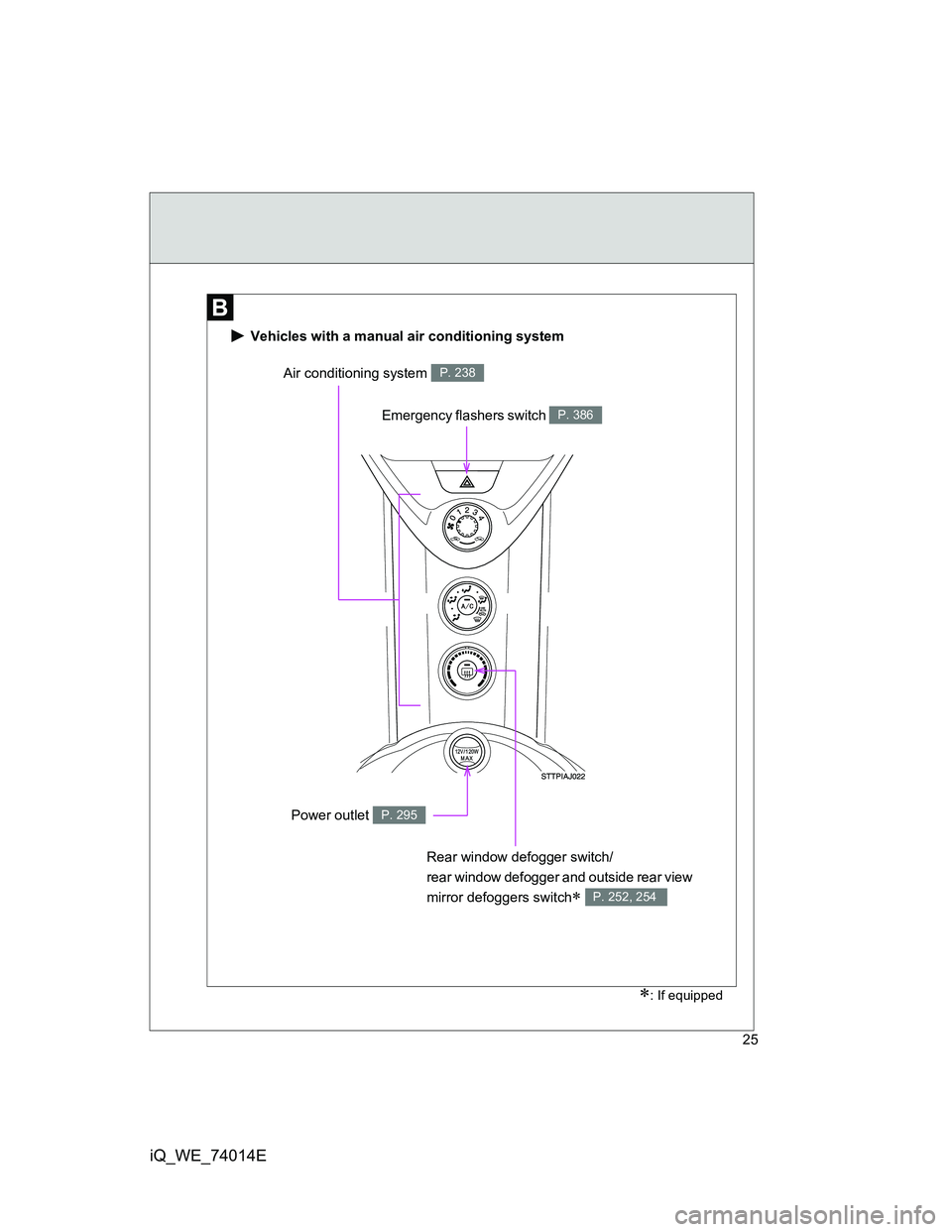

Power outlet P. 295
Emergency flashers switch P. 386
Air conditioning system P. 238
Rear window defogger switch/
rear window defogger and outside rear view
mirror defoggers switch
 P. 252, 254
Vehicles with a manual air conditioning system
: If equipped

26
iQ_WE_74014E

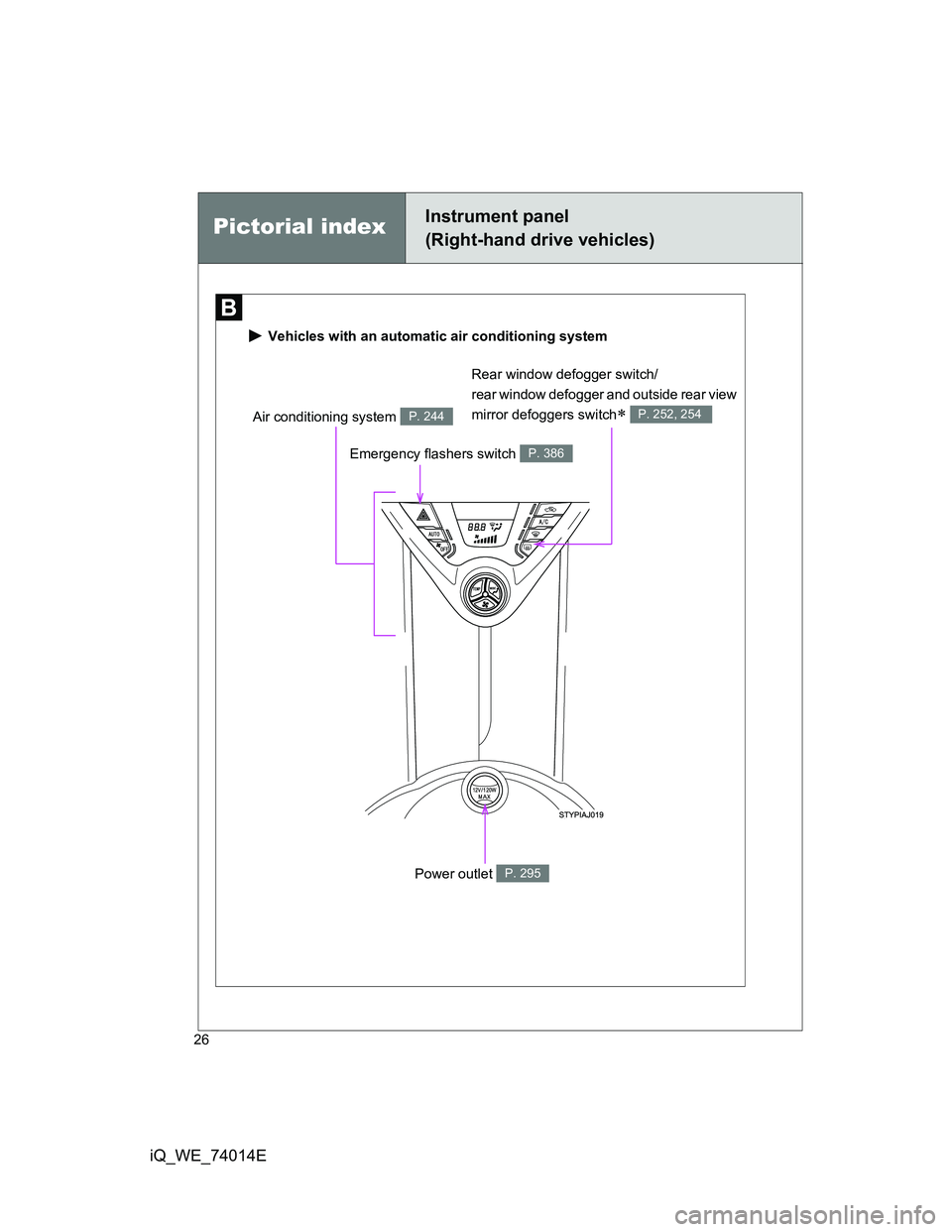

Pictorial indexInstrument panel
(Right-hand drive vehicles)
Vehicles with an automatic air conditioning system
Air conditioning system P. 244
Emergency flashers switch P. 386
Power outlet P. 295
Rear window defogger switch/
rear window defogger and outside rear view
mirror defoggers switch
 P. 252, 254

28
iQ_WE_74014E
Pictorial indexInstrument panel
(Right-hand drive vehicles)
Rear window wiper and washer switch P. 222
Headlight leveling dial P. 212
Windshield wipers and washer switch P. 218
Outside rear view mirror switches P. 95
Engine (ignition) switch
(vehicles with smart entry & start system)
P. 179
Engine (ignition) switch
(vehicles without smart entry & start system)
P. 176

1Before driving
35
iQ_WE_74014E
1-1. Key information
Keys.................................... 36
1-2. Opening, closing and locking
the doors
Smart entry & start
system .............................. 39
Wireless remote control ...... 62
Side doors .......................... 72
Back door ........................... 75
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 79
Rear seats .......................... 82
Seat belts............................ 86
Steering wheel .................... 91
Anti-glare inside rear
view mirror ........................ 92
Outside rear view mirrors ... 95
1-4. Opening and closing
the windows
Power windows................. 1001-5. Refueling
Opening the fuel tank
cap .................................. 103
1-6. Theft deterrent system
Engine immobilizer
system ............................ 108
Double locking
system ............................ 117
Alarm ................................ 119
1-7. Safety information
Correct driving posture ..... 122
SRS airbags...................... 124
Child restraint systems ..... 137
Installing child restraints ... 148
Airbag manual on-off
system ............................ 159

92
1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E

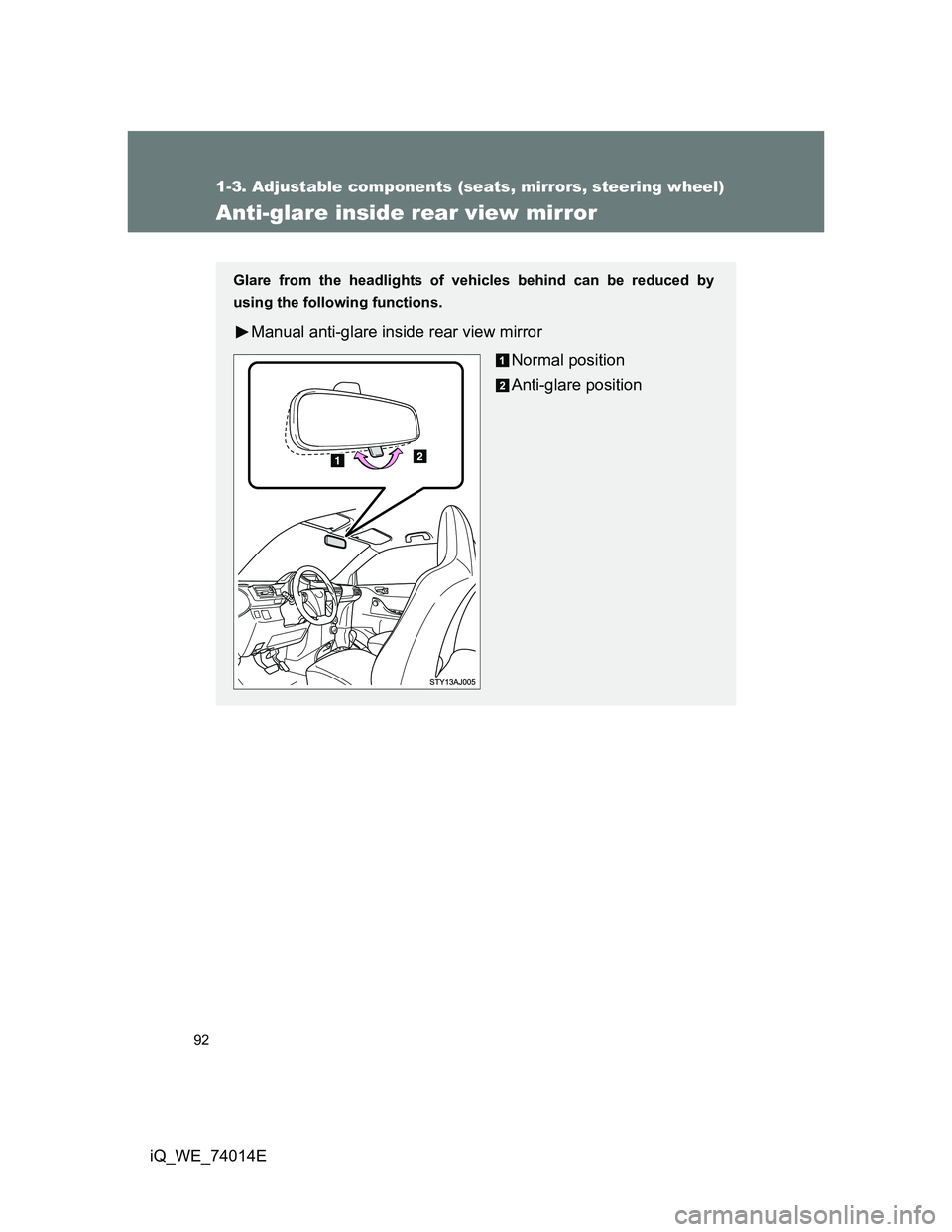

Anti-glare inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Manual anti-glare inside rear view mirror
Normal position
Anti-glare position

93 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
iQ_WE_74014E
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Auto anti-glare inside rear view mirror
In AUTO mode, a sensor is used to detect the headlights of vehi-
cles behind and automatically reduces the reflected light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
Vehicles without smart entry &
start system:
The mirror will revert to the
automatic mode each time the
engine switch is turned to the
ON position.
Vehicles with smart entry &
start system:
The mirror will revert to the
automatic mode each time the
“ENGINE START STOP”
switch is turned to IGNITION
ON mode.

94 1-3. Adjustable components (seats, mirrors, steering wheel)
iQ_WE_74014E
To prevent sensor error (vehicles with auto anti-glare inside rear view
mirror)
CAUTION
Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in
death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

95
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
iQ_WE_74014E

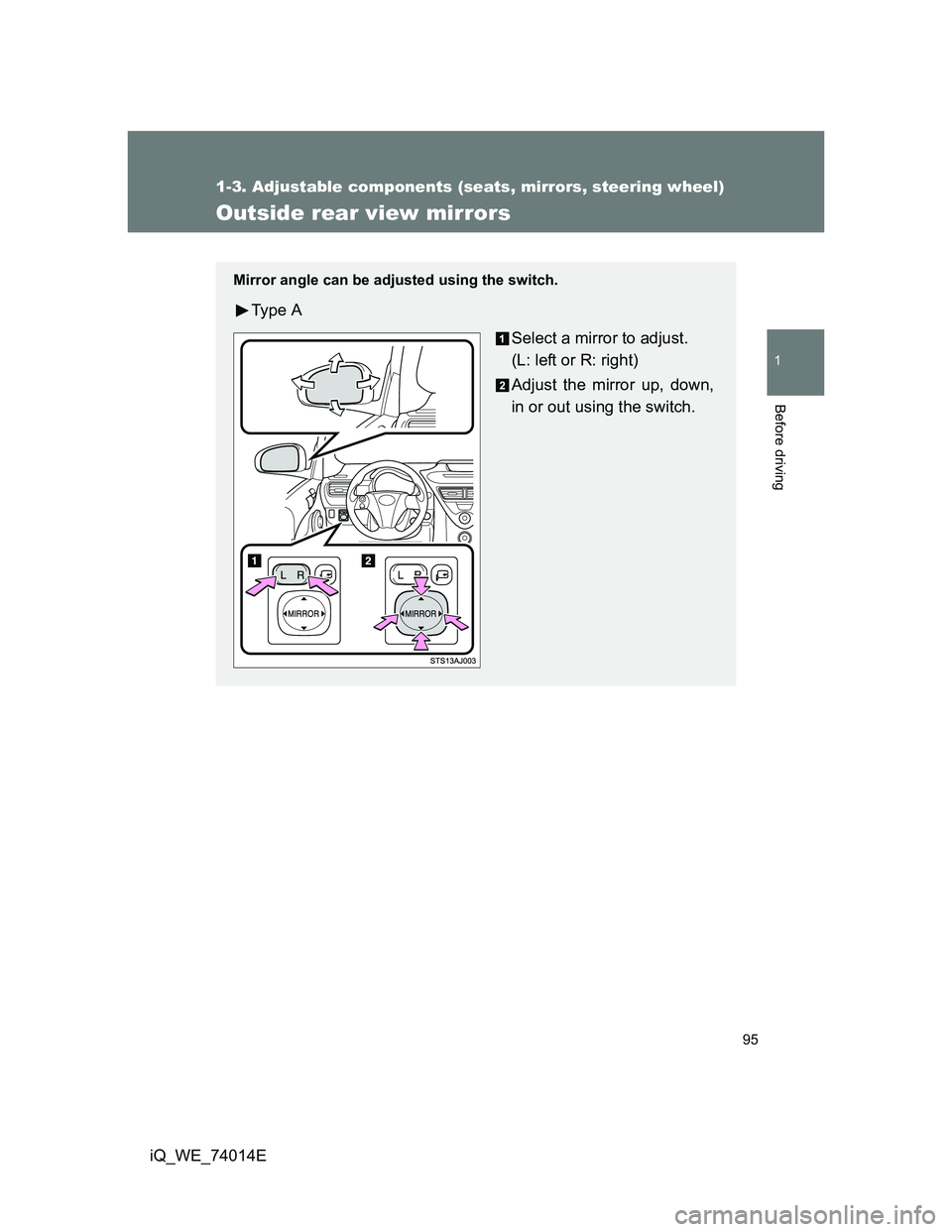

Outside rear view mirrors
Mirror angle can be adjusted using the switch.
Ty p e A
Select a mirror to adjust.
(L: left or R: right)
Adjust the mirror up, down,
in or out using the switch.
