2012 TOYOTA AVALON AUX

TABLE OF CONTENTSIndex
4
3-1. Using the air conditioningsystem a nd defogger
Automatic air conditioning system .............................. 228
Using the steering wheel climate control
switches ........................... 236
Rear window and outside rear view mirror
defoggers ......................... 237
3-2. Using the audio system Audio system type .............. 239
Using the radio ................... 243
Using the CD player ........... 251
Playing back MP3 and WMA discs ....................... 259
Operating an iPod .............. 267
Operating a USB memory ............................ 274
Optimal use of the audio system .............................. 282
Using the AUX port ............ 285
Using the steering switches ........................... 286 3-3. Using the Bluetooth
® audio
system
Bluetooth
® audio
system .............................. 289
Using the Bluetooth
®
audio system .................... 292
Operating a Bluetooth
®
enabled portable
player ................................ 299
Setting up a Bluetooth
®
enabled portable
player ................................ 301
Bluetooth
® audio system
setup ................................. 307
3-4. Using the hands-free s ystem
( for cellular phone)
Hands-free system (for cellular phone) ........... 308
Using the hands-free system .............................. 311
Making a phone call............ 320
Setting a cellular phone ...... 325
Security and system setup ................................. 332
Using the phone book......... 337
3-5. Using the interior lights Interior lights list.................. 346
3Interior features

226
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ........................... 228
Using the steering wheel climate control
switches ......................... 236
Rear window and outside rear view mirror
defoggers ....................... 237
3-2. Using the audio system Audio system type............ 239
Using the radio ................. 243
Using the CD player ......... 251
Playing back MP3 and WMA discs ..................... 259
Operating an iPod ............ 267
Operating a USB memory .......................... 274
Optimal use of the audio system ........................... 282
Using the AUX port .......... 285
Using the steering switches ......................... 286
Interior features3

240 3-2. Using the audio system

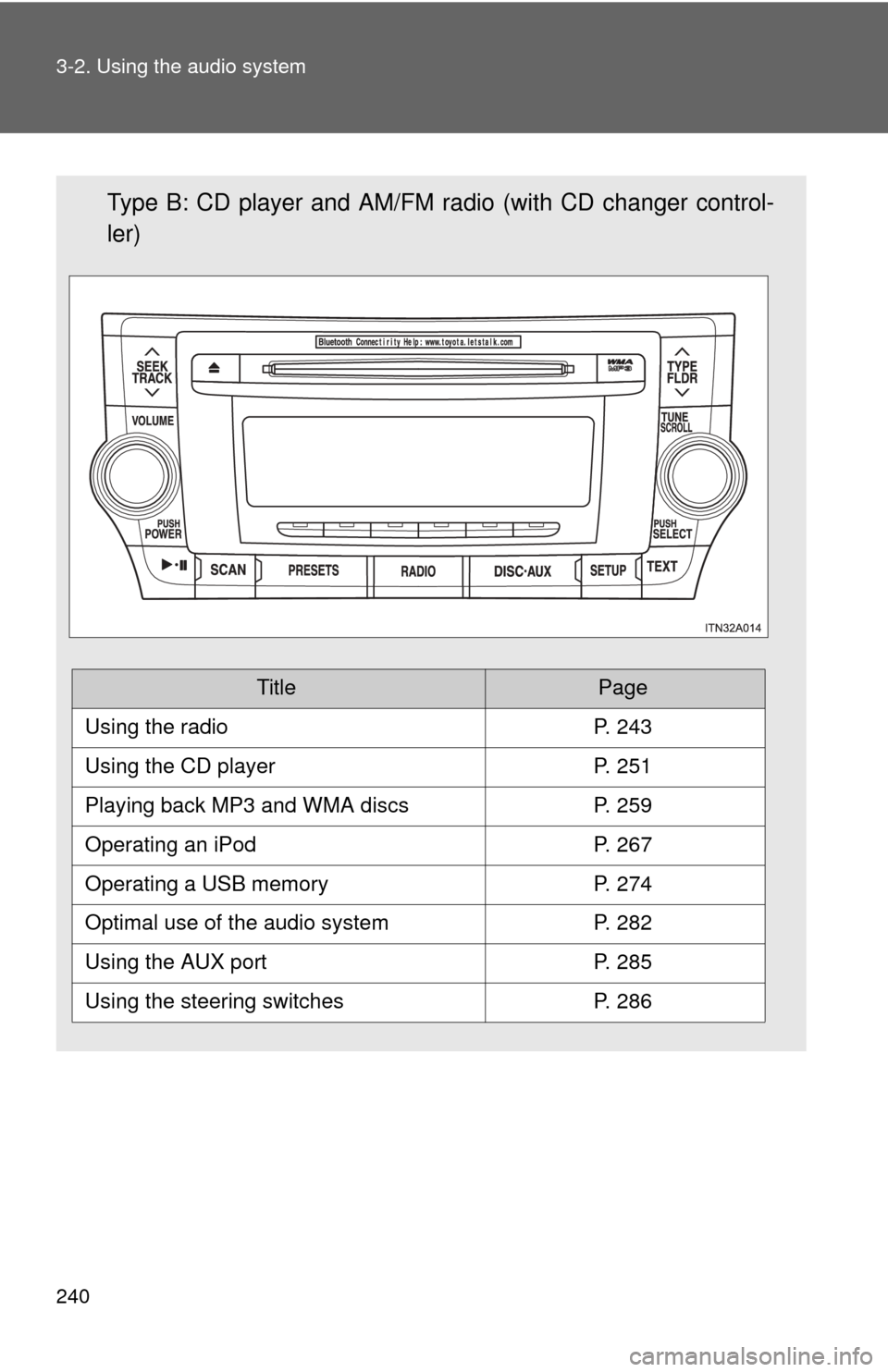

Type B: CD player and AM/FM radio (with CD changer control-
ler)
TitlePage
Using the radioP. 243
Using the CD playerP. 251
Playing back MP3 and WMA discs P. 259
Operating an iPodP. 267
Operating a USB memoryP. 274
Optimal use of the audio systemP. 282
Using the AUX portP. 285
Using the steering switchesP. 286

285
3-2. Using the audio system
3
Interior features
Using the AUX port
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
This port can be used to connect a portable audio device and listen
to it using the vehicle’s speakers.
Open the cover and connect the portable audio device.
Press .STEP1
STEP2

287
3-2. Using the audio system
3
Interior features
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding the switch down until you
hear a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time the bu tton is pressed. If a CD is not
inserted, that mode will be skipped.
FM SAT CD CD changer (type A only) USB/iPod

AUX Bluetooth
® audio AM
Adjusting the volume
Press “+” on to increase the vo lume and “-” to decrease the
volume.
Press and hold the switch to continue increasing or decreasing the vol-
ume.
Selecting a radio station
Press to select the radio mode.
Press “” or “ ” on to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
STEP1
STEP2

294 3-3. Using the Bluetooth
® audio system
Operating the system using voice commandsBy following voice gui dance instructions output from the speaker,
voice commands enable to th e operation of the Bluetooth
® audio sys-
tem without the need to check the display or operate .
■ Operation procedure when using voice commands
Press the talk switch and follo w voice guidance instructions.
■ Auxiliary commands when using voice commands
The following auxiliary commands can be used when operating the
system using a voice command:
“Cancel”: Exits the Bluetooth
® audio system
“Repeat”: Repeats the previous voice guidance instruction
“Go back”: Returns to the previous procedure
“Help”: Reads aloud the function summary if a help comment is
registered for the selected function

313
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
Operating the system by using a voice command
By following voice guidance inst ructions output from the speaker,
voice commands can be given to allow for operation of the hands-
free system without checking the display or operating .
■ Operation procedure when using a voice command
Press the talk switch and follo w voice guidance instructions.
■ Auxiliary commands when using a voice command
The following auxiliary commands can be used:
Cancel: Exits the hands-free system
Repeat: Repeats the previous voice guidance instruction
Go back: Returns to the previous procedure
Help: Reads aloud the function summary if a help comment is registered for the selected function

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 527)
■ Remove the engine compartment cover
P. 407
■ Front bulb locations
Front side marker light
Front turn signal/parking light
Front fog light
Headlight high beam and
daytime running light
Auxiliary light
Headlight low beam
