6067-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Indicates that the
engine oil should be
changed.
1ND-TV engine
Comes on approxi-
mately 15000 km
(9300 miles) after the
engine oil is
changed. (The indi-
cator will not work
properly unless the
oil maintenance data
has been reset.)
1AD-FTV engine
Comes on approxi-
mately 30000 km
(18000 miles) after
the engine oil is
changed. (The indi-
cator will not work
properly unless the
oil maintenance data
has been reset.)
Check and change the
engine oil and oil filter
by any authorized
Toyota dealer or
repairer, or another
duly qualified and
equipped professional.
After changing the
engine oil, the oil
change system should
be reset. (P. 503)
Warning messageDetailsCorrection procedure
(Diesel engine)

6087-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Indicates that the
amount of accumu-
lated deposits in the
DPF catalytic con-
verter has reached the
specified level.
To clean with DPF cata-
lytic converter, drive the
vehicle at a speed of 65
km/h (40 mph) or
greater for 20 to 30
minutes as much as
possible until the mes-
sage goes off.
Do not turn off the
engine as much as
possible until the mes-
sage goes off.
If it is not possible to
drive the vehicle at
speeds of 65 km/h (40
mph) or greater, or the
DPF system warning
light does not turn off
even after driving for
more than 30 minutes,
have the vehicle
inspected by any
authorized Toyota
dealer or repairer, or
another duly qualified
and equipped profes-
sional.
Indicates that the
hybrid system has
overheated
• A buzzer also
sounds.
• This message may
be displayed when
driving under
severe operating
conditions. (For
example, when
driving up a long
steep hill.)
Stop and check.
(P. 687)
Warning messageDetailsCorrection procedure
(Diesel engine)
(Hybrid model)

6117-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart entry & start system or push button start)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure
OnceThe electronic key
is not detected
when an attempt
is made to start
the engine.Start the
engine with
the elec-
tronic key
present.
The electronic key
is not detected
when an attempt
is made to start
the hybrid system.Start the
hybrid sys-
tem with
the elec-
tronic key
present.
(Flashes)
(Except hybrid model)*1
(Flashes)
(Hybrid model)
*1, 2

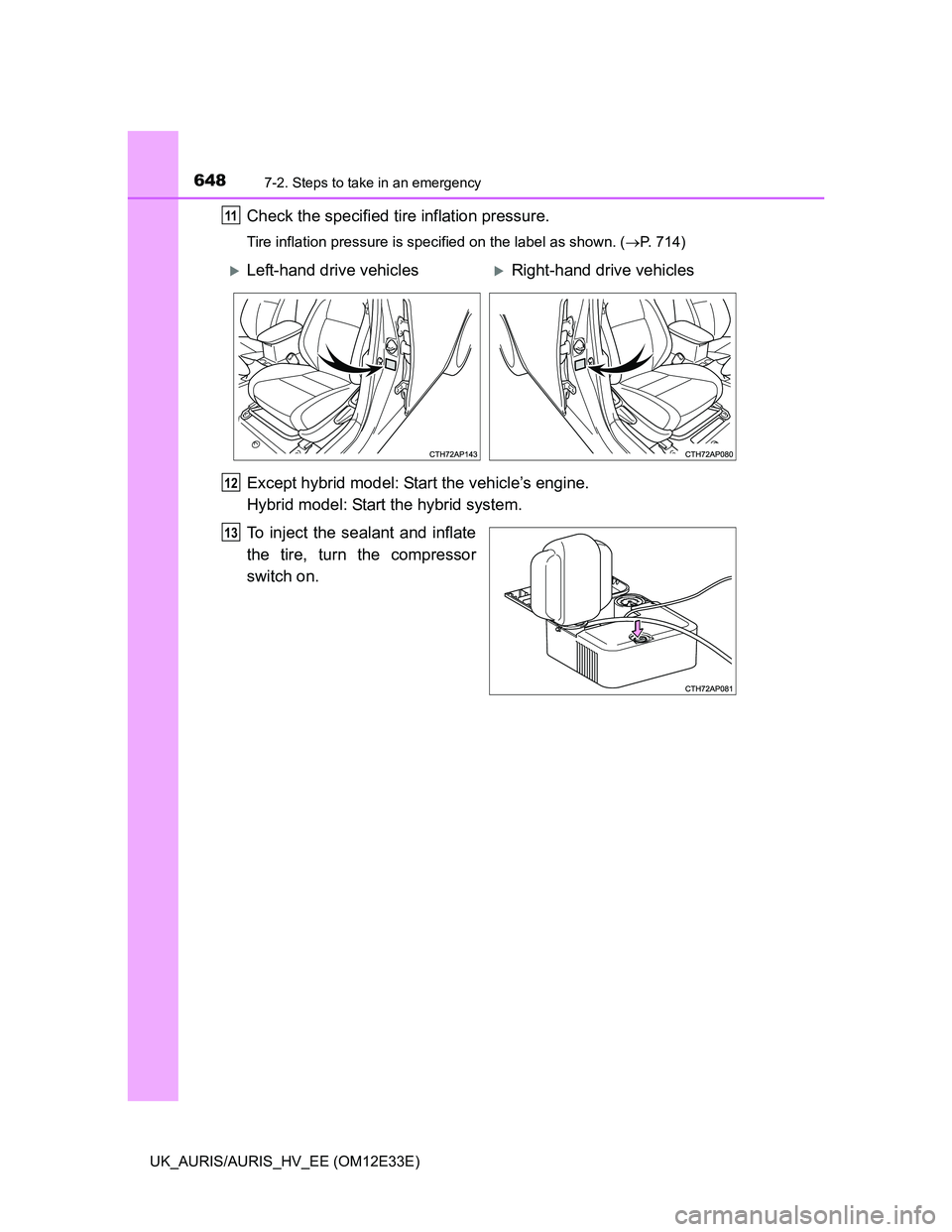

6487-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 714)
Except hybrid model: Start the vehicle’s engine.
Hybrid model: Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

6557-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. (P. 714)
Except hybrid model: Start the vehicle’s engine.
Hybrid model: Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
Left-hand drive vehiclesRight-hand drive vehicles
12
13

6717-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Multidrive: Ensure that the shift lever is in P and depress the brake
pedal.
Multi-mode manual transmission: Ensure that the shift lever is in N
and depress the brake pedal.
Manual transmission: Shift the shift lever to N and depress the
clutch pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
The engine switch will turn to IGNI-
TION ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.
Vehicles without a multi-information display: Firmly depress the
brake pedal (Multidrive or multi-mode manual transmission) or
clutch pedal (manual transmission) and check that the smart entry
& start system indicator light (green) turns on.
Vehicles with a multi-information display: Firmly depress the brake
pedal (Multidrive or multi-mode manual transmission) or clutch
pedal (manual transmission) and check that is shown on the
multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
Starting the engine (except hybrid model)
1
2
3
4

6727-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
Depress the brake pedal.
Touch the Toyota emblem side
of the electronic key to the
power switch.
The power switch will turn to ON
mode.
When the smart entry & start sys-
tem or push button start is deacti-
vated in customization setting, the
power switch will turn to ACCES-
SORY mode.
Firmly depress the brake pedal and check that is shown on
the multi-information display.
Press the power switch.
In the event that the hybrid system still cannot be started, contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Stopping the engine (except hybrid model)
Shift the shift lever to P (Multidrive) or N (manual transmission and multi-
mode manual transmission) and press the engine switch as you normally do
when stopping the engine.
Stopping the hybrid system (hybrid model)
Push the P position switch and press the power switch as you normally do
when stopping the hybrid system.
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(P. 529)
Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered.
Starting the hybrid system (hybrid model)
1
2
3
4

6737-2. Steps to take in an emergency
UK_AURIS/AURIS_HV_EE (OM12E33E)
7
When trouble arises
Changing engine switch modes (except hybrid model)
Release the brake pedal (Multidrive and multi-mode manual transmission) or
clutch pedal (manual transmission) and press the engine switch in step
above.
The engine does not start and modes will be changed each time the switch is
pressed. (P. 261)
Changing power switch modes (hybrid model)
Release the brake pedal and press the power switch in step above.
The hybrid system does not start and modes will be changed each time the
switch is pressed. (P. 261)
When the electronic key does not work properly
Make sure that the smart entry & start system and push button start has not
been deactivated in the customization setting. If it is off, turn the function on.
(Customizable features P. 719)
Check if battery-saving mode is set. If it is set, cancel the function.
(P. 157)
